Operating and assembly instructions
KNX building
management
system
KNX switch-
ing/blind actua-
tor
KNX Secure switching/blind actuator 16/8-gang,
16 A, C load
TYMS616D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TYMS616D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for hager TYMS616D

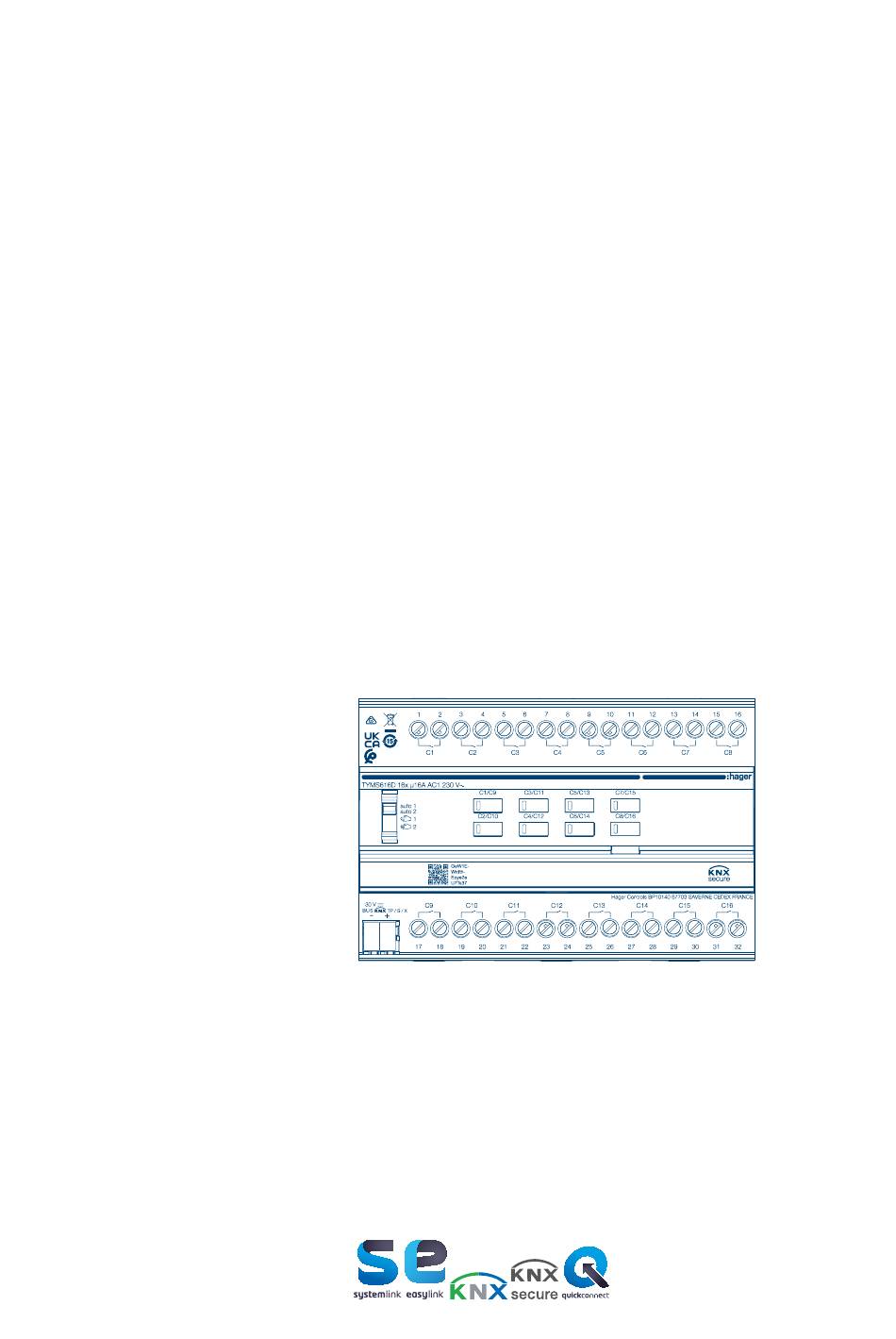

  • Page 1 Operating and assembly instructions KNX building management system KNX switch- ing/blind actua- KNX Secure switching/blind actuator 16/8-gang, 16 A, C load TYMS616D...
  • Page 3: Table Of Contents

    Table of contents Introduction..............4 Safety instructions............6 Scope of delivery............7 Design and layout of the device........ 8 Function................ 9 System information......................9 systemlink commissioning....................9 easylink commissioning.......................9 Functional description......................9 Correct use........................... 9 Product characteristics..................... 10 Operation..............11 Information for qualified electricians.......13 Installation and electrical connection................
  • Page 4: Introduction

    KNX-certified Supports KNX Data Secure Installation terminal with ac- Compatibility with Compatibility with Hager tuation opening KNX S-mode (ETS) Easytool Suitable for use in Aus- Suitable for use in China Suitable for use in Morocco tralia and New Zealand Manufacturer’s information...
  • Page 5 Introduction Symbol Description Warning against damage from mechanical stress. Warning against damage from electricity. Warning against damage from fire. Target group Electronic devices may only be assembled, installed and configured by an electrically trained and certified specialist in accordance with the relevant installation standards of the country.
  • Page 6: Safety Instructions

    Safety instructions Safety instructions Electrical devices must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, guidelines, regulations, directives, safety and accident prevention directives of the country. Hazard due to electric shock. Disconnect before working on the device or load. Take into ac- count all circuit breakers that supply dangerous voltages to the device or load.
  • Page 7: Scope Of Delivery

    Scope of delivery Scope of delivery https://hgr.io/r/TYMS616D Fig. 1: TYMS616D scope of delivery...
  • Page 8: Design And Layout Of The Device

    Design and layout of the device Design and layout of the device Fig. 2: Design and layout of the device, switching/blind actuator, 16/8-gang Slide switch auto 1/auto 2/ KNX bus connection terminal Connections of loads Labelling field Illuminated programming button Operation button for manual mode for each pair of outputs with status LED...
  • Page 9: Function

    Function System information Function System information This device is a product of the KNX system and corresponds to the KNX guidelines. Detailed spe- cialised knowledge obtained from KNX training courses is required for understanding. The device is KNX Data Secure-compatible. KNX Data Secure can be configured in the ETS project and offers protection against manipulation in building automation.
  • Page 10: Product Characteristics

    Function Product characteristics Product characteristics – Compatible with KNX Data Secure products – Manual activation of the outputs on the device possible, building site operation – Status indication of the outputs on the device – Scene function – Forced position by higher-level controller –...
  • Page 11: Operation

    Operation Operation Switching manual mode on/off Bus voltage supply is present. Push switch (1) to position Manual mode is switched on; the outputs can be controlled independently of each other via the operation buttons (see Fig. 2/6): 1 switches on the control of outputs C1 …. C8 (16-gang). 2 switches on the control of outputs C9 …...
  • Page 12 Operation Operating outputs in manual mode Operation takes place per output by briefly pressing the operation button repeatedly (siehe Tab. Caution Risk of damage due to simultaneous pressing of the buttons for UP and DOWN if a motor is connected when the motor is in an unprogrammed state! Motors, hangings and the device may be destroyed! Only ever press one button in manual mode when working with unprogrammed devices.
  • Page 13: Information For Qualified Electricians

    Information for qualified electricians Installation and electrical connection Information for qualified electricians Installation and electrical connection Danger Electric shock when live parts are touched! An electric shock can lead to death! Isolate all connection cables before working on the device and cover any live parts in the area! Caution Impermissible heating if load of the device is too high!
  • Page 14 Information for qualified electricians Installation and electrical connection Connecting the device The device outputs (Fig. 2/3) are parameterised as switching outputs in the ETS. The device outputs (Fig. X) are parameterised as switching outputs in the ETS. Connect the load to the outputs of the device. In so doing, observe the torque details on the de- vice.
  • Page 15: Commissioning

    Information for qualified electricians Installation and electrical connection Connecting the bus cable The connection cables for the load and power supply are connected. Connect the bus cable via the bus connection terminal (Fig. 2/2). Fig. 7: Connecting the bus cable Commissioning The device can be programmed in three ways: –...
  • Page 16 Information for qualified electricians Commissioning Commissioning in KNX Secure mode The device has been installed and connected so that it is ready for operation. Activate safe commissioning mode in ETS. Enter the device certificate (QR code) (see Fig. 10), scan it (see Fig.
  • Page 17 Information for qualified electricians Commissioning QR code Ref. Num. Physikal. Adresse QR code Ref. Num. Physikal. Adresse 123... Fig. 11: Storing the device certifi- Fig. 12: Noting down the article number and cate in the project documentation physical address for the device certificate easylink Information on the system configuration can be taken from the extensive description of the service module easylink.
  • Page 18: Dismantling

    Information for qualified electricians Dismantling 1/auto 1 displays the status of the outputs C1 ... C8 (16-gang). 2/auto 2 displays the status of the outputs C9 ... C16 (16-gang). LED status Meaning of the signal Switch operation: LED lights up permanently. Load is activated.
  • Page 19 Information for qualified electricians Dismantling 0,5 Nm Fig. 13: Disconnecting the load cables Removing the bus connection terminal The bus voltage is switched off. Remove the bus connection terminal from the device. Fig. 14: Removing the bus connection terminal Dismantling the device The bus connection cable and the load cables have been disconnected.
  • Page 20 Information for qualified electricians Dismantling Fig. 15: Removing the device from the DIN rail Dispose of the device in line with the corresponding guidelines of the country (see Disposal ) or, if you have a warranty claim, contact the point of sale (see Warranty...
  • Page 21: Appendix

    Appendix Technical data Appendix Technical data KNX Medium TP1-256 Commissioning mode systemlink, easylink KNX supply voltage 21 ... 32 V SELV BUS connection mode Connecting terminal μ16 A AC1 230/240 V ~ Breaking capacity Incandescent/halogen lamps 2300 W Conventional transformers 1500 W Electronic transformers 1500 VA...
  • Page 22: Accessories

    Appendix Accessories Bus operation not possible. Bus voltage is not present. Check bus connection terminals for correct polarity. Check bus voltage by briefly pressing the programming button (5), red LED lights up if bus voltage is present. Manual mode is active. Switch (1) is in position 2.
  • Page 23 Hager Controls BP10140 67703 Saverne Cedex France +33 (0) 3 88 02 87 00 info@hager.com hager.com 2024-12...
