Epilog Laser Legend 36EXT Manual

Replacing the x-axis assembly

Download this manual

EPILOG LASER

16371 Table Mountain Parkway

Golden, Colorado 80403

Phone 303-215-9171 - FAX 303-277-9669

www.epiloglaser.com

Procedure Title:

Machine Type:

Tools Needed:

Intro:

This procedure details steps to removing the I-beam.

Procedure:

1. Pull I-beam to the center of the machine

2. Remove left side panel

3. Remove right side panel

Replacing the X-Axis Assembly

Legend 36EXT

Philips head screw driver

Note: There are three screws holding the

panel to the back of the machine.

I-Beam

Need help?

Do you have a question about the Legend 36EXT and is the answer not in the manual?

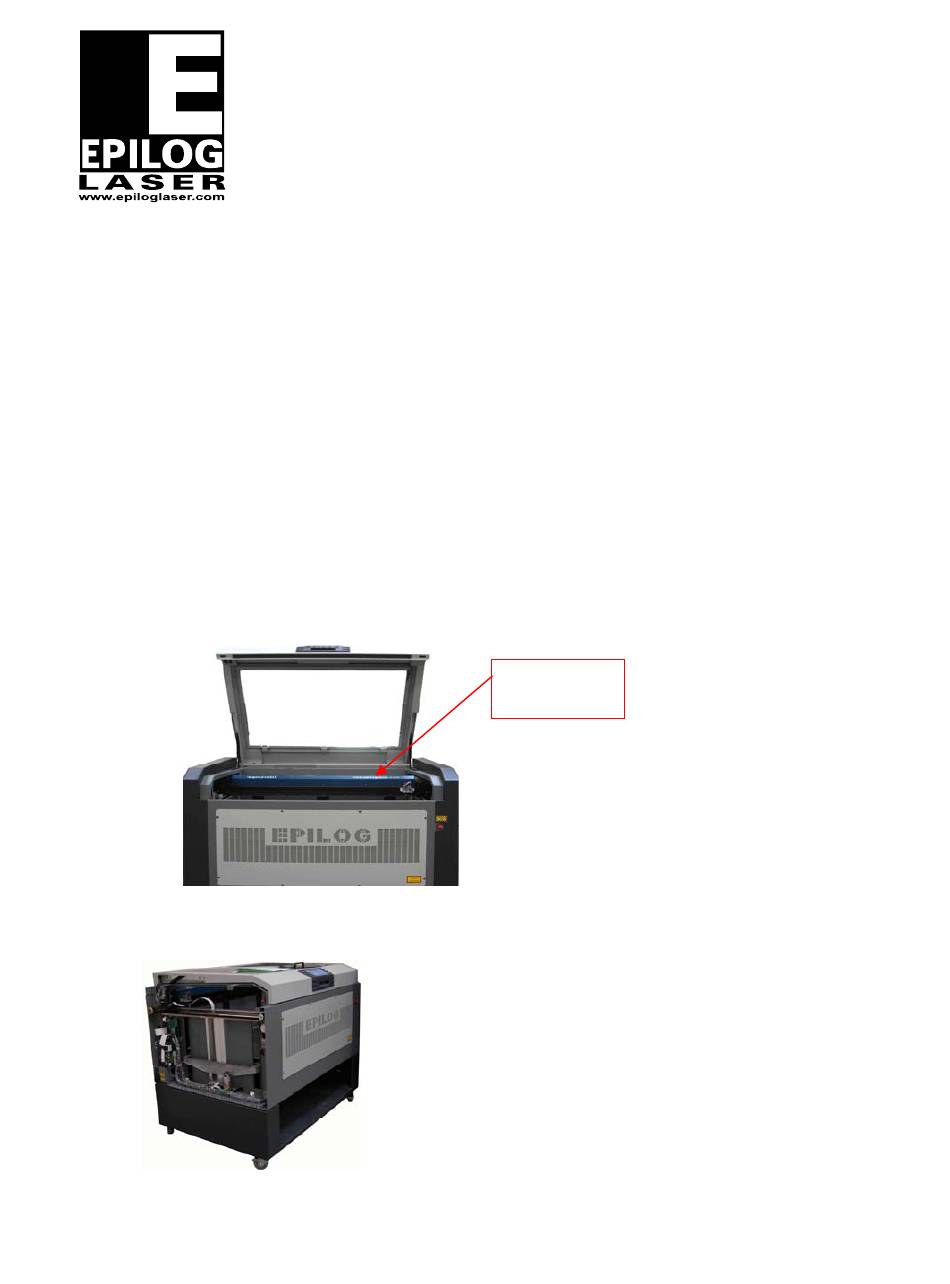

Page 1 Golden, Colorado 80403 Phone 303-215-9171 - FAX 303-277-9669 www.epiloglaser.com Procedure Title: Replacing the X-Axis Assembly Machine Type: Legend 36EXT Tools Needed: Philips head screw driver Intro: This procedure details steps to removing the I-beam. Procedure: 1. Pull I-beam to the center of the machine I-Beam 2.
