Uplus Lighting TRI360 CONSOLE BOX User Manual

Hide thumbs

Advertisement

Table of Contents

User manual
TRI360 CONSOLE BOX
Please read the instructions carefully before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRI360 CONSOLE BOX and is the answer not in the manual?

Questions and answers

Related Manuals for Uplus Lighting TRI360 CONSOLE BOX

Summary of Contents for Uplus Lighting TRI360 CONSOLE BOX

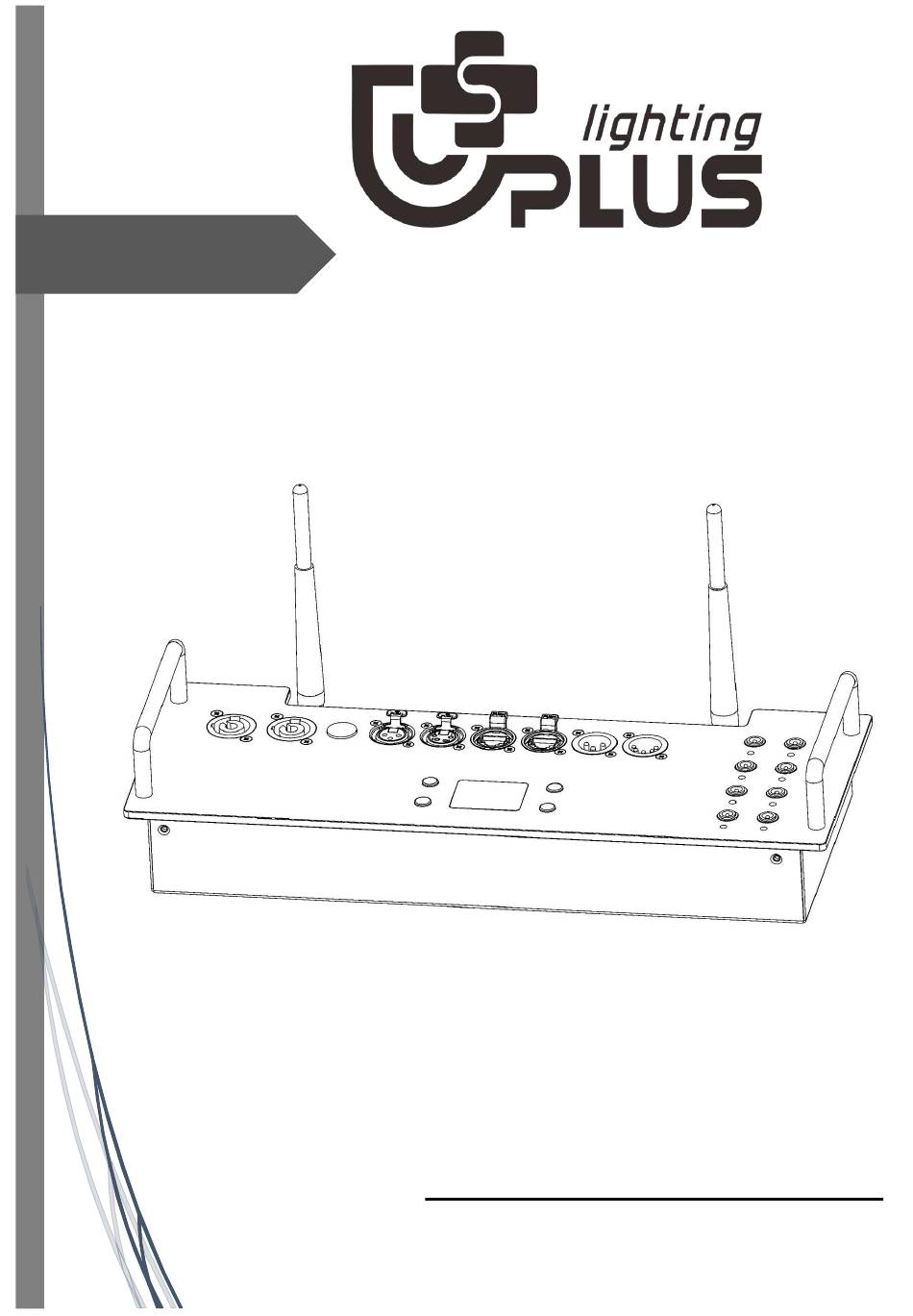

  • Page 1 User manual TRI360 CONSOLE BOX Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions ............3 2. Technical Specifications ..........4 3. Control Menu ............5 4. Connect way ............6 5. DMX Channels ............11 6. Trouble Shooting ............15 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &...

  • Page 3: Safety Instructions

    Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. •Unpack and check carefully there is no transportation damage before using the unit. •Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit.

  • Page 4: Technical Specifications

    Technical Specifications Parameter Numerical Value Power 300W Input Voltage AC 100-240V 50/60HZ Strobe 0-30Hz Effect Built-in 30 dynamic effects LED display LED display Channel 7CH/26CH/48CH/320CH 2.4G wireless connection, DMX console, Signal Connect Artnet, KlingNet, remote control Working Environment -10°~45° Product Size 350(length)*132 (wide)*81(high) mm Weight NW：1.75 Kg...

  • Page 5: Control Menu

    Control Menu 3.1 Display panel button function description Function Description Function Description Affect MODE Menu selection Enter the menu selection function Menu operation Change parameters to Go to previous option increase Changing parameters DOWN Down Go to the next option reduces ENTER Confirm...

  • Page 6: Connect Way

    3.2 Dimensions Connect way 4.1 Precautions This product is suitable for indoor and outdoor performances and parties. Its protection level is IP54. The  controller should be kept clean and avoid use in humid or dusty environments. Maintenance should be performed every three months.
  • Page 7 4.2 Signal connection controller ID and lamp ID settings Note: When using a wireless controller to control a lamp, the ID on the controller must be consistent with the  DEV value on the lamp. (1) Steps to set controller ID: Menu Function—>Advance—>Soft Version—>...
  • Page 8 (3) DMX control steps: Step 1: Connect the console to the controller using a DMX line, and set the menu function—>Mode—>DMX —>confirm that there are 4 DMX channel modes: 7CH 26CH 48CH 320CH (refer to the DMX channel table for details) Step 2: Set the ID of the control box to match the lamp.
  • Page 9 (4) Wireless control lamps ARTENT/KlingNet control steps: Step 1: Connect the computer to the controller using a network cable, and set the computer's IP address to match the controller's IP. Specifically, it can be set automatically/manually in the menu settings->Network mode. Step 2: Set the control box to ARTNET/KlingNet mode.
  • Page 10 (5) Remote control steps: Step 1: Check that the controller ID is the same as the fixture ID Step 2: Open the menu mode and enter Mode->IR mode and select Enable and click OK (the lamp will be on by default with the remote control 1 program function). The functions corresponding to the remote control numbers are introduced as follows: Open built-in programs Turn on built-in colors...

  • Page 11: Dmx Channels

    DMX Channels 7 CH Function Value Setting Master Dimmer 000–255 From low to high intensity (0–100 %) 000–004 Strobe off Strobe 005–255 From low to high frequency 000–255 From low to high intensity (0–100 %) Green 000–255 From low to high intensity (0–100 %) Blue 000–255 From low to high intensity (0–100 %)
  • Page 12 248–255 Programs 1–29 Program speed 000–255 From slow to fast 26CH 26 CH Description Value Setting Tube ID Master Dimmer 000–255 From low to high intensity (0–100 %) 000–004 Strobe off Strobe 005–255 From low to high frequency LED1-LED48 Red 000 –...
  • Page 13 LED24-LED48 Red 000 – 255 Tube 1 LED24-LED48 Green 000 – 255 Tube 1 LED24-LED48 Blue 000 – 255 Tube 1 LED1-LED24 Red 000 – 255 Tube 2 LED1-LED24 Green 000 – 255 Tube 2 LED1-LED24 Blue 000 – 255 Tube 2 LED24-LED48 Red 000 –...
  • Page 14 LED1-LED6 Green Tube 0 000–255 LED1-LED6 Blue Tube 0 000–255 Master Dimmer From low to high intensity (0–100 %) 000–255 Strobe off 000–004 Strobe From low to high frequency 005–255 LED7-LED12 Red Tube 0 000–255 LED7-LED12 Green Tube 0 000–255 LED7-LED12 Blue Tube 0 000–255...

  • Page 15: Trouble Shooting

    Trouble Shooting Simple troubleshooting method Question Check the reason Solution Is the fuse burned out/power cord No screen display (no power) Replace fuse/power cord broken? The controller flashes The tube is set to a host mode other frequently when controlling the than slave/the controller antenna is Set the tube Mode to salve mode/replace the controller antenna tubes...
