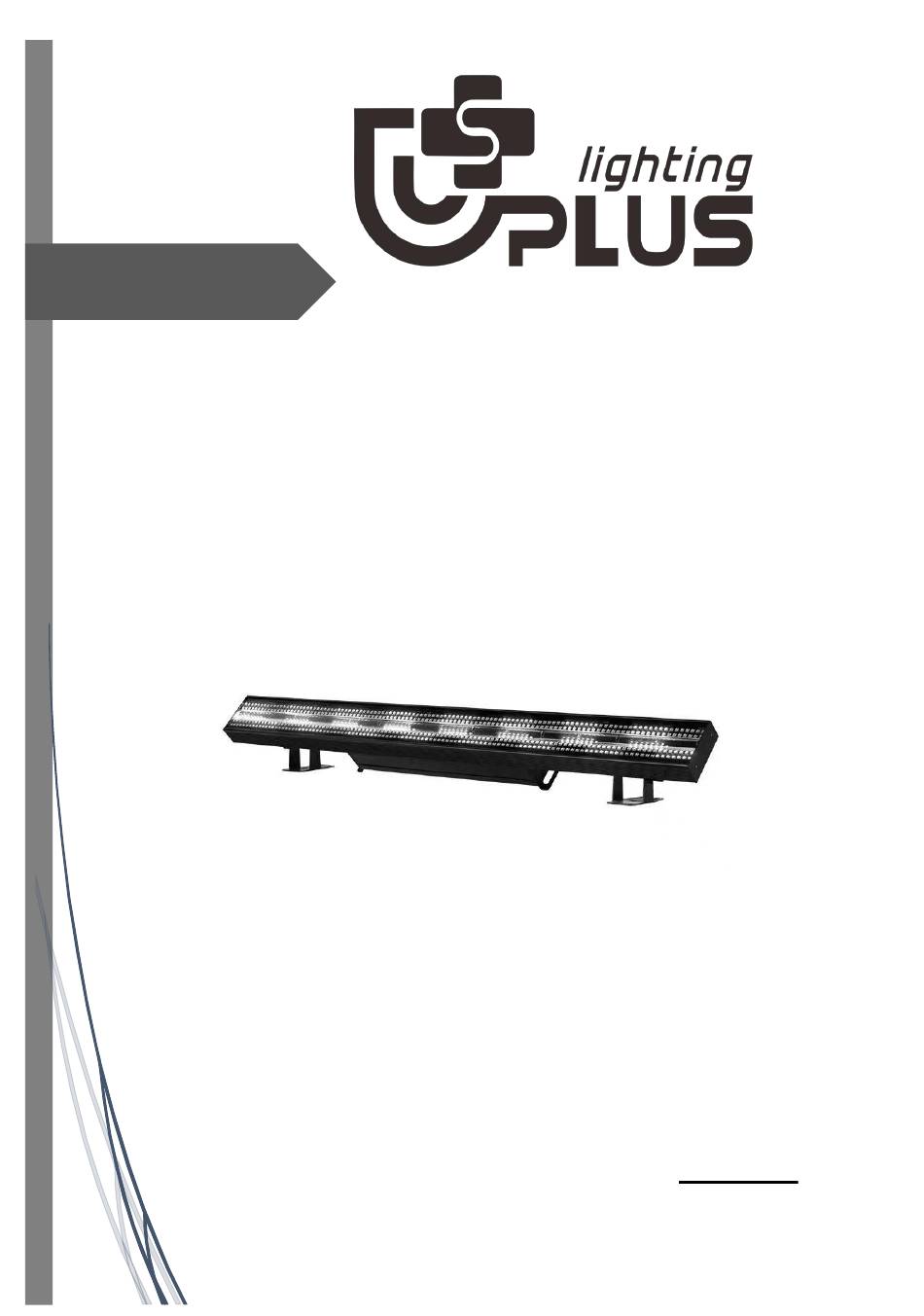

  • Page 1 User manual B1000 Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3-4 Technical Specifications………………………………………………………………………4 Control Menu ……………………………………………………………………………………5-7 DMX Channels ……………………………………………………………………………………8-15 …………………………………………………………………………………16 Trouble Shooting…………………………………………………………………………………17 Fixture Cleaning………………………………………………………… ………………………17 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &...

  • Page 3: Safety Instructions

    1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. •...

  • Page 4: Technical Specifications

    •The equipment must be fixed by professionals. And it must be fixed at a place where is out of the touch of people. 2.Technical Specifications Light source:Tube Led:112*5W cool white led RGB Panel:448*0.3W RGB LED Power consumption:350W Beam angle:116 degree Led zones:36* RGB Led zones;...

  • Page 5: Control Menu

    3.Control Menu Menu Description • MENU: Leave current menu and return to previous menu level. • UP: Scroll up in currently displayed menu. • DOWN: Scroll down in currently displayed menu. • ENTER: Select an option or confirm a selection. This fixture includes a display lock feature which automatically shuts off the display screen after a certain period of inactivity.

  • Page 6: Continued On Next Page

    Holds all traits at last received value when Hold DMX signal is lost or No DMX Status interrupted. Defaults to values set in Manual Mode when Manual DMX signal is lost or interrupted. CONTINUED ON NEXT PAGE Standard Stage Dim Modes Architectural Theatre Stage 2...

  • Page 7: Fixture Test

    no DMX signal is Red2 000 - 255 detected. Green2 000 - 255 CONTINUED ON NEXT PAGE Blue2 000 - 255 White2 000 - 255 Note: Manual 000 - 255 Strobe Effect MANUAL control settings shall (continued) always hold when Strobe Rate 000 - 255 no DMX signal is...

  • Page 8: Dmx Channels

    4.DMX Channels CHANNEL FUNCTION VALUES 000 - 255 Outer Red, 0% to 100% 000 - 255 Outer Green, 0% to 100% 000 - 255 Outer Blue, 0% to 100% 000 - 255 Inner White, 0% to 100% 30 33 000 - 255 Inner White Group 1 31 34 000 - 255...
  • Page 9 CHANNEL FUNCTION VALUES Outer Program Macro 000 - 005 No function 006 - 015 Macro1 016 - 025 Macro2 026 - 035 Macro3 036 - 045 Macro4 046 - 055 Macro5 056 - 065 Macro6 066 - 075 Macro7 076 - 085 Macro8 086 - 095 Macro9...
  • Page 10 CHANNEL FUNCTION VALUES Inner Strobe Effect 000 - 002 Open 003 - 005 Strobe 006 - 050 Ramp up 36 39 051 - 100 Ramp down 101 - 150 Ramp up-down 151 - 200 Lightning 201 - 255 Random 124 000 - 255 Inner Strobe Rate, slow to fast Inner Strobe Duration, slow to 125 000 - 255...
  • Page 11 CHANNEL FUNCTION VALUES 12 000 - 255 Blue 4 13 000 - 255 Red 5 14 000 - 255 Green 5 15 000 - 255 Blue 5 16 000 - 255 Red 6 17 000 - 255 Green 6 18 000 - 255 Blue 6 19 000 - 255 Red 7...
  • Page 12 CHANNEL FUNCTION VALUES 46 000 - 255 Red 16 47 000 - 255 Green 16 48 000 - 255 Blue 16 49 000 - 255 Red 17 50 000 - 255 Green 17 51 000 - 255 Blue 17 52 000 - 255 Red 18 53 000 - 255 Green 18...
  • Page 13 CHANNEL FUNCTION VALUES 000 - 255 Green 27 000 - 255 Blue 27 000 - 255 Red 28 000 - 255 Green 28 000 - 255 Blue 28 000 - 255 Red 29 000 - 255 Green 29 000 - 255 Blue 29 000 - 255 Red 30...

  • Page 14: Dmx Value

    112 120 000 - 255 White 16 COLOR MACRO CHART MACRO NO. DMX VALUE GREEN BLUE 000 - 009 Color1 010 - 017 Color2 018 - 024 Color3 025 - 032 Color4 033 - 039 Color5 040 - 047 Color6 048 - 054 Color7 055 - 061...
  • Page 15 5.DIMENSIONS...

  • Page 16: Trouble Shooting

    6.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
