Lutron Electronics VIMCO Sivoia SV-CCI-GRP Operating Instructions

Motorized Shade Systems
Operating Instructions
Please Leave for Occupant
Description
The Sivoia Contact Closure Interface (SV-CCI-GRP) con-
®
trols a user selectable GROUP of shades. This interface
control can be used with devices that have momentary
relay type DRY contact closure outputs. The SV-CCI-GRP
cannot be used with devices providing open collector tran-
sistor outputs. For open collector transistor output devices,
use the SV-GRXI. One SV-CCI-GRP is required for each
GROUP of shades that is to be controlled together. Shade
GROUPS are configured on each Motor Drive Unit (MDU).
One DRY contact closure is required for each control func-
tion (for example: OPEN is one function, CLOSE is another
function). To program the PRESETS, maintain the appropri-
ate closure for a minimum of 4 seconds.
Important Notes
1. Install in accordance with all applicable regulations.
2. Do not connect high voltage power to device.
Improper wiring can result in personal injury or damage
to the device or to other equipment.
3. The SV-CCI-GRP interface is wired to any single MDU
in the group it is controlling.
4. Up to 9 keypads and/or interfaces can be parallel wired
to 1 MDU.
5. Do not connect a contact closure input to more than one
SV-CCI-GRP.
6. The SV-CCI-GRP requires an input closure duration
between 0.1–2 seconds.
Installation
1. Mount the SV-CCI-GRP interface to any indoor surface
using the supplied screws. Mount in a clean, dry location
where temperature will remain between 0°C and 40°C.
Do not mount in an area of excessive moisture.
2. Run the control wire (2 conductor, 22–24AWG) from the
MDU to the SV-CCI-GRP interface. See Figure A.
3. Strip insulation 3/8" from wires.
INPUT
VIMCO
shading solutions by
®
1 - Momentary Raise
2 - Open
3 - Momentary Lower
4 - Close
SV-CCI-GRP
5 - Preset 1
Dry Contact
6 - Preset 2
Closure Interface
Class 2
7 - Preset 3
8 - Preset 4
9 - Common
TM
SV-CCI-GRP
Contact Closure Interface
~
24V , Class 2/PELV
4. Connect Cntrl 1 on the SV-CCI-GRP to CNTRL1 on the
MDU and Cntrl 2 on the SV-CCI-GRP to CNTRL2 on
the MDU using the 2 conductor control wire
5. Connect each contact closure input with respect to com-
mon as shown below in the wiring diagram.
Operation
When a contact closure is selected, the SV-CCI-GRP will
activate the corresponding control function.
Easy Preset Programming
1. Adjust shade(s) to desired position.
2. Close and hold the contact closure for a minimum of 4
seconds. "Pr" will be displayed on all MDU's in that
group indicating the contact closure was programmed.
Note: The Open and Close contact closures can also
be reprogrammed as presets.
Note: Closing any contact closure while the shade(s)
are moving will stop the shade(s).

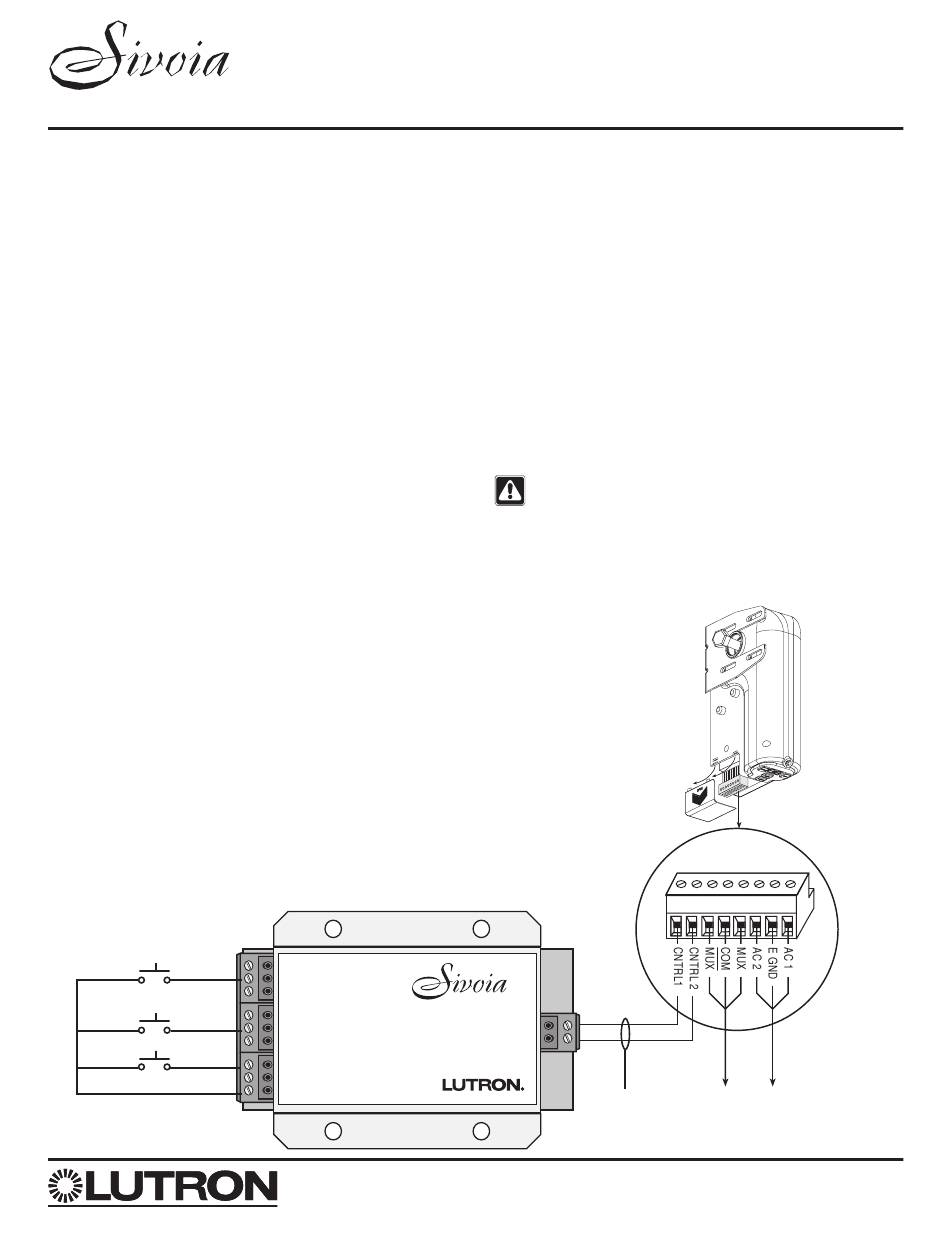

Figure A
®
OUTPUT
J2
MDU Pin 1
(Cntrl 1)
MDU Pin 2
(Cntrl 2)
24VAC
Control Wire:
Coopersburg, PA USA
2 conductor
22–24 AWG
Motor Drive Unit (MDU)
MDU TERMINAL BLOCK
1 2 3 4 5 6 7 8
Comm Power
Link Supply
