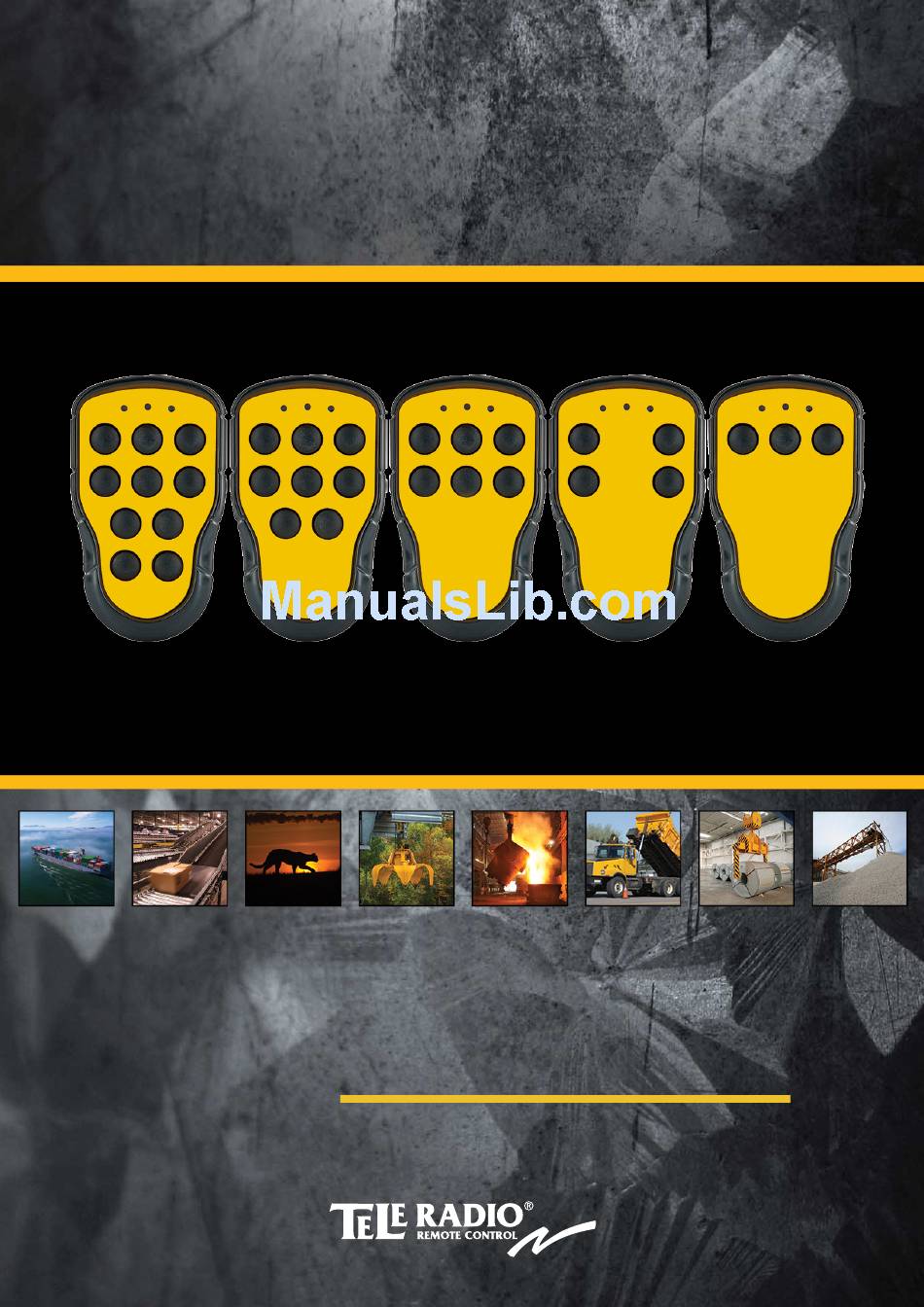

- Page 1 Transmitters PN-TX-MD3M (PN-T13-3) PN-TX-MD4M (PN-T13-4) PN-TX-MD6M (PN-T13-6) PN-TX-MD8M (PN-T13-8) PN-TX-MD10M (PN-T13-10) IM-PN-TX104-A03-EN Language: English (original)
-
Page 2: Table Of Contents
CONTENTS Chapter 1: CUSTOMER INFORMATION Chapter 2: PRODUCT DESCRIPTION Transmitter front Transmitter back Technical data Frequency band Chapter 3: USERS' GUIDE Start the transmitter Switch the transmitter off Register the transmitter in the receiver Erase all transmitters from the receiver Automatic shutdown Load select mode Radio mode... -
Page 3: Chapter 1: Customer Information
These instructions are published by Tele Radio AB and are not subject to any guarantee. The instructions may be removed or revised by Tele Radio AB at any time and without further notice. Corrections and additions will be added to the latest version of the instructions. Keep this manual and the safety instruction for future reference. - Page 4 Tele Radio AB strives to minimize the use of hazardous materials, promotes reuse and recycling, and reduces emissions to air, soil and water. When a commercially viable alternative is available, Tele Radio AB strives to restrict or eliminate substances and materials that pose an environmental, health or safety risk.
-
Page 5: Chapter 2: Product Description
Chapter 2: PRODUCT DESCRIPTION CHAPTER 2: PRODUCT DESCRIPTION TRANSMITTER FRONT PN-T13-10 PN-T13-8 PN-T13-6 PN-T13-4 PN-T13-3 1. LED 1 (red) 6. Button 3 11. Button 8 2. Top LED (red, green) 7. Button 4 12. Button 9 3. -
Page 6: Transmitter Back
TRANSMITTER BACK 1. On/off switch* 2. Clip 3. Product label *The on/off switch on the back of the transmitter interrupts the power supply from the battery. When in the off position, the transmitter cannot be started. When the transmitter is transported by airplane, the on/off switch must be in the off position. -
Page 7: Frequency Band
FREQUENCY BAND Channel Frequency 2405 MHz 2410 MHz 2415 MHz 2420 MHz 2425 MHz 2430 MHz 2435 MHz 2440 MHz 2445 MHz 2450 MHz 2455 MHz 2460 MHz 2465 MHz 2470 MHz 2475 MHz 2480 MHz - 7 -... -
Page 8: Chapter 3: Users' Guide
Chapter 3: USERS' GUIDE CHAPTER 3: USERS' GUIDE START THE TRANSMITTER 1. Start the transmitter by pressing any button on the transmitter. The top LED lights (green when the battery capacity is good, red when the battery capacity is poor). -
Page 9: Automatic Shutdown
AUTOMATIC SHUTDOWN NOTE! Only for continuous radio mode. NOTE! You cannot change the automatic shutdown time from the transmitter. Contact your representative for assistance. Automatic shutdown can save battery capacity by automatically switching the transmitter off following a preset period of inactivity. -
Page 10: Chapter 4: Battery Guide
Chapter 4: BATTERY GUIDE CHAPTER 4: BATTERY GUIDE WARNING! Do not recharge the batteries. Attempts to recharge may cause rupture or hazardous liquids to leak, which will corrode the equipment. NOTE! Electronics and batteries must be physically separated before disposal. Make sure that electronics or batteries are not disposed of in household waste. -
Page 11: Chapter 5: Guarantee, Service, Repairs And Maintenance
Tele Radio AB products are covered by a guarantee/warranty against material, construction and manufacturing faults. During the guarantee/warranty period, Tele Radio AB may replace the product or faulty parts. Work under guarantee/warranty must be carried out by Tele Radio AB or by an authorized service centre specified by Tele Radio AB. -
Page 12: Chapter 6: Regulatory Information
This product is in compliance with the essential requirements of directive 1995/5/EC of the European Parliament and of the Council. Latest version of the EC Declaration of Conformity can be downloaded from the Tele Radio AB website, www.tele-radio.com. FCC STATEMENT ... -
Page 13: Chapter 7: Frequent Terms
Chapter 7: FREQUENT TERMS CHAPTER 7: FREQUENT TERMS Configuration ID Numerical code stored in both the transmitter and receiver unit. The receiver unit can only be controlled by a transmitter with the correct configuration ID. Continuous radio When in continuous radio mode the transmitter unit transmits continuously when mode it is switched on. - Page 14 This installation instruction is subject to change without prior notice. Download the latest installation instruction from www.tele-radio.com...
