END USER INSTRUCTIONS
START, TURN OFF, LOG IN, LOG OUT, TROUBLE SHOOTING,
TG-R1-1-0000, TG-R1-11-0000, TG-R1-6-0000, TG-T3-4-0000
IM-TG-TX003-A01-EN
FOR 10-BUTTONS TRANSMITTER
EXCEPTIONAL SITUATIONS
1
3
5
7
9
ENGLISH (ORIGINAL)
ARTICLE CODE: RX1-A, RX2-A, RX3-A, TX1-A,
Tiger
>SETTINGS
>Exit
1
2
2
3
4
4
5
6
6
8
7
8
9
10
10

Advertisement

Table of Contents
loading

Related Manuals for Tele Radio Tiger

Summary of Contents for Tele Radio Tiger

  • Page 1 Tele Radio Tiger END USER INSTRUCTIONS FOR 10-BUTTONS TRANSMITTER START, TURN OFF, LOG IN, LOG OUT, TROUBLE SHOOTING, EXCEPTIONAL SITUATIONS >SETTINGS >Exit ENGLISH (ORIGINAL) ARTICLE CODE: RX1-A, RX2-A, RX3-A, TX1-A, TG-R1-1-0000, TG-R1-11-0000, TG-R1-6-0000, TG-T3-4-0000 IM-TG-TX003-A01-EN...
  • Page 2 During the guarantee period, Tele Radio AB may replace the product or faulty parts with new. Work under guarantee must be carried out by Tele Radio AB or by an authorized service centre specified by Tele Radio AB. Make sure that repairs and maintenance are only carried out by qualified personnel.

  • Page 3: Table Of Contents

    CONTENTS THE TRANSMITTER THE TRANSMITTER MENU HOW TO NAVIGATE IN THE TRANSMITTER MENU START UP IN TRANSMITTER MENU MODE START THE TRANSMITTER IN OPERATING MODE LOG THE TRANSMITTER OUT CHANGE AUTOMATIC SHUTDOWN TIME SWITCH CHANNEL/FREQUENCY TROUBLE SHOOTING EXCEPTIONAL SITUATIONS...

  • Page 4: The Transmitter

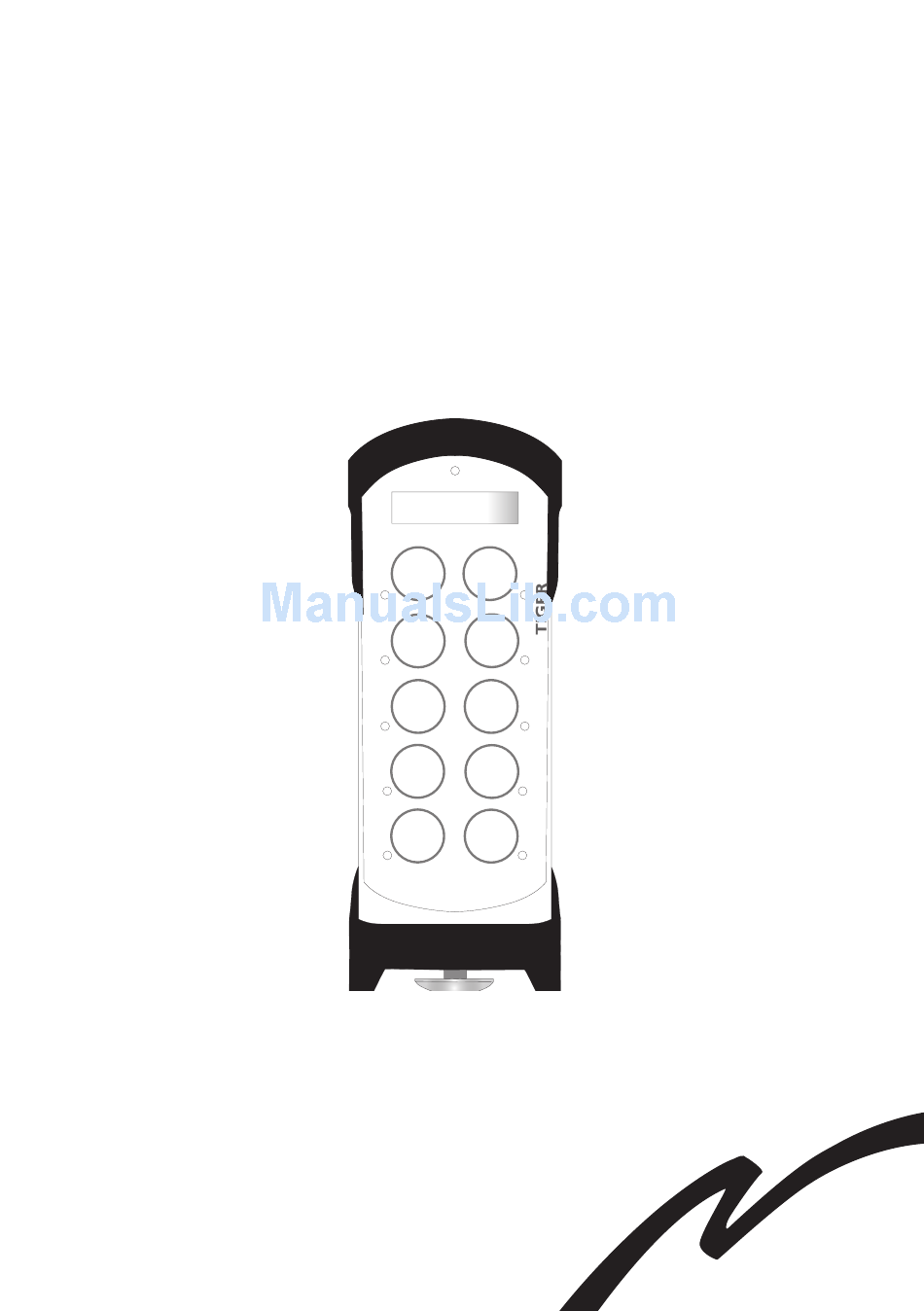

    THE TRANSMITTER >SETTINGS >Exit 1.Rubber cover 7. Button 7-Safe button 13. Button 10-Start button 2. Top LED 8. Button 9-Start button 14. LEDs 1-10 3.Display 9. Button 2 15. STOP button 4.Button 1 10.Button 4 5.Button 3 11.Button 6 6.Button 5 12.Button 8-Safe button TECHNICAL DATA DEGREE OF PROTECTION:...

  • Page 5: The Transmitter Menu

    THE TRANSMITTER MENU SETTINGS >Exit 1: 433.075MHz... >Channel 69: 434.775MHz... E.g. 1: 92041 >Show receivers E.g. 2: 90088... E.g. 1: 92041 >Logout E.g. 2: 90088... 6 min 2 min >Auto shutdown 12 min >Register E.g. 1: 92041 >Erase E.g. 2: 90088... >Replace >Show SW version >Test Mode...

  • Page 6: Start Up In Transmitter Menu Mode

    START UP IN TRANSMITTER MENU MODE Pull out the STOP button. Enter your PIN code if you have one. If you need to enter a PIN code to start, you will get a warning message in the display. Press button 10. Keep pressed. Press the STOP button.

  • Page 7: Log The Transmitter Out

    LOG THE TRANSMITTER OUT Start up in transmitter operating mode. See ”Start the transmitter in operating mode”. Press button 9. Keep pressed. Press the STOP button. The transmitter can also be logged out from [Logout] in the transmitter menu. The transmitter displays the text [Logging out..]. If the logout fails, the transmitter displays the text [Fail]. The transmitter confirms by [OK] and turns itself off.

  • Page 8: Trouble Shooting

    TROUBLE SHOOTING What is your problem What might have caused it What to do There are no registered transmit- No transmitter has been registered Register the transmitter in the ters in the receiver display list in the receiver. receiver. [Show TX]. The transmitter does not start The battery has been discharged.

  • Page 9: Exceptional Situations

    EXCEPTIONAL SITUATIONS Description of situation Stop Safe function Standard Comment relays relays relays Transmitter moved outside of the range Radio communication is of the radio while transmitter button is lost. Move the transmitter pressed or relay is toggled on. back within range. Transmitter moved back into the range The radio communication of the radio while transmitter button is...
  • Page 10 TELE RADIO AB Sweden, Main office Tel. +46 (0)31-748 54 60 www.tele-radio.com e-mail: info@tele-radio.com TELE RADIO ASIA TELE RADIO TURKEY TELE RADIO SVERIGE TELE RADIO GmbH China Turkey Sweden Germany Tel. +86-(0)592-3111168 Tel. +90 216 574 22 94 Tel. +46 (0)31-724 98 00 Tel.
