Manufacturer: Backyard Discovery
Register your new swing set on-line @ www.swingsetsonline.com
(you will also find any updates on assembly instructions and
information to order replacement parts)
Features the
Save this assembly manual for future reference in the event that
OAKMONT
Wooden Swing Set
3001 North Rouse
Pittsburg, KS 66762
1-800-856-4445
you need to order replacement parts.
Model: #65114
fastening system.
Made in China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OAKMONT and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard Discovery OAKMONT

Summary of Contents for Backyard Discovery OAKMONT

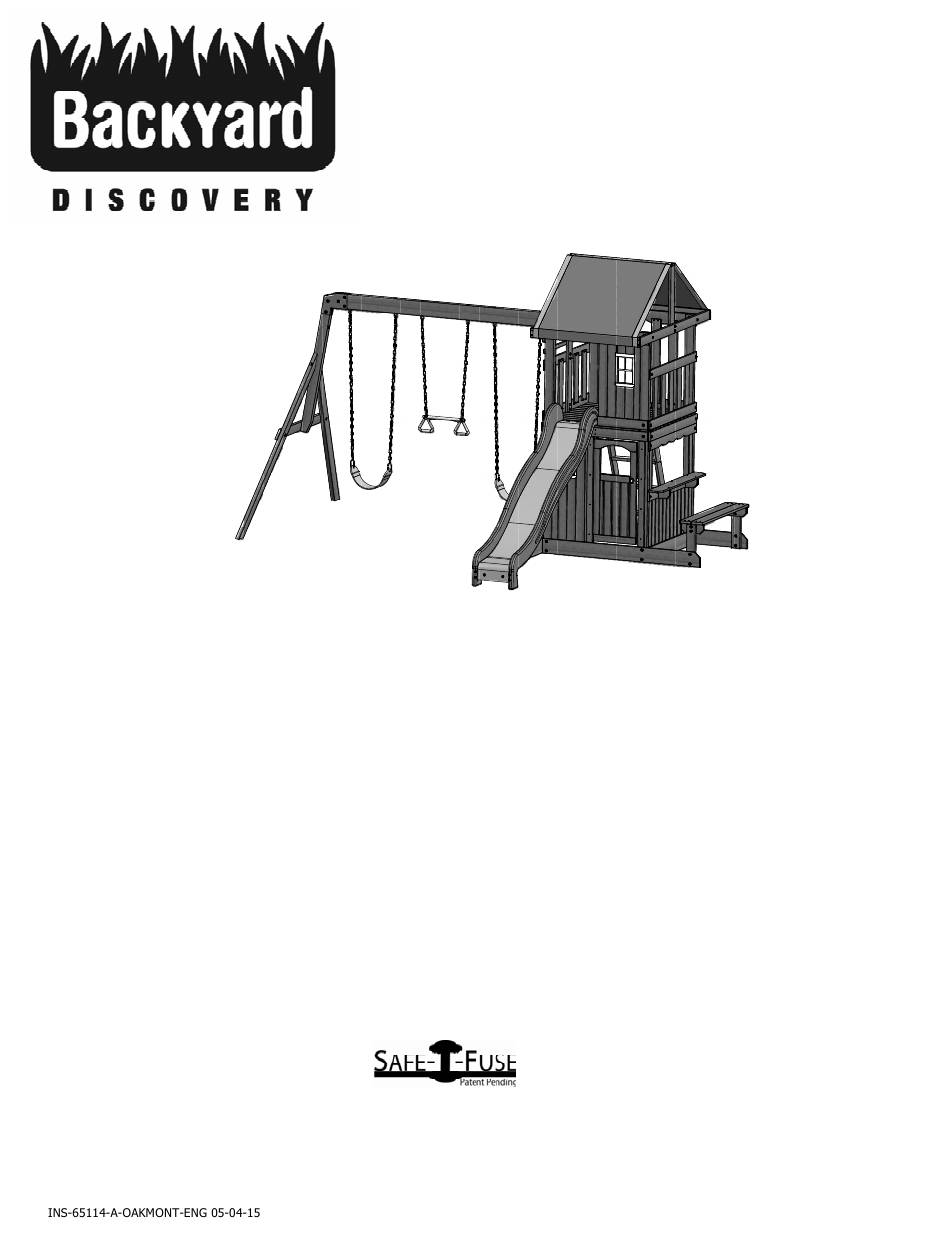

  • Page 1 Model: #65114 • Owner's Manual • Frequently Asked Questions • Assembly Instructions • Warranty Information Manufacturer: Backyard Discovery 3001 North Rouse Pittsburg, KS 66762 1-800-856-4445 Register your new swing set on-line @ www.swingsetsonline.com (you will also find any updates on assembly instructions and...
  • Page 2 STOP PARE Missing A Part? CALL US BEFORE GOING BACK TO THE STORE! The store where you made your purchase does not stock parts for this item. If you have assembly questions or if you need parts, whether they are missing or damaged Call Toll-Free Help Line or visit www.swingsetsonline.com 1-800-856-4445 PLEASE READ THIS BEFORE STARTING ASSEMBLY...
  • Page 3 Owner’s Manual Play Set Dear Customer: Please read entire booklet completely before beginning the assembly process. Equipment is recommended for use by children 3 to 10 years of age. Structures are not intended for public use. The Company does not warranty any of its residential structures subjected to commercial use such as: Daycare, Preschool, Nursery School, Recreational Park, or any similar Commercial Application.
  • Page 4 Owner’s Manual Play Set Please refer to the Assembly section of the Assembly Manual for Maximum Fall Height Positioning Your Playcenter 1. The Playcenter is designed to be installed on a level surface by an Adult with an Adult helper. Place in a flat area of your yard to minimize ground preparation.
  • Page 5 Owner’s Manual Play Set The following chart explains the fall height in feet from which a life threatening head injury would not be expected Critical Heights in feet (m) of Tested Materials Material Uncompressed Depth Compressed Depth 6" (152mm) 9" (228mm) 12" (304mm) to 9"...
  • Page 6 Owner’s Manual Play Set 18. Verify that any suspended climbing ropes, chain, or cable are secured at both ends and that they cannot be looped back on it. 19. Instruct children not to attach items to the playground equipment that are not specifically designed for use with the equipment, such as, but not limited to, jump ropes, clothesline, pet leashes, cables and chain as they may cause a strangulation hazard.
  • Page 7 Third Party Assembly: Customer may, in their sole discretion, elect to use a third party person or service to assemble this product. Backyard Discovery assumes no responsibility or liability for any charge incurred by the Customer for any assembly services’.
  • Page 8 Owner’s Manual Play Set APPENDIX A Information on Playground Surfacing Materials: The following information is from the United States Consumer Product Safety Commission’s Information Sheet for playground surfacing material; also see the following website for additional information: www.cpsc.gov/cpscpub/pubs/323.html. SECTION 4 OF THE CONSUMER PRODUCT SAFETY COMMISSION’S OUTDOOR HOME PLAYGROUND SAFETY HANDBOOK X3.1 Select Protective Surfacing—One of the most important things you can do to reduce the likelihood of serious head injuries is to install shock-absorbing protective surfacing under and around your play equipment.
  • Page 9 5. How often should the playset be stained? Backyard Discovery recommends the playset be stained once each year. A water or oil based stain can be used at the customer’s discretion. 6. Why does it seem that my swing set is developing cracks? Wood is a natural material;...

  • Page 10: Tools Required For Installation

    Tools Required for Installation: (These are the tools that are generally required for assembly of our outdoor products. These tools are not included with the outdoor product purchase.) (Square) (Level 24") (Phillips Screw Driver) (Open End Wrenches 1/2") (Tape Measure) (Drill Attachments: Phillips Head) (Cordless Drill or Electric Drill)
  • Page 11 Basic Setup Dimensions Place the set on level ground, not less than 6 ft [2 m] from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires. Safe Play Zone General Information: Safe play height: 14'-7" [4.4 m] Maximum fall height: 6'-3 1/2"...

  • Page 12: Parts Identification

    Parts Identification Wood Components (NOT TO SCALE) E1 - FRONT LEFT UPRIGHT - W4L04782 1 3/8"x3 3/8"x81 3/4" (36x86x2076) E2 - FRONT RIGHT UPRIGHT - W4L04807 1 3/8"x3 3/8"x81 3/4" (36x86x2076) E3 - BACK LEFT UPRIGHT - W4L04783 1 3/8"x3 3/8"x81 3/4" (36x86x2076) E4 - BACK RIGHT UPRIGHT - W2A01499 1 3/8"x3 3/8"x81 3/4"...
  • Page 13 Parts Identification Wood Components (NOT TO SCALE) H10 - FLOOR SUPPORT - W4L04812 1"x3 3/8"x40 1/8" (24x86x1018) H11 - ROOF UPRIGHT - W4L04813 1"x3 3/8"x55 1/4" (24x86x1404) H74 - LEFT UPRIGHT - W100608 1"x3 3/8"x50 3/4" (24x86x1290) H75 - RIGHT UPRIGHT - W100609 1"x3 3/8"x50 3/4"...
  • Page 14 Parts Identification Wood Components (NOT TO SCALE) L2 - ARCHED ROOF BOARD - W4L04774 5/8"x4 3/8"x40" (16x112x1016) M1 - END ROOF RAIL - W4L04787 5/8"x3 3/8"x41 7/8" (16x86x1064) M2 - FLOOR BOARD - W4L04688 5/8"x3 3/8"x41 7/8" (16x86x1064) M3 - WALL BOARD - W4L04768 5/8"x3 3/8"x41"...
  • Page 15 Parts Identification Wood Components (NOT TO SCALE) M14 - PICKET - W4L04785 5/8"x3 3/8"x17 3/4" (16x86x452) M15 - WALL RAIL - W4L04776 5/8"x3 3/8"x16 5/8" (16x86x422) M16 - WINDOW WALL BOARD - W4L04780 5/8"x3 3/8"x14" (16x86x356) M17 - WINDOW WALL BOARD - W4L04770 5/8"x3 3/8"x6 1/2"...
  • Page 16 Parts Identification Wood Components (NOT TO SCALE) Q1 - BENCH SEAT - W4L04767 1"x4 3/8"x40 1/8" (24x112x1018) SB74 - SWING BEAM EXTENDED - W102419 2"x5 1/4"x89 1/2" (50x134x2274) W71 - SWING BEAM SUPPORT - W4L04856 2"x3 3/8"x49 5/8" (50x86x1260) FP1 - FLOOR PANEL - W2A01497 1 1/4"x19 1/8"x41 7/8"...
  • Page 17 Parts Identification Hardware KA - BOLT WH 5/16x4 1/2 - H100021 C - NUT BARREL WH 5/16x1 1/2 - H100006 M - BOLT WH 5/16x2 1/2 - H100014 D - NUT BARREL WH 5/16x7/8 - H100005 BG - T-NUT 5/16 - H100074 L - BOLT WH 5/16x2 1/4 - H100013 BE - T-NUT 1/4 - H100072 B - NUT BARREL WH 5/16x5/8 - H100004...
  • Page 18 Parts Identification Hardware BT - SCREW PFH 8x2 1/2 - H100090 CK - SCREW PFH 8x2 - H100111 CJ - NUT LOCK 5/16 - H100110 BP - SCREW PFH 8x1 1/2 - H100086 BQ - SCREW PFH 8x1 1/4 - H100087 BR - SCREW PFH 8x1 1/8 - H100088 BN - SCREW PFH 8x1 - H100085 CH - SCREW TAPPING 14x1-1/2 - H100109...
  • Page 19 Parts Identification Accessories (NOT TO SCALE) FA - QUICK LINK - A100069 EA - HAND GRIP YELLOW PLASTIC - A100043 KN - CHAIN GREEN 31" - A100177 EZ - CHAIN GREEN 51.25" - A100068 LATCHING KNOB WITH SCREWS - A6P00020 TB - SWING BEAM EXTENSION BRACKET-LEFT - A100325 TC - SWING BEAM EXTENSION BRACKET-RIGHT - A100326 GD - L BRACKET 66x66x127 - A100140...
  • Page 20 Parts Identification Accessories (NOT TO SCALE) - WINDOW (FLAT PACK) - A6P00019 - SLIDE BED 8' YELLOW - A6P00033 - TARP .4x1014x2195 - A6P00035 1/32"x39 7/8"x86 3/8" (.4x1014x2195) - TRAPEZE - A6P00034 SQ - "A" REVISION TAG - A100314 - GROUND STAKE REBAR - A4M00527...

  • Page 21: Ladder Assembly

    H74 - LEFT UPRIGHT - W100608 1"x3 3/8"x50 3/4" (24x86x1290) M104 - LADDER RUNG - W102997 1"x3 3/8"x17 1/8" (24x86x434) LADDER ASSEMBLY STEP 1 SCREW PFH...
  • Page 22 H75 - RIGHT UPRIGHT - W100609 1"x3 3/8"x50 3/4" (24x86x1290) LADDER ASSEMBLY STEP 2 SCREW PFH...
  • Page 23 M103 - REAR SUPPORT - W102996 5/8"x3 3/8"x18 1/4" (16x86x462) LADDER ASSEMBLY STEP 3 SCREW PFH 8x1 1/2...
  • Page 24 M102 - ATTACHMENT BOARD - W4L04811 5/8"x3 3/8"x18 1/4" (16x86x462) LADDER ASSEMBLY STEP 4 SCREW PFH 8x1 1/2...

  • Page 25: Slide Assembly

    M77 - SLIDE BRACE - W4L04711 5/8"x3 3/8"x14 1/4" (16x86x362) SLIDE ASSEMBLY STEP 1 BOLT WH 5/16x1/2 T-NUT 5/16 BOLT WH 5/16x1/2 (2 PLCS) T-NUT 5/16 (2 PLCS) USE 'M77' SLIDE BRACE AS A TEMPLATE FOR DRILLING BOTTOM HOLE PATTERN IN SLIDE BED. BE SURE TO PLACE SLIDE BRACE UP 1/4"...
  • Page 26 EL - SLIDE RAIL 8' GREEN LEFT - A100055 M78 - CENTER SLIDE BRACE - W4L04712 5/8"x3 3/8"x14 1/4" (16x86x362) EK - SLIDE RAIL 8' GREEN RIGHT - A100054 SLIDE ASSEMBLY STEP 2 NOTE: MAKE CERTAIN SUPPORTS AND SLIDE BED ARE FULLY ENGAGED WITHIN CHANNEL OF SLIDE RAILS.

  • Page 27: Swing Beam Assembly

    SB74 - SWING BEAM EXTENDED - W102419 2"x5 1/4"x89 1/2" (50x134x2274) GD - L BRACKET 66x66x127 - A100140 TC - SWING BEAM EXTENSION BRACKET-RIGHT - A100326 TB - SWING BEAM EXTENSION BRACKET-LEFT - A100325 SWING BEAM ASSEMBLY STEP 1 BOLT HEX 5/16x2-3/4 BOLT WH 5/16x1 3/4...
  • Page 28 W71 - SWING BEAM SUPPORT - W4L04856 H79 - END SUPPORT - W4L04855 2"x3 3/8"x49 5/8" (50x86x1260) 1"x3 1/2"x42" (24x86x1072) E77 - ANGLE BRACE - W4L04854 1 3/8"x3 3/8"x74 3/8" (36x86x1890) SWING BEAM ASSEMBLY STEP 2 WASHER LOCK EXT 8x19 NUT BARREL WH 5/16x7/8 WASHER...
  • Page 29 SWING BEAM ASSEMBLY STEP 3 BOLT WH 5/16x2 1/2 NUT BARREL WH 5/16x7/8 BOLT WH 5/16x1 3/4 WASHER LOCK EXT 8x19 NUT BARREL WH 5/16x1 1/2 WASHER LOCK EXT 12x19...
  • Page 30 BZ - SWING HANGER QUICK LINK - H100099 SWING BEAM ASSEMBLY STEP 4 NUT LOCK 5/16 WASHER SAFETY 17x30 WASHER FLAT 8x27...
  • Page 31 H1 - LEFT ROOF RAIL - W4L04806 K3 - GROUND BOARD - W4L04699 1"x3 3/8"x60" (24x86x1524) 5/8"x3 3/8"x48 5/8" (16x86x1234) H10 - FLOOR SUPPORT - W4L04812 K1 - GROUND BOARD - W4L04686 1"x3 3/8"x40 1/8" (24x86x1018) 5/8"x5 1/4"x73 1/2" (16x134x1868) E3 - BACK LEFT UPRIGHT - W4L04783 1 3/8"x3 3/8"x81 3/4"...
  • Page 32 M8 - BRACE - W4L04762 5/8"x3 3/8"x30" (16x86x762) STEP 2 BOLT WH 5/16x1 WASHER LOCK EXT 8x19 NUT BARREL WH 5/16x5/8 WASHER LOCK EXT 12x19...
  • Page 33 O1 - SAFETY RAIL - W4L04805 H5 - SWING BEAM RAIL - W4L04804 5/8"x1 3/8"x40 1/8" (16x34x1018) 1"x3 3/8"x40 1/8" (24x86x1018) M19 - WALL BOARD - W4L04814 5/8"x3 3/8"x40 1/8" (16x86x1018) STEP 3 LAG SCREW WH 5/16x2 1/2 LAG SCREW WH 5/16x2 SCREW PFH 8x1 1/2...
  • Page 34 H4 - FLOOR SUPPORT - W4L04690 H2 - RIGHT ROOF RAIL - W4L04786 1"x3 3/8"x40 1/8" (24x86x1018) 1"x3 3/8"x60" (24x86x1524) M4 - SERVING SHELF SUPPORT - W4L04695 5/8"x3 3/8"x40 1/8" (16x86x1018) K4 - GROUND BOARD - W4L04689 5/8"x5 1/4"x40 1/8" (16x134x1018) E2 - FRONT RIGHT UPRIGHT - W4L04807 1 3/8"x3 3/8"x81 3/4"...
  • Page 35 M5 - WALL BOARD - W4L04784 M11 - SERVING HEADER - W4L04698 5/8"x3 3/8"x40 1/8" (16x86x1018) 5/8"x3 3/8"x40 1/8" (16x86x1018) STEP 5 LAG SCREW WH 5/16x2 WASHER LOCK EXT 8x19...
  • Page 36 M18 - FLOOR SUPPORT - W4L04810 K2 - GROUND BOARD - W4L04685 5/8"x3 3/8"x40" (16x86x1016) 5/8"x5 1/4"x60 1/2" (16x134x1538) M6 - FLOOR SUPPORT - W4L04691 L2 - ARCHED ROOF BOARD - W4L04774 L1 - ARCHED ROOF BOARD - W4L04775 5/8"x3 3/8"x40" (16x86x1016) 5/8"x4 3/8"x40"...
  • Page 37 F71 - STANDARD ANGLE BRACE - W100689 H3 - FLOOR JOIST - W4L04692 1 3/8"x2 3/8"x13" (36x60x330) 1"x3 3/8"x40 1/8" (24x86x1018) SQ - "A" REVISION TAG - A100314 STEP 7 LAG SCREW SCREW PWH WH 5/16x2 1/2 8x5/8 SCREW PFH 8x2 1/2 BOLT WH 5/16x2...
  • Page 38 M2 - FLOOR BOARD - W4L04688 5/8"x3 3/8"x41 7/8" (16x86x1064) FP1 - FLOOR PANEL - W2A01497 1 1/4"x19 1/8"x41 7/8" (32x485x1064) STEP 8 SCREW PFH (39) 8x1 1/2...
  • Page 39 K92 - RIGHT WALL BOARD - W4L04697 K93 - WALL BOARD - W4L04694 3/8"x2 3/4"x37 1/2" (11x70x954) 3/8"x3 3/8"x19 1/2" (11x86x495) STEP 9 SCREW PFH (45)
  • Page 40 K91 - LEFT WALL BOARD - W4L04696 3/8"x2 3/4"x37 1/2" (11x70x954) STEP 10 SCREW PFH...
  • Page 41 H9 - SHELF SUPPORT - W4L04764 K5 - SERVING SHELF - W4L04763 1"x3 3/8"x4 1/2" (24x86x114) 5/8"x5 1/4"x40 1/8" (16x134x1018) STEP 11 SCREW PFH 8x1 1/2 SCREW PFH 8x2 1/2...
  • Page 42 N2 - WALL BOARD - W4L04771 M3 - WALL BOARD - W4L04768 5/8"x2 3/8"x41" (16x60x1040) 5/8"x3 3/8"x41" (16x86x1040) M12 - WINDOW WALL BOARD - W4L04769 M17 - WINDOW WALL BOARD - W4L04770 5/8"x3 3/8"x25" (16x86x634) 5/8"x3 3/8"x6 1/2" (16x86x164) STEP 12 SCREW PFH (20) 8x1 1/8...
  • Page 43 N1 - HINGE BOARD - W4L04773 5/8"x2 3/8"x37 3/4" (16x60x958) STEP 13 SCREW PFH 8x1 1/8...
  • Page 44 M13 - WALL RAIL - W4L04777 M15 - WALL RAIL - W4L04776 5/8"x3 3/8"x19 1/4" (16x86x490) 5/8"x3 3/8"x16 5/8" (16x86x422) STEP 14 BOLT WH 5/16x2 WASHER LOCK EXT 8x19 T-NUT 5/16...
  • Page 45 M5 - WALL BOARD - W4L04784 M19 - WALL BOARD - W4L04814 5/8"x3 3/8"x40 1/8" (16x86x1018) 5/8"x3 3/8"x40 1/8" (16x86x1018) STEP 15 LAG SCREW WH 5/16x2 WASHER LOCK EXT 8x19...
  • Page 46 N3 - WALL BOARD - W4L04779 M10 - WALL BOARD - W4L04778 5/8"x2 3/8"x30" (16x60x762) 5/8"x3 3/8"x30" (16x86x762) M17 - WINDOW WALL BOARD - W4L04770 M16 - WINDOW WALL BOARD - W4L04780 5/8"x3 3/8"x6 1/2" (16x86x164) 5/8"x3 3/8"x14" (16x86x356) STEP 16 SCREW PFH (20) 8x1 1/8...
  • Page 47 M14 - PICKET - W4L04785 5/8"x3 3/8"x17 3/4" (16x86x452) STEP 17 SCREW PFH (36) 8x1 1/8...
  • Page 48 M10 - WALL BOARD - W4L04778 M9 - HANDLE WALL BOARD - W4L04781 5/8"x3 3/8"x30" (16x86x762) 5/8"x3 3/8"x30" (16x86x762) STEP 18 SCREW PFH 8x1 1/8...
  • Page 49 M1 - END ROOF RAIL - W4L04787 5/8"x3 3/8"x41 7/8" (16x86x1064) STEP 19 SCREW PFH 8x2 1/2...

  • Page 50: Table Of Contents

    M7 - TOP ROOF RAIL - W4L04803 H6 - ROOF UPRIGHT - W4L04788 1"x3 3/8"x24" (24x86x610) 5/8"x3 3/8"x40" (16x86x1016) H11 - ROOF UPRIGHT - W4L04813 1"x3 3/8"x55 1/4" (24x86x1404) STEP 20 BOLT WH 5/16x1 3/4 BOLT WH 5/16x1 1/2 SCREW PFH 8x1 1/2 T-NUT 5/16 WASHER...

  • Page 51: Step 21

    - TARP .4x1014x2195 - A6P00035 1/32"x39 7/8"x86 3/8" (.4x1014x2195) STEP 21 SCREW PWH 8x5/8...

  • Page 52: Bolt Wh (4) 5/16X1

    H7 - BENCH UPRIGHT - W4L04765 1"x3 3/8"x15" (24x86x380) STEP 22 BOLT WH 5/16x1 NUT BARREL WH 5/16x7/8 WASHER LOCK EXT 12x19 WASHER LOCK EXT 8x19...
  • Page 53 H8 - SEAT SUPPORT - W4L04766 1"x3 3/8"x8 1/2" (24x86x216) STEP 23 BOLT WH 5/16x1 3/4 T-NUT 5/16 WASHER LOCK EXT 8x19...

  • Page 54: Screw Pfh

    Q1 - BENCH SEAT - W4L04767 1"x4 3/8"x40 1/8" (24x112x1018) STEP 24 SCREW PFH 8x1 1/2...

  • Page 55: T-Nut

    EA - HAND GRIP YELLOW PLASTIC - A100043 STEP 25 SCREW TAPPING 14x1-1/2 BOLT PTH 1/4x1 WASHER LOCK INT 8x15 WASHER FLAT 9x18 T-NUT 1/4...
  • Page 56 K94 - WINDOW CLEAT - W4L04906 3/8"x1 1/8"x9 7/8" (11x30x252) - WINDOW (FLAT PACK) - A6P00019 STEP 26 SCREW PWH 8x5/8 SCREW PWH 8x3/4...
  • Page 57 N5 - DOOR STOP SUPPORT - W4L04808 J1 - DOOR STOP - W4L04809 5/8"x2 3/8"x4 7/8" (16x60x125) 1"x2 3/8"x2" (24x60x50) STEP 27 SCREW PFH 8x1 1/2 SCREW PFH 8x1 1/4...
  • Page 58 DR1 - DOOR PANEL - W2A01498 1 1/2"x16 3/8"x36 3/8" (38x416x924) STEP 28 SCREW PFH (11) 8x1 1/2...
  • Page 59 LATCHING KNOB WITH SCREWS - A6P00020 STEP 29...

  • Page 60: Final Assembly

    LADDER ASSEMBLY FINAL ASSEMBLY STEP 1 BOLT WH 5/16x1 1/4 WASHER LOCK EXT 8x19 T-NUT 5/16...
  • Page 61 SWING BEAM ASSEMBLY FINAL ASSEMBLY STEP 2 BOLT HEX 5/16x1 1/4 WASHER FLAT 8x27 WASHER SPLIT 5/16 T-NUT 5/16...

  • Page 62: Drill Pattern

    SLIDE ASSEMBLY FINAL ASSEMBLY STEP 3 DRILL (3) 7/16" DIA HOLES THROUGH SLIDE BED AND DECK AT LOCATIONS SHOWN. BOLT WH 5/16x1/2 T-NUT 5/16 DRILL PATTERN...
  • Page 63 HD - SWING SEAT YELLOW - A100171 FA - QUICK LINK - A100069 EZ - CHAIN GREEN 51.25" - A100068 FINAL ASSEMBLY STEP 4...
  • Page 64 - TRAPEZE - A6P00034 FA - QUICK LINK - A100069 KN - CHAIN GREEN 31" - A100177 FINAL ASSEMBLY STEP 5...

  • Page 65: Final Step

    - GROUND STAKE REBAR - A4M00527 FINAL ASSEMBLY BOLT WH STEP 6 5/16x1/2 TAP IN GROUND STAKES AT AN APPROXIMATE 45° ANGLE AT THE NUT BARREL LOCATIONS SHOWN. WH 5/16x5/8 BOLT WH 5/16x1 1/4 WASHER LOCK EXT 12x19 DRILL 7/16" [10mm] HOLE AT EACH STAKE LOCATION.

  • Page 66: Limited Warranty

    Limited Warranty. In addition, Backyard Discovery will replace any parts within the first 30 days from date of purchase found to be missing from or damaged in the original packaging.
