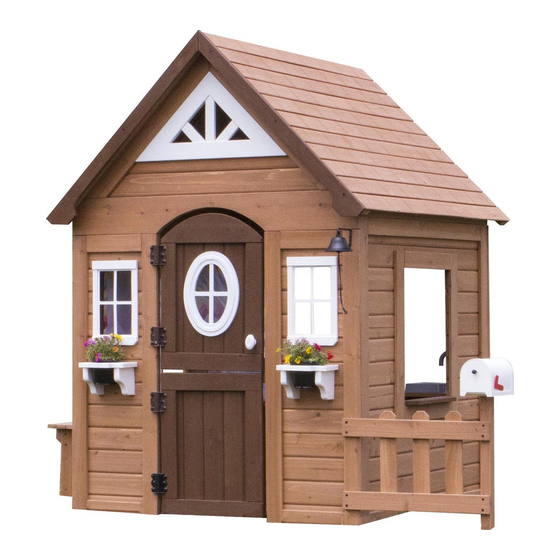

Backyard Discovery ASPEN Owner's Manual

Playhouse
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Features the
Save this assembly manual for future reference in the event that
Adult Assembly Required.
Not suitable for children under two years,
due to sharp points and small parts .
ASPEN
PLAYHOUSE
• Owner's Manual
• Frequently Asked Questions
• Assembly Instructions
• Warranty Information
you need to order replacement parts.
Free BILT Intelligent Instructions
Download on https://biltapp.com/
Available on Apple and Google Play
fastening system.
Made in China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASPEN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Backyard Discovery ASPEN

Summary of Contents for Backyard Discovery ASPEN

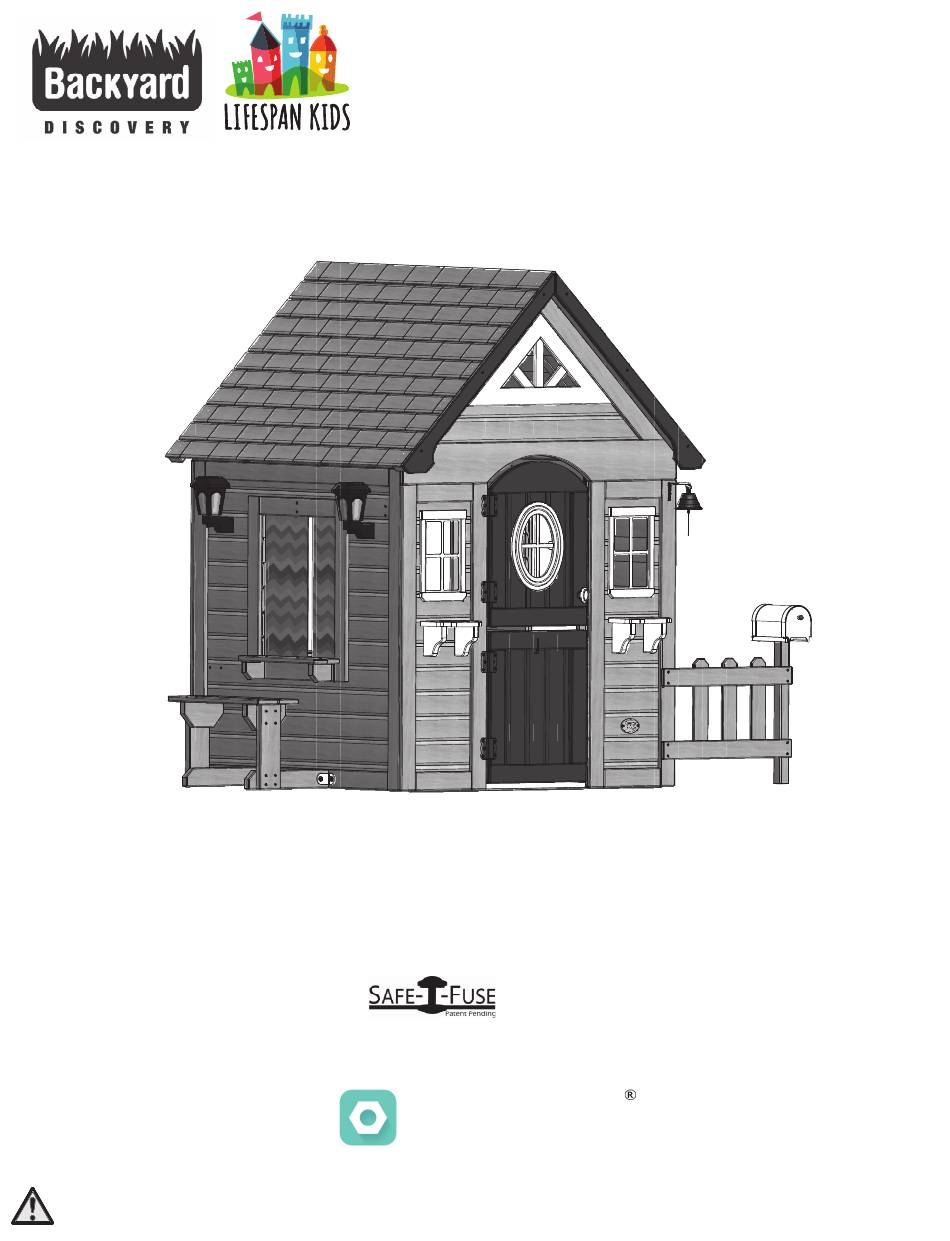

  • Page 1 ASPEN PLAYHOUSE • Owner's Manual • Frequently Asked Questions • Assembly Instructions • Warranty Information Features the fastening system. Save this assembly manual for future reference in the event that you need to order replacement parts. Free BILT Intelligent Instructions Download on https://biltapp.com/...
  • Page 2 GENERAL SAFETY INSTRUCTIONS PURPOSE This product is intended for outdoor, domestic use only. It is not suitable for commercial or medical use. DANGER FOR CHILDREN  WARNING! No eating while using the product  This product may only be used with adult supervision at all times. ...
  • Page 3  In certain areas during winter, snow buildup and the low temperatures can damage the product. It is recommended to remove snow buildup and to store the product indoor.  We strongly recommend visual inspections every 3 months to insure the integrity of the entire product. Replace any parts as necessary.
  • Page 4 Consumer Information Sheet for Playground Surfacing Materials The US Consumer Product Safety Commission (CPSC) estimates that about 100 000 playground equipment- related injuries resulting from falls to the ground surface are treated annually in US hospital emergency rooms. Injuries involving this hazard pattern tend to be among the most serious of all playground injuries, and have the potential to be fatal, particularly when the injury is to the head.
  • Page 5 WOOD ADVICE Our products are manufactured from premium timber. Great care is taking in selecting, machining and treating the timber before it is sold to you. 1. Inspect wood parts monthly. The grain of the wood sometimes will lift in dry periods causing splinters to appear.
  • Page 6 About Our Wood Backyard Discovery uses 100% Cedar (C. Lanceolata) wood. Although we take great care in selecting the best quality lumber available, wood is still a product of nature and susceptible to weathering which can change the appearance of your set.
  • Page 7 2 – 10 years. 4. Is the wood treated with chemicals? Backyard Discovery uses 100% Chinese Cedar wood which is naturally bug resistant, decay and rot resistant. To help ensure your child’s safety, our wood is completely chemical free and we do not use pressure-treated wood.
  • Page 8 Tools Required for Installation: (These are the tools that are generally required for assembly of our outdoor products. These tools are not included with the outdoor product purchase.) (Square) (Level 24") (Claw Hammer) (Phillips Screw Driver) (Tape Measure) (Rubber Mallet - Optional) (Drill Attachments: (Cordless Drill or Electric Drill) Phillips Head)
  • Page 9 SELECTING THE CORRECT LOCATION FOR YOUR PLAY PRODUCT IS IMPORTANT FOR YOUR CHILDREN’S SAFETY AND THE PRODUCT’S LONGEVITY Dimensions: General Information: • The Aspen Playhouse has one layout option. Your set has been designed and engineered for Layout Ground Dimension Safe Play Area* children only and for residential use only.
  • Page 10 Parts Identification Wood Components (NOT TO SCALE) G1 - FRONT HEADER - W4L05074 1"x5 1/4"x45" (24x134x1142) G2 - WALL SUPPORT - W4L05067 1"x5 1/4"x5 7/8" (24x134x150) H1 - LEFT ANGLED HEADER - W4L05071 1"x3 3/8"x44 3/8" (24x86x1127) H2 - RIGHT ANGLED HEADER - W4L05072 1"x3 3/8"x44 3/8"...
  • Page 11 Parts Identification Wood Components (NOT TO SCALE) L1 - CABINET TOP - W4L05076 5/8"x4 3/8"x42 3/4" (16x112x1087) L2 - SERVING SHELF - W4L05287 5/8"x4 3/8"x18 1/2" (16x112x470) M1 - FRONT CABINET TOP - W4L05077 5/8"x3 3/8"x42 3/4" (16x86x1087) M2 - BENCH SEAT - W4L05292 5/8”x3 3/8”x19 1/8”...
  • Page 12 Parts Identification Wood Components (NOT TO SCALE) WP2 - LEFT FRONT WALL ASSEMBLY - W2A01594 WP1 - RIGHT REAR ASSEMBLY - W2A01592 44 3/8"x14"x41 3/4" (1127x355x1061) 44 3/8"x45"x41 3/4" (1127x1143x1061) WP3 - RIGHT FRONT WALL PANEL - W2A01595 WP4 - PICKET FENCE ASSEMBLY - W2A01598 1"x14"x39 3/4"...
  • Page 13 Parts Identification Wood Components (NOT TO SCALE) GP1 - GABLE END ASSEMBLY - W2A01581 RP1 - ROOF PANEL - W2A01582 1"x43 1/8"x21 1/2" (27x1095x547) 1 3/8"x35 3/16"x50" (35x894x1270)
  • Page 14 Parts Identification Hardware SCREW PFH 8x1/2 BLK - H100203 BOLT WH 1/4x1/2 BLK - H100401 SCREW PFH 8x1 BLK - H100385 BOLT WH 1/4x1-1/4 BLK - H100397 SCREW PFH 8x1 1/8 BLK - H100386 (85) SCREW PFH 8x1 1/4 BLK - H100387 NUT BARREL WH 1/4x7/8 BLK - H100399 SCREW PFH 8x1-1/2 BLK - H100200 (48)
  • Page 15 Parts Identification Accessories (NOT TO SCALE) METAL TIE STRAP - A100257 KNOB KIT - A6P00020 FAUCET KIT - A6P00024 SURFACE MOUNT BASIN - A6P00032 STOVE KIT - A6P00025 FLOWER POT HOLDER - A6P00023...
  • Page 16 Parts Identification Accessories (NOT TO SCALE) 90° L-BRACKET - BLK - A4M00555 HINGE (DOOR, NON-SPRING LOADED) - A4M00558 "A" REVISION TAG - A100314 HINGE (DOOR, SPRING LOADED) - A100327 LTP ID TAG (SMALL) WITH AGES - A4M00515 MAILBOX - A6P00017...
  • Page 17 Parts Identification Accessories (NOT TO SCALE) PLASTIC CURTAIN ROD - A6P00057 APPLE ORANGE CURTAIN - A6P00056 WATERMELON STRAWBERRY CORN CARROT PLASTIC KNIFE CUTTING BOARD - OUTDOOR LIGHT FIXTURE -A6P00068 FRUIT BASKET KIT - A6P00069 L BRACKET WHITE 32x51 - A100133 BELL ASSEMBLY - A4M00554...
  • Page 18 90° L-BRACKET - BLK - A4M00555 STEP 1: PLAYHOUSE ASSEMBLY 90° L-BRACKET - BLK (1 PLC) SCREW PWH 8x5/8 BLK SCREW PWH 8x5/8 BLK (2 PLCS) REAR LEFT FRONT RIGHT 90° L-BRACKET - BLK (1 PLC) SCREW PWH 8x5/8 BLK (2 PLCS)
  • Page 19 90° L-BRACKET - BLK - A4M00555 STEP 2: 90° L-BRACKET - BLK (1 PLC) SCREW PWH 8x5/8 BLK SCREW PWH 8x5/8 BLK (2 PLCS) RIGHT FRONT REAR LEFT 90° L-BRACKET - BLK (1 PLC) SCREW PWH 8x5/8 BLK (2 PLCS)
  • Page 20 H3 - REAR HEADER - W4L05073 H1 - LEFT ANGLED HEADER - W4L05071 1"x3 3/8"x42 7/8" (24x86x1088) 1"x3 3/8"x44 3/8" (24x86x1127) H2 - RIGHT ANGLED HEADER - W4L05072 G1 - FRONT HEADER - W4L05074 1"x3 3/8"x44 3/8" (24x86x1127) - 90° L-BRACKET - A4M00555 1"x5 1/4"x45"...
  • Page 21 N4 - TIE STRAP - W4L05075 5/8”x2”x5 1/8” (16x50x130) METAL TIE STRAP - A100257 STEP 4: SCREW PFH 8x1 1/4 BLK (12 PLCS) 3 1/4" SCREW PWH 8x3/4 BLK SCREW PFH (12) 8x1 1/4 BLK FLUSH LEFT RIGHT SCREW PWH 8x3/4 BLK (8 PLCS) 2"...
  • Page 22 N6 - TIE STRAP - W4L05078 5/8”x2”x5 7/8” (16x50x150) STEP 5: 2" SCREW PFH 8x1 1/4 BLK (6 PLCS) SCREW PFH 8x1 1/4 BLK 1 1/4" LEFT RIGHT...
  • Page 23 J1 - SUPPORT BOARD - W4L05068 G2 - WALL SUPPORT - W4L05067 1"x2 3/8"x6 3/4" (24x60x170) 1"x5 1/4"x5 7/8" (24x134x150) SQ - "A" REVISION TAG - A100314 STEP 6: REAR SCREW PWH 8x5/8 BLK SCREW PFH 8x1 1/4 BLK SCREW PFH 8x1 3/4 BLK "A"...
  • Page 24 L1 - CABINET TOP - W4L05076 5/8"x4 3/8"x42 3/4" (16x112x1087) M1 - FRONT CABINET TOP - W4L05077 5/8"x3 3/8"x42 3/4" (16x86x1087) STEP 7: REAR SCREW PFH 8x1 1/4 BLK SCREW PFH (10) 8x1 1/4 BLK (8 PLCS) LEFT RIGHT FRONT SCREW PFH 8x1 1/4 BLK (2 PLCS) LEFT...
  • Page 25 N3 - LARGE WINDOW SHELF - W4L05065 5/8"x2 3/8"x16 1/8" (16x60x409) STEP 8: REAR FLUSH SCREW PFH 8x1 1/4 BLK RIGHT FRONT SCREW PFH 8x1 1/4 BLK (3 PLCS)
  • Page 26 J2 - SHELF SUPPORT - W4L05288 L2 - SERVING SHELF - W4L05287 1"x2 3/8"x3 1/8" (24x60x80) 5/8"x4 3/8"x18 1/2" (16x112x470) STEP 9: FLUSH SCREW PFH 8x1 1/4 BLK LEFT SCREW PFH 8x1 3/4 BLK SCREW PFH (4 PLCS) 8x1 3/4 BLK SCREW PFH 8x1 1/4 BLK (5 PLCS) REAR...
  • Page 27 FLOWER POT HOLDER - A6P00023 STEP 10: SCREW PFH FLOWER POT HOLDER 8x1 1/4 BLK (2 PLCS) SCREW PFH 8x1 1/4 BLK (8 PLCS) REAR LEFT FRONT...
  • Page 28 FAUCET KIT - A6P00024 STEP 11: REAR RIGHT SCREW PFH 8x1-1/2 BLK SCREW PFH 8x1-1/2 BLK (2 PLCS) LEFT FRONT 1" FAUCET KIT (1 PLC) RIGHT...
  • Page 29 SURFACE MOUNT BASIN - A6P00032 STEP 12: REAR SCREW PWH 8x5/8 BLK RIGHT SURFACE MOUNT BASIN LEFT (1 PLC) FRONT 3/8" SCREW PWH 8x5/8 BLK (2 PLCS) RIGHT...
  • Page 30 STOVE KIT - A6P00025 STEP 13: REAR SCREW PFH 8x1 1/8 BLK RIGHT LEFT SCREW PFH 8x1 1/8 BLK (4 PLCS) FRONT 2 1/2" RIGHT STOVE KIT (1 PLC)
  • Page 31 DP1 - TOP DOOR PANEL - W2A01596 HINGE (DOOR, NON-SPRING LOADED) - A4M00558 1"x15 3/4"x21 7/16" (27x400x544) STEP 14: SCREW PWH 8x3/4 BLK (6 PLCS) HINGE (DOOR, NON-SPRING LOADED) (2 PLCS) SCREW PWH (12) 8x3/4 BLK SCREW PWH 8x3/4 BLK (6 PLCS)
  • Page 32 DP2 - BOTTOM DOOR PANEL - W2A01597 HINGE (DOOR, SPRING LOADED) - A100327 1"x15 3/4"x19 3/4" (27x400x500) STEP 15: SCREW PWH 8x3/4 BLK (6 PLCS) HINGE (DOOR, SPRING LOADED) (2 PLCS) SCREW PWH (12) 8x3/4 BLK SCREW PWH 8x3/4 BLK (6 PLCS)
  • Page 33 N5 - DOOR STOP - W4L05070 5/8"x2 3/8"x3 3/8" (16x60x86) STEP 16: FRONT RIGHT SCREW PFH 8x1 1/4 BLK LEFT REAR SCREW PFH 8x1 1/4 BLK (3 PLCS) 1 3/16" RIGHT 19 1/4"...
  • Page 34 KNOB KIT - A6P00020 STEP 17: FACE PLATE (1 PLC) SCREW PFH 8x3/4 (2 PLCS) INCLUDED IN KIT KNOB KIT LATCH (1 PLC) (1 PLC) SCREW PFH 8x1 (1 PLC) INCLUDED IN KIT FRONT LEFT RIGHT REAR...
  • Page 35 N1 - TIE STRAP - W4L05043 5/8”x2”x3 1/8” (16x50x80) STEP 18: FRONT SCREW PFH 8x1 1/4 BLK LEFT RIGHT REAR SCREW PFH 8x1 1/4 BLK (4 PLCS) 2" 1 5/8" 1 5/8" 2" LEFT RIGHT...
  • Page 36 GP1 - GABLE END ASSEMBLY - W2A01581 1"x43 1/8"x21 1/2" (27x1095x547) STEP 19: FLUSH LEFT SCREW PFH 8x1 1/4 BLK REAR SCREW PFH 8x1 1/4 BLK (4 PLCS) FRONT RIGHT RIGHT FRONT FLUSH SCREW PFH 8x1 1/4 BLK REAR LEFT (4 PLCS)
  • Page 37 - 90° L-BRACKET - BLK - A4M00555 RP1 - ROOF PANEL - W2A01582 1 3/8"x35 3/16"x50" (35x894x1270) STEP 20: SCREW PWH 8x1/2 BLK SCREW PFH (12) 8x1 3/4 BLK REAR SCREW PFH 8x1 3/4 BLK (12 PLCS) LEFT RIGHT FRONT 90°...
  • Page 38 M3 - FASCIA BOARD - W4L05064 5/8"x3 3/8"x35 1/4" (16x86x894) STEP 21: SCREW PFH 8x1 1/4 BLK FLUSH SCREW PFH 8x1 1/4 BLK (6 PLCS) REAR LEFT FRONT RIGHT...
  • Page 39 WP4 - PICKET FENCE ASSEMBLY - W2A01598 2"x19"x21" (52x483x535) STEP 22: SCREW PFH 8x1 1/4 BLK SCREW PFH 8x1 1/4 BLK (4 PLCS)
  • Page 40 (1) MAILBOX KIT - A6P00017 STEP 23: MAILBOX FRAME MAILBOX FRAME SCREW PFH 8x1 BLK MAILBOX FLAG MAILBOX BODY MAILBOX SCREW PFH 8x1 BLK MACHINE SCREW (1 PLC) INCLUDED IN KIT (1 PLC) MAILBOX REAR DOOR MAILBOX HANDLE MAILBOX FRONT DOOR MAILBOX MACHINE SCREW INCLUDED IN KIT (4 PLCS)
  • Page 41 LTP ID TAG (SMALL) WITH AGES - A4M00515 STEP 24: SCREW PFH 8x1/2 BLK REAR LEFT LTP ID TAG (SMALL) WITH AGES RIGHT (1 PLC) FRONT 8" SCREW PFH 8x1/2 BLK (2 PLCS) 5 1/2"...
  • Page 42 (1) BELL ASSEMBLY - A4M00554 STEP 25: SCREW PWH 8x1/2 BLK LEFT REAR FRONT RIGHT DO NOT OVER TIGHTEN BELL ASSEMBLY (1 PLC) SCREW PWH 8x1/2 BLK (2 PLCS)
  • Page 43 (1) FRUIT BASKET - AP600069 STEP 26: SCREW PFH 8x1/2 BLK LEFT FRONT RIGHT REAR SCREW PFH 8x1/2 BLK (6 PLCS) FRUIT BASKET KIT (1 PLC)
  • Page 44 (2) OUTDOOR LIGHT FIXTURE - AP600068 STEP 27: REAR SCREW PFH 8x1 1/4 BLK RIGHT LEFT FRONT OUTDOOR LIGHT FIXTURE (2 PLS) SCREW PFH 8x1 1/4 BLK (4 PLCS)
  • Page 45 - PLASTIC CURTAIN ROD - A6P00057 J5 - INNER CURTAIN ROD HOLDER - W4L05294 1"x2 3/8"x2 3/8" (24x60x60) J4 - OUTER CURTAIN ROD HOLDER - W4L05293 - CURTAIN - A6P00056 1"x2 3/8"x2 3/8" (24x60x60) STEP 28: SCREW PFH 8x1 1/4 BLK SCREW PFH 8x1 3/4 BLK INNER CURTAIN ROD HOLDER...
  • Page 46 J3 - BENCH GROUND BOARD - W4L05291 H5 - BENCH UPRIGHT - W4L05290 1"x2 3/8"x13 1/4" (24x60x335) 1"x3 3/8"x11" (24x86x280) FZ - L BRACKET WHITE 32x51 - A100133 STEP 29 WASHER LOCK EXT 8x15 BLK (2 PLCS) BOLT WH 1/4x1/2 BLK NUT BARREL WH 1/4x7/8 BLK (2 PLCS) WASHER...
  • Page 47 H4 - BENCH SEAT SUPPORT - W4L05289 M2 - BENCH SEAT - W4L05292 1"x3 3/8"x6 1/2" (24x86x166) 5/8”x3 3/8”x19 1/8” (16x86x485) STEP 31 SCREW PFH 8x1 3/4 BLK SCREW PFH (8 PLCS) 8x1 3/4 BLK STEP 32 SCREW PFH 8x1 3/4 BLK (8 PLCS) SCREW PFH 8x1 3/4 BLK...
  • Page 48 (1) BENCH ASSEMBLY STEP 33: BOLT WH 1/4x1-1/4 BLK T-NUT 1/4 RIGHT REAR FRONT LEFT BENCH ASSEMBLY T-NUT 1/4 BLK (1 PLC) (2 PLCS) BOLT WH 1/4x1-1/4 BLK (2 PLCS)
  • Page 49 WARRANTY AUSTRALIAN CONSUMER LAW Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
