- Page 1 User Manual P720 Smart Diagnostic System Version 1.0 Revise date 2023/10 Shenzhen Xtooltech Intelligent Co., LTD...
-
Page 2: Cautions
⚫ Keep the unit away from strong magnetic fields. FTERSALES ERVICES XTOOL strives to provide best-in-class support! E-Mail: support1@xtooltech.com (for Amazon) | support2@xtooltech.com (for Ali-Express, eBay and others) Tel: +86 755 21670995 or +86 755 86267858 (China) Official Website: www.xtooltech.com... -
Page 3: Table Of Contents
ONTENT OPERATION INSTRUCTIONS ..........................I CAUTIONS! ................................I AFTERSALES-SERVICES ..........................I CONTENT ................................I GENERAL INTRODUCTION ........................3 Main Units ..................................3 Vehicle Connection ................................4 GETTING STARTED ..........................5 Connecting Power................................5 Activation ..................................5 DIAGNOSTIC ............................7 Beginning Diagnostic Testing ............................7 Vehicle Selection .................................... - Page 4 File Manager .................................. 33 UPDATE & FACTORY RESET ....................... 34 Update ................................... 34 Factory Reset ................................34 WARRANTY & SERVICES ........................36 REMOTE ASSISTANCE ......................... 36...
-
Page 5: General Introduction

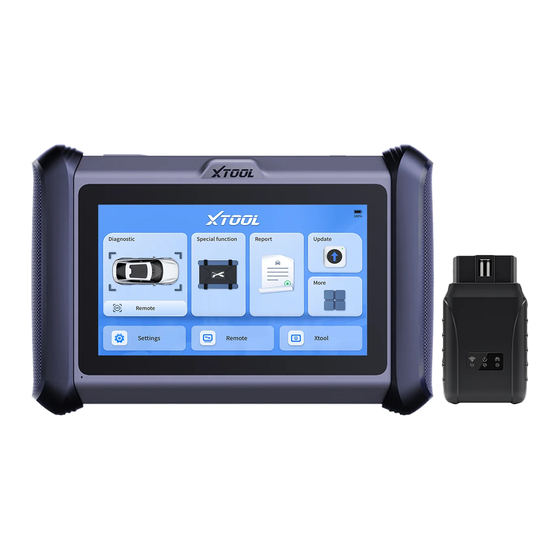

ENERAL NTRODUCTION The XTOOL Smart diagnostic system (referred to as the “Scan Tool”) is an advanced scanning tool based on the Android operating system. It supports multiple languages and is suitable for different countries and regions. The advantage of this OBD-II (On-Board Diagnostics version 2) scanner is its comprehensive functions and its ability to quickly provide the user with more accurate diagnostic information. -
Page 6: Vehicle Connection
OBD male adapter – Plug into vehicle’s DLC port Wi-Fi indicator – Lights blue when communicating with scan tablet Power indicator – Lights Red when powered on VCI indicator – Lights green when communicating with vehicle VEHICLE CONNECTION The scan tool must be connected to the vehicle’s OBD-II port so that the tablet can establish correct vehicle communication. Please perform the following steps: Turn on the tablet Plug V102 VCI box into vehicle’s OBD port, make sure Power and Wi-Fi indicators light;... -
Page 7: Getting Started
Updates menu or consult the XTOOL technical service department; 3. Only wiring harnesses provided by XTOOL and designed for the scan tool are permitted to be used with this scan tool to avoid damage to the vehicle or the scan tool;... - Page 8 Select a network to connect to on the Wi-Fi connection page. You need to enter the Wi-Fi password to establish Wi-Fi connectivity and the activation page, as shown in the figure below. You can also click the "Trial" button in the upper right corner to try it out before activation.
-
Page 9: Diagnostic
Click OK to enter the diagnostic system and start using the device. 2. D IAGNOSTIC The diagnostic application can read ECU information, read and clear DTC (Diagnostic Trouble Codes) and check live data and freeze frame data. The Diagnostic application can access the ECU of various vehicle control systems, including the Engine, Transmission, Anti-lock Braking System (ABS), Airbag Safety Restraing System (SRS), Electronic Parking Brake system (EPB) and perform many types of actuation tests. - Page 10 ECU information, and confirm whether the VIN can be read. ③ Contact the XTOOL technical team to provide the VIN code to confirm whether the model supports automatic identification of VIN. MANUAL ENTER: It supports manual input of car VIN code. When entering the VIN code manually, make sure that the 17 characters entered are correct to ensure accurate test results.
-
Page 11: Diagnosis Functions
OBD-II supports reading the related fault codes of the Powertrain Control Module (PCM); DEMO, a demonstration program; Click this button to experience and learn the operation processes of the diagnostic function Some models provide multiple entry methods in the sub-menu, including: ⚫... -
Page 12: Read Trouble Code
⚫ READ ECU INFORMATION This function is to read ECU version information and is the equivalent of "System Identification" or "System Information” in some electronic control systems. These equivalent terms all refer to reading ECU-related software and hardware versions, models and production date of diesel engines, part numbers, etc. This information is helpful when recording maintenance records and ordering new parts ⚫... -
Page 13: Read Live Data
It allows for clearing current and historical trouble codes stored in the ECU memory, under the premise that all the troubles have been resolved. Some troubles are immediately detected by the ECU with the key in the run position and without the engine running. Other troubles are not detected until very specific test conditions are met such as engine coolant temperature within a range, speed within a range for a duration of time, throttle percentage within a range, etc. - Page 14 ⚫ Custom The scan tool includes support to select and show multiple PIDs. Click Display All to display all PIDs ⚫ Combine The scan tool includes support to select multiple PIDs and click Combine to combine different graphs into one chart. ⚫...
-
Page 15: Freeze Frame
⚫ Pause Click this button to pause the recording timeline ⚫ FREEZE FRAME When the signal of the sensor is abnormal, the ECU will save the data at that moment of failure to form a freeze-frame. It is usually used to analyze the reasons that may lead to component(?) failures. The live data items supported by vehicles of different brands are not the same, so the freeze frames displayed when diagnosing vehicles of different brands may also be different. - Page 16 Context when fault appeared: record the live data when fault appeared to help the user to know the vehicle status. *Some vehicles don't support this function; users will get a prompt when they click the menu. Current context: Displays the current live data stream associated with the DTC Additional data: record other data related to the fault ⚫...
-
Page 17: Special Functions
These functions often eliminate the need to reset codes after resolving common problems. Since XTOOL is continuously developing, the manual may not include all of the latest special functions that are available for download. This user manual lists some of the commonly used special reset services for your reference. - Page 18 When ready, click "OK" to enter the bleed procedure, and pumping the brake pedal continuously with steady applies every 2 seconds during the entire procedure...
- Page 19 Continue pumping the brake pedal, when air bubbles are no longer visible, select OK to enter next bleed procedure for left front wheel Repeat the operation 3 times to complete the bleed procedure for the left front wheel, right front wheel and right rear wheel in turn.
-
Page 20: Oil Reset
Caution ⚫ The ABS pump screw needs to be unscrewed ⚫ Brake fluid will be under pressure during this process. Secure the bleed hose and open bleeder screws slowly ⚫ Some vehicles do not support automatic bleeding, but manually bleeding 3.2 OIL RESET The scan tool can be used to reset the engine oil life system, which calculates the optimum oil life change interval based on the vehicle’s driving conditions and climate. - Page 21 Enter Maintenance mileage reset menu. Click INPUT and enter a reasonable value of remaining oil life and press OK. Confirm the [New Value] you just entered, and then click OK at the bottom right to complete the procedure. Message of ‘Write successfully’ displays when Oil Reset function has successfully performed.
-
Page 22: Epb
3.3 EPB Electronic Parking Brake (EPB) System reset is a popular special function. You can use this function to reset the electronic parking brake system and brake pads (retraction, release of the brake pump), G-sensor and body angle calibration. This function has multiple uses and can safely and effectively maintain the electronic brake system. -
Page 23: Sas
Wait until the message of ‘Successful operation’ popes up. And press OK to exit the menu. Enter the Exit maintenance mode menu and wait until the message of ‘‘Successful operation’ popes up. 3.3 SAS Steering Angle Sensors (SAS) System Calibration permanently stores the current steering wheel position as the straight- ahead position in the SAS EEPROM. -
Page 24: Bms Reset
Follow the instructions displayed and press OK after completing the instructions shown. Wait until the following instruction is displayed and press OK after completing the instructions shown. Message of ‘Function execution is completed’ displayed when SAS reset function has successfully completed. 3.5 BMS RESET The Battery Management System (BMS) allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement and activate the rest state of the vehicle. - Page 25 ⚫ The main battery is replaced. Battery matching must be performed to clear original low battery information and prevent the related control module from detecting false information. If the related control module detects false information, it will invalidate some electric auxiliary functions, such as automatic start & stop function, sunroof without one-key trigger function or power window without automatic function.
-
Page 26: Injector Coding
3.6 INJECTOR CODING This function can write the identification code of the fuel injector into the ECU so that the ECU can recognize the new injector. After the ECU or injector is replaced, the injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection. -
Page 27: Dpf Regeneration
Enter the Change the value of cylinder menu of the replaced injector(s), enter the new 5-digit value, and then press Wait until the message ‘Write successfully’ pops up. Turn off the ignition switch. Wait until the message asks you to turn on the ignition switch. Re-enter the Fuel injection nozzle injection volume adjustment menu to check whether the new value(s) are shown. - Page 28 The ECM monitors driving style and selects a suitable time to employ regeneration. Vehicles driven a lot at idling speed and low load will attempt to regenerate earlier than vehicles driven more with higher load and speed. For regeneration to take place, a prolonged high exhaust temperature must be obtained.
- Page 29 Read the instructions carefully and follow the instructions shown on the screen. Press OK after completing the instructions shown. Follow the instructions displayed and press OK after completing the instructions shown. IMPORTANT: Please pay attention to the Note. Press the OK button to start the regeneration.
-
Page 30: Tpms Reset
10. Wait for the value of carbon deposit to decrease until a message of ‘Emergency regeneration has been completed’ pops up, this process may take up to 40 minutes. 11. Wait for 2 minutes to let the particulate filter cool down. 12. - Page 31 ⚫ Tire replacement ⚫ After troubleshooting tire pressure related problems ⚫ Other causes of loss of signal from the tire pressure sensor 1. For tire pressure sensor matching, some vehicle models may need the TPMS activation tool; 2. After learning process, you may need to run the car for some while before the fault light goes off; 3.
- Page 32 Install all tire pressure sensors appropriately Pull up the parking brake Turn the ignition to ON/RUN with the engine off Enter the tire pressure learning mode through the instrument panel on vehicle. There will be the corresponding prompt, which are differ from different car make and model, please subject to the vehicle manual or consult a professional) Starting from the left front wheel (some models flash the turn signal at the corresponding position), use the TPMS Activation Tool to activate the sensor, and the vehicle will sound the horn or flash the turn signal at the corresponding position after successful activation.
-
Page 33: Report
Install the new sensor to the tire correctly, set the tire pressure to the standard value, and put the tire back on the vehicle ! Note Tire pressure standard is usually displayed in these places: ⚫ Vehicle owner's manual ⚫ Label next to the driver's door (near the B-pillar) ⚫... - Page 34 Please follow the below steps to print your report▼ Step 1: Install an APP that can connect to your target printer. Add the printer and input the IP address of the printer in the APP, or you can contact the XTOOL support team (support1@xtooltech/ support2@xtooltech.com) for help.
-
Page 35: Replay
The Scan tool doesn’t provide the printer driver software, please install a third part App on the tablet if you need the print your Diagnostic report. Step 2: On the Android main menu, go to Settings -> Printing-> Turn printer on. Step 3: Report->... -
Page 36: Update & Factory Reset
When the subscription expires, the software has installed on your device itself still is available, but all updates will be invalid. If you delete specific software due to the personal operation, XTOOL is not responsible for supporting the restoration of the software when the subscription expires. - Page 37 After selecting the system language, click Next to enter the Wi-Fi connection page, as shown below: Select a network to connect to on the Wi-Fi connection page. You will need to enter the Wi-Fi password to establish Wi-Fi connectivity. After successfully connecting to an Internet network connection, the scan tool will jump to Factory mode to download the software: This download process can take several minutes, largely determined by the speed of your Internet connection.
-
Page 38: Warranty & Services
You can use this application to enable someone else to use their computer running TeamViewer software to control your tablet over the Internet. This feature is frequently used by XTOOL's technical support centre when remotely helping customers with technical support. - Page 39 4. Provide your ID to the partner or XTOOL technician, and then wait for them to send you a remote-control request. 3. A pop-up window will be displayed, asking you to permit the remote-control program to control your device.
- Page 40 FCC Statement Smart Diagnostic System has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 41 Specific Absorption Rate (SAR) information: This device meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health.
