- Page 1 Quick Guide PS701 Pro Intelligent Diagnosis System Please read the instruction carefully book before usage...
- Page 2 You may not use the trademarks, service marks, domain names, logo, and company name of Xtool or other companies mentioned without written permission from the trademark holder. Xtool reserves the right to the final interpretation of this manual content.
- Page 3 QUICK GUIDE Copyright This manual is designed for PS701 Pro Intelligent Diagnosis System and only applies to it. Any company or person can’t copy and backup this introduction book in any form (Electronic, mechanical, photocopy, record, or other forms) without the written permission of Xtool.
- Page 4 Xtool assumes no liability or responsibility for those. To know more about related products information, you can visit Shenzhen Xtooltech Intelligent Co., Ltd’s...
- Page 5 QUICK GUIDE Caution Always keep safe conditions to diagnosing vehicle ⚫ Wear the goggles in accord with ANSI standard ⚫ Keep clothes, hair hand, tool, tester, etc. away ⚫ from running or calorific engine Before starting the engine, you should confirm ⚫...
- Page 6 QUICK GUIDE gasoline, chemical, electrical fires in the working area When the ignition switch is turned on or the ⚫ engine is running, don’t connect or disconnect the diagnostic equipment Keep the diagnostic device dry and clean, away ⚫ from gasoline, water, and grease. If necessary, use a clean cloth coated with a mild detergent to clean the surface of the device Don’t operate the diagnostic equipment while...
- Page 7 QUICK GUIDE To avoid damaging the diagnostic device or ⚫ generating incorrect data, please ensure that the vehicle battery is sufficiently charged and the connection of the vehicle diagnostic socket is clean and safe Don’t put the diagnostic device on the vehicle ⚫...
- Page 8 QUICK GUIDE Content Product Brief Page 1 In this part, you can know about the basic features of the product Product Specification Page 2 In this part, you can know about the specification of the product Start Diagnosis Page 10 In this part, you can know about the functions of the product FAQs Page 43...
- Page 9 QUICK GUIDE 1. Product Brief PS701 Pro intelligent diagnosis system is a professional vehicle diagnosis device for Japanese automobiles. It supports the detection and bi- directional control test for vehicle drive, chassis, and body systems. It has basic diagnostic functions such as reading fault code, clearing fault code, reading live data, freezing frame, etc.

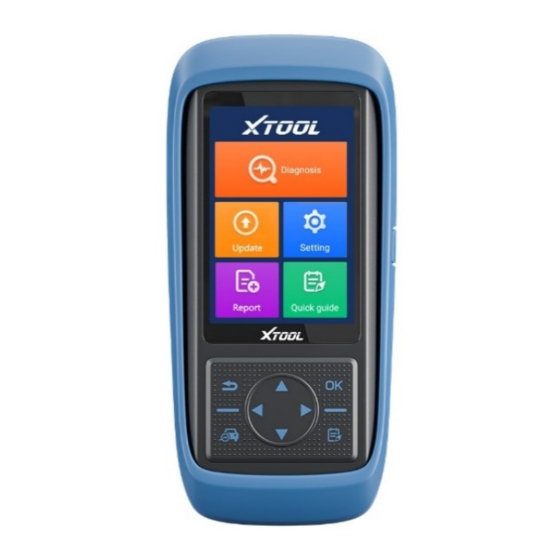

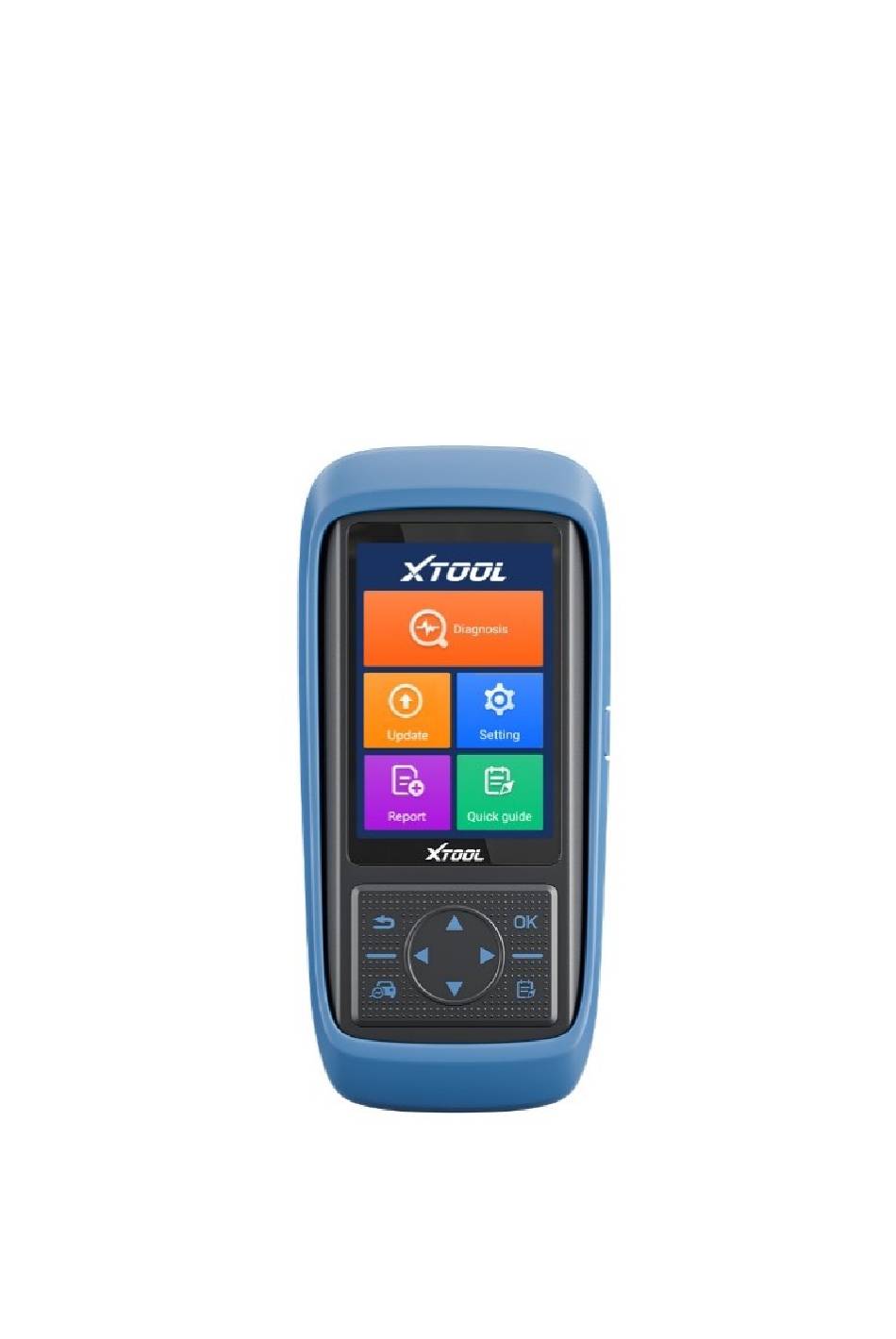

- Page 10 QUICK GUIDE 2. Product Specification 2.1. Appearance PS701 Pro series Intelligent Diagnosis System. Front view Back view...
- Page 11 PS701 Pro products are equipped with VCI as standard, and the host and VCI are connected via Bluetooth, which is convenient for connection.
- Page 12 QUICK GUIDE 2.2. Ports and Button Items Description Charge Lamp Display status of charge...
- Page 13 QUICK GUIDE Display function menu product Cancel selection (Or operation) Back or return to the previous menu Via direction key to move Direction key choosing appoint menu Vehicle Open/switch vehicle diagnosis diagnosis function DB15 Only for charging connector Speedy guide Open/switch introduction book Confirm selection Connect the device to the PC for...
- Page 14 QUICK GUIDE 2.3. Parameter Items Description System Android ARM Cortex A7 Quad-Core， Basic frequency 1.2GHz Mali-400 MP2 GPU 16GB Display screen 4-inch 320x480 Color touch display screen Working voltage 9~18V Battery 3000mAh built-in lithium battery Working temperature -20℃-60℃ Storage temperature -30℃-70℃...
- Page 15 QUICK GUIDE 2.4. Packing list Category Name OBD II-16 Test HONDA-3 Connectors NISSAN-14 & Cables Main Cable USB Type-C Cable Charger DC5V AC (100-300V) 2A US plug adapter Adaptor EU plug adapter UK plug adapter PS701Pro Main Units VCI box Certificate of Quality Accessories Packing List...
- Page 16 QUICK GUIDE 2.5. Connection PS701 Pro Host Main test line Vehicle Please connect your vehicle to PS701 Pro below steps: 1. First open the PS701 Pro host;...
- Page 17 QUICK GUIDE 2. Connect the host and VCI via Bluetooth; 3. Connect the VCI to the car with the main test line; 4. Start the diagnosis. *Note The DB15 port on the bottom is only reserved for charging. Please do not connect directly the PS701Pro to the vehicle by the main test line, which could lead to a communication failure.
- Page 18 QUICK GUIDE 3. Start Diagnosis 3.1. Activation The First use of PS701 Pro needs an activation. Please follow the below steps to activate your device: Step 1: Long press the power button to boot up and connect Wi-Fi, Step 2: Input your email address to activate.
- Page 19 QUICK GUIDE 3.2. Main Interface After booting, the main interface is shown below.
- Page 20 Click to start the diagnosis function Software that can be updated to the latest version will be displayed here You could change the Language, Units, Date & Time, and so on. View all historical reports here Quick guide for PS701 Pro...
- Page 21 QUICK GUIDE 3.3. Diagnosis This function is the core module of PS701 Pro, which supports full system diagnosis for Japanese vehicles. Customers can use these functions to solve practical problems quickly and precisely.
- Page 22 QUICK GUIDE VIN Identification According to the practical requirement, the user can choose automatic identification or manual input of the car VIN code...
- Page 23 QUICK GUIDE Vehicle Selection PS701 Pro supports diagnostic functions for 9 Japanese cars, like Honda, Isuzu, Lexus, Mazda, Mitsubishi, Nissan, Subaru, and Suzuki Toyota.
- Page 24 QUICK GUIDE Demo This function is used for demonstration. Users can view all of the functions in PS701 Pro without changing any settings.
- Page 25 QUICK GUIDE Basic Function PS701 Pro will enter the diagnosis function after confirming the vehicle model. The normal function includes reading ECU version information, Reading ECU code, reading fault code, reading freeze-frame, quick clear codes, reading live data, and Resetting the control unit.
- Page 26 QUICK GUIDE...
- Page 27 QUICK GUIDE Read ECU Info This function allows users to read ECU version information. Some electronic control systems display system identification or system information menus, which have the same meaning, and read information such as software, hardware version numbers, part numbers, etc.
- Page 28 QUICK GUIDE...
- Page 29 QUICK GUIDE Read Fault Code This function allows the user to read the fault code stored in the electronic control ECU. When the fault code is read, the screen will display it and its definition.
- Page 30 QUICK GUIDE Quick Clear Codes This function allows the user to clear current and historical trouble codes memory in ECU.
- Page 31 QUICK GUIDE The trouble codes cannot be erased without eliminating the related fault. If a problem is not solved, the related code will remain, and be stored in ECU, which leads to it can be read by diagnostic. Read Freeze Frame This function allows the user to read the trouble codes that are stored in the ECU at the moment when a vehicle has faults.
- Page 32 QUICK GUIDE Read Live Data This function allows the user to read the parameters of the system on the operating conditions, such as oil pressure, temperature, engine speed, fuel temperature, coolant temperature, intake air temperature, etc. By analyzing these parameters, the users can find out which part works abnormally and narrow the maintenance scope.
- Page 33 QUICK GUIDE Function Select...
- Page 34 QUICK GUIDE Read live data Actuation test (Bi-directional Control) This function allows the user to figure out whether a...
- Page 35 QUICK GUIDE specific subsystem or component in the car works well or not, and to make the tester outputs function. (This picture is only for reference)
- Page 36 QUICK GUIDE Special function Special functions provide maintenance services for different systems of the vehicle, and support users to perform a various reset, re-learning, or matching functions when replacing component encountering failures.
- Page 37 QUICK GUIDE Sample of Special functions Sample of Special functions-Enter Injector Codes...
- Page 38 QUICK GUIDE 3.4. Upgrade The PS701 Pro supports a one-click upgrade to renew software quickly to experience the latest function;...
- Page 39 QUICK GUIDE Notice: when new software is released, an update notice will be shown on the screen, customers can choose to upgrade or not. 3.5. Settings Select the "Settings" menu to open the setting interface. You can set the language, unit, and system-related options on this interface.
- Page 40 QUICK GUIDE...
- Page 41 QUICK GUIDE Language: Please select the language according to the device configuration, otherwise the diagnosis interface menu will not be displayed.
- Page 42 QUICK GUIDE Unit: Select the unit of measurement, users can select metric, imperial, and U.S. systems.
- Page 43 QUICK GUIDE Wi-Fi: Choose a suitable wireless network connection to perform data transmission and Internet access Open/Connect Wi-Fi...
- Page 44 QUICK GUIDE Display/Lightness: Users can adjust the brightness of the display and the time interval of the host's automatic standby according to their conditions to achieve a better experience.
- Page 45 QUICK GUIDE Bluetooth: You can select the Bluetooth to pair.
- Page 46 QUICK GUIDE Date/Time: The user can set the date and time of the system here Set date...
- Page 47 *Note Before clearing the cache and restoring the factory settings, please confirm whether the required information has been saved or backed up, if the losses are caused by this, Xtool assumes no liability or responsibility for that.
- Page 48 QUICK GUIDE About: Users can the information about the device.
- Page 49 QUICK GUIDE Tooltip： Pull down the top of the screen to call out the notification bar, you can view the current system time, power, Bluetooth, and wireless connection information, and quickly adjust the lightness of the display...
- Page 50 QUICK GUIDE 3.6. Report...
- Page 51 3.7. Quick Guide PS701 Pro provides an online user manual, which could be used to learn the product function at any time. Users can open Quick Guide by clicking the menu icon on the screen, or pressing the button on the bottom right.
- Page 52 QUICK GUIDE 4. FAQs Q1. “Wi-Fi connection timed out” A1: This device does not currently support Wi-Fi 6 and security protocol WPA3, please check the type of your Wi-Fi and the security protocol, please change the security protocol to WPA2, and enable maximum compatibility.
- Page 53 (effective Bluetooth communication distance: 10m) Step 3: If you still cannot make the Bluetooth communication between the device and the VCI box successful, please contact XTOOL after-sales technical support email: support1@xtooltech.com or support2@xtooltech.com Q3. "Activation failed" or "Registration failed"...
- Page 54 QUICK GUIDE Q3: Please make sure that your network is stable and the network traffic from China is not blocked, and try to activate the device at another period, or use a mobile phone hotspot or other Wi-Fi to activate the device.
- Page 55 QUICK GUIDE Shenzhen Xtooltech Intelligent Co., Ltd Company address: 17&18/F, Building A2, Creativity City, Liuxian Avenue, Nanshan District, Shenzhen, China Factory address: 2/F, Building 12, Tangtou Third Industrial Zone, Shiyan Street, Baoan District, Shenzhen, China Service-Hotline: 0086-755-21670995/86267858 Email: supporting@xtooltech.com Fax: 0755-83461644 Website: www.xtooltech.com...
