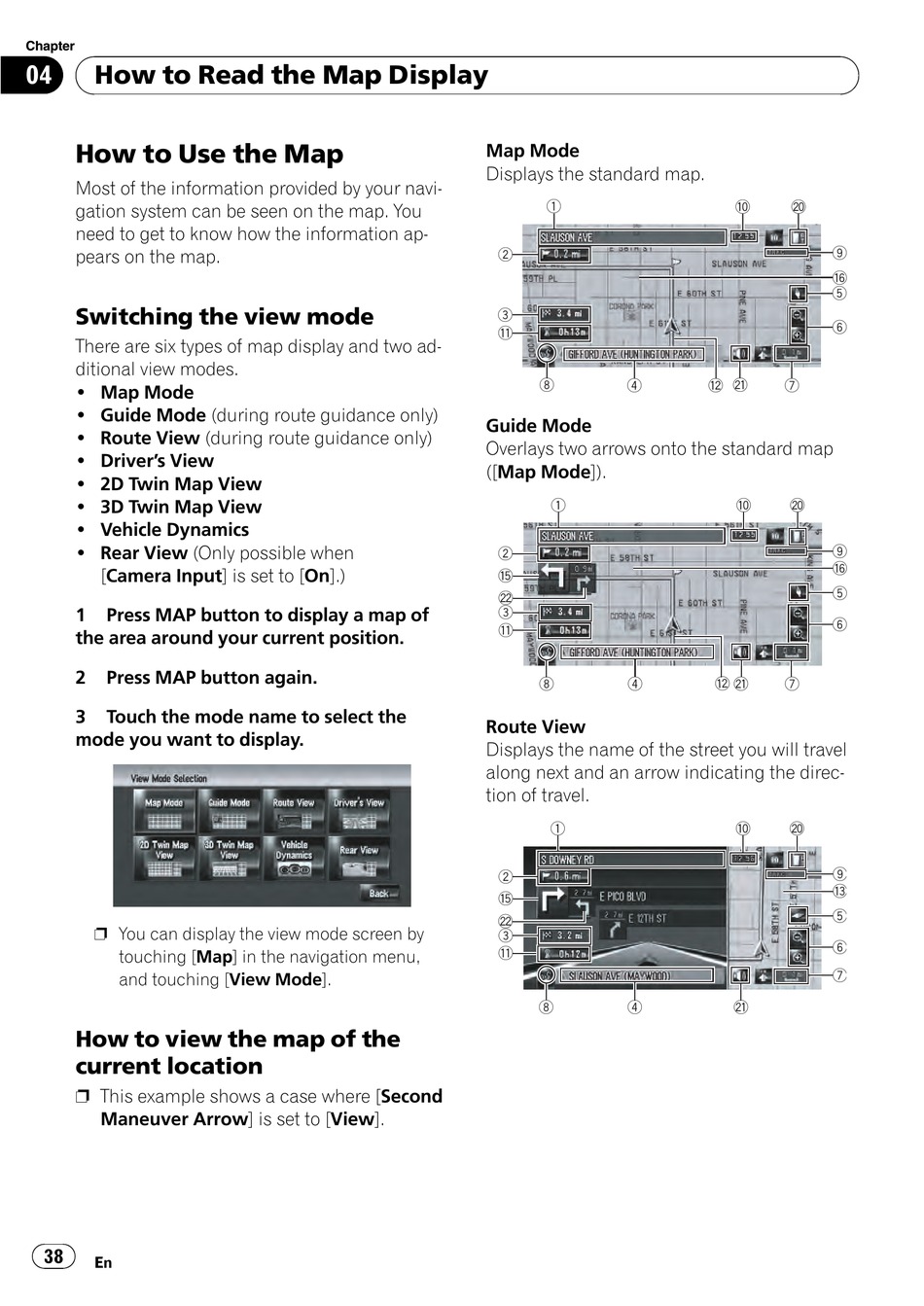

How to Read the Map Display

How to Use the Map

Most of the information provided by your navi-
gation system can be seen on the map. You
need to get to know how the information ap-
pears on the map.

Switching the view mode

There are six types of map display and two ad-
ditional view modes.
! Map Mode
! Guide Mode (during route guidance only)
! Route View (during route guidance only)
! Driver's View
! 2D Twin Map View
! 3D Twin Map View
! Vehicle Dynamics
! Rear View (Only possible when
[Camera Input] is set to [On].)
1 Press MAP button to display a map of
the area around your current position.
2 Press MAP button again.
3 Touch the mode name to select the
mode you want to display.
p You can display the view mode screen by
touching [Map] in the navigation menu,
and touching [View Mode].
How to view the map of the
current location
p This example shows a case where [Second
Maneuver Arrow] is set to [View].
38
En
Map Mode
Displays the standard map.
1
2
3
b
8
4
Guide Mode
Overlays two arrows onto the standard map
([Map Mode]).
1
2
f
m
3
b
8 4
Route View
Displays the name of the street you will travel
along next and an arrow indicating the direc-
tion of travel.
1
2
f
m
3
b
8 4
a k
9
g
5
6
l
c 7
a k
9
g
5
6
l 7
a k
9
d
5
6
7
l
