When installing the antenna
inside the vehicle (on the rear
shelf)
Affix the metal sheet on as level a surface as
possible where the GPS antenna faces the
window. Place the GPS antenna on the metal
sheet. (The GPS antenna is fastened with its
magnet.)
Notes
! When attaching the metal sheet, do not cut it
into small pieces.
! Some models use window glass that does not
allow signals from GPS satellites to pass
through. On such models, install the GPS an-
tenna on the outside of the vehicle.
26
En

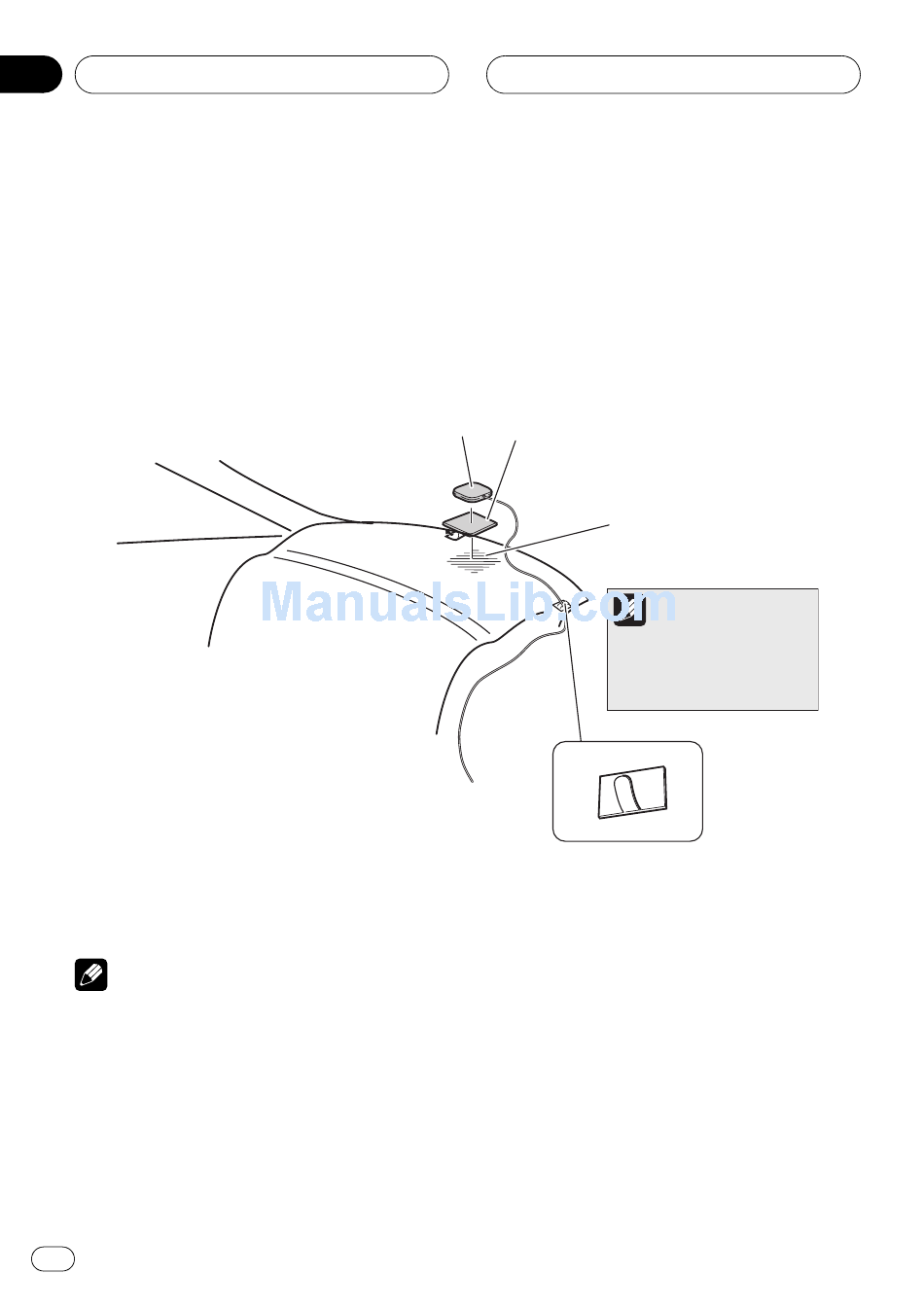

Metal Sheet
Peel off the protective sheet
GPS antenna
on the rear.
Clamps
Use clamps to secure the
lead where necessary inside
the vehicle.
Make sure the surface is
free of moisture, dust,
grime, oil, etc., before
affixing the metal sheet.
Note
The metal sheet contains a
strong adhesive which may
leave a mark on the surface if
it is removed.
