Connecting the System

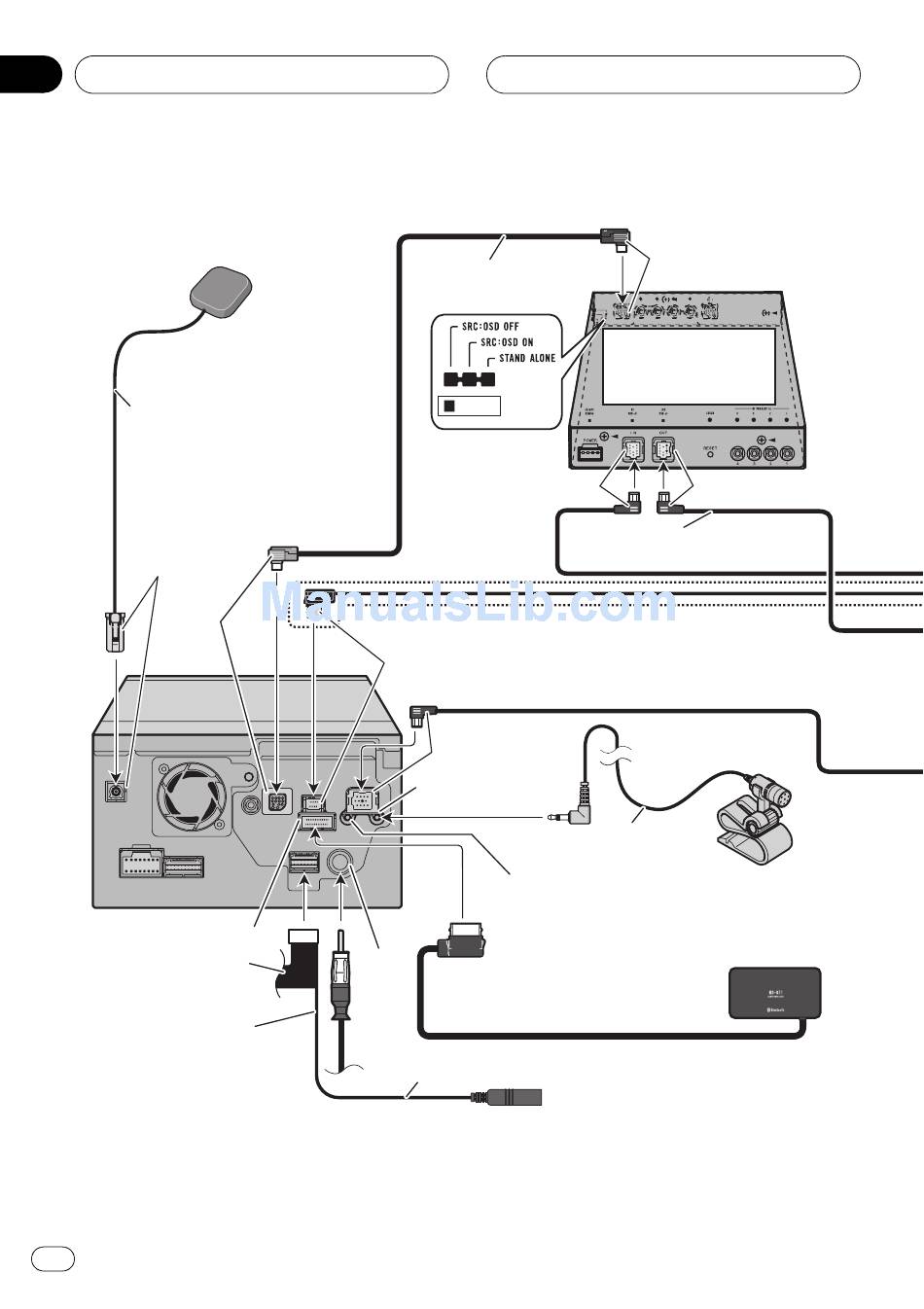

Connecting the system
GPS antenna
5 m (16 ft. 5 in.)
Light gray
Blue
The navigation unit
RCA connector 2
Jack for Wired Remote
Control Adapters
(WIRED REMOTE INPUT)
Please see the instruction manual
for the Wired Remote Control
Adapters (sold separately).
8
En
Black
Red
Antenna
jack
Vehicle
antenna
20 cm (7-7/8 in.)
AV-BUS cable
(supplied with TV tuner)
Blue
Blue
Microphone input
Not used.
Bluetooth unit (ND-BT1)
(sold separately)
Black
Hide-away TV tuner
(e.g. GEX-P5700TV)
(sold separately)
Black
IP-BUS cable
(supplied with TV tuner)
4 m
(13 ft. 1 in.)
Microphone
(supplied)
