Pioneer AVIC Z3 - Navigation System With DVD player Installation Manual page 9

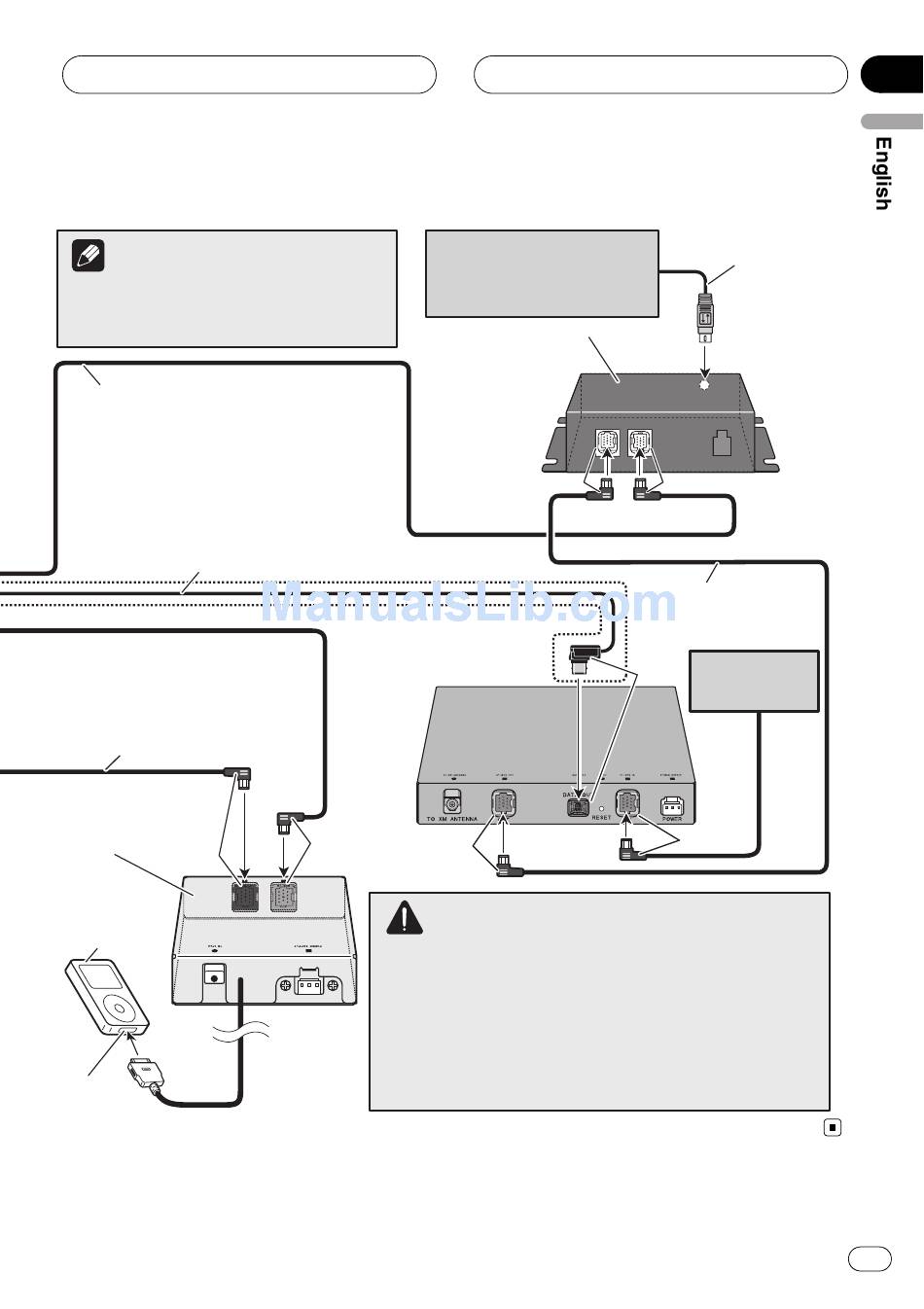

Connecting the System
Note
The XM tuner and SiriusConnect universal
tuner will not receive their service when you
drive outside of their coverage area.
IP-BUS cable
(supplied with SIRIUS BUS INTERFACE)
XM DATA cable
(supplied with hide-away XM tuner)
* When combining this navigation system with
GEX-P10XMT (sold separately), this connection
must be required.
* When installing the XM tuner in the trunk, etc.,
the extension cable (e.g. CD-600DC)
(sold separately) is required.
IP-BUS cable
(supplied with iPod adapter)
Interface adapter for iPod
(e.g. CD-IB100II)
(sold separately)
Black
iPod® with
Dock connector
Dock
connector port
"SiriusConnect universal tuner"
or "SIRIUS Dock and play radio
with SiriusConnect vehicle kit"
(sold separately)
SIRIUS BUS INTERFACE
(e.g. CD-SB10)
(sold separately)
Hide-away XM tuner
(e.g. GEX-P10XMT)
(sold separately)
Blue
Black
WARNING
· To avoid the risk of accident and the potential violation of
applicable laws, this product should never be used while the
vehicle is being driven except for navigation purposes. And,
also Rear Displays should not be in a location where it is a
visible distraction to the driver.
· In some countries or states, the viewing of images on a display
inside a vehicle even by persons other than the driver may be
illegal. Where such regulations apply they must be obeyed and
this product´s video source or TV features should not be used.
SiriusConnect Cable
(sold separately)
Blue Black
IP-BUS cable
(supplied with hide-away
XM tuner)
Multi-CD player
Black
(sold separately)
Blue
Section
02
9
En
