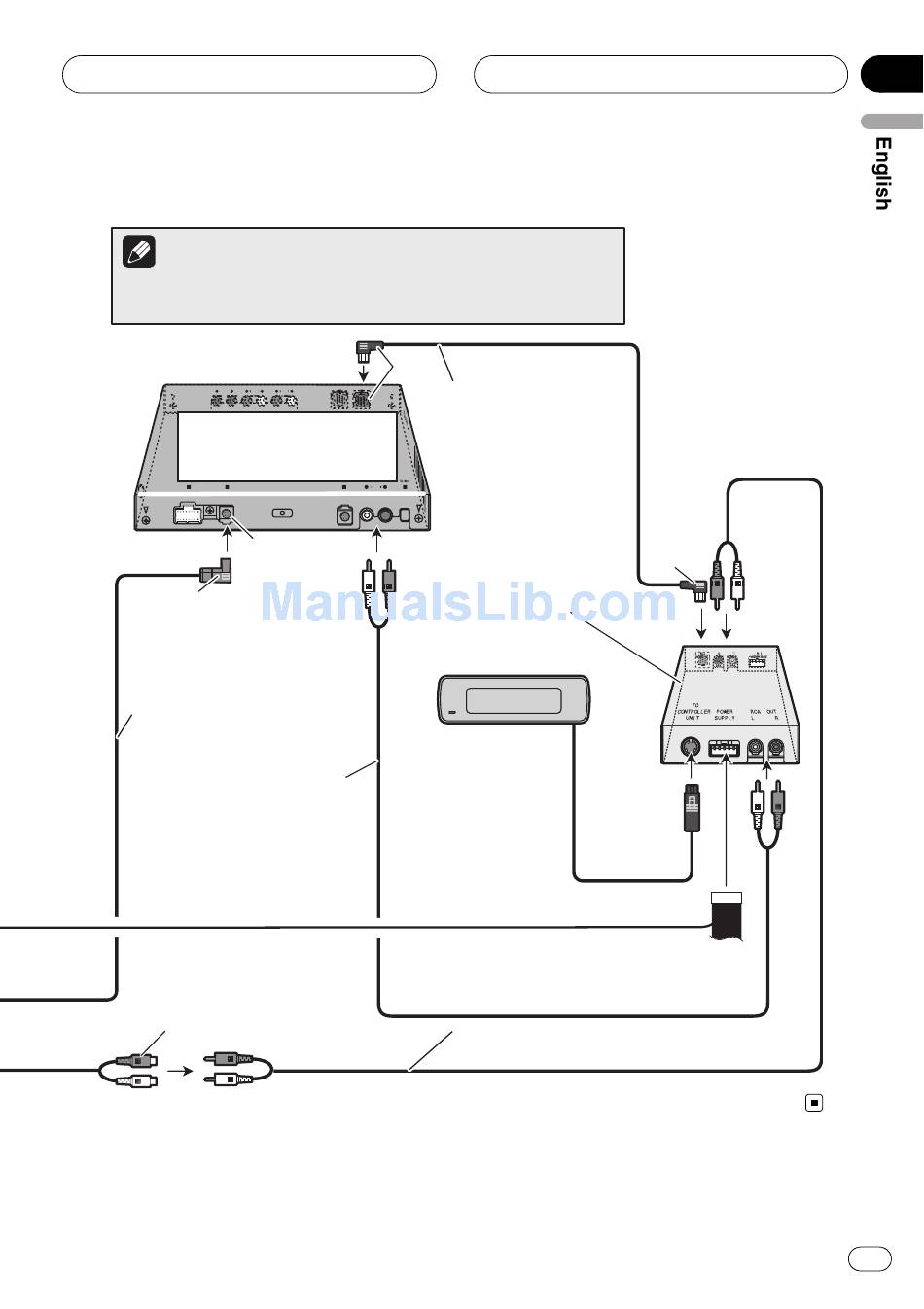

Connecting the System
Note
Be sure that "DIGITAL OUTPUT" of this navigation system is connected to
"OPT.IN 2" of the multi-channel processor via optical cable.
Multi-channel processor
(e.g. DEQ-P8000)
(sold separately)
OPT.IN 2
Blue
Optical cable
(supplied with
multi-channel processor)
Subwoofer output
or non-fading output
(SUBWOOFER OUTPUT or
NON-FADING OUTPUT)
Black
Multi-channel processor
controller unit
(e.g. AXM-P8000)
RCA cable
(Display unit)
(supplied with
multi-channel
processor)
IP-BUS cable
(supplied with multi-channel
processor)
Multi-channel
processor
controller unit
(e.g. AXM-P8000)
(Hide away unit)
RCA cable (supplied with multi-channel
processor controller unit)
Blue
