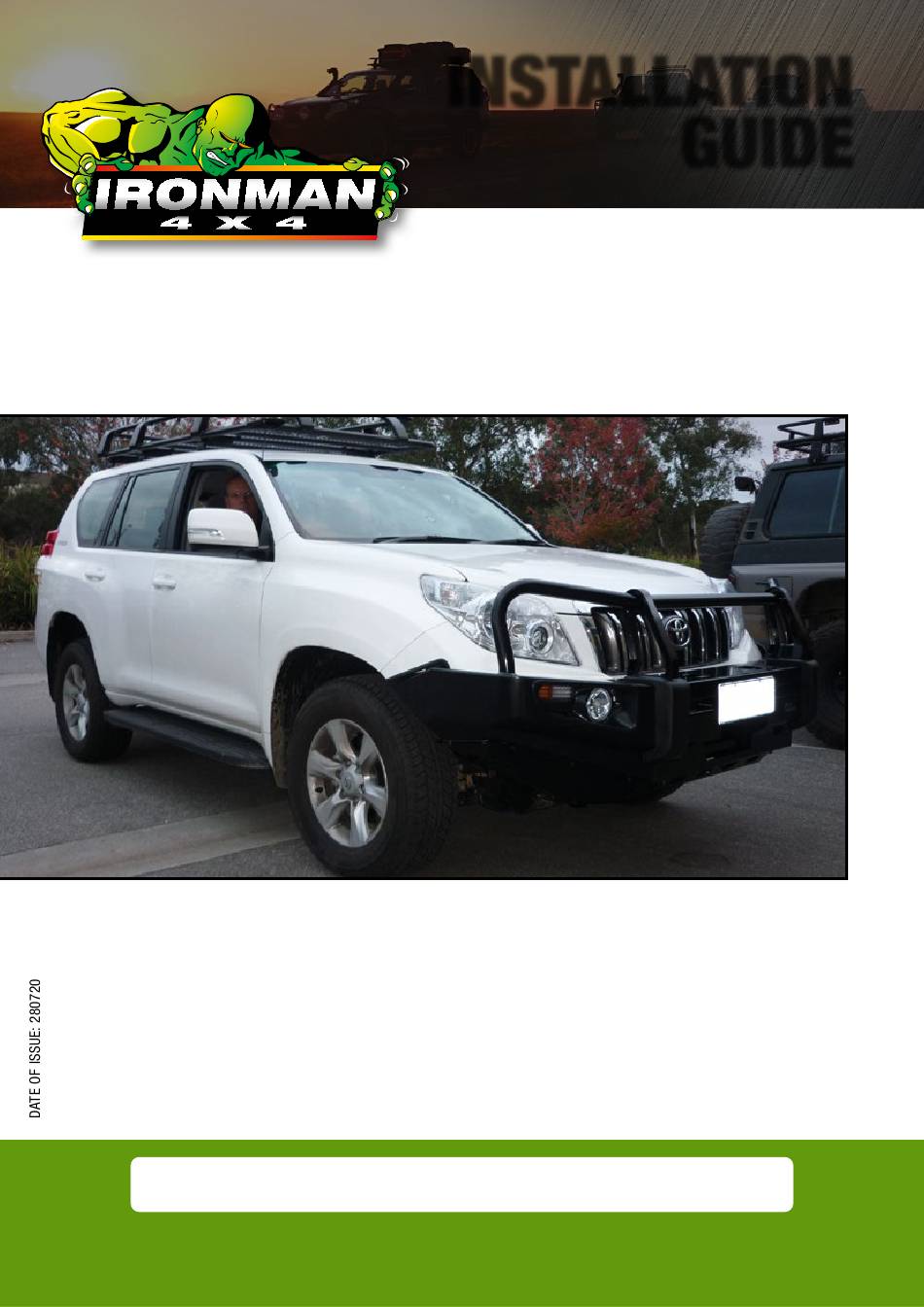

Ironman 4x4 BBT / BBC / BBCD Bull Bar to suit a Toyota Prado 150
•
It will take about 3 hours to install
•
All bolts, washers, spring washers and nuts are supplied unless otherwise indicated
•
All drilled holes must have anti-corrosion treatment applied
NOTE: This product has been tested for air bag compatibility and
therefore the mounting system MUST NOT BE modified
IMPORTANT: Bull Bar installations should only be done by a qualified person
©Copyright 2020 Ironman 4x4 Pty Ltd. No part of this publication may be reproduced or replicated without the prior written consent of Ironman 4x4 Pty Ltd
BBT029 / BBC029 / BBCD029
and it is the responsibility of this person to ensure correct fitment.
INSTALLATION
TO SUIT TOYOTA PRADO 150
GUIDE
Advertisement
Table of Contents
Related Manuals for Ironman4x4 BBT029
Summary of Contents for Ironman4x4 BBT029
- Page 1 INSTALLATION GUIDE BBT029 / BBC029 / BBCD029 TO SUIT TOYOTA PRADO 150 • Ironman 4x4 BBT / BBC / BBCD Bull Bar to suit a Toyota Prado 150 • It will take about 3 hours to install • All bolts, washers, spring washers and nuts are supplied unless otherwise indicated •...
- Page 2 Installation Guide BBT029 / BBC029 / BBCD029 Before installation check bull bar application is compatible with your vehicle. Before making any cuts, please refer to bumper cutting instructions applicable to your vehicle model. Remove all mounting hardware holding lower section of front bumper bar to vehicle.
- Page 3 Installation Guide BBT029 / BBC029 / BBCD029 Install pinch weld to cuts on ends of bumper. Remove aluminium bumper reinforcement and mounting brackets. Place U-Bolts in position around chassis from inside out, in front of radiator. 10. Attach mounting cradle to chassis using factory bolts and heavy duty flat washers.
- Page 4 Installation Guide BBT029 / BBC029 / BBCD029 11. Place reinforcing brackets over U Bolts outside chassis and loosely fit M10 nuts, springs and flat washers. Fit M12 bolt, spring and flat washer to captive nut in chassis. Place two heavy duty flat washers between...
- Page 5 Installation Guide BBT029 / BBC029 / BBCD029 17. Connect park lights, indicators and fog lights as per wiring diagrams on page 8 18. Fit protection plates underneath the bull bar using M8 bolts, spring washers and flat washers provided. 19. Trim left hand mudguard liner level with protection plate.
-
Page 6: Winch Installation
Installation Guide BBT029 / BBC029 / BBCD029 Winch Installation 1. Bolt winch to cradle with gearbox to the left hand side of vehicle and cable spooling from bottom of the cable drum using bolts and washers provided. 2. Bolt fairlead to recess in front of bull bar using bolts, washers and nuts provided. - Page 7 Installation Guide BBT029 / BBC029 / BBCD029 Connect three colour coded cables to the corresponding poles on winch motor. 6. Connect the thin black earth wire and negative battery cable to the earth connection on the opposite side of winch motor.
-
Page 8: Wiring Diagrams
Installation Guide BBT029 / BBC029 / BBCD029 Wiring Diagrams PARK LIGHT & INDICATOR Park Light Indicator White Yellow Park Light Indicator Circuit Circuit Black Black Ground Ground FOG LIGHTS Ground Lamp Fuse Connector Relay Black Blue Battery Lamp Parklight Switch... -
Page 9: Cut Out Template
CUT LINE CUT WASTE SIDE DOUBLE LINES ON EACH PAGE SHOULD BE PARALLEL AND 20MM APART, WHEN TAPING PAGES TOGETHER BEFORE CUTTING OUT TEMPLATE BBT029 / BBC029 / BBCD029 BULL BAR TEMPLATE TO SUIT TOYOTA PRADO 150 11/2009-10/2013 PAGE 1/2... - Page 10 CUT WASTE SIDE CUT LINE BBT029 / BBC029 / BBCD029 BULL BAR TEMPLATE TO SUIT TOYOTA PRADO 150 11/2009-10/2013 PAGE 2/2...
