Ironman4x4 BB074 Installation Instructions Manual
  1. Manuals
  2. Brands
  3. Ironman4x4 Manuals
  4. Automobile Accessories
  5. BB074
  6. Installation instructions manual

Ironman4x4 BB074 Installation Instructions Manual

To suit isuzu d-max 6/2019+ my20+
Hide thumbs

Advertisement

Quick Links

Download this manual
•

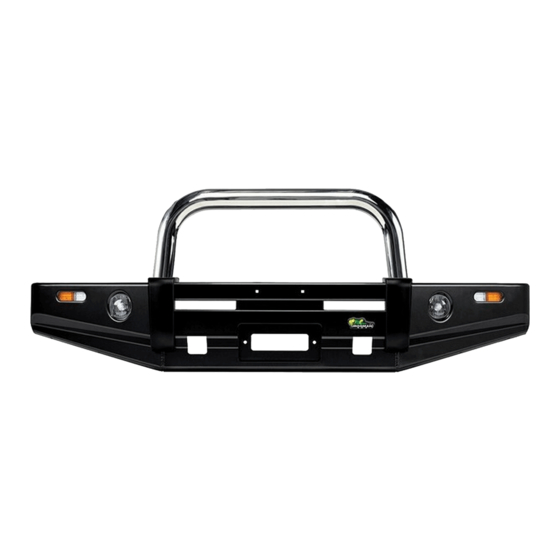

Ironman 4x4 BB074 Bull Bars fit to an Isuzu D-Max 6/2019+ MY2020+
•
It will take about 4 hours to install.
NOTE: This product has been tested for air bag compatibility and therefore
person and it is the responsibility of this person to ensure correct fitment.
©Copyright 2021 Ironman 4x4 Pty Ltd. No part of this publication may be reproduced or replicated without the prior written consent of Ironman 4x4 Pty Ltd
the mounting system MUST NOT be modified
IMPORTANT: Bull Bar installations should only be done by a qualified

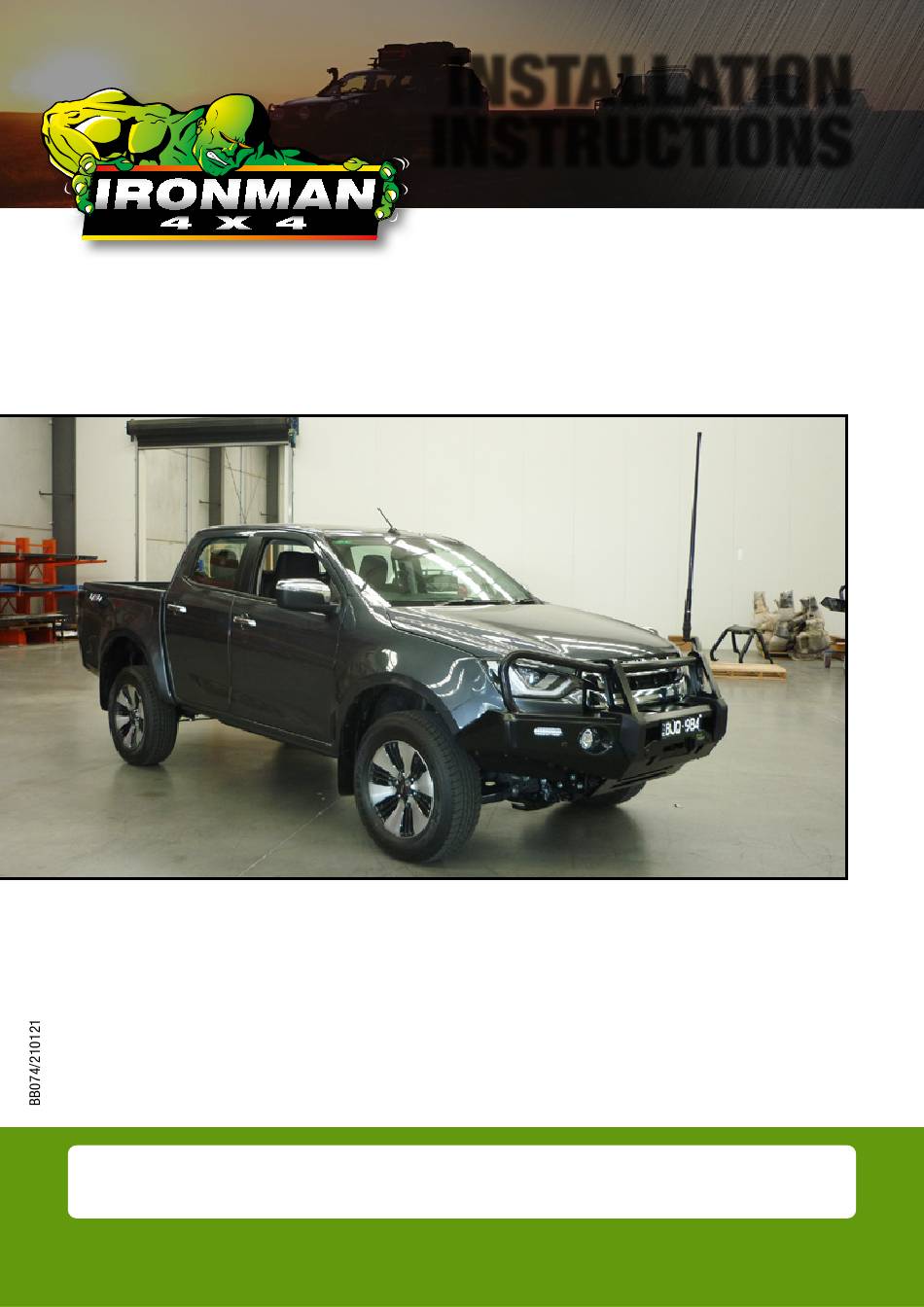

INSTALLATION
INSTRUCTIONS
TO SUIT ISUZU D-MAX
BB074
6/2019+ MY20+

Advertisement

loading
Need help?

Need help?

Do you have a question about the BB074 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ironman4x4 BB074

Summary of Contents for Ironman4x4 BB074

  • Page 1 TO SUIT ISUZU D-MAX 6/2019+ MY20+ • Ironman 4x4 BB074 Bull Bars fit to an Isuzu D-Max 6/2019+ MY2020+ • It will take about 4 hours to install. NOTE: This product has been tested for air bag compatibility and therefore...

  • Page 2: Tools Required

    Installation Guide BB074 Bull Bar Parts List 1. Bull Bar 2. Mounting Bracket QTY-1 QTY-1 3. Steel Skid Plate 4. Steel Skid Plate L-R QTY-1 QTY-2 5. Support Bracket 1 L-R 6. Support Bracket 7. License Plate Bracket 8. Skid Plate Bracket 9.
  • Page 3 Installation Guide BB074 Confrim bull bar application is suitable for your vehicle make, model and year. Unwrap the bull bar and ensure the overriders and light assemblies are tight in the bull bar before installation. Remove all clips and under trays from lower section of bumper bar.
  • Page 4 Installation Guide BB074 Cut along lines marked in previous step and along back edge of fog light/ indicator opening as shown and straight across to the grill opening. Cut across grill opening (level with the bottom of the two chrome points) and remove lower section of bumper from vehicle.
  • Page 5 Installation Guide BB074 Mark centre baffle as shown, remove from car and remove section marked with an air hacksaw or similar. Refit to car. Page 5 of 13 ©Copyright 2021 Ironman 4x4 Pty Ltd. No part of this publication may be reproduced or replicated without the prior written consent of Ironman 4x4 Pty Ltd...
  • Page 6 Installation Guide BB074 Install inner and outer chassis support brackets to the chassis using the following per side: • 2 x M10 x 120mm bolts • 4 x flat washers • 2 x spring washers • 2 x M12 nuts per side •...
  • Page 7 Installation Guide BB074 11. Using remaining holes in the inner and outer support brackets as a guide drill 4 x 12mm holes. Secure with 1 x M12 x 120mm bolt, 2 x 12mm flat washers, 1 x 12mm spring washer and M12 nut per side.
  • Page 8 Installation Guide BB074 14. Install 8 x M12 x 40mm bolts, 16 x flat washers, 8 x spring washers and 8 x nuts to remaining mounting holes and tighten. 15. Install 2 x captive nuts to square number plate mounting holes in the face of the bullbar from behind.
  • Page 9 Installation Guide BB074 18. Once bullbar is aligned, drill 4 x 10mm holes through pinning points as shown and secure in position using 4 x M10 x 40mm bolts, 8 x flat washers, 4 x spring washers and 4 x M12 nuts.
  • Page 10 Installation Guide BB074 20. Mark and trim guard liners as shown. 21. Using lower hole in radiator support panel as a guide drill a pilot hole through the plastic guard liner. Enlarge hole to 6mm from behind. Secure guard liner using 1 x M6 bolt, spring washer and flat washer as shown.
  • Page 11 Installation Guide BB074 22. Mark bumper lip as shown. 23. Drill a 6mm hole through bumper lip and guard liner. 24. Secure guard liner to bumper lip using plastic clip retained from step 3. Page 11 of 13 ©Copyright 2021 Ironman 4x4 Pty Ltd. No part of this publication may be reproduced or replicated without the prior written consent of Ironman 4x4 Pty Ltd...
  • Page 12 Installation Guide BB074 25. Install wing protection plates using 5 x black M8 bolts, spring washers, flat washers and 2 x black M8 bolts, 4 x flat washers, 2 x spring washers and 2 x M8 nuts at the two rearmost mounting points.

  • Page 13: Wiring Diagrams

    Installation Guide BB074 Wiring Diagrams PARK LIGHT & INDICATOR Daytime Running Light Brown Park Light Yellow Indicator Light White Resistor Ground If vehicle is not tted with DRL, leave red wire disconnected PARK LIGHTS PURPLE BLACK INDICATOR R/H BLUE BLACK...
