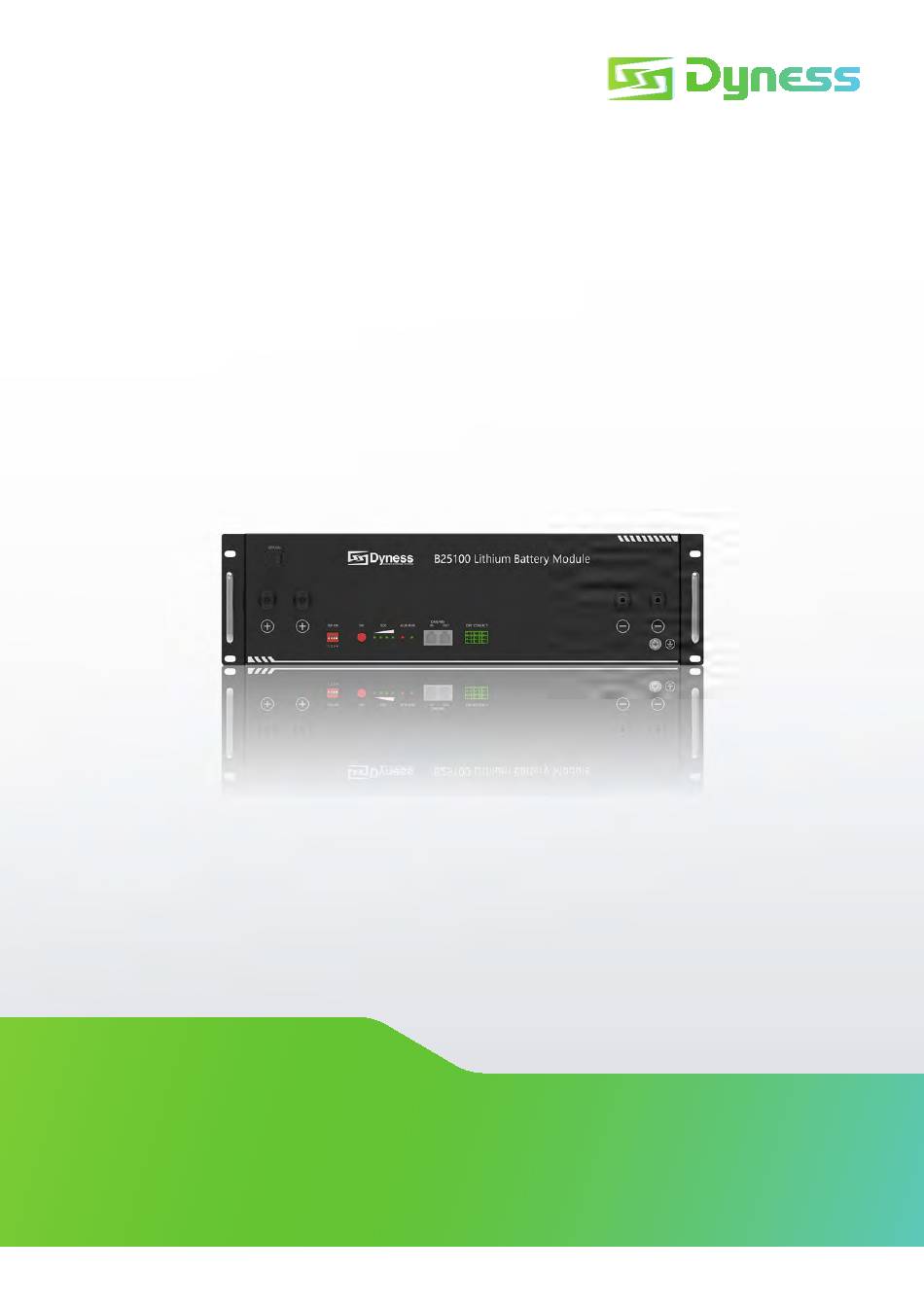

- Page 1 B25100 USER MANUAL Battery Module 25.6V/100Ah File version-20230717-V1-EN Information might be subject to change without notice during product improving.
-
Page 2: Table Of Contents
B25100 ESS Unit User Manual Content Statement of Law ......................... 1 Revision History ..............................1 Safety Precautions ........................2 Preface ............................. 3 Manual declaration ............................3 1 Introduction ..........................4 Brief Introduction ............................4 Product Properties ............................4 Product identity definition ..........................4 2 Product Specification ......................6 Size and Weight .............................. -
Page 3: Statement Of Law
B25100 ESS Unit User Manual Statement of Law Copyright of this document belongs to Dyness Digital Energy Technology Co., LTD. No part of this documentation maybe excerpted, reproduced, translated, annotated or duplicated in any form or by any means without the prior written permission of Dyness Digital Energy Technology Co., LTD. -
Page 4: Safety Precautions
Please charge the battery in 18 hours after it fully discharged or over-discharging protection mode is activated. Formula of theoretical standby time: T=C/I (T is standby time, C is battery capacity, I is total current of all loads). ©Dyness reserves the copyright of this document. -
Page 5: Preface
B25100 ESS Unit User Manual Preface Manual declaration B25100 lithium iron phosphate battery energy storage system can provide energy storage for photovoltaic power generation users through parallel combination.Our product can store extra electricity into battery from photovoltaic power generation system in daytime and supply stable power to user’s equipment as power backup at nighttime or any time when needed. -
Page 6: Introduction
Brief Introduction B25100 lithium iron phosphate battery system is a standard battery system unit, customers can choose a certain number of B25100 according to their needs, by connecting parallel to form a larger capacity battery pack, to meet the user's long-term power supply needs. - Page 7 This battery product meets European directive requirements. Dangerous goods warning label on the top of the battery module ©Dyness reserves the copyright of this document.
-
Page 8: Product Specification
1S Peak Power(kW) 2.688 1S Peak Current(A) Charging Current(A) Discharge Current(A) Interface Definition This section elaborates the interface functions of the front interface of the device. 10 11 Figure 2-1 The sketch of interface ©Dyness reserves the copyright of this document. - Page 9 CAN interface. The master summarizes the information of the entire battery system and communicates with the inverter through CAN or 485. If the master is the latest B25100 battery with DIP switch: 1. The communication cable from the master CAN IN to the inverter comm port should be the correct one.
- Page 10 6. When you setup the master DIP as setting 1~4,all the slaves keep the DIP 0000,no need change. 7. If the energy storage system has only one B25100, it is the master itself, and still follow the above steps. Note: For more informationof matching inverter brands, please subject to the latest document <The list of compatibility between Dyness ESS and Inverters >.
- Page 11 CANL PIN6 Green Reserve PIN7 Brown/white Reserve PIN8 Brown Reserve PIN9 Orange/white Reserve PIN10 Orange Reserve PIN11 Green/white PIN12 Blue CANH PIN13 Blue/white CANL PIN14 Green Reserve PIN15 Brown/white Reserve PIN16 Brown Reserve ©Dyness reserves the copyright of this document.
-
Page 12: Battery Management System(Bms)
When the charge current >75A, the battery buzzer alarms.When the charge current 100A 15S or 105A and the system stops charging. Protection is removed after rated time delaying 1min Over Current Protection in Discharging： ©Dyness reserves the copyright of this document. - Page 13 When device connects no external loads and power supply and no external communication for over 72 hours, device will dormant standby automatically. CAUTION Battery's maximum discharging current should be more than load's maximum working current. ©Dyness reserves the copyright of this document.
-
Page 14: Installation And Configuration
15 C~ 30 Keep away from dust and messy zones Tools and data Hardware tool Tools and meters that may be used are shown in Figure 3-2： ©Dyness reserves the copyright of this document. - Page 15 Firefighting equipment should be provided near the product, such as portable dry powder fire extinguisher. Automatic fire fighting system shall be provided for the case where necessary. No flammable, explosive and other dangerous product are placed beside the battery. ©Dyness reserves the copyright of this document.
- Page 16 Power cable- please positive /8AWG/L1500 contact the dealer to purchase Optional: If you need, Power cable- Black please negative /8AWG/L1500 contact the dealer to purchase Parallel cable- Positive 8AWG/220 Parallel cable- Black Negative 8AWG/220 ©Dyness reserves the copyright of this document.
-
Page 17: Equipment Installation
Equipment installation Table 3-2 Installation steps Step1 Installation preparation 1. Confirm that the ON/OFF switch on the front panel of B25100 unit is at the "OFF" state to ensure no live operation. Step2 Mechanical installation 1. Battery placement position determination. - Page 18 Mechanical installation Installation method 1:With Cabinet installation 1. Place the B25100 unit on the cabinet bracket as shown in the figure and push the device into the cabin at the installation position. (The cabinet structure in the figure is for...
- Page 19 B25100 ESS Unit User Manual Installation method 1:With Cabinet installation 2. Secure the B25100 unit to the cabinet with a nut through the mounting holes top on the hanging ears of the B25100 unit. Figure 3-4 Installation method 2: With Simple bracket installation 1.
- Page 20 B25100 ESS Unit User Manual Installation method 2: With Simple bracket installation 3. Insert the second one B25100 in to the brackets. Figure 3-7 4. Stack the required number of battery and bracket combinations as described above, and fasten the top and bottom buckles. Shown as Figure3-8.
- Page 21 3. The limited continuous current for each pair of power cable is 37A. Please add power cable according to the proportion if the max. working current of the inverter is more than 37A. ©Dyness reserves the copyright of this document.
- Page 22 After the battery system installation is completed and the running is normal, you need to log in to the DYNESS official website to register the product installation and use information to make the product warranty effective. Please follow the instructions on the website to register.
-
Page 23: Use, Maintenance And Troubleshooting
≤0.5C Charging Equipment If the battery capacity is empty, please charge it within 18 hours after the battery is empty. The long-term continuous discharge current of the Discharging battery should be ≤0.5C ©Dyness reserves the copyright of this document. -
Page 24: Alarm Description And Processing
Alarm description and processing When protection mode is activated or system failure occurred, the alarm signal will be given through the working status indicator on the front panel of the B25100. The network management can query the specific alarm categories. - Page 25 The battery firmware version is not support the inverter If you need any technical help or have any question, please contact the seller in time. ©Dyness reserves the copyright of this document.
- Page 26 Address: No. 511 Chenzhuang West Road, Sanshui Street, Jiangyan District, Taizhou City Email: service@dyness-tech.com Tel: +86 400 666 0655 Web: www.dyness-tech.com Official Website Digital version access...
