- Page 1 B48100 ESS Unit User Manual...
-
Page 2: Table Of Contents
B48100 ESS Unit User Manual 目录 ______________________________________________________________ 1 Statement of Law _____________________________________________________________ 2 Safety Precautions ________________________________________________________________________ 3 Preface _________________________________________________________________ 4 1 Introduction 1.1 Brief Introduction ________________________________________________________________ 4 1.2 Product Properties _______________________________________________________________ 4 1.3 Product identity definition _______________________________________________________ 4 _________________________________________________________ 5 2 Product Specification 2.1 Size and Weight __________________________________________________________________ 5... -
Page 3: Statement Of Law
B48100 ESS Unit User Manual Statement of Law Copyright of this document belongs to Daqin New Energy Tech (Taizhou) Co., Ltd. No part of this documentation maybe excerpted, reproduced, translated, annotated or duplicated in any form or by any means without the prior written permission of Daqin New Energy Tech (Taizhou) Co., Ltd. -
Page 4: Safety Precautions
B48100 ESS Unit User Manual Safety Precautions Warning ⚫ Please do not put the battery into water or fire, in case of explosion or any other situation that might endanger your life. ⚫ Please connect wires properly while installation, do not reverse connect. -
Page 5: Preface
Preface Manual declaration B48100 lithium iron phosphate battery energy storage system can be combined in series or parallel to provide energy storage function for photovoltaic power generation users. Our product can store extra electricity into battery from photovoltaic power generation system in daytime and supply stable power to user’s equipment as power backup at nighttime or any time when... -
Page 6: Introduction

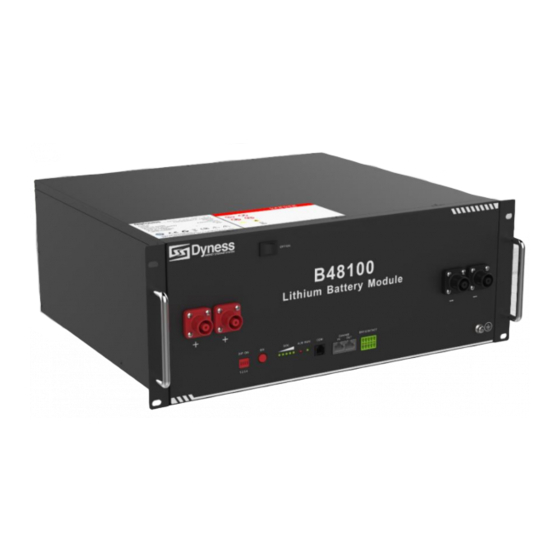

B48100 lithium iron phosphate battery system is a standard battery system unit, customers can choose a certain number of B48100 according to their needs, by connecting parallel to form a larger capacity battery pack, to meet the user's long-term power supply needs. The product is especially suitable for energy storage applications with high operating temperatures, limited installation space, long power backup time and long service life. - Page 7 B48100 ESS Unit User Manual Battery voltage is higher than safe voltage, direct contact with electric shock hazard. Be careful with your actions and be aware of the dangers. Read the user manual before using. The scrapped battery cannot be put into the garbage can and must be professionally recycled.
-
Page 8: Product Specification
B48100 ESS Unit User Manual 2 Product Specification 2.1 Size and Weight Table 2-1 B48100 Device size Nominal Nominal Product Dimension Weight Voltage Capacity ≈42.5kg B48100 DC48V 100Ah 480×405×178mm 2.2 Performance Parameter Table 2-2 B48100 performance parameter Item Parameter value... -
Page 9: Dip Switch Definition And Description
B48100 ESS Unit User Manual Table 2-3 Interface Definition Item Name Definition OFF/ON, Power switch must be in the "ON" state when in use Positive socket Battery output positive or parallel positive line DIP switch SW (battery When the "OFF/ON" switch button is in the ON state, press... - Page 10 DIP switch of the slaves need to turn the “#4” to “ON”. (7) The DIP switch of the slaves no need to be changed. (8) If the energy storage system has only one B48100, it is the host itself, and still follow the above steps.
- Page 11 B48100 ESS Unit User Manual Figure 2-2 CAN/485 interface definition Front Plug Socket of communication port CAN/485 Table 2-4 Pin Definition Foot position Color Definition PIN1 Orange/white 485B PIN2 Orange 485A PIN3 Green/white XGND PIN4 Blue CANH PIN5 Blue/white CANL...
-
Page 12: Battery Management System(Bms)
B48100 ESS Unit User Manual Table 2-5 LED status indicators Battery LED1 LED2 LED3 LED4 LED5 Status Shutdown ● ● ● ● ● Flashing 80%＜SOC≤100% ● ● ● ● Flashing 60%＜SOC≤80% ● ● ● Flashing 40%＜SOC≤60% Standby ● ● Flashing 20%＜SOC≤40%... -
Page 13: Temperature Protection
B48100 ESS Unit User Manual When the charge current＞90A, current limit protection mode is activated, current will be limited to 3A，protection is removed after rated time delaying 10S. Circulate like this until the current is lower than 90A. Over Current Protection in Discharging：... -
Page 14: Installation And Configuration
B48100 ESS Unit User Manual 3 Installation and Configuration 3.1 Preparation for installation Safety Requirement This system can only be installed by personnel who have been trained in the power supply system and have sufficient knowledge of the power system. -
Page 15: Technical Preparation
B48100 ESS Unit User Manual 3.1.3 Technical preparation Electrical interface check Devices that can be connected directly to the battery can be user equipment, power supplies, or other power supplies. ⚫ Confirm whether the user's PV power generation equipment, power supply or other power supply equipment has a DC output interface, and measure whether the DC power output voltage meets the voltage range requirements in Table 2-2. - Page 16 B48100 ESS Unit User Manual Packing list is as follows: Figure Item Specification Quantity Battery-B48100 48V/100Ah Power cable- positive /36mm /L2050mm Power cable- Black negative /35mm /L2050mm Parallel cable- positive /35mm /L215mm Parallel cable- Black negative /35mm /L215mm Black Communication...
-
Page 17: Engineering Coordination
7.Turn on the inverter and check the communication between inverter and battery system 3.2.1 Installation preparation 1. Prepare equipment and tools for installation. 2. Check the B48100 unit and confirm that the ON/OFF switch is in the "OFF" state to ensure the device is shut off. -
Page 18: Mechanical Installation
B48100 ESS Unit User Manual 3.2.2 Mechanical installation Installation method: 1. Place the B48100 unit on the bracket as shown in the figure and push the device into the cabinet at the installation position. (The cabinet structure in the figure is for... - Page 19 3. Each pair of power cable, it’s limited continuous current is 120A, so if the inverter Max. work current more than 120A, please add power cable according to the proportion. Note: For more information of matching inverter brands, please subject to the latest document <The list of compatibility between Dyness ESS and Inverters >.
-
Page 20: Battery Parameter Settings On The Inverter
After the battery system installation is completed and the running is normal, you need to log in to the DYNESS official website to register the product installation and use information to make the product warranty effective. Please follow the instructions on the website to register. -
Page 21: Use, Maintenance And Troubleshooting
4.2 Alarm description and processing When protection mode is activated or system failure occurred, the alarm signal will be given through the working status indicator on the front panel of the B48100. The network management can query the specific alarm categories. -
Page 22: Analysis And Treatment Of Common Faults
B48100 ESS Unit User Manual Table 4-1 Main alarm and Protection Alarm Statue Alarm category Processing indication RED, Stop charging and find out Over-current Buzzer Charge the cause of the trouble start state High temp Stop charging Stop discharging and find... - Page 23 DAQIN NEW ENERGY TECH (TAIZHOU) Co.,LTD Address: Building 13, Jiangyan Industrial Park, Sanshui Street, Jiangyan District, Taizhou City, Jiangsu Province，225500 Email: sales@dyness-tech.com Website: www.dyness-tech.com.cn...
