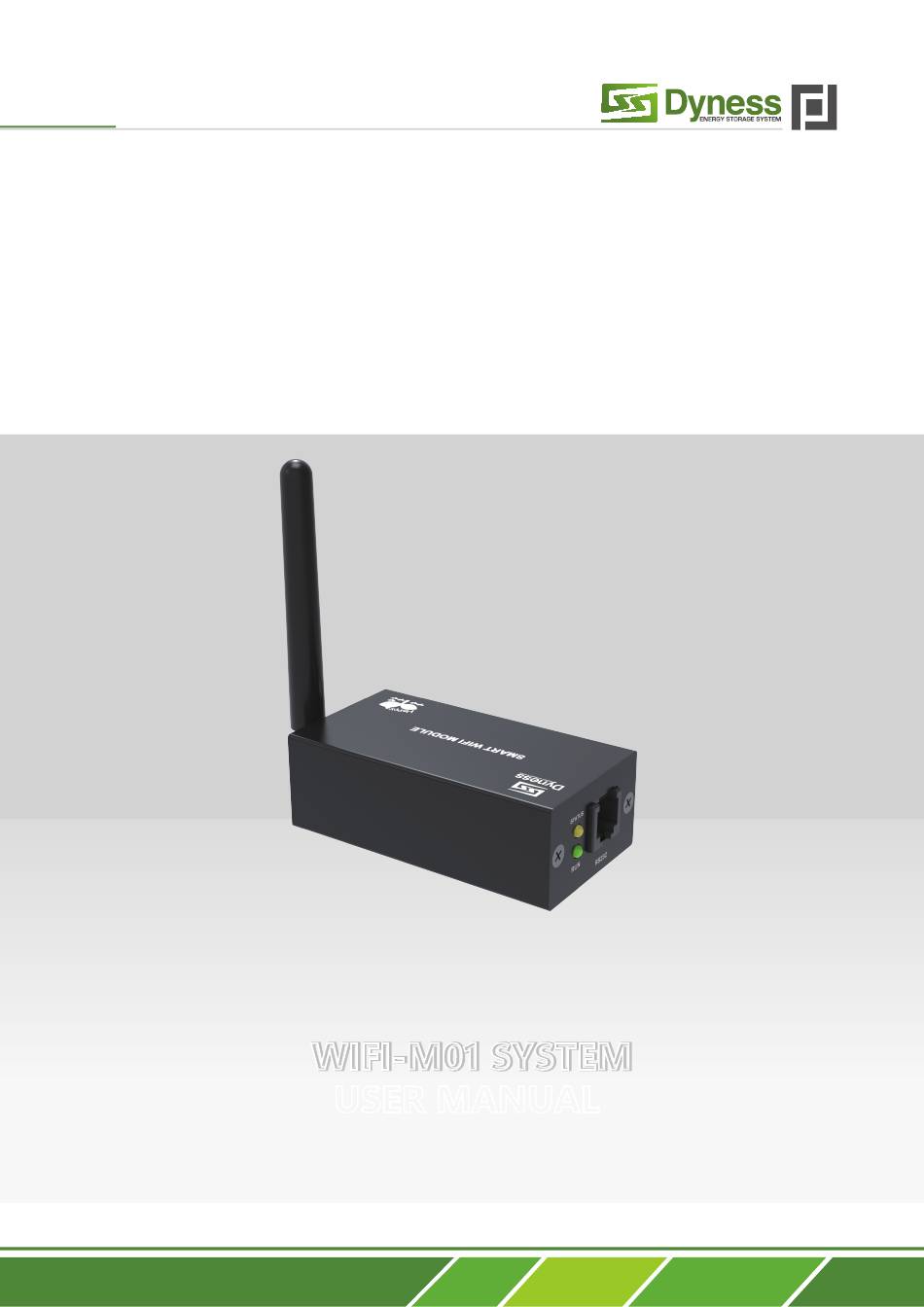

- Page 1 WIFI-M01 For HV system WIFI-M01 SYSTEM USER MANUAL USER MANUAL File version-20230321-V2-EN information might be subject to change without notice during product improving.
-
Page 2: Table Of Contents
Performance Parameter ...........................5 Interface Definition ............................ 5 3 Installation and Configuration ....................7 Ready for installation ..........................7 Equipment connection ..........................7 4 Device Update .........................13 5 Serial Number ......................... 14 6 Troubleshooting ........................15 © Dyness reserves the copyright of this document. -
Page 3: Statement Of Law
Technology (taizhou) Co., Ltd when the product or technology is updated. Web URL： http://www.dyness-tech.com Please note that the product can be modified without prior notice. Revision History Revision NO. Revision Date Revision Reason 2023.3.01 First Published © Dyness reserves the copyright of this document. -
Page 4: Safety Precautions
5. Ambient and storage method could impact the life span and product reliability, please consider the operation environment abundantly to make sure device works in proper condition. © Dyness reserves the copyright of this document. -
Page 5: Preface
M2M and other Internet of Things applications, and is an important component of intelligent hardware. Dyness WiFI-M01 system is used together with the battery, and the user can monitor the data through the Dyness Smart App, which is more convenient, efficient and intelligent. -
Page 6: Introduction
WIFI-M01 System User Manual 1 Introduction Brief Introduction WiFi-M01 System is a very convenient product. The addition of WiFi System makes the battery more intelligent. The users can monitor the battery data through Dyness Smart APP anytime and anywhere, which is very convenient. -
Page 7: Product Specification
1-14@2.4GHz (CH1-11 for US/CA, CH1-13 for Channel EU/CN) Output Power +20dBm Interface Definition WIFI-M01 product panel interface configuration and function. This section details the interface functions of the front panel of the device. © Dyness reserves the copyright of this document. - Page 8 WIFI-M01 System User Manual Figure 2-2 WIFI-M01 Front Panel of battery module Table 2-3 WIFI-M01 Front Panel of battery module definition item Name Definition Power display Light on means WiFi module works If the indicator blinks quickly, the network is ready to be configured.
-
Page 9: Installation And Configuration
Table 3-1 Name Dyness battery (with WiFi function) WiFi module network cable （both crystal heads are RJ11（6p6c）, wires pin to pin, Dyness supply the cable） mobile phone (the Dyness smart app has been downloaded) WiFi （ 2.4GHz ） Equipment connection... - Page 10 RS232 interface of the battery, and the other end is connected to the RS232 communication port of the WiFi module. Then turn on the battery, and confirm that the yellow LED of the WiFi module is always on. © Dyness reserves the copyright of this document.
- Page 11 3. Please choose device’s interface of the app in AP Mode, click the RESET Button of the WiFi module once, waiting for the WiFi module green light is blinking rapidly, proceed the next step. © Dyness reserves the copyright of this document.
- Page 12 5. Enter the WiFi name and password your mobile phone is using, then click "next". On the page that pops up choose the WiFi which name is SmartLife-XXXX , then click "Go to Connect". © Dyness reserves the copyright of this document.
- Page 13 "Adding device..." is displayed. After a while, "Adding device succeeded" is displayed, and the connection is successful. After the device is added successfully, the following is the operating page,You can user define the device name by click " " . © Dyness reserves the copyright of this document.
- Page 14 WIFI-M01 System User Manual © Dyness reserves the copyright of this document.
-
Page 15: Device Update
WIFI-M01 System User Manual 4 Device Update Please contact Dyness engineer before firmware upgrade, Dyness engineer will upload the corresponding files in the background. Then when you open the interface of the mobile app, the window to discover the new device firmware will pop up, click "update", the "notes"... -
Page 16: Serial Number
WIFI-M01 System User Manual 5 Serial Number The SN code of the WIFI module is shown in the figure below. Table 5-1 The SN code of the WIFI module © Dyness reserves the copyright of this document. -
Page 17: Troubleshooting
Whether to connect to a has timed out configured successfully hotspot 3. Verify that the WIFI password is correct If you have any technical help or question, please contact DYNESS in time. © Dyness reserves the copyright of this document. - Page 18 Power You Day and Night Official Website Digital version access Address: No. 511 Chenzhuang West Road, Sanshui Street, Jiangyan District, Taizhou City Email: service@dyness-tech.com Tel: +86 400 666 0655 Web: www.dyness-tech.com...
