GCX PH-0057-40 Installation Manual

The purpose of this guide is to:
1. Describe the procedure for attaching Channel to counter top.
2. Describe the procedure for mounting the Column in the channel.

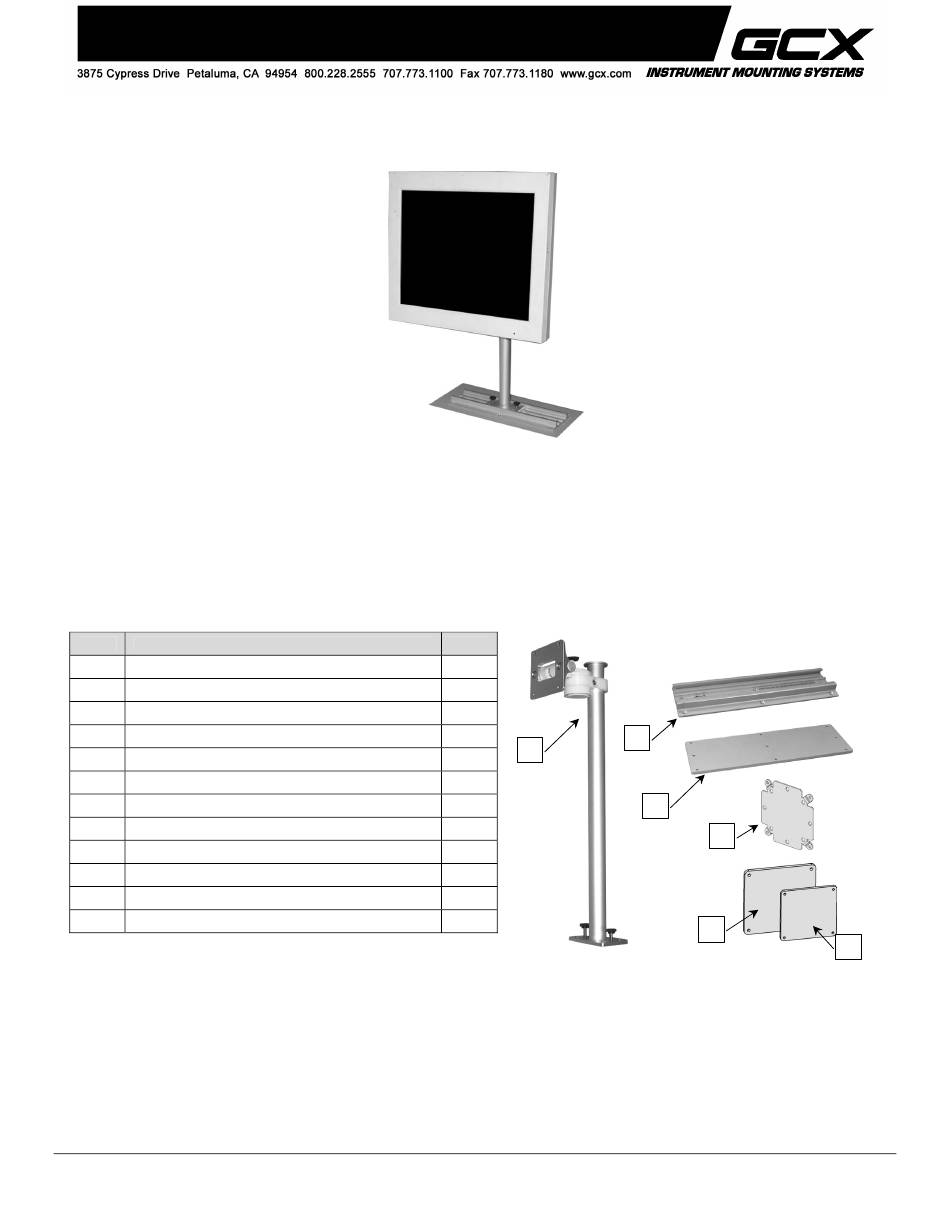

Parts Reference
The following parts and hardware are included with this installation kit (hardware not shown).
Item # Description
1 VESA Mount, 20'' Height Adjustable
2 Channel, 13'' Seismic
3 Backing Plate, 13''
4 #10-32 x 1-1/4'' Flat Head Machine Screw (FHMS)
5 #10-32 x 1-1/4'' Pan Head Machine Screw (PHMS)
6 #10-32 x 1-1/2'' FHMS
7 #10-32 x 1-1/2'' PHMS
8 Display Mounting Kit (includes instructions)
9 FIMI Spacer, 15'' Display
10 FIMI Spacer, 17'' Display
11 3/16'' Hex Wrench
12 5/32'' Hex Wrench
Tools Required: Drill, 5/16'' drill bit, and Phillips screwdriver (not provided). 3/16'' hex wrench (provided).
Installation Guide
20'' Height-adjustable Display Mount and Horizontal Channel
Qty
1
1
1
6 2
1
3
6
3
1
1
1
1
1
DU-PH-0057-40 Rev A 3/10/06 GCX Corp. Page 1 of 4
3
8
10
9
