43204-22 / 43204-32

10'x14' GAZEBO

ASSEMBLY INSTRUCTIONS

DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED

PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS

Two or more adults required for assembly

Tools required (not provided):

6ft (1.8m) stepladder, Robinson #2 Screwdriver, mallet, safety gloves & glasses, tarp or

protective material for placing parts on during assembly, tape measure, 1'X2"X4" wood.

43204.1207-18.EN.doc

WEB VERSION

Need help?

Do you have a question about the 43204-22 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gazebo penguin 43204-22

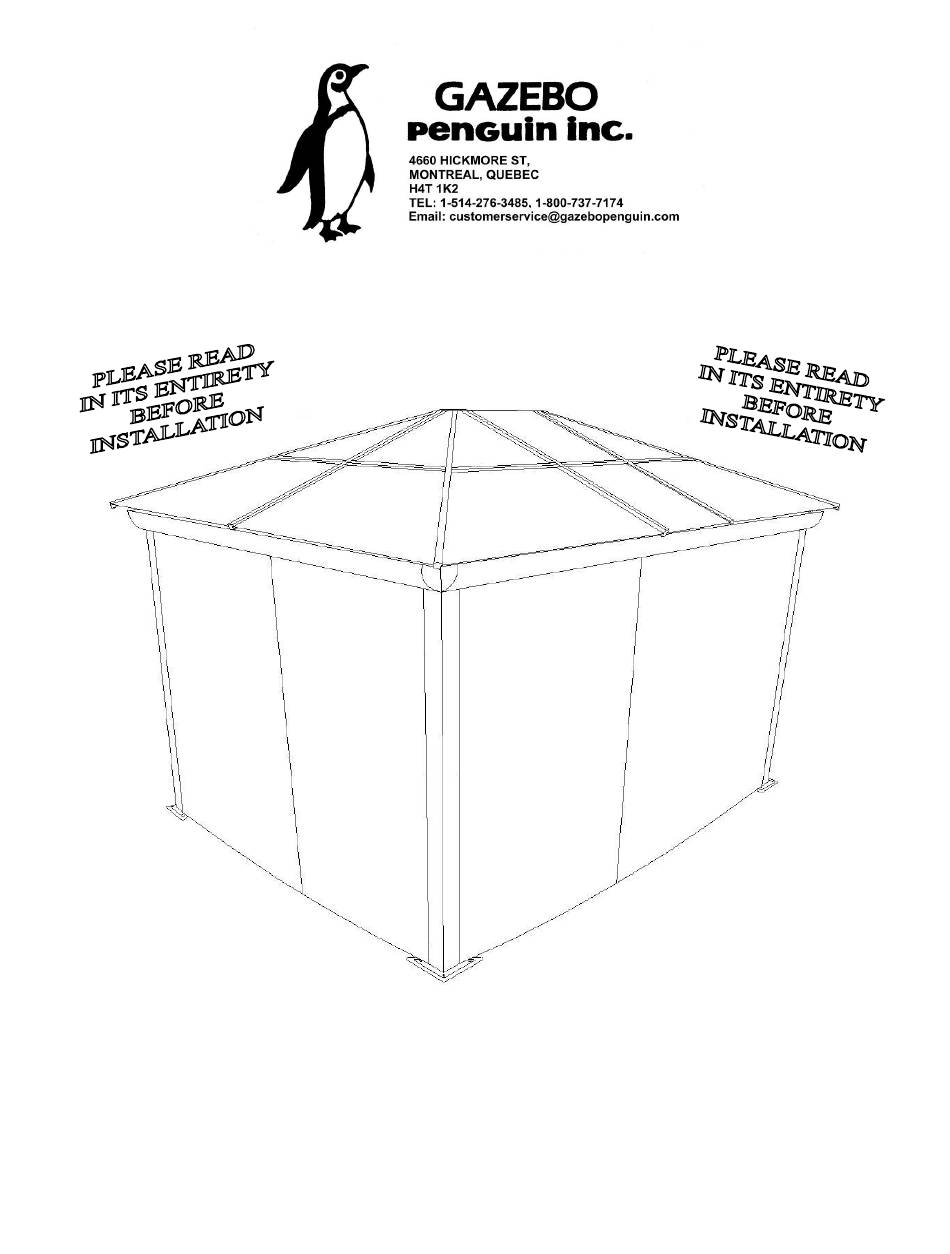

Page 1 43204-22 / 43204-32 10'x14' GAZEBO ASSEMBLY INSTRUCTIONS DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS Two or more adults required for assembly Tools required (not provided): 6ft (1.8m) stepladder, Robinson #2 Screwdriver, mallet, safety gloves & glasses, tarp or protective material for placing parts on during assembly, tape measure, 1'X2"X4"...
Page 2 Before you assemble the Gazebo  Please don't destroy boxes until completely assembled.  Please verify the content of each box against the list of parts.  It is important that this gazebo be anchored on a solid base with the provided screws. Otherwise, please ensure that you use anchors sufficient for your surface.
Page 3 Step 3: Have someone lift the beam assembly and attach each leg “G” into a corner, securing each using 4 bolts “Pp”. Repeat until all four legs are in place. Step 4: Install middle joint cover “J” at each of the 4 beam junctions, using 4 screws “Qq”...
Page 4 Step 5: Attach mounting brackets “O” and “P” to rafters “M” and “N” respectively. Use threaded hole about 8” from end of rafter. Lift central hub “L” to a height of about 110” (2.79m) at the center of the gazebo. (Caution: this part may be heavy, use support as needed) Attach one end of rafter “M”...
Page 5 Step 7: Install the flashings “Q”, “R”, and “S” onto the beam assembly, using screws “Qq” on the inside. The notched end of a flashing will always go in a corner of the gazebo. Step 8: Install the curtain rails “T” and “U” on the inside of the beam assembly using bolts “Pp”. 43204.1207-18.EN.doc WEB VERSION...
Page 6 Step 9: Slide the indicated polycarbonate panels into the spaces between the rafters, using the top groove of each rafter. Ensure the side meant to face the sun is on the outside. Use a rubber hammer to carefully tap each panel into the grooves.
Page 7 Step 11: Slide the remaining polycarbonate roof panels in the lower groove of the rafters and into the lower slot of the roof joints. Tap to make sure panels fit securely and do not extend past the ends of the rafters. Step 12: Starting from any end, install all edgings, with...
Page 8 Step 13: Install the upper crossbars on the interior of the roof using bolts “Pp”, following the shaped ends and letters. Do not tighten bolts immediately; install loose and tighten once all crossbars are in place. Repeat this step with the lower crossbars.
Page 9 Step 15: Install the screen curtains “Ww” in the interior groove of the curtain rails, using the provided hooks. Install the privacy curtains “Xx” in the exterior groove of the rails. Once the hooks are in, use curtain rail caps “Uu” to close ends of curtain rails. Note that both curtains are packaged and ordered in sets of 2 panels, each set covering half the gazebo.
Page 10 43204-22 DARK BROWN PARTS LIST PACKED PACKED PART DIAGRAM PART DIAGRAM IN BOX IN BOX (11-624-22) (11-637-22) 52 ¾” 60 3/8” TOP LEFT ROOF BEAM RAFTER (11-625-22) (12-030-22) 52 ¾” RAFTER M TOP RIGHT MOUNTING BEAM BRACKET (11-662-22) (12-031-22) 78 ¼”...
Page 11 PACKED PACKED PART DIAGRAM PART DIAGRAM IN BOX IN BOX (11-644) 29 ½”x25 ½” (11-633-22) MIDDLE MIDDLE UPPER COVER ROOF PANEL (11-645) 30”x30” (11-664-22) RIGHT 63” UPPER TOP CAP ROOF PANEL (11-646-22) 30 ¾” (11-665-22) 60” LEFT CENTRAL MIDDLE ROOF JOINT (11-647-22) 25 ½”...
Page 12 PACKED PACKED PART DIAGRAM PART DIAGRAM IN BOX IN BOX (11-651-22) 58 7/8” (08-167-22) LEFT SCREW (M6x100mm) EDGING (11-652-22) (08-193) 26 ¾” PLASTIC CENTER PLUG EDGING (11-653-22) 58 7/8” (08-187) RIGHT WASHER (M6) EDGING (11-654-22) (11-697) RAFTER CURTAIN RAIL CAP (11-655-22) (08-189-22) CORNER...
Page 13 PACKED PACKED PART DIAGRAM PART DIAGRAM IN BOX IN BOX (11-659-22) 17 ½” LEFT (11-705) UPPER CURTAIN CROSSBA HOOKS (11-660-22) 26 ¾” MIDDLE UPPER 10 mm KEY CROSSBA 43204.1207-18.EN.doc WEB VERSION...
Page 14 43204-32 SLATE PARTS LIST PACKED PACKED PART DIAGRAM PART DIAGRAM IN BOX IN BOX (11-624-32) (11-637-32) 52 ¾” 60 3/8” TOP LEFT ROOF BEAM RAFTER (11-625-32) (12-030-32) 52 ¾” RAFTER M TOP RIGHT MOUNTING BEAM BRACKET (11-662-32) (12-031-32) 78 ¼” RAFTER N TOP LEFT MOUNTING...
Page 15 PACKED PACKED PART DIAGRAM PART DIAGRAM IN BOX IN BOX (11-644) 29 ½”x25 ½” (11-633-32) MIDDLE MIDDLE UPPER COVER ROOF PANEL (11-645) 30”x30” (11-664-32) RIGHT 63” UPPER TOP CAP ROOF PANEL (11-646-32) 30 ¾” (11-665-32) 60” LEFT CENTRAL MIDDLE ROOF JOINT (11-647-32) 25 ½”...
Page 16 PACKED PACKED PART DIAGRAM PART DIAGRAM IN BOX IN BOX (11-651-32) 58 7/8” (08-167-32) LEFT SCREW (M6x100mm) EDGING (11-652-32) (08-193) 26 ¾” PLASTIC CENTER PLUG EDGING (11-653-32) 58 7/8” (08-187) RIGHT WASHER (M6) EDGING (11-654-32) (11-697) RAFTER CURTAIN RAIL CAP (11-655-32) (08-189-32) CORNER...
Page 17 PACKED PACKED PART DIAGRAM PART DIAGRAM IN BOX IN BOX (11-659-32) 17 ½” LEFT (11-705) UPPER CURTAIN CROSSBA HOOKS (11-660-32) 26 ¾” MIDDLE UPPER 10 mm KEY CROSSBA 43204.1207-18.EN.doc WEB VERSION...
Page 18 43204.1207-18.EN.doc WEB VERSION...
Page 19 2. The product is not warranted against damages due to extreme weather conditions, such as thunderstorms, hail, strong wind or snow storms, or any other acts of God. 3. The product is only warranted in the event it is installed in accordance with the Gazebo Penguin’s written instructions enclosed with the product.
