41218

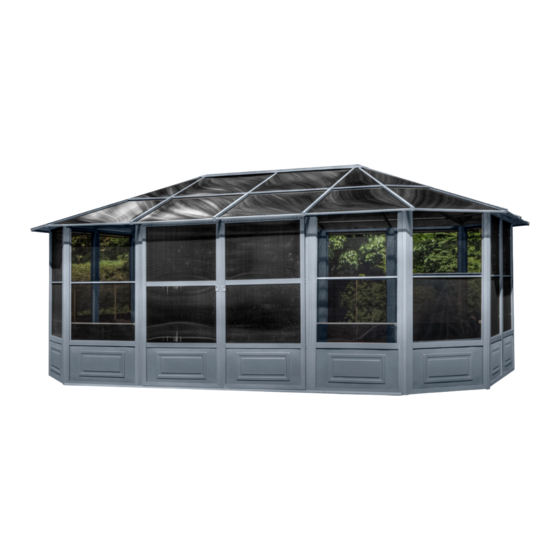

12 X 18 SOLARIUM
ASSEMBLY INSTRUCTIONS
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS
Three adults required for assembly
Base Dimensions 12' ½"x18'11", Largest Dimensions 13'6"x20'4 ½" (see pg.15)
Overall Height 110''
ZZZ-184.41218.1207-18.GP.EN.SUN
SUN-HI

Advertisement

loading
Need help?

Need help?

Do you have a question about the 41218 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gazebo penguin 41218

Summary of Contents for Gazebo penguin 41218

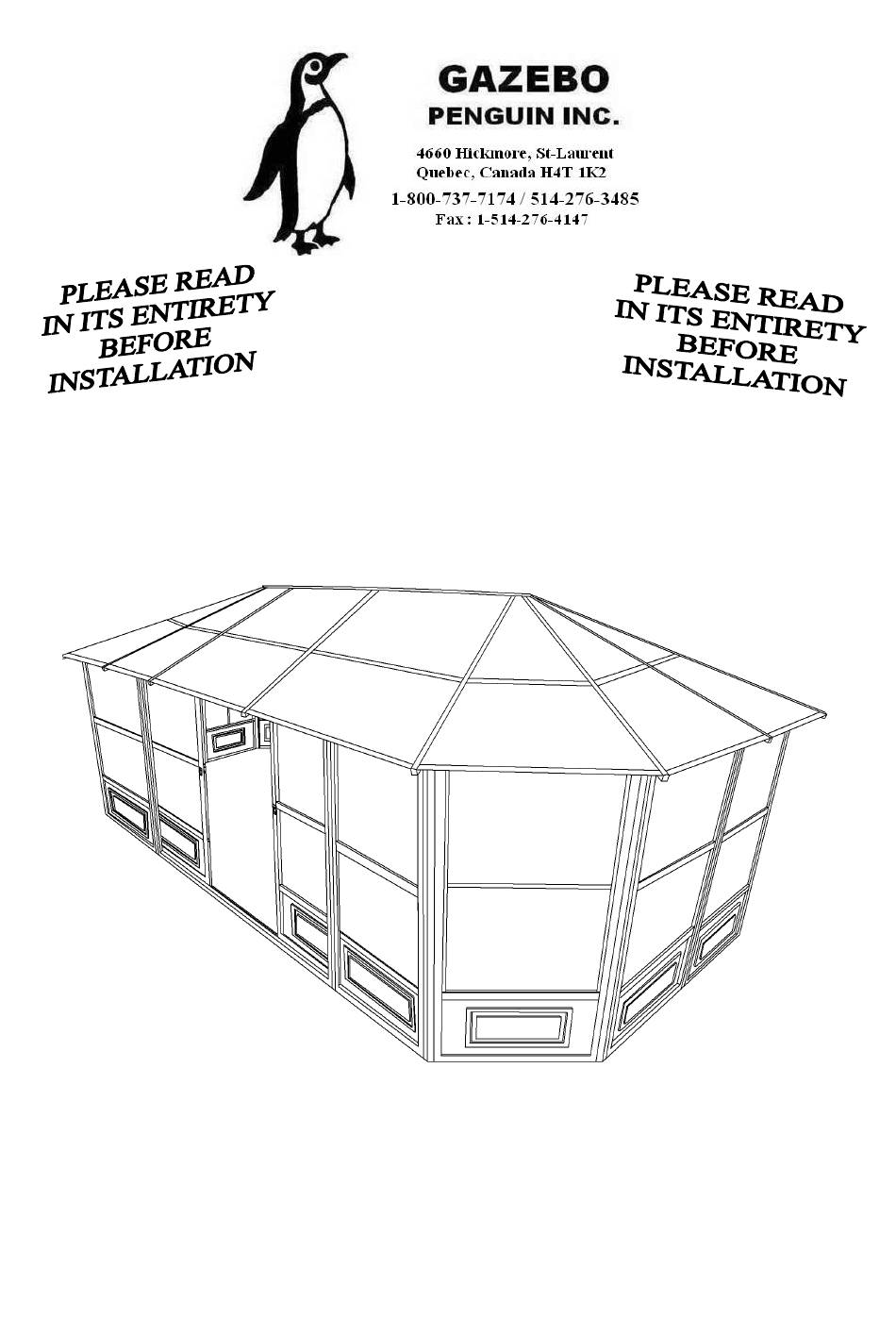

  • Page 1 41218 12 X 18 SOLARIUM ASSEMBLY INSTRUCTIONS DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS Three adults required for assembly Base Dimensions 12’ ½”x18’11”, Largest Dimensions 13’6”x20’4 ½” (see pg.15) Overall Height 110’’...
  • Page 2 Based on the location, decide where you would like to position the solarium. Remember the sliding door with “C” shape should be placed on the left side. Sliding door with Regular sliding door receiver channel ZZZ-184.41218.1207-18.GP.EN.SUN WEB VERSION SUN-HI 1...
  • Page 3 When assembling angled panels (A, B), you should put the two panels at 135 degree angle then use the angled connecting pieces (I) and (J) to affix the panels together. ZZZ-184.41218.1207-18.GP.EN.SUN WEB VERSION SUN-HI 2...
  • Page 4 1. Place a bolt (Ww) and washer (Gg) through the top door rail (F) and door frame, and a female bolt (Cc-2) from the other side. Once all are inserted, tighten them all securely. 2. Secure bottom door rail (G), using a bolt (Cc) and washer (Gg). ZZZ-184.41218.1207-18.GP.EN.SUN WEB VERSION SUN-HI 3...
  • Page 5 4. Then use screw (Oo) to affix the upper door rail end caps (Nn) one at each end of top rail (F). 5. The other side of top rail (F) is same as above step. Doors as seen from inside Repeat steps 2 and 3 for the second door. ZZZ-184.41218.1207-18.GP.EN.SUN WEB VERSION SUN-HI 4...
  • Page 6 Make sure that extra hole on bracket remains on the side of angled panel (at the corner). Then screw it to frames with screws (Z). 2) Do not tighten the bolts right away as you may have to adjust the angle when inserting the PC roof panels. ZZZ-184.41218.1207-18.GP.EN.SUN WEB VERSION SUN-HI 5...
  • Page 7 First remove the protective layer from the PC panels, then insert them (Y, Aa, Ll, Qq) between the roof rafters according to the below drawing instructions. Note: the side that had the protective layer should be face down. TOP VIEW ZZZ-184.41218.1207-18.GP.EN.SUN WEB VERSION SUN-HI 6...
  • Page 8 After the installation of the middle roof joints complete, insert the bottom PC roof panels (Jj, Kk, Mm, Rr) according to below drawing instructions. They should overlap about two inches under the upper PC roof panels and into the aluminum middle joints. Before After TOP VIEW ZZZ-184.41218.1207-18.GP.EN.SUN WEB VERSION SUN-HI 7...
  • Page 9 Step11: Once the installation of the edging complete, start affixing the roof cross bars (T, V, X, Tt) using bolt (Ff). Affix the top cross bars (Uu) onto the roof rafter (L) using bolt (Ff). ZZZ-184.41218.1207-18.GP.EN.SUN WEB VERSION SUN-HI 8...
  • Page 10 3. Note that this unit is not waterproof. For best protection against rain, close the windows of each frame with the outside window in the center, and the inside window at the top. ZZZ-184.41218.1207-18.GP.EN.SUN WEB VERSION SUN-HI 9...
  • Page 11 41218-12 SAND PARTS LIST DESCRIPTION DRAWING DESCRIPTION DRAWING 08-129-12 08-130-12 REGULAR FRAME NEXT FRAME TO DOOR 08-160-12 08-159-12 SLIDING DOOR REGULAR WITH SLIDING RECEIVER DOOR CHANEL 08-133-12 08-162-12 CONNECTING TOP DOOR PIECE RAIL Length Length 208 cm 200.6 cm 08-163-12...
  • Page 12 EDGING ROOF CROSS Length 120.6 Length 94.4 08-155 (24 ¼”X42 ¼”) 08-156-12 TOP ROOF SCREW LEFT PANEL 08-157 (24 ½”x46 ½”) 08-158-12 TOP ROOF BOLT CORNER PANEL 08-161-12 08-167-12 BOLT SCREW 08-168-12 08-187 BOLT WASHER ZZZ-184.41218.1207-18.GP.EN.SUN WEB VERSION SUN-HI 11...
  • Page 13 BOTTOM ROOF CENTER PANEL Length 108 08-174-12 08-175-12 ROOF CROSS TOP ROOF CROSS BAR Length 108 Length 108 08-192-12 11-599 ROOF RAFTER CORNER KEY ON THE MIDDLE OF THE DOOR (INSTALLED IN Yy) Length 111 ZZZ-184.41218.1207-18.GP.EN.SUN WEB VERSION SUN-HI 12...
  • Page 14 DESCRIPTION DRAWING DESCRIPTION DRAWING 11-598-12 11-597-12 HORIZONTAL VERTICAL BAR FOR DOOR FRAME DOOR FRAME Length 200 Length 106.14 12-037-12 12-047-12 FEMALE BOLT BOLT (M5*15mm) Cc-2 11-623 EXTRA AVAILABLE PLEASE SINGLE CALL DOOR ZZZ-184.41218.1207-18.GP.EN.SUN WEB VERSION SUN-HI 13...

  • Page 15: Available Replacement Parts

    13-054 10-458 PC WINDOW REPLACEMENT (for double door) WEATHERSTRIP 12-046-12 15-124-12 MOSQUITO MOUNTING SCREEN (in BRACKET FOR frame) RAFTER (K) 85-014 15-125-12 REPLACEMENT MOUNTING SCREENING BRACKET FOR (no frame) RAFTER (L) 85-417-S ROUND SPLINE SCREENING ZZZ-184.41218.1207-18.GP.EN.SUN WEB VERSION SUN-HI 14...
  • Page 16 41218-32 SAND PARTS LIST DESCRIPTION DRAWING DESCRIPTION DRAWING 08-129-32 08-130-32 REGULAR FRAME NEXT FRAME TO DOOR 08-160-32 08-159-32 SLIDING DOOR REGULAR WITH SLIDING RECEIVER DOOR CHANEL 08-133-32 08-162-32 CONNECTING TOP DOOR PIECE RAIL Length Length 208 cm 200.6 cm 08-163-32...
  • Page 17 EDGING ROOF CROSS Length 120.6 Length 94.4 08-155 (24 ¼”X42 ¼”) 08-156-32 TOP ROOF SCREW LEFT PANEL 08-157 (24 ½”x46 ½”) 08-158-32 TOP ROOF BOLT CORNER PANEL 08-161-32 08-167-32 BOLT SCREW 08-168-32 08-187 BOLT WASHER ZZZ-184.41218.1207-18.GP.EN.SUN WEB VERSION SUN-HI 16...
  • Page 18 BOTTOM ROOF CENTER PANEL Length 108 08-174-32 08-175-32 ROOF CROSS TOP ROOF CROSS BAR Length 108 Length 108 08-192-32 11-599 ROOF RAFTER CORNER KEY ON THE MIDDLE OF THE DOOR (INSTALLED IN Yy) Length 111 ZZZ-184.41218.1207-18.GP.EN.SUN WEB VERSION SUN-HI 17...
  • Page 19 DESCRIPTION DRAWING DESCRIPTION DRAWING 11-598-32 11-597-32 HORIZONTAL VERTICAL BAR FOR DOOR FRAME DOOR FRAME Length 200 Length 106.14 12-037-32 12-047-32 FEMALE BOLT BOLT (M5*15mm) Cc-2 11-623 EXTRA AVAILABLE PLEASE SINGLE CALL DOOR ZZZ-184.41218.1207-18.GP.EN.SUN WEB VERSION SUN-HI 18...
  • Page 20 ZZZ-184.41218.1207-18.GP.EN.SUN WEB VERSION SUN-HI 19...

  • Page 21: Maintenance Notes

    Warranty set forth below, it is warranted to be free of material and manufacturing defects for a period of one year from the date of purchase. Should the product become damaged, or the warranty period has expired, please contact Gazebo Penguin Customer Service Department for a complete schedule of replacement parts and prices.

This manual is also suitable for:

12 x18 solarium
