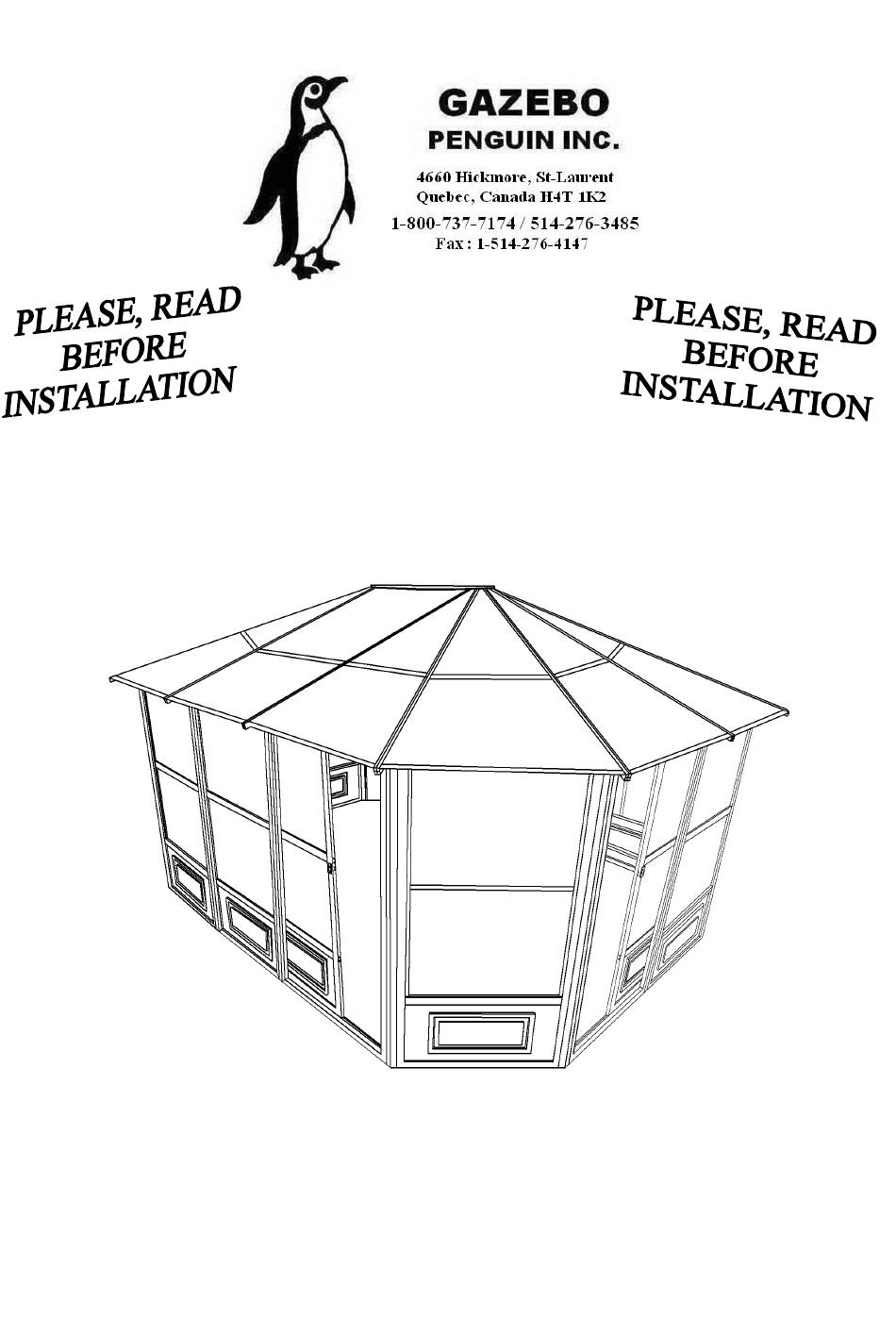

- Page 1 41215-32 12 X 15 SOLARIUM ASSEMBLY INSTRUCTIONS Two or more adults required for assembly Base Dimensions 12’ ½”x15’6”, Largest Dimensions 13’6”x16’11” (see pg.14) Overall Height 110’’ ZZZ-183.41215-32.1127-15.GP.EN.HER.doc HER-HP...
-
Page 2: Step
Rubber mallet Based on the location, decide where you would like to position the two (2) doors panels which can slide open to the left or the right, your choice. Slide left to open Slide right to open ZZZ-183.41215-32.1127-15.GP.EN.HER.doc HER-HP... -
Page 3: Step
(E) to affix the panel and door frame. When assembling angled panels (A, D), you should put the two panels at 135 degree angle then use the angled connecting pieces (I) and (J) to affix the panels together. ZZZ-183.41215-32.1127-15.GP.EN.HER.doc HER-HP... -
Page 4: Sliding Door
2. Secure the bottom door rail (G), using a bolt (Cc) with a washer (Gg). 3. Paying careful attention to whether it is the left (Dd-L) or right (Dd-R) latch, use bolt (Bb) to affix the door latch onto the frame. Repeat steps 2 and 3 for the second door. ZZZ-183.41215-32.1127-15.GP.EN.HER.doc HER-HP... -
Page 5: Roof Rafter
Note: Do not tighten the bolts right away as you may have to adjust the angle when inserting the PC roof panels. ZZZ-183.41215-32.1127-15.GP.EN.HER.doc HER-HP... - Page 6 First remove the protective layer from the PC roof panels, then insert them (Y, Aa, Ll, Qq) into the roof rafters according to the below drawing instructions. Note: the side that had the protective layer should be face down. TOP VIEW ZZZ-183.41215-32.1127-15.GP.EN.HER.doc HER-HP...
-
Page 7: Middle Roof Joint
After the installation on the middle roof joints complete, insert the bottom PC roof panels (Jj, Kk, Mm, Rr) according to below drawing. They should overlap about two inches under the upper PC roof panels and into the aluminum middle roof joints. Before After TOP VIEW ZZZ-183.41215-32.1127-15.GP.EN.HER.doc HER-HP... -
Page 8: Joint
(Bb) and roof joint (R), tighten securely. Step 11: Once the installation of the edging complete, start affixing the roof cross bars (T, V, X, Tt) using bolt (Ff). Affix the top cross bars (Uu) onto the roof rafter (L) using bolt (Ff). ZZZ-183.41215-32.1127-15.GP.EN.HER.doc HER-HP... -
Page 9: Her-Hp
3. Note that this unit is not waterproof. For best protection against rain, close the windows of each frame with the outside window in the center, and the inside window at the top. ZZZ-183.41215-32.1127-15.GP.EN.HER.doc HER-HP... -
Page 10: Table Of Contents
STOPPER 08-139-32 08-140-32 135° ANGLED 135° ANGLED OUTSIDE INSIDE CONNECTOR CONNECTOR 08-141-32 08-142-32 ROOF RAFTER ROOF RAFTER 08-179-32 08-178-32 TOP CAP CENTRAL HUB 08-145-32 08-146-32 MIDDLE MIDDLE ROOF ROOF JOINT JOINT 08-147-32 08-148-32 MIDDLE ROOF ROOF RAFTER JOINT ZZZ-183.41215-32.1127-15.GP.EN.HER.doc HER-HP... - Page 11 TOP ROOF SCREW LEFT PANEL 08-157 (24 ½”x46 ½”) 08-158-32 TOP ROOF BOLT CORNER PANEL 08-165-32 08-161-32 RIGHT DOOR BOLT LATCH Dd-R 08-169-32 08-167-32 LEFT DOOR SCREW LATCH Dd-L 08-168-32 08-187 BOLT WASHER 08-189-32 08-193 ACORN NUT PLASTIC PLUG ZZZ-183.41215-32.1127-15.GP.EN.HER.doc HER-HP...
-
Page 12: Joint
RAIL END CAP 08-172 08-170-32 (41 ¼”x42 ¼”) MIDDLE ROOF TOP ROOF JOINT CENTER PANEL 08-171 (41 ¼”x43”) 08-173-32 EDGING BOTTOM ROOF CENTER PANEL 08-174-32 08-175-32 ROOF CROSS TOP ROOF CROSS BAR 12-037-32 12-047-32 FEMALE BOLT BOLT (M5*15mm) Cc-2 ZZZ-183.41215-32.1127-15.GP.EN.HER.doc HER-HP... -
Page 13: Her-Hp
PIN FOR PVC DOOR WHEEL WINDOW ASSEMBLY 10-458 13-033 REPLACEMENT PC WINDOW (for WEATHERSTRIP sliding door) 124” 12-046-32 15-124-32 MOSQUITO MOUNTING SCREEN (in BRACKET FOR frame) RAFTER (K) 85-014 15-125-32 REPLACEMENT MOUNTING SCREENING (no BRACKET FOR frame) RAFTER (L) ZZZ-183.41215-32.1127-15.GP.EN.HER.doc HER-HP... -
Page 14: Her-Hp
ZZZ-183.41215-32.1127-15.GP.EN.HER.doc HER-HP... - Page 15 Warranty set forth below, it is warranted to be free of material and manufacturing defects for a period of one year from the date of purchase. Should the product become damaged, or the warranty period has expired, please contact Gazebo Penguin Customer Service Department for a complete schedule of replacement parts and prices.
