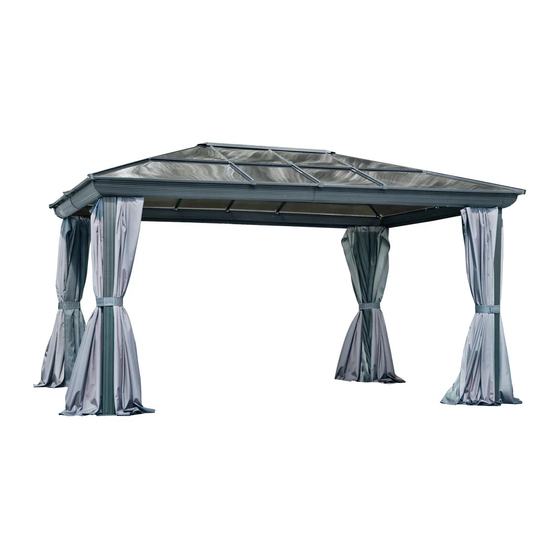

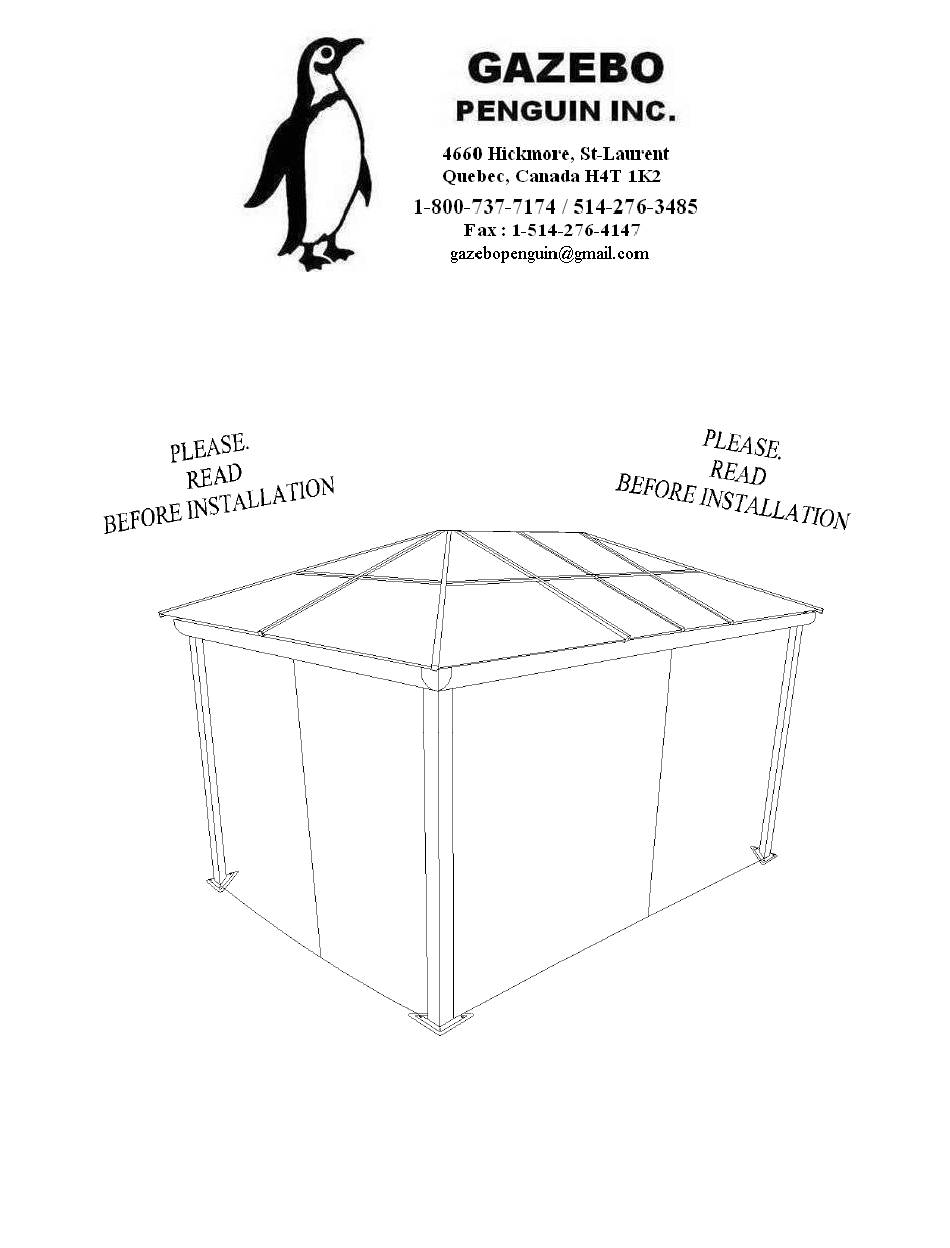

- Page 1 43224 12’x14’ GAZEBO ASSEMBLY INSTRUCTIONS Assembly with more than one person recommended L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\43224\ZZZ-204.43224.0131-13.GP.EN.doc...
-
Page 2: Corner Plate
“C” and “D”, also using center plate “F”. Lay out the assembled beams in a rectangle and join at each corner with a corner plate “E”, again securing tightly with 8 bolts “Oo”. Step 2: For each leg “G”, attach foot plate “H” using 3 bolts “Pp”. L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\43224\ZZZ-204.43224.0131-13.GP.EN.doc... -
Page 3: Corner Cover
NOTE: Remove 4 bolts to put leg in position, and then replace those bolts onto the leg. Step 4: Install middle joint cover “J” at each of the 4 beam junctions, using 4 screws “Qq” each. Install corner cover “I” at each of the corners, using 4 screws “Qq” each. L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\43224\ZZZ-204.43224.0131-13.GP.EN.doc... -
Page 4: Central Hub
2 screws “Qq”. Use the set of holes closest to the inside. Repeat with remaining “N” and “N-2” rafters. Step 6: Once all rafters are in place, install top cap “K” over central hub “L”. Use flat washers and acorn nuts “Vv” to secure tightly. L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\43224\ZZZ-204.43224.0131-13.GP.EN.doc... -
Page 5: Curtain Rail
“Qq” on the inside. The notched end of a flashing will always go in a corner of the gazebo. Step 8: Install the curtain rails “T” and “U” on the inside of the beam assembly using bolts “Oo”. L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\43224\ZZZ-204.43224.0131-13.GP.EN.doc... - Page 6 Insert the middle roof joints in between the rafters and slide them up under the polycarbonate panels. Tap lightly to ensure the panel is fully in the slot. Seen from above, most of the joint as well as the drain holes should be beneath the roof panels. L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\43224\ZZZ-204.43224.0131-13.GP.EN.doc...
- Page 7 Tap to make sure panels fit securely and do not extend past the ends of the rafters. Step 12: Starting from any end, install all edgings, with end caps “Gg” or “Hh” at each junction or corner respectively. Use bolts “Pp” to secure. L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\43224\ZZZ-204.43224.0131-13.GP.EN.doc...
-
Page 8: Washer
Repeat this step with the lower crossbars. Step 14: a) Secure each foot plate into the ground using screws “Rr” and washers “Tt”. b) Use lag shields (Ss) if needed for harder surfaces. L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\43224\ZZZ-204.43224.0131-13.GP.EN.doc... -
Page 9: Curtain Rail
Install the privacy curtains “Xx” in the exterior groove of the rails. Once the hooks are in, use curtain rail caps “Uu” to close ends of curtain rails. IMPORTANT NOTES: Make sure all screws and bolts are tight. If conditions are windy, you may have to add cable guides at the corners. L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\43224\ZZZ-204.43224.0131-13.GP.EN.doc... - Page 10 55 ¼” RIGHT FLASHING (11-631) (11-639) 55 ¼” FOOT PLATE LEFT FLASHING (11-640) 25 3/8” (11-632) CENTER CORNER COVER FLASHING (11-709) 51” (11-633) CENTER MIDDLE COVER FLASHING (11-666) 73 ¼” (11-664) 63” CURTAIN RAIL, 14’ TOP CAP SIDE L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\43224\ZZZ-204.43224.0131-13.GP.EN.doc...
-
Page 11: L:wp51Instructionssolariums Instruction Books43224Zz-204.43224.0131-13.Gp.en.doc
(11-651) 25 ½” 58 7/8” CENTER MIDDLE LEFT EDGING, 14’ ROOF JOINT SIDE (11-677) 31” (11-654) RIGHT MID ROOF RAFTER CAP JOINT, 14’ SIDE (11-714) (11-655) 31” LEFT MID ROOF CORNER END JOINT, 14’ SIDE BRACKET Aa-2 L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\43224\ZZZ-204.43224.0131-13.GP.EN.doc... - Page 12 MIDDLE UPPER SCREEN CURTAIN CROSSBAR (11-687) (11-659) 17 ½” PRIVACY LEFT UPPER CROSSBAR, 14’ SIDE CURTAIN (11-698) (11-661) 25 ½”x38” 17 ½” MIDDLE LOWER RIGHT UPPER CROSSBAR, 14’ SIDE ROOF PANEL Nn-2 (08-168) BOLT 10 mm KEY (M6x12mm) L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\43224\ZZZ-204.43224.0131-13.GP.EN.doc...
- Page 13 L:\WP51\INSTRUCTIONS\SOLARIUMS INSTRUCTION BOOKS\43224\ZZZ-204.43224.0131-13.GP.EN.doc...
- Page 14 2. The product is not warranted against damages due to extreme weather conditions, such as thunderstorms, hail, strong wind or snow storms, or any other acts of God. 3. The product is only warranted in the event it is installed in accordance with the Gazebo Penguin’s written instructions enclosed with the product.
