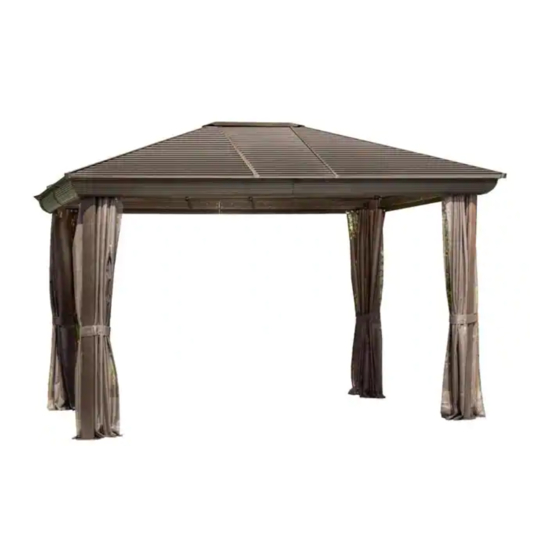

43204MR-22 BROWN 43204MR-32 SLATE METAL ROOF 10’x14’ GAZEBO ASSEMBLY INSTRUCTIONS DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED FOR FUTURE REFERENCE, TAKE PICTURES OF ALL SIX SIDES OF EACH OF THE BOXES UPON RECEIPT. PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS Assembly With Two Or More Adults Recommended Base Dimensions 8’...
Page 2
Some jurisdictions may require permits for, or otherwise regulate, installation and use. For assistance with assembly, installation, parts, or customer service, contact Gazebo Penguin Customer Service Department at the numbers listed below (English & French, Mon-Fri 8:00 AM to 4:00 PM EST):...
3. Leaking due to heavy rain may happen, please refer to the instruction manual for window positions and information on how to evacuate the water. 4. The product is only warranted in the event it is installed in accordance with the Gazebo Penguin’s written instructions enclosed with the product.
Page 4
43204MR GAZEBO BROWN (see page 7 for slate parts) PACKED PACKED PART DIAGRAM PART DIAGRAM IN BOX IN BOX (11-624-22) (20-021-22) 52 ¾” 60” LEFT BEAM CENTRAL HUB (20-013-22) (11-625-22) 83” 52 ¾” ROOF TOP RIGHT BEAM RAFTER (11-662-22) (20-014-22) 78 ¼”...
Page 5
PACKED PACKED PART DIAGRAM PART DIAGRAM IN BOX IN BOX (20-011-22) (20-069-22) 83” 51” CENTER COVER FLASHING ROOF BAR (11-666-22) 73 ¼” (12-031-22) CURTAIN MOUNTING RAIL, BRACKET 14’ SIDE (11-642-22) 18-067-22 47 ¾” SOLIDIFYING CURTAIN RAIL, BRACKET 10’ SIDE 20-060-22 (20-007-22) SOLIDIFYING RIGHT...
Page 6
PACKED PACKED PART DIAGRAM PART DIAGRAM IN BOX IN BOX (20-006-22) MIDDLE (11-667-22) Left UPPER SCREEN/ ROOF MOUSTIQUAIRE PANEL Right (11-668-22) (08-158-22) Left PRIVACY BOLT CURTAIN (M6x16mm) Right (08-156-22) (16-118-22) SCREW SCREW M6x36 (M4x16mm) (08-167-22) (11-705-22) SCREW CURTAIN (M6x63.5mm) HOOKS (08-193-22) PLASTIC (08-182)
Page 7
43204MR GAZEBO SLATE PACKED PACKED PART DIAGRAM PART DIAGRAM IN BOX IN BOX (20-021-32) (11-624-32) 52 ¾” 60” TOP LEFT CENTRAL BEAM (20-013-32) (11-625-32) 83” 52 ¾” ROOF TOP RIGHT BEAM RAFTER (11-662-32) (20-014-32) 78 ¼” 60 3/8” TOP LEFT ROOF BEAM RAFTER...
Page 8
PACKED PACKED PART DIAGRAM PART DIAGRAM IN BOX IN BOX (20-011-32) (20-069-32) 83” 51” CENTER COVER FLASHING ROOF BAR (11-666-32) 73 ¼” (12-031-32) CURTAIN MOUNTING RAIL, BRACKET 14’ SIDE (11-642-32) 18-067-32 47 ¾” SOLIDIFYING CURTAIN RAIL, BRACKET 10’ SIDE 20-060-32 (20-007-32) SOLIDIFYING RIGHT...
Page 9
PACKED PACKED PART DIAGRAM PART DIAGRAM IN BOX IN BOX (20-006-32) MIDDLE (11-667-32) Left UPPER SCREEN/ ROOF MOUSTIQUAIRE PANEL Right (11-668-32) (08-158-32) Left PRIVACY BOLT CURTAIN (M6x16mm) Right (08-156-32) (16-118-32) SCREW SCREW M6x36 (M4x16mm) (08-167-32) (11-705-32) SCREW CURTAIN (M6x63.5mm) HOOKS (08-193-32) PLASTIC (08-182)
Page 10
Before You Assemble the Gazebo Please don't destroy boxes until completely assembled. For future reference, take pictures of all six sides of each of the boxes upon receipt. Please verify the content of each box against the list of parts. ...
Page 11
ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION...
Page 12
Step 2: For each Leg “G”, attach Foot Plate “H” using 3 Bolts “Pp”. Step 3: 1. Unscrew 4 Pp Bolts as shown below, have someone lift the Beam assembly and attach each Leg “G” into a Corner, again securing each using 4 Bolts “Pp”. 2.
Page 13
Step 4: 1. Install Middle Cover “J” at each of the 4 beam junctions, using 4 Screws “Qq” each. 2. Install Corner Cover “I” at each of the corners, using 4 Screws “Qq” each. ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION...
Page 14
Step 5: 1. Screw Mounting Bracket (O) to Rafter (L1) and Bracket (P) to Rafter (L2) using the second last single insert from under the rafter using Bolt (Pp) 2. Attach Roof Rafters (L1, L2) to the Central Hub (L) using Bolt (Pp). 3.
Page 15
Step 6: 1. Install the Flashings “Q”, “R”, and “S” onto the Beam assembly, using “Qq” Screws inside. The notched end of a Flashing will always go in a corner of the gazebo. Step 7: 1. Install the Curtain Rails “T” and “U” on the inside of the beam assembly using Bolts “Pp”. ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION...
Page 16
Step 8: 1. Place Finishing Bars (M, M1) next to each other and align the pre-drilled holes in each bar one on top of the other. 2. Place Finishing End & Corner Bracket (Q1, Q2) over the aligned holes and secure with Bolts (Pp).
Page 17
Step 9: 1. From the inside of the Gazebo, install the Solidifying Bar (N, N1, N2) as illustrated using the Bolts (Pp). 2. Each Bolt (Pp) must be inserted into the inserts of the Rafters. ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION...
Page 18
Step 10: 1. Install the Bottom Roof Panels (V, V1, W) by sliding them onto finishing bars (M, M1, M2). Step 11: Install first Upper Roof Panel (Y) by sliding it on top of Roof Rafters (L1, L2). Note: Roof Panel must be held in place until it is secured with the Cover Cap. ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION...
Page 19
Step 12: 1. Once the installation of the panel is complete, install a Cover Roof Bar (O1, O2) onto the roof Rafter (L1, L2) with the help of Bolts (Oo1). 2. Place Cover Roof Rafter on top of Roof Rafter, but do not completely screw it until both panels connected to the Roof Rafter are placed.
Step 13: 1. Install the next Upper Roof Panel (X) by sliding it on top of roof Rafters (L1, L2) then secure with mutual Cover Roof Bar. 2. Continue to install the other panels one at time until the last section. TOP VIEW ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION...
Page 21
Step 14: 1. Before installing last Upper Roof Panel (X1), put Cap (K) on top of the Central Hub (L) ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION...
Page 22
Step 15: 1. Install the last Upper Roof Panel (X1) TOP VIEW ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION...
Page 23
Step 16: 1. Once the last Upper Roof Panel is installed, screw last Cover Roof Bars (O1, O2) to the Rafter (L1, L2) with Bolts (Oo1). O1/O2 L1/L2 ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION...
Page 24
Step 17: 1. Use Nut (Vv) to affix Top Cap (K) to the Central Hub (L). ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION...
Page 25
Step 18: 1. Secure each foot plate into the ground using Screws “Rr” and Washers “Tt”. 2. Use Lag Shields (Ss) if needed for harder surfaces. Step 19: 1. Install the Screen Curtains “Ww” in the interior groove of the Curtain Rails, using the provided Hooks.
Page 26
NOTE: The Dimensions Are Approximate. ZZZ-203.43204MR.0702-21.GP.EN.doc WEB VERSION...
