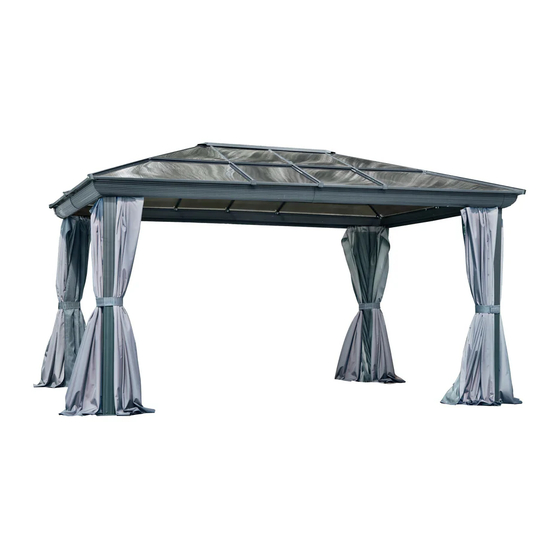

Gazebo penguin 43224 Assembly Instructions Manual

12'x14' gazebo
Hide thumbs Also See for 43224:

Advertisement

Quick Links

Download this manual
customerservice@gazebopenguin.com

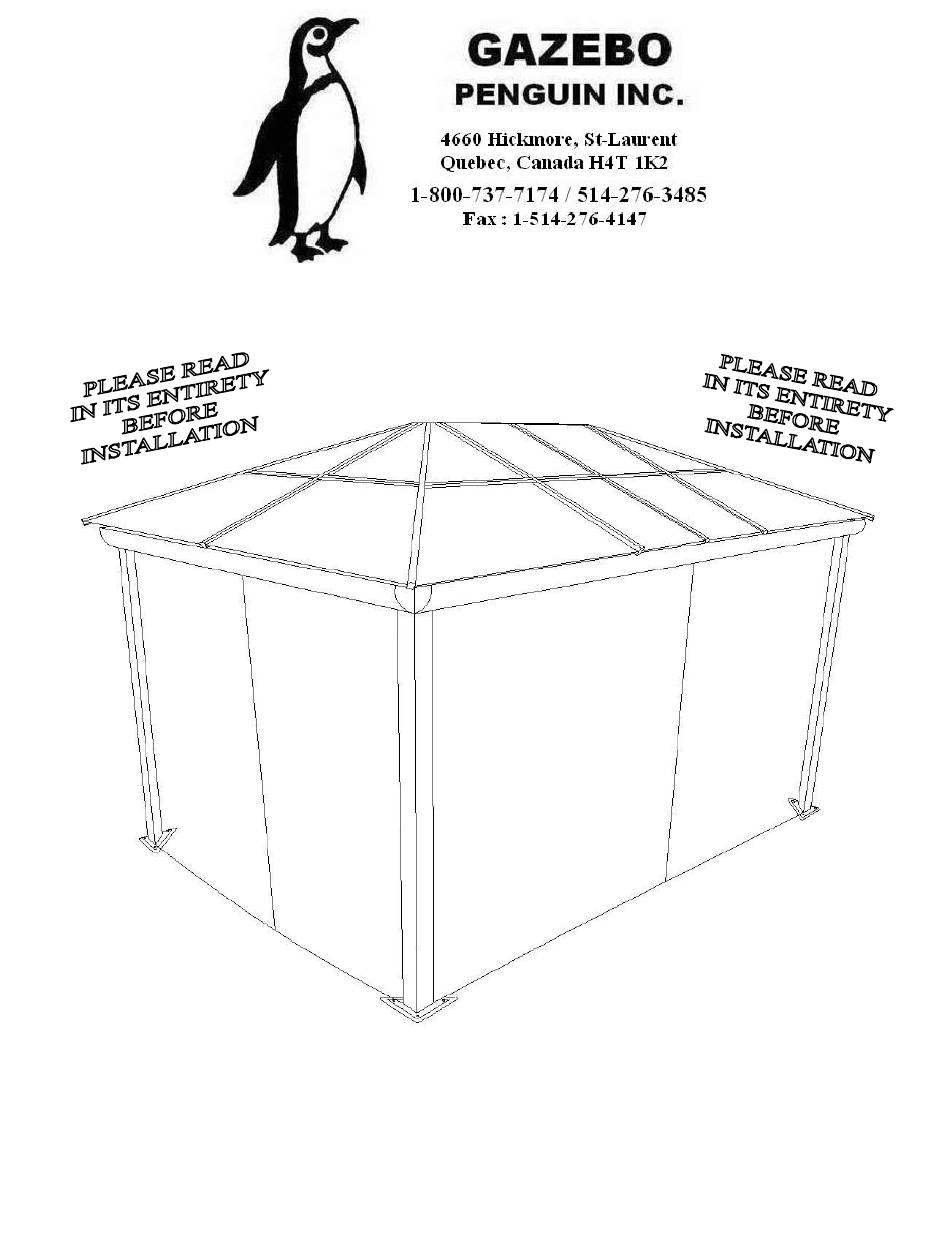

43224
12'x14' GAZEBO
ASSEMBLY INSTRUCTIONS
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS
Assembly with more than one person recommended
Tools required (not provided):
6ft (1.8m) stepladder, Robinson #2 Screwdriver, mallet, safety gloves & glasses, tarp or
protective material for placing parts on during assembly, tape measure, 1'X2"X4" wood.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 43224 and is the answer not in the manual?

Questions and answers

Related Manuals for Gazebo penguin 43224

Summary of Contents for Gazebo penguin 43224

  • Page 1 43224 12’x14’ GAZEBO ASSEMBLY INSTRUCTIONS DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS Assembly with more than one person recommended Tools required (not provided): 6ft (1.8m) stepladder, Robinson #2 Screwdriver, mallet, safety gloves & glasses, tarp or...
  • Page 2 “C” and “D”, also using center plate “F”. Lay out the assembled beams in a rectangle and join at each corner with a corner plate “E”, again securing tightly with 8 bolts “Pp”. Step 2: For each leg “G”, attach foot plate “H” using 3 bolts “Pp”. ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI...
  • Page 3 “Pp”. Repeat until all four legs are in place. Step 4: Install middle joint cover “J” at each of the 4 beam junctions, using 4 screws “Qq” each. Install corner cover “I” at each of the corners, using 4 screws “Qq” each. ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI...
  • Page 4 2 screws “Qq”. Use the set of holes closest to the inside. Repeat with remaining “N” and “N-2” rafters. Step 6: Once all rafters are in place, install top cap “K” over central hub “L”. Use flat washers and acorn nuts “Vv” to secure tightly. ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI...
  • Page 5 “Qq” on the inside. The notched end of a flashing will always go in a corner of the gazebo. Step 8: Install the curtain rails “T” and “U” on the inside of the beam assembly using bolts “Pp”. ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI...
  • Page 6 To adjust the middle joints to line up : once all polycarbonate roof panels are in place, use a small piece of wood and hammer, then tap down on the middle of the joint bringing it down and holding at the same time the joint and top polycarbonate. Do not tap too hard. ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI...
  • Page 7 Tap to make sure panels fit securely and do not extend past the ends of the rafters. Step 12: Starting from any end, install all edgings, with end caps “Gg” or “Hh” at each junction or corner respectively. Use bolts “Pp” to secure. ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI...
  • Page 8 Repeat this step with the lower crossbars. Step 14: a) Secure each foot plate into the ground using screws “Rr” and washers “Tt”. b) Use lag shields (Ss) if needed for harder surfaces. ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI...

  • Page 9: Important Notes

    Install the privacy curtains “Xx” in the exterior groove of the rails. Once the hooks are in, use curtain rail caps “Uu” to close ends of curtain rails. IMPORTANT NOTES: Make sure all screws and bolts are tight. If conditions are windy, you may have to add cable guides at the corners. ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI...
  • Page 10 43224-22 DARK BROWN PARTS LIST PART DIAGRAM PART DIAGRAM (11-665-22) (11-626-22) 60” 65 ½” CENTRAL TOP LEFT BEAM (11-627-22) (11-731-22) 65 ½” 92 5/8” TOP RIGHT BEAM ROOF RAFTER (11-708-22) (11-662-22) 73 ¾” 78 ¼” ROOF TOP LEFT BEAM RAFTER...
  • Page 11 PANEL, 14’ SIDE 12’ SIDE (11-715-22) (11-712-22) 72 5/8” 37 ½”x30 ½” RIGHT LEFT UPPER EDGING, 12’ PANEL, 14’ SIDE SIDE Dd-2 (11-676-22) (11-652-22) 38 ½” 26 ¾” LEFT MID ROOF CENTER JOINT, 12’ SIDE EDGING ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI...
  • Page 12 JOINT, 14’ BRACKET SIDE Aa-2 (11-682-22) 43 ¼” (08-158-22) LEFT LOWER BOLT CROSSBAR, (M6x16mm) 14’ SIDE (11-717-22) 43 ¼” (08-156-22) RIGHT LOWER SCREW (M4x16mm) CROSSBAR, 14’ SIDE Ii-2 (11-657-22) 26 ¾” (08-167-22) MIDDLE SCREW LOWER (M6x100mm) CROSSBAR ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI...
  • Page 13 OUSTIQUAI UPPER CROSSBAR (11-659-22) (11-687V) 17 ½” PRIVACY LEFT UPPER CROSSBAR, CURTAIN 14’ SIDE (11-698-22) (11-661-22) 38”x25 ½” 17 ½” MIDDLE RIGHT UPPER CROSSBAR, LOWER 14’ SIDE ROOF PANEL Nn-2 (11-705) 10 mm KEY CURTAIN HOOKS ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI...
  • Page 14 43224-32 SLATE PARTS LIST PART DIAGRAM PART DIAGRAM (11-665-32) (11-626-32) 60” 65 ½” CENTRAL TOP LEFT BEAM (11-627-32) (11-731-32) 65 ½” 92 5/8” TOP RIGHT BEAM ROOF RAFTER (11-708-32) (11-662-32) 73 ¾” 78 ¼” ROOF TOP LEFT BEAM RAFTER (11-663-32) (11-637-32) 78 ¼”...
  • Page 15 PANEL, 14’ SIDE 12’ SIDE (11-715-32) (11-712-32) 72 5/8” 37 ½”x30 ½” RIGHT LEFT UPPER EDGING, 12’ PANEL, 14’ SIDE SIDE Dd-2 (11-676-32) (11-652-32) 38 ½” 26 ¾” LEFT MID ROOF CENTER JOINT, 12’ SIDE EDGING ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI...
  • Page 16 JOINT, 14’ BRACKET SIDE Aa-2 (11-682-32) 43 ¼” (08-158-32) LEFT LOWER BOLT CROSSBAR, (M6x16mm) 14’ SIDE (11-717-32) 43 ¼” (08-156-32) RIGHT LOWER SCREW (M4x16mm) CROSSBAR, 14’ SIDE Ii-2 (11-657-32) 26 ¾” (08-167-32) MIDDLE SCREW LOWER (M6x100mm) CROSSBAR ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI...
  • Page 17 UPPER UAIRE CROSSBAR (11-659) (11-687) 17 ½” PRIVACY LEFT UPPER CROSSBAR, CURTAIN 14’ SIDE (11-698) (11-661) 38”x25 ½” 17 ½” MIDDLE RIGHT UPPER LOWER CROSSBAR, ROOF 14’ SIDE PANEL Nn-2 (11-705) 10 mm KEY CURTAIN HOOKS ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI...
  • Page 18 ZZZ-204.43224.1207-18.GP.EN.SUN WEB VERSION SUN-HI...

  • Page 19: Maintenance Notes

    2. The product is not warranted against damages due to extreme weather conditions, such as thunderstorms, hail, strong wind or snow storms, or any other acts of God. 3. The product is only warranted in the event it is installed in accordance with the Gazebo Penguin’s written instructions enclosed with the product.
