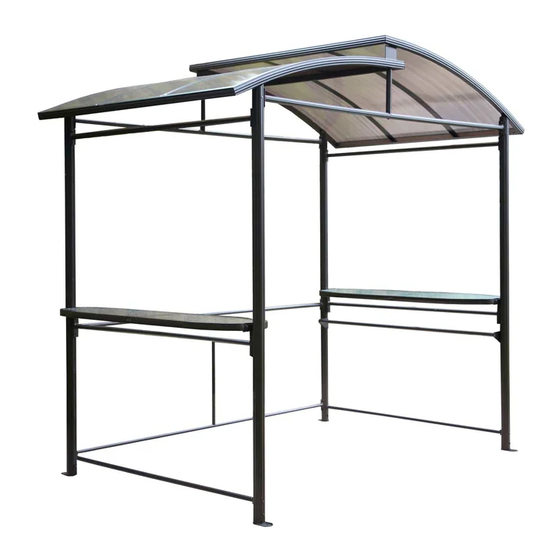

436586 GRILL GAZEBO

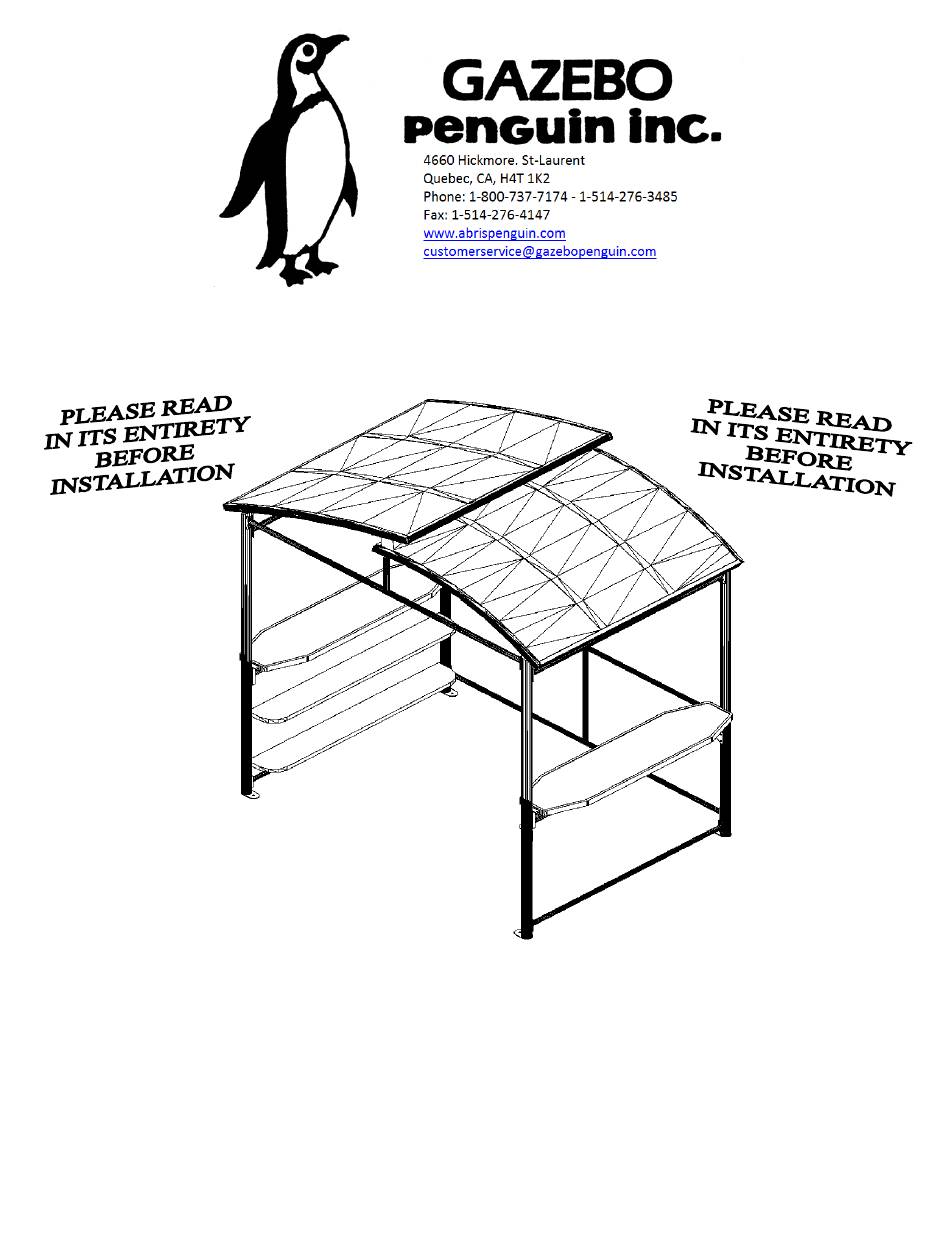

INSTALLATION MANUAL
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS
Two or more adults required for assembly
Base Dimensions 6'10 ½" x 4'11 ¼"; Largest Dimensions 7'10" x 4'11 ¼"
0
ZGP-331.436586 Grill Gazebo.0817-18.GP.EN.SUN
SUN-HI
Advertisement
Related Manuals for Gazebo penguin 436586
Summary of Contents for Gazebo penguin 436586
- Page 1 436586 GRILL GAZEBO INSTALLATION MANUAL DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS Two or more adults required for assembly Base Dimensions 6’10 ½” x 4’11 ¼”; Largest Dimensions 7’10” x 4’11 ¼”...
- Page 2 Assemble shelf support bar (F-1) under each top shelf (F) using 4 bolts (Bb) and locknuts (Aa-1) each. Attach one shelf between legs (A & C) using 4 bolts (X). Repeat with the second top shelf between legs (B & D). ZGP-331.436586 Grill Gazebo.0817-18.GP.EN.SUN SUN-HI...
- Page 3 Step 3: Attach the rear bars (G) between legs (A & B) using 2 bolts (Z) at each end. Then install the central bar (G-1) at the center of the two rear bars, using bolts (W). ZGP-331.436586 Grill Gazebo.0817-18.GP.EN.SUN SUN-HI...
- Page 4 Attach the top side bars (I) at the top between legs (A & C) and (B & D) using bolts (Z). Attach the top bars (J) between legs (A & B) and (C & D), again using bolts (Z). ZGP-331.436586 Grill Gazebo.0817-18.GP.EN.SUN SUN-HI...
- Page 5 Attach rafter (M-1) and one edging (O) in one corner using a roof connector (R) and 4 bolts (Cc). Do the same with rafter (M) and the other edging (O) at the opposite corner. ZGP-331.436586 Grill Gazebo.0817-18.GP.EN.SUN SUN-HI...
- Page 6 For the lower roof, lay out edge rafters (N & N-1), two edgings (O), roof panels (P-1), and rafters (Q- 1), as shown in diagram. Then repeat steps 6 and 7 using these pieces to complete the lower roof. ZGP-331.436586 Grill Gazebo.0817-18.GP.EN.SUN SUN-HI...
- Page 7 Anchor the unit to the ground through the bases (E). Use the provided nails (Dd), screws, and/or plugs as appropriate for your surface. If using nails, be sure to drive them in at an angle. Hang rack (T) and hooks (T-1) from the top side bar (I) as preferred. ZGP-331.436586 Grill Gazebo.0817-18.GP.EN.SUN SUN-HI...
- Page 8 BRACKET (12-067) (12-056) CLOTH TOP SHELF HOLDER BRACKET (12-057) (12-068) SHELF UPPER SUPPORT EDGE RAFTER (12-069) (12-058) UPPER REAR BAR EDGE RAFTER (12-070) (12-059) LOWER CENTRAL EDGE RAFTER (12-071) (12-060) LOWER BOTTOM EDGE SIDE BAR RAFTER ZGP-331.436586 Grill Gazebo.0817-18.GP.EN.SUN SUN-HI...
- Page 9 M6x40mm PANEL (12-075) (12-083) UPPER BOLT RAFTER M6x35mm (12-076) (12-084) LOWER BOLT RAFTER M6x30mm (12-077) ROOF (12-085) CONNECTO BOLT M6x20mm (12-078) ROOF (08-158) SUPPORT BOLT M6x16mm (12-079) (12-086) RACK LOCKNUT Aa-1 (12-080) (08-168) HOOK BOLT M6x12mm ZGP-331.436586 Grill Gazebo.0817-18.GP.EN.SUN SUN-HI...
- Page 10 PACKED PACKED DESCRIPTION DRAWING DESCRIPTION DRAWING IN BOX IN BOX (08-161) (12-087) BOLT BOLT M6x70mm M5x8mm (12-089) ACORN (08-181) ALLEN KEY (08-187) (12-088) WASHER NAIL ZGP-331.436586 Grill Gazebo.0817-18.GP.EN.SUN SUN-HI...
- Page 11 2. The product is not warranted against damages due to extreme weather conditions, such as thunderstorms, hail, strong wind or snow storms, or any other acts of God. 3. The product is only warranted in the event it is installed in accordance with the Gazebo Penguin’s written instructions enclosed with the product.
