ProLights Astra Hybrid260IP User Manual

ProLights Astra Hybrid260IP User Manual

Ip65 hybrid moving head, with 260w white phospor laser source and zoom 0.6 - 52
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

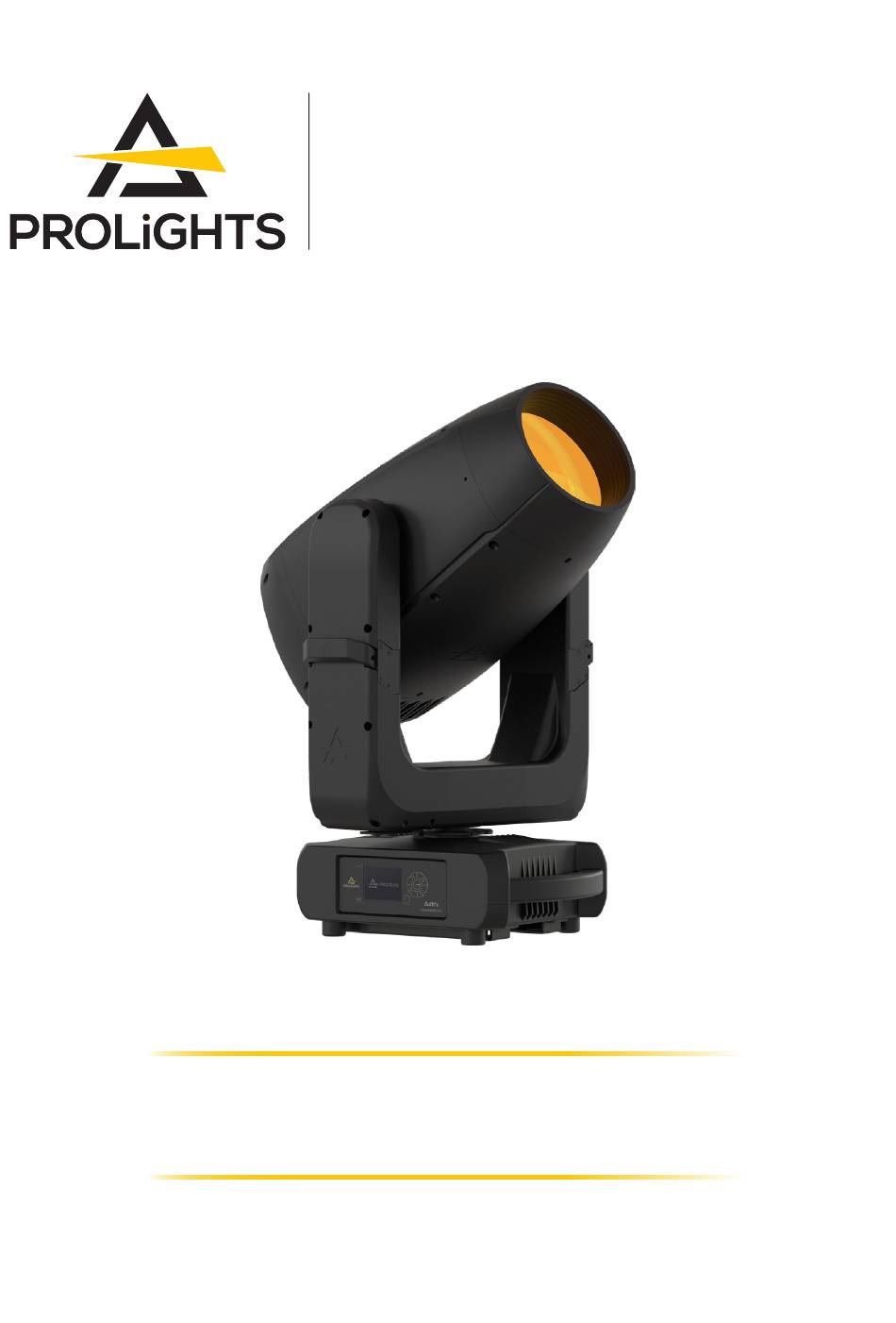

Astra Hybrid260IP
IP65 hybrid moving head, with 260W white
phospor Laser source and zoom 0.6° - 52°
USER MANUAL
English version
Rev.01 - 04/25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Astra Hybrid260IP and is the answer not in the manual?

Questions and answers

Related Manuals for ProLights Astra Hybrid260IP

Summary of Contents for ProLights Astra Hybrid260IP

  • Page 1 Astra Hybrid260IP IP65 hybrid moving head, with 260W white phospor Laser source and zoom 0.6° - 52° USER MANUAL English version Rev.01 - 04/25...
  • Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
  • Page 3 UPDATE LINKED FIXTURES - ALL FIXTURES ..............47 22 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............48 REPLACING THE FUSE ....................48 VISUAL CHECK OF PRODUCT HOUSING ..............48 RESETTING THE MAINTENANCE TIME MESSAGE ............49 23 - TEST OF IP65 RATING PROLIGHTS - Astra Hybrid260IP...

  • Page 4: Safety Information

    • Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center.
  • Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
  • Page 6 2. This device must accept any interference received, including interference that may cause undesired operation. Other approvals • The product meets the safety requirements of the certification procedures of the market in which it is placed and sold. PROLIGHTS - Astra Hybrid260IP...

  • Page 7: Package Content

    Check the updated accessories list, description and informations of the product at the following link: https://www.prolights.it/product/ASTRAHYB260IP#accessories 2 - TECHNICAL DRAWING Ø536mm 263mm [10.3in] [21.1in] 435mm 266mm 505mm [17.1in] [10.5in] [19.9in] Fig. 01 Weight: 34,5 kg - 76,06 lbs PROLIGHTS - Astra Hybrid260IP...
  • Page 8 3 - PAN AND TILT LOCK PAN Mechanism lock and release LOCK UNLOCK TILT Mechanism lock and release LOCK UNLOCK Fig. 02 PROLIGHTS - Astra Hybrid260IP...

  • Page 9: Installation

    Warning! When clamping the fixture to a truss or other structure at any angle, use clamps of half-cou- pler type. Do not use any type of clamp that does not completely encircle the structure when fastened. C6002 Steel security cable clamp OSIP PLUS 108 [4.2] Fig.03 PROLIGHTS - Astra Hybrid260IP...

  • Page 10: Connection To The Mains Supply

    • Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - Astra Hybrid260IP...

  • Page 11: Product Overview

    5. POWER IN/OUT: for connection to the Mains 100-240V~/50-60Hz. 6. GORE VALVE. 7. ANTENNA 8. DMX IN/OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C. 9. SAFETY EYES: to attach safety cable. Fig 04 PROLIGHTS - Astra Hybrid260IP...

  • Page 12: Connection Of The Dmx Line

    ... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 06 - Example 37 DMX channels configuration PROLIGHTS - Astra Hybrid260IP...

  • Page 13: Construction Of The Dmx Termination

    2. Reach the addressing menu, then select the DMX ADDRESS settings. 3. Select the address from 1 to 512 using the navigation arrows/buttons and confirm by pressing ENTER. 4. Press Menu to exit and return to the Home screen. PROLIGHTS - Astra Hybrid260IP...

  • Page 14: Control Panel

    • Switch on the display using backup battery. Hold for 5s. • Switch off display by pressing button 4 for 5s while on being on Home screen. PROLIGHTS - Astra Hybrid260IP...

  • Page 15: Menu Structure

    TX GREEN EMERALD OCEAN BLUE DEEP PURPLE COOL WHITE LINK STRENGTH ** % Show Wireless quality by percentage CRMX MODULE TimoFX: Driver Show firmware version of TimoFX VERSION Version Vx.x.xx module PROLIGHTS - Astra Hybrid260IP...

  • Page 16: Menu Setup

    Allows you to set the PAN range. TILT DEGREE Allows you to set the TILT range. PAN/TILT To activate / deactivate the reading of the FEEDBACK feedbacks given by the encoders. MOVEMENT Make fixture goes blackout OFF while BLACKOUT moving. PROLIGHTS - Astra Hybrid260IP...
  • Page 17 Transfer settings from the current fixture WITHOUT DMX ADDRESS SETTINGS to another fixture of the same model using the DMX protocol. If a signal from another source is present, the Transfer Configuration function will not be WITH DMX ADDRESS available. PROLIGHTS - Astra Hybrid260IP...

  • Page 18: Menu: Advanced

    To calibrate these functions. (Password: 050) TILT DIMMER CYAN MAGENTA YELLOW CTO + COLORS COLOR WHEEL ROT GOBO FIXED GOBO PRISM PRISM ROT PRISM 2 PRISM 2 ROT ZOOM FOCUS GOBO 1 FOCUS GOBO 2 FOCUS GOBO 12 FOCUS PROLIGHTS - Astra Hybrid260IP...
  • Page 19 ROTO GOBO GOBO ROT GOBO ROT FINE FIXED GOBO FX WHEEL A FX WHEEL A ROT FX WHEEL B FX WHEEL B ROT ZOOM ZOOM FINE FOCUS FOCUS FINE ZOOM MODE PSZ FINE PAN ZONE SIZE PROLIGHTS - Astra Hybrid260IP...

  • Page 20: Menu: Informations

    ERROR Show error message MESSAGE DEVICE LABEL Show RDM Label. ASTRAHYB260IP DEVICE MODEL ASTRAHYB260IP Show RDM fixture model Show RDM UID of the fixture. RDM UID Show firmware version of the fixture SOFTWARE 1U01 V1.0.00... VERSION PROLIGHTS - Astra Hybrid260IP...

  • Page 21: Dimmer Curves

    3. SQUARE LAW - Light intensity is finer at low levels and becomes coarser at higher levels. 4. INVERSE SQUARE LAW - Light intensity is coarser at low levels and finer at higher levels. LINEAR S-CURVE DMX % DMX % SQUARE LAW INVERSE SQUARE LAW DMX % DMX % Fig 09 PROLIGHTS - Astra Hybrid260IP...

  • Page 22: Zoom Modes

    ZOOM MODES The table below shows the minimum and maximum angles available for each zoom mode: MIN. ZOOM MAX. ZOOM BEAM 0,6° 5,1° MODE SPOT 0,6° 52,7° MODE 0,6° 1,5° MODE 0,6° 52,7° MODE Fig. 10 PROLIGHTS - Astra Hybrid260IP...

  • Page 23: Dimmer Speeds

    220 + PAN FINE This Reload also reset DMX address and mode. This CHANNEL SET TO 255, Basic Reload combination need to be performed while fixture is within 3s PAN FINE need resetting to be set to 0 PROLIGHTS - Astra Hybrid260IP...

  • Page 24: Rdm Functions

    RECORD_SENSORS 0x0202 DIMMER_INFO 0x0340 CURVE 0x0343 CURVE_DESCRIPTION 0x0344 Dimmer Settings OUTPUT_RESPONSE_TIME 0x0345 OUTPUT_RESPONSE_TIME_ DESCRIPTION 0x0346 MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_ DESCRIPTION 0x0348 DEVICE_HOURS 0x0400 LAMP_HOURS 0x0401 LAMP_STRIKES 0x0402 Power/Lamp LAMP_STATE 0x0403 Settings LAMP_MODE 0x0404 DEVICE_POWER_CYCLES 0x0405 BURN_IN 0x0440 PROLIGHTS - Astra Hybrid260IP...
  • Page 25 Parameter GET SET Value Description 0: Standard HOME_POSITION 0x8160 1: Custom CURRENT_HOURS 0x82C5 0-65535 0: No CLEAN_ALL_DATA 0x82C8 1: Yes 0: Hold DMX_FAULT 0x82DD 1: Blackout MAINTENANCE_T_ALERT_PERIOD 0x82DF MAINTENANCE_T_ELAPSED_TIME 0x82E0 ERROR_MESSAGE 0x82EA POWER_CONSUMPTION 0x82EF WIRELESS_QUALITY 0x82F4 PROLIGHTS - Astra Hybrid260IP...

  • Page 26: Dmx Charts

    Tilt = 128 Tilt = 255 Tilt movement range: 270° Pan movement range: 540° Pan = 0 Pan = 128 Pan = 255 Tilt = 42 Tilt = 42 Tilt = 42 Display Display Display Fig. 12 PROLIGHTS - Astra Hybrid260IP...
  • Page 27 CTO + Filters Color Wheel 2 Color Wheel 2 Fine Rot Gobo Wheel Gobo Rot Gobo Rot Fine Fixed Gobo FX Wheel A Prism Wheel A Rotation FX Wheel B Prism Wheel B Rotation Zoom Zoom Fine Focus PROLIGHTS - Astra Hybrid260IP...
  • Page 28 Congo Blue + Minus Green 1/4 Minus Green 1/4 Color Wheel 1 Minus Green 1/4 + Minus Green 1/2 Minus Green 1/2 Minus Green 1/2 + CTB 1/2 CTB 1/2 CTB 1/2 + CTB 1/4 CTB 1/4 CTB 1/4 + CTB PROLIGHTS - Astra Hybrid260IP...
  • Page 29 CTB 1/2 + Minus Green 1/2 CTO + Filters Minus Green 1/2 Minus Green 1/2 + Minus Green 1/4 Minus Green 1/4 Minus Green 1/4 + Congo Blue Congo Blue Congo Blue + UV UV + Open Open PROLIGHTS - Astra Hybrid260IP...
  • Page 30 Dark Green + Medium BLue Medium BLue Medium BLue + Dark Amber Dark Amber Dark Amber + Aquamarine Aquamarine Aquamarine + Tropical Violet Tropical Violet Tropical Violet + Slate Blue Slate Blue Slate Blue + Open Open Color Slot Open PROLIGHTS - Astra Hybrid260IP...
  • Page 31 Fine positioning Fine Open Gobo Indexing (set next ch) GOBO 1 GOBO 2 GOBO 3 GOBO 4 GOBO 5 Rot Gobo Wheel GOBO 6 GOBO 7 GOBO 8 GOBO 9 GOBO 10 GOBO 11 GOBO 12 PROLIGHTS - Astra Hybrid260IP...
  • Page 32 Backwards wheel rotation - Slow to fast Gobo Indexing Gobo index 0° - 360° Gobo Rotation Gobo Rot No rotation Forward gobo rotation - Fast to slow No rotation Backwards gobo rotation - Slow to fast Gobo Rot Fine 1 Fine indexing/rotation PROLIGHTS - Astra Hybrid260IP...
  • Page 33 Wide Open (Zoom Mode@Beam-Raw) Reserved (Zoom Mode@Spot) Gobo shaking - Slow to fast GOBO 1 GOBO 2 GOBO 3 GOBO 4 GOBO 5 GOBO 6 GOBO 7 GOBO 8 GOBO 9 GOBO 10 GOBO 11 GOBO 12 GOBO 13 PROLIGHTS - Astra Hybrid260IP...
  • Page 34 Prism A.3 Prism A.4 Frost Frost A.1 Prism Indexing Prism Indexing Prism Rotation Prism Wheel A Prism No Rotation Index/ Rotation Prism forward rotation fast to slow Prism No Rotation Prism backwards rotation slow to fast PROLIGHTS - Astra Hybrid260IP...
  • Page 35 Tilt safety zone start value TSZ fine TSZ size Safety zone size 0% to 100% No Function/Safe PAN REVERSE ON PAN REVERSE OFF TILT REVERSE ON Control TILT REVERSE OFF PAN/TILT MODE FAST PAN/TILT MODE MEDIUM PAN/TILT MODE SLOW PROLIGHTS - Astra Hybrid260IP...
  • Page 36 DIMMER CURVE SQUARE LAW DIMMER CURVE INVERSE SQUARE LAW DIMMER SPEED AUTO DIMMER SPEED FAST DIMMER SPEED MEDIUM DIMMER SPEED SLOW SOURCE FREQUENCY 600HZ SOURCE FREQUENCY 1200HZ SOURCE FREQUENCY 2000HZ SOURCE FREQUENCY 4000HZ SOURCE FREQUENCY 6000HZ SOURCE FREQUENCY 25KHZ PROLIGHTS - Astra Hybrid260IP...
  • Page 37 RESET CTO + COLORS RESET COLOR WHEEL Control RESET ROTATING GOBO RESET GOBO ROTATION RESET FIXED GOBO RESET ZOOM RESET FOCUS RESET FX WHEEL 1 RESET FX WHEEL 2 RESET OTHER Reserved FACTORY DEFAULT OF CONTROL FUNC- TIONS Reserved PROLIGHTS - Astra Hybrid260IP...
  • Page 38 14 - FIXED GOBOS WHEEL Fig. 13 PROLIGHTS - Astra Hybrid260IP...
  • Page 39 • Ø external (OD)= 8,4 mm • Ø of image (ID)= 4,0 mm • Thinckness= 0,3 mm • Aluminum material 0.3 mm OD = Ø8.4 mm [0.01 in] [0.3 in] ATTENTION! Load with mirror surface toward the light source. Fig. 14 PROLIGHTS - Astra Hybrid260IP...

  • Page 40: Color Wheels

    AQUAMARINE PINK ARTIC TROPICAL LIME VIOLET SLATE LIGHT BLUE LIGHT BLUE DARK AMBER DEEP GREEN PURPLE YELLOW ORANGE VELVET BLUE GREEN MAGENTA CONGO CTB 1/4 BLUE MINUS CTB 1/2 MINUS GREEN 1/4 GREEN 1/2 Fig. 15 PROLIGHTS - Astra Hybrid260IP...

  • Page 41: Error Messages

    [TILT LOCKED] Tilt is locked [PAN ERROR] Pan sensor not detecteld [TILT ERROR] Tilt sensor not detecteld [PAN ENCODER ERROR] Pan encoder not detecteld [TILT ENCODER ERROR] Tilt encoder not detecteld PROLIGHTS - Astra Hybrid260IP...
  • Page 42 [PRISM WHEEL 1 Failure detected during the reset of the prism wheel 1 rota- ROTATION ERROR] tion, if the focus lens is not located in its default position. PROLIGHTS - Astra Hybrid260IP...
  • Page 43 [DEFOG FAN 1 ERROR] Blower for defog failed IDENTIFICATION OF ELECTRONIC BOARDS 5U PCB 6U PCB 4U PCB 3U PCB 2U PCB 1U PCB Fig. 16 PROLIGHTS - Astra Hybrid260IP...

  • Page 44: Periodical Cleaning

    AND TILT LOCK" paragraph (pag. 6). Loosen and remove the marked screws and opening the head covers (1) from both sides. Unclip the safety cable on both sides (2). Fig. 17 PROLIGHTS - Astra Hybrid260IP...

  • Page 45: Gobos Replacement

    Gently remove the gobo holder from the gobo wheel (2, 3). Remove the spring and the gobo (4, 5). NOTE: the mirrored part of the gobo must be placed in the direction of the LED Source Fig. 18 PROLIGHTS - Astra Hybrid260IP...
  • Page 46 • Disconnect the two connectors, power and serial bus plugs (marked B in drawing 1); • Unscrew the two screws marked in the front view (marked C in drawing 2); Fig. 19 • Pull out the plate with Profile module (drawing 2); PROLIGHTS - Astra Hybrid260IP...
  • Page 47 • Select the files to be updated. To select the desired files, move with the UP and DOWN buttons and select the file by pressing ENTER (Figure 2); • The selected files will be shown with a yellow square, select "NEXT" pressing RIGHT button, then press ENTER to confirm. (Figure 2) PROLIGHTS - Astra Hybrid260IP...
  • Page 48 "START" pressing RIGHT button, then press ENTER to confirm. (Figure 1); • A screen with the progress of the update will appear (Figure 2), once update is completed the fixture will restart automatically and the update will be completed. Fig 21 PROLIGHTS - Astra Hybrid260IP...
  • Page 49 UPDATE LINKED FIXTURES - ALL FIXTURES It is possible to update several Prolights fixtures from the Astra and Jet series at the same time. SELECT UPDATE DO NOT POWER OFF THIS FIXTURE Path: \FOLDER 2 LINKED FIXTURES ALL FIXTURES Progress:...

  • Page 50: Maintenance

    IP grade of the fixture. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel.
  • Page 51 • Check if the Fuse is intact and eventually replace it if fault necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in...
  • Page 52 It is recommended to verify IP grade using IPTESTBOX every time the bodies are removed for maintenance. Remove the gore valve from the connections panel. Connect the air hose to the IPTESTBOX by inserting the quick-connect fitting into the coupler. PROLIGHTS - Astra Hybrid260IP...
  • Page 53 (5) and insert the threaded end into the threaded valve gole socket (6). For the operating procedure using the instrument, refer to the IPTESTBOX user manual. Fig. 23 PROLIGHTS - Astra Hybrid260IP...
  • Page 54 Note...
  • Page 56 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
