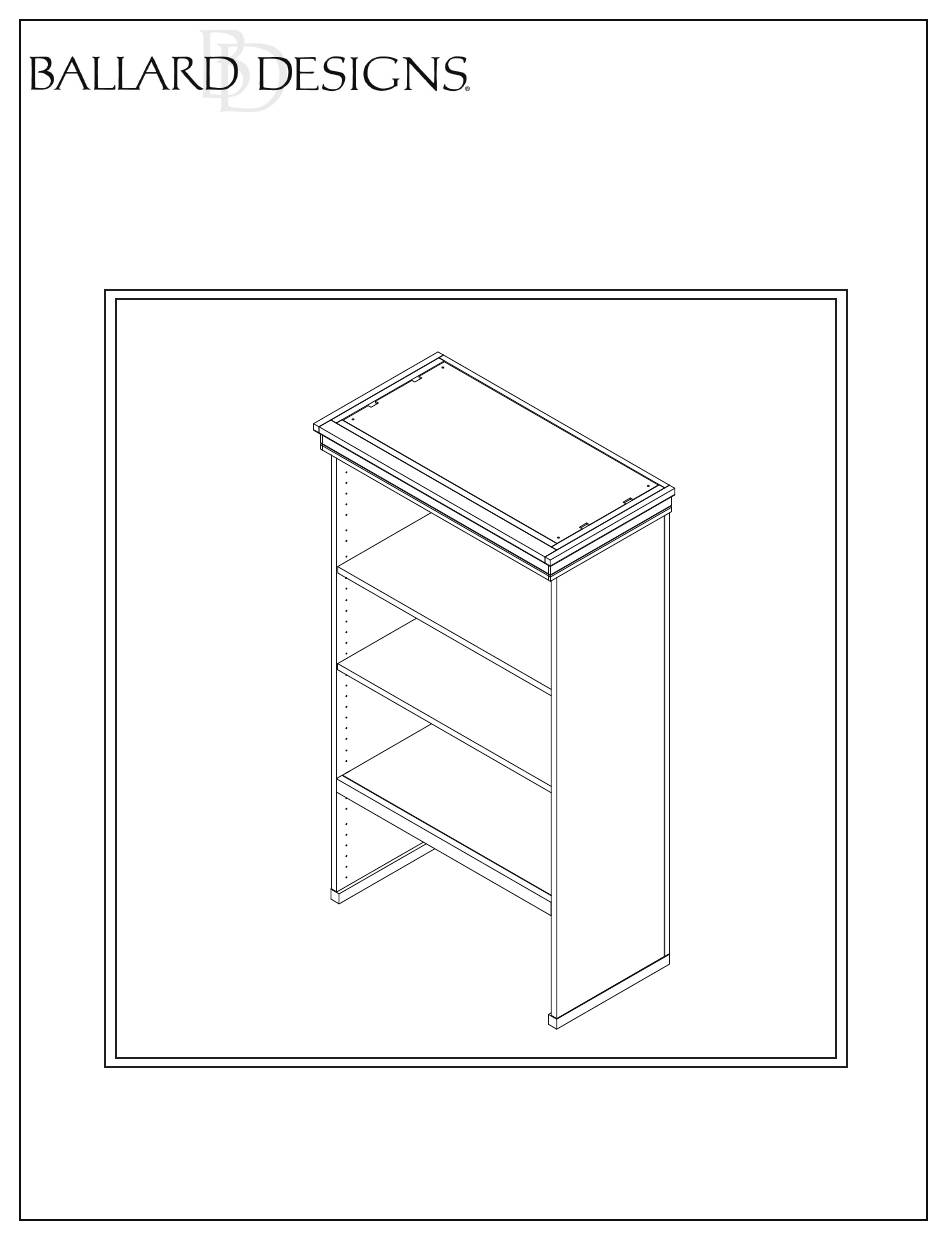

PRODUCT NAME: Hutton Double Hutch Open
ITEM NUMBER: MO564 DBL
ASSEMBLED DIMENSIONS : 56.75"H x 32.5"W x 17"D
PRODUCTS ARE NOT INTENDED
MADE IN INDONESIA
FOR COMMERCIAL USE.
UPDATED: 5-5-2020
Page 1 of 5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ballard Designs Hutton MO564 DBL
Summary of Contents for Ballard Designs Hutton MO564 DBL
- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Hutton Double Hutch Open ITEM NUMBER: MO564 DBL ASSEMBLED DIMENSIONS : 56.75”H x 32.5”W x 17”D PRODUCTS ARE NOT INTENDED MADE IN INDONESIA FOR COMMERCIAL USE. UPDATED: 5-5-2020 Page 1 of 5...
-
Page 2: Required Tools
Assemble in location for intended use. Ltr. Qty. Hardware Included REQUIRED TOOLS: Phillips Screwdriver Shelf Supports -Two person assembly suggested. Screws Remove all parts, hardware and protective packaging from carton and carefully arrange on a clean, Flat Washers level, padded surface. Lock Washers NOTE: To avoid accidentally... - Page 3 STEP 1: Install Left/Right Crown Molding (K) to top sides of Hutch (I). NOTE: If joining another Hutch, delete Crown from adjoining side. STEP 2: Determine location for each Shelf (J) then insert Shelf Supports (A) into corresponding pre-drilled holes. Carefully place each Shelf level upon Supports. NOTE: If preferred, this Step may be postponed until Hutch has been completely installed upon Cabinets.
- Page 4 STEP 3: To install Double Hutch (I) alone onto a 2, 3, 4 or 5 unit Work Surface (sold separately), assemble Cabinets with Work Surface then carefully lift and place Hutch on top, aligning back edge as illustrated. Attach Brackets (E) using Screws (B), Flat Washers (C), and Lock Washers (D). Firmly tighten with screw- driver.
- Page 5 WALL ANCHORING HARDWARE (ANTI-TIP) Ltr. Qty. Hardware Included Small Screw WARNING Large Screw Tip-Over Hazard Bracket Serious or fatal crushing injuries can occur from a furniture tip-over Prevent tipping accidents. Anchor your furniture. Retention Belt ATTENTION: Do not anchor Cabinet Bases to wall onto which a Hutch is to be installed. Hutches will be anchored to wall after attachment to Cabinet Bases.
