Customer Service: 800-367-2810
Online: www.ballarddesigns.com

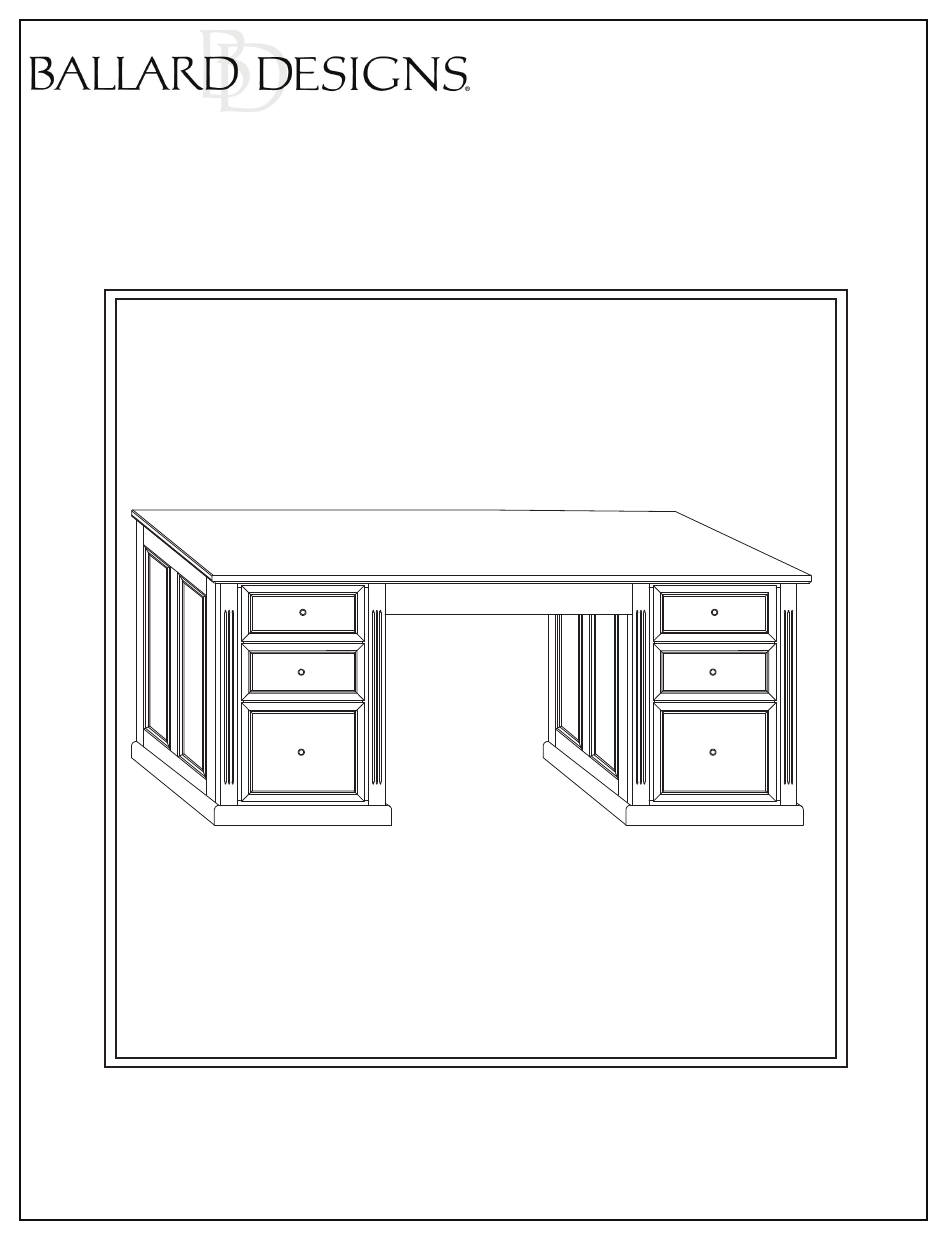

PRODUCT NAME: Tuscan Double Pedestal Desk (Top, Base Cabinets)
ITEM NUMBER: MO362 (Includes MO361 & MO251)
ASSEMBLED DIMENSIONS : 30"H x 72"W x 36"D
PRODUCTS ARE NOT INTENDED
IMPORTED
FOR COMMERCIAL USE.
UPDATED: 6-13-2019
Page 1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ballard Designs Tuscan MO362
Summary of Contents for Ballard Designs Tuscan MO362
- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Tuscan Double Pedestal Desk (Top, Base Cabinets) ITEM NUMBER: MO362 (Includes MO361 & MO251) ASSEMBLED DIMENSIONS : 30”H x 72”W x 36”D PRODUCTS ARE NOT INTENDED IMPORTED FOR COMMERCIAL USE. UPDATED: 6-13-2019 Page 1 of 6...
- Page 2 Return Desk comprised of two parts, MO361 Desk Top and two MO251 Base Cabinets. Illustration below shows location of parts and hardware. 1 each -MO361: Desk Top (F) 2 each - MO251: Base Cabinet (H) and Shelf (G). Hardware Packet Shelf and Shelf Supports located on underside of each Base Cabinet.
- Page 3 Ltr. Qty. Hardware Included TOOLS NEEDED: Allen Bolt Allen Wrench (included) -Two person assembly suggested. Lock Washer Remove all parts, hardware and protective packaging from carton and carefully arrange on a clean, level, padded surface. Flat Washer NOTE: To avoid accidentally discarding small parts or hardware, Shelf Support retain all carton contents until...
- Page 4 STEP 1: Arrange Base Cabinets (H) and remove top drawer from each by extending drawer, pulling up on black lever on one rail while pushing down on the other and sliding drawer out. Lay to the side. Next, orient and lay Desk Top (F) onto Base Cabinets. NOTE: Base Cabinets may be oriented in either direction.
- Page 5 STEP 3: Insert Shelf Supports (D) in desired loctation and gently place shelves upon supports. STEP 4: If necessary, desk may be leveled by adjusting Rotary Levelers located on the bottom corner of each Base Cabinet. Turn Leveler clockwise/counterclockwise until desk is level. Cleaning &...
- Page 6 Anti Tip Installation Part C: Where applicable, attach desk to wall. Ltr. Qty. Hardware Included Small Screw Large Screw Bracket Retention Belt Attach 2 Brackets (C) through the smaller holes to Desk with Small Screws (A) Attach remaining Brackets (C) INTO A WALL STUD with Large Screws (B) 2 inches below the Brackets attached to Desk.
