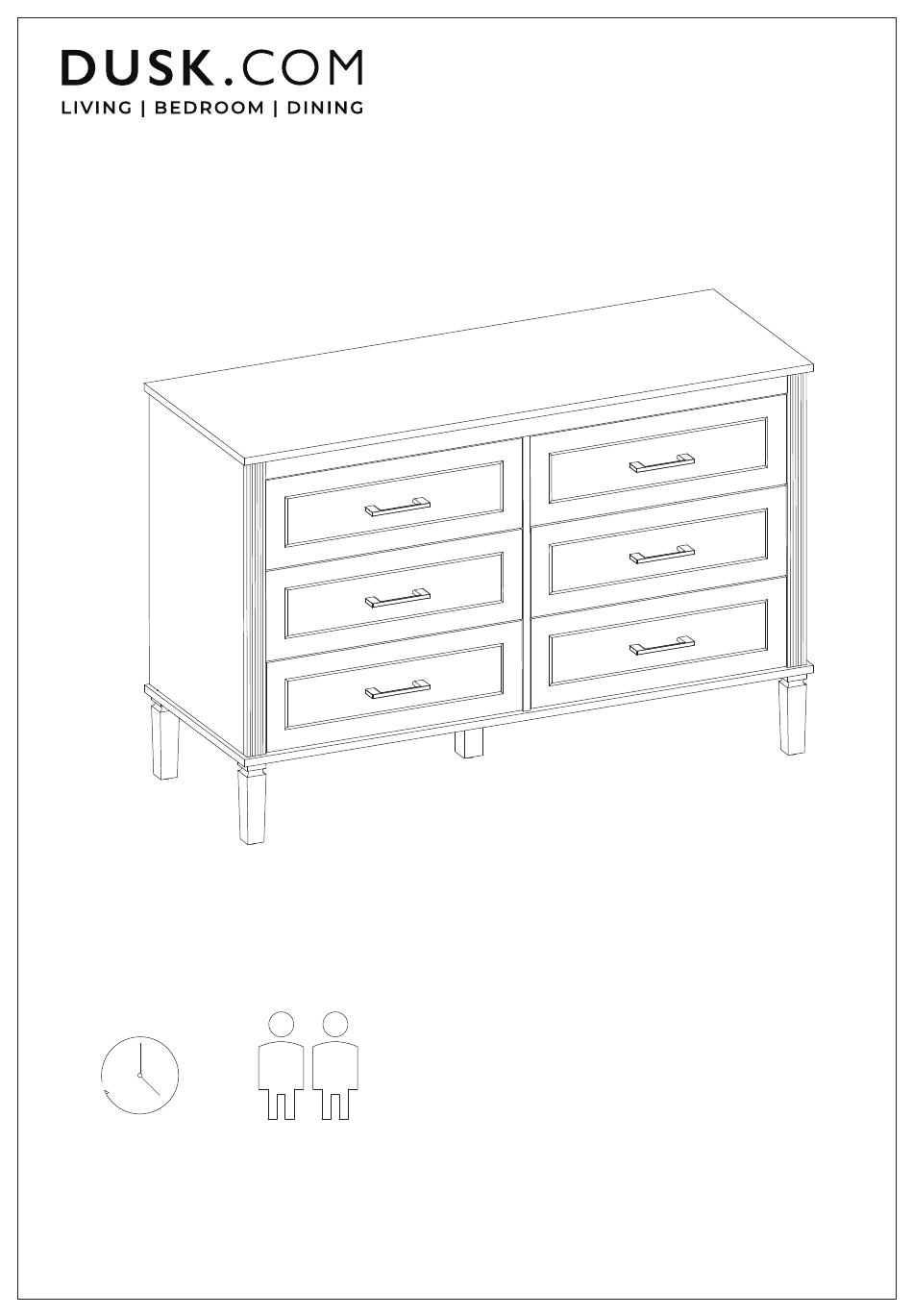

DUSK Sienna 6 Drawer Large Chest Instruction Booklet

Product dimensions:w120xd450xh79.5 cm
Hide thumbs

Advertisement

Quick Links

Download this manual
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Up to 1 hour
assembly time
This product is intended for domestic use only, not for commercial purposes.
6 Drawer Large Chest
Two person
assembly
Range Name: Sienna
Box 1 dimensions:W134xD52.5xH19.5 cm
Product dimensions:W120xD450xH79.5 cm
P-1-15
V-2.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sienna 6 Drawer Large Chest and is the answer not in the manual?

Questions and answers

Related Manuals for DUSK Sienna 6 Drawer Large Chest

Summary of Contents for DUSK Sienna 6 Drawer Large Chest

  • Page 1 Range Name: Sienna Box 1 dimensions:W134xD52.5xH19.5 cm Product dimensions:W120xD450xH79.5 cm 6 Drawer Large Chest THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Up to 1 hour Two person assembly time assembly This product is intended for domestic use only, not for commercial purposes. P-1-15 V-2.0...

  • Page 2: Care And Maintenance

    IMPORTANT ASSEMBLY TIP Before you begin, it's best to identify all of the parts and fittings to build your chest frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building.

  • Page 3: Parts List

    Parts list P-3-15...
  • Page 4 Parts list Before you begin building your chest, please take a moment to read through the instructilons and make sure that you have all the relevant parts listed on the parts check list. Part Description Quantity Box No Part Number Left Side Panel 1 pc Box 1...
  • Page 5 Pre-assembled Fittings Adjustable Foot Pre-assembled x 1pc Bolt Length Ruler： Slides Must Be Separated Before Assembly. Pay attention when connecting ! After Separated, Set Aside Until Needed for Assembly. The sliding module must be at the front end. STEP 1 : Extend Slide Mount Lever STEP 2: Push Lever UP...
  • Page 6 1. Attach Cam Lock Screws to Right Side Bar (19) ,then attach Right Side Bar (19) to the Right Side Panel (2) ,attach fitting and Slide Rail to the Right Side Panel(2). M6*35mm M3*10mm Screw Ø6*30mm Dowel Slide Rail Ø15*9mm Cam Lock Cam Lock Screw 9pcs 3pcs...
  • Page 7 3. Attach Cam Lock Screws to Left Side Panel (1) and Right Side Panel (2). M6*35mm Cam Lock Screw 14pcs 4. Attach Cam Lock Screws and Slide Rail to Middle Panel (6) two sides. M6*35mm Slide Rail M3*10mm Screw Cam Lock Screw P-7-15 18pcs 12pcs...
  • Page 8 5. Attach Centre Support (3), Front Support Bar (4) and Back Support Bar (5) to Right Side Panel (2). Ø6*30mm Dowel Ø15*9mm Cam Lock 7pcs 6. Attach Middle Panel (6) to the Frame. Ø15*9mm Cam Lock P-8-15 6pcs...
  • Page 9 7. Attach Centre Support (3) and Back Support Bar (5) to the Middle Panel (6). Ø15*9mm Cam Lock 6pcs 8. Attach Left Side Panel (1) to the Frame. Ø6*30mm Dowel Ø15*9mm Cam Lock P-9-15 7pcs...
  • Page 10 9. Slide Upper Back Panels (8) to the Frame. 10. Attach Cam Lock Screws and Wall Brackets to Top Panel (9). M6*35mm Wall Bracket M4*14mm Screw Cam Lock Screw P-10-15 4pcs 6pcs 2pcs...
  • Page 11 11. Attach Top Panel (9) to the Frame. Ø6*30mm Dowel M4*45mm Screw Ø15*9mm Cam Lock 6pcs 8pcs 4pcs 12. Slide Lower Back Panels (7) to the Frame. P-11-15...
  • Page 12 13. Attach Bottom Panel (10) to the Frame. Ø6*30mm Dowel M4*45mm Screw 6pcs 6pcs 14. Attach the Legs (16) and Centre Leg (17) to the Frame. P-12-15...
  • Page 13 15. Assemble the drawer by following the steps shown in the illustration below. Slide Rail M3*10mm Screw M4*35mm Screw 12pcs 36pcs 24pcs 16. Align and attach the handle to the Drawer Front (11), then secure the Drawer Front (11) to the frame. M6*35mm Handle Cover...
  • Page 14 17. Slide the middle and lower Drawers into the Frame. 18. Attach the plastic buckles on back. Before securing them, manually adjust the frame to ensure the drawers are properly aligned, even, and parallel. The Centre Leg is adjustable if necessary. Plastic Buckle M3.5*14mm Screw P-14-15...
  • Page 15 19. Fix the wall bracket to the wall by drilling holes, inserting wall anchors, and securing it with screws. M4*35mm Screw Wall Anchor 2pcs 2pcs 20. Slide the upper Drawers into the Frame. P-15-15...
