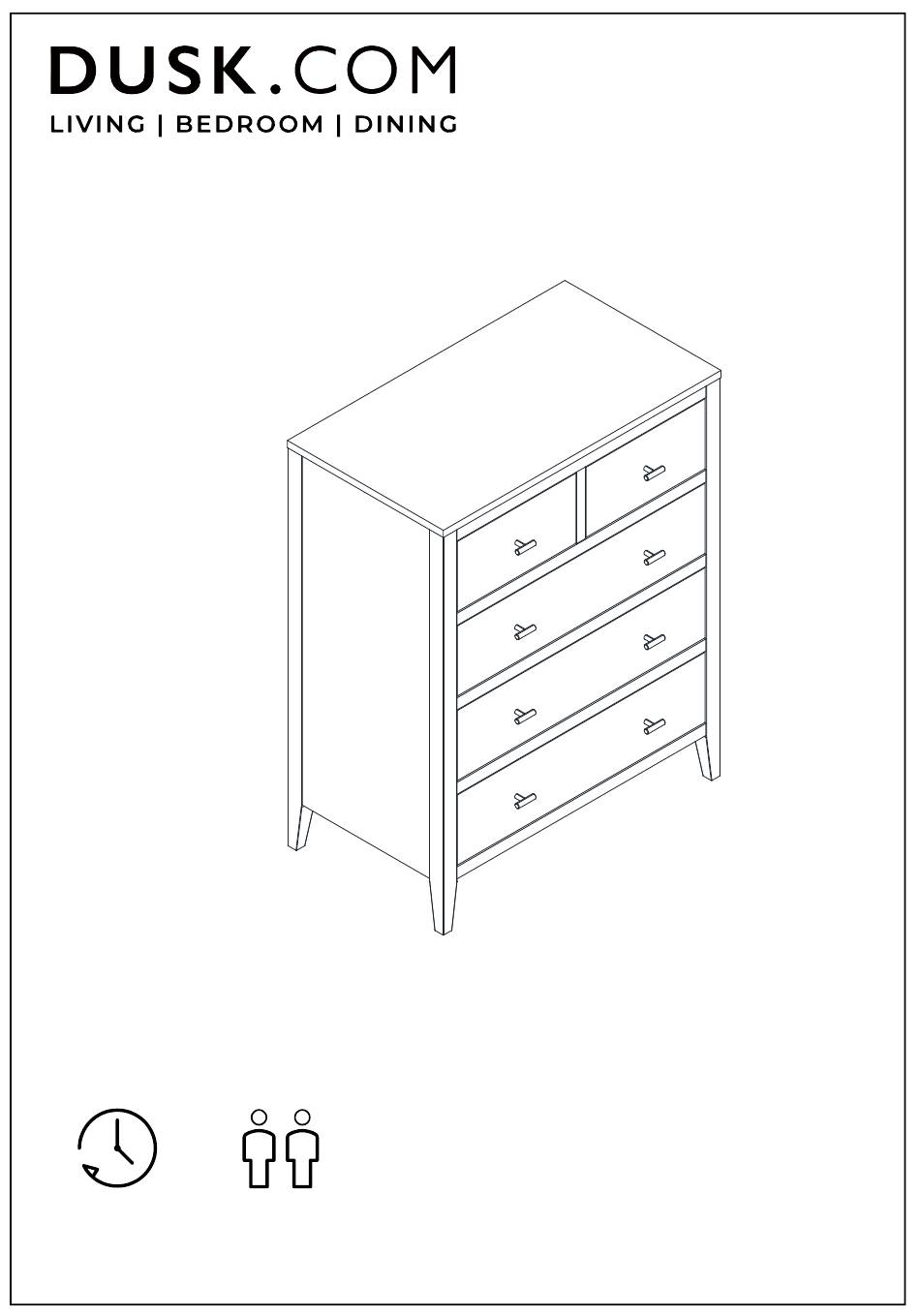

DUSK Poppy Tall Chest Instruction Booklet

Product dimensions: w80xd45xh100cm, product dimensions: w83xd46.5xh100cm

Advertisement

Quick Links

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
60 minutes approx
assembly time
assembly required
This product is intended for domestic use only, not for commercial purposes.
Tall Chest
Two adults
Range Name: Poppy/Nell
Box 1 Dimensions (Body): W112xD54.5xH23.5cm
Poppy Top Box Dimensions: W91xD51.5xH5cm
Nell Top Box Dimensions: W93.5xD53xH5cm
Poppy Product Dimensions: W80xD45xH100cm
Nell Product Dimensions: W83xD46.5xH100cm
P-1-15
V-2.0
