Summary of Contents for DUSK Ruby 6 Drawer Chest

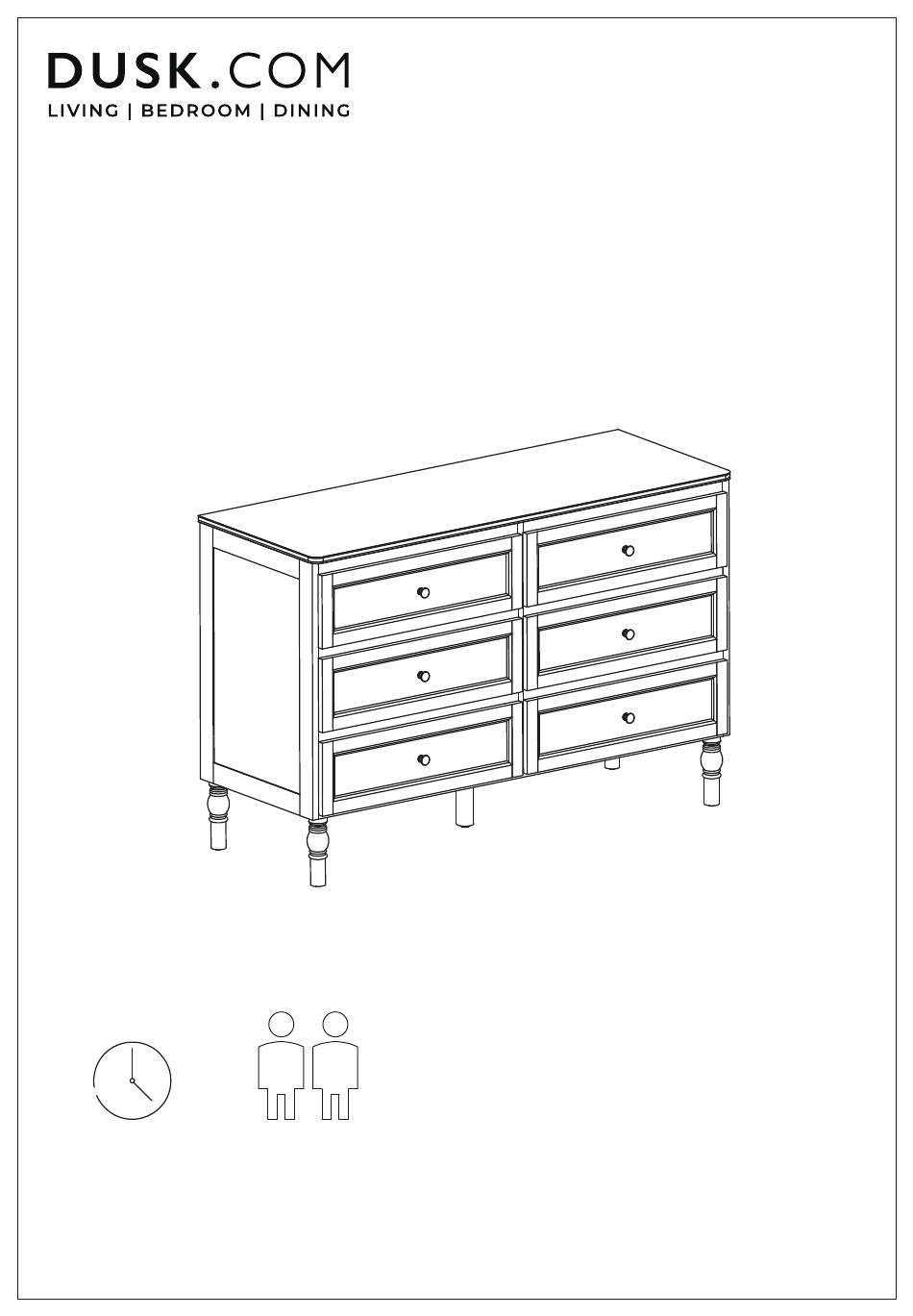

- Page 1 Range Name: Ruby Box dimensions: L133xW53xH21 (cm) 6 Drawer Chest Up to 1 hour Two person assembly time assembly This product is intended for domestic use only, not for commercial purposes. P-1/12...
-
Page 2: Care And Maintenance
IMPORTANT ASSEMBLY TIP Before you begin, it's best to identify all of the parts and fittings to build your chest frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building. -
Page 3: Parts List
Parts list Before you begin building your chest, please take a moment to read through the instructions and make sure that you have all the relevant parts listed on the parts check list. Part Description Quantity Part Number 1 pc Left Side Panel 1 pc Right Side Panel... - Page 4 1. Attach Cam Lock Screws to both sides of the Middle Panel (3). M6*35mm Cam Lock Screw 6pcs 2. Attach Middle Panel (3) to Bottom Panel (4). Ø6*30mm Dowel M4*45mm Screw P-4/12 2pcs 2pcs...
- Page 5 3. Attach Centre Support (5) to Middle Panel (3). Ø6*30mm Dowel Ø15*9mm Cam Lock 6pcs 6pcs 4. Attach Cam lock Screws to Left Side Panel (1) and Right Side Panel (2). M6*35mm Cam Lock Screw P-5/12 14pcs...
- Page 6 5. Attach Left Side Panel (1) to Bottom Panel (4) and Centre Support (5). Ø6*30mm Dowel Ø15*9mm Cam Lock 5pcs 5pcs 6. Attach Back Support Bar (7) to Left Side Panel (1). Ø15*9mm Cam Lock P-6/12 2pcs...
- Page 7 7. Slide Lower Back Panel (6) to the Frame. 8. Attach Right Side Panel (2) to the Frame. Ø6*30mm Dowel Ø15*9mm Cam Lock P-7/12 7pcs 5pcs...
- Page 8 9. Attach the Leg (15) and Centre Leg (16) to the Bottom Panel (4). 10. Slide the Upper Back Panel (8) to the Frame. P-8/12...
- Page 9 11. Attach the Wall Bracket and Fittings to Chest Top (9). M6*35mm Wall Bracket M4*14mm Screw Cam Lock Screw 6pcs 2pcs 4pcs 12. Attach the Chest Top (9) to the Frame. Ø6*30mm Dowel Ø15*9mm Cam Lock P-9/12 6pcs 6pcs...
- Page 10 13. Assemble the drawer by following the steps shown in the illustration below. M6*35mm M4*35mm Screw Knob Cover M4*8mm Bolt Ø15*9mm Cam Lock Cam Lock Screw 24pcs 24pcs 24pcs 6pcs 24pcs 6pcs 14. Slide the Drawers into the Frame. P-10/12...
- Page 11 15. Attach the plastic buckles on back. Before securing them, manually adjust the frame to ensure the drawers are properly aligned, even, and parallel. Adjust the center leg if necessary. Plastic Buckle M3.5*14mm Screw 20pcs 20pcs 16. Fix the wall bracket to the wall by drilling holes, inserting wall anchors, and securing it with screws.
- Page 12 17. Slide two upper Drawers into the Frame. P-12/12...
