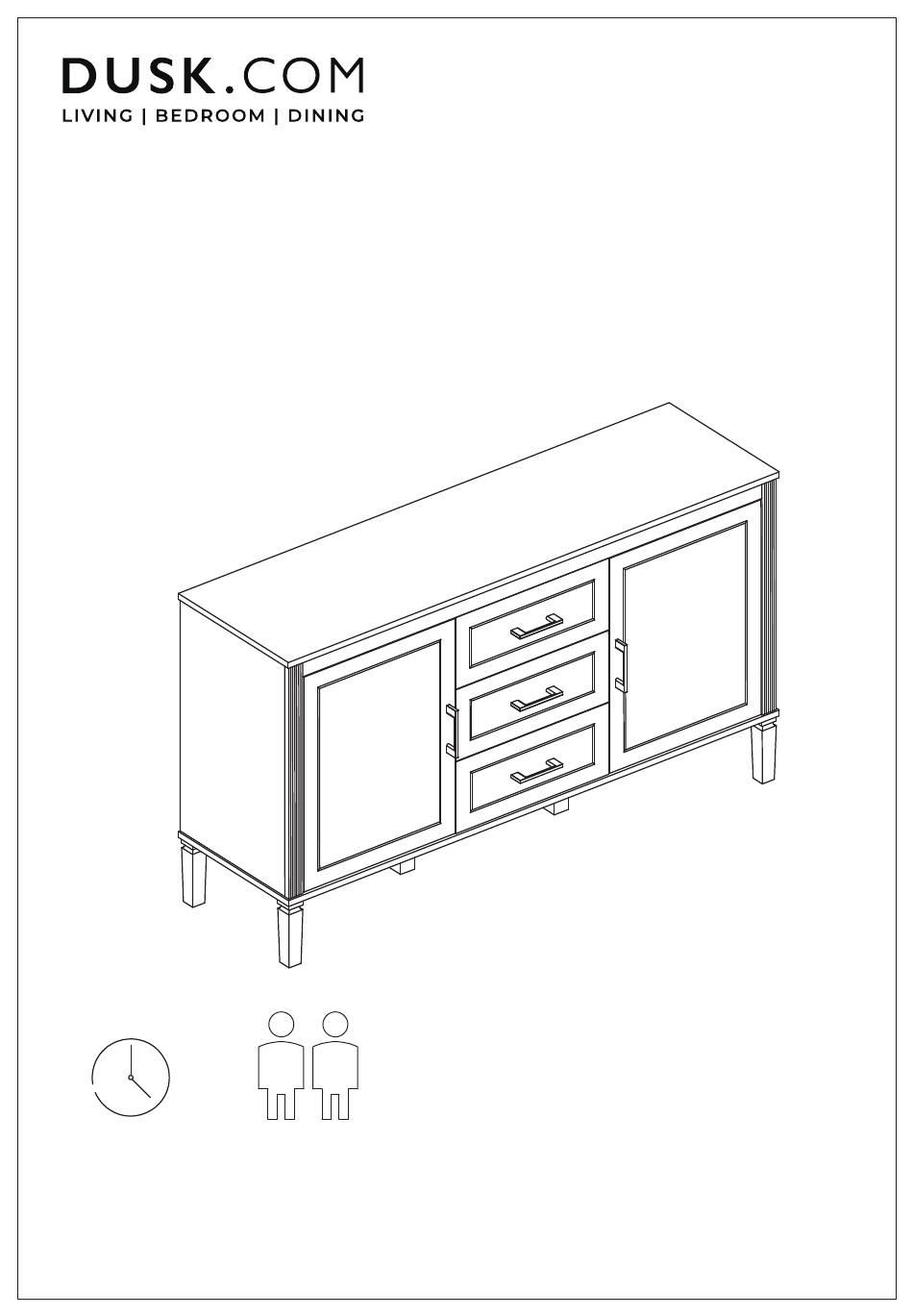

- Page 1 Range Name: Sienna Box dimensions:L154xW50.5xH19 (cm) 2 Door 3 Drawer Sideboard Up to 1 hour Two person assembly time assembly This product is intended for domestic use only, not for commercial purposes. P-1/12...
-
Page 2: Care And Maintenance
IMPORTANT ASSEMBLY TIP Before you begin, it's best to identify all of the parts and fittings to build your sideboard frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building. -
Page 3: Parts List
Parts list Before you begin building your sideboard, please take a moment to read through the instructions and make sure that you have all the relevant parts listed on the parts check list. Part Description Quantity Part Number 1 pc Left Side Panel 1 pc Right Side Panel... - Page 4 1. Attach Back Support Bar (5) to Left Middle Panel (3) and Right Middle Panel (4). M4*35mm Screw 2pcs 2. Attach Cam Lock Screws to Left Side Panel (1) and Right Side Panel (2). M6*35mm Cam Lock Screw P-4/12 6pcs...
- Page 5 3. Attach Right Side Panel (2) to Back Support Bar (5). Ø15*9mm Cam Lock 2pcs 4. Attach Front Support Bar (6) to Right Side Panel (2). Ø6*30mm Dowel Ø15*9mm Cam Lock P-5/12...
- Page 6 5. Attach Left Side Panel (1) to the Frame. Ø6*30mm Dowel Ø15*9mm Cam Lock 3pcs 6. Insert the Upper Back Panel (7) to the Frame. P-6/12...
- Page 7 7. Attach Cam Lock Screws and Wall Brackets to the Frame. M6*35mm Wall Bracket M4*14mm Screw Cam Lock Screw 10pcs 4pcs 2pcs 8. Attach Top Panel (10) to the Frame. Ø6*30mm Dowel M4*45mm Screw Ø15*9mm Cam Lock P-7/12 10pcs 10pcs 4pcs...
- Page 8 9. Slide the Lower Back Panel (8) to the Frame. Cover 16pcs 10. Attach the Bottom Panel (9) to the Frame. Ø6*30mm Dowel M4*45mm Screw P-8/12 8pcs 10pcs...
- Page 9 11. Attach the Legs (20) and Centre Legs (12) to the Frame. 12. Attach the Shelf Support and put the Shelf Panels into the Frame. Shelf Support P-9/12 8pcs...
- Page 10 13. Assemble the drawer by following the steps shown in the illustration below. M4*35mm Screw 12pcs 14. Align and attach the handle to the Drawer Front (15), then secure the Drawer Front (15) to the frame. M6*35mm Handle Cover M4*20mm Bolt Ø15*9mm Cam Lock Cam Lock Screw P-10/12...
- Page 11 15. Attach the Hinges and Handle to the Door (13,14). Handle M3.5*12mm Screw Hinge M4*20mm Bolt 2pcs 4pcs 4pcs 8pcs 16. Attach the Doors (13,14) to the Frame. Slide the drawers into the Frame. The Centre Leg is adjustable if necessary. M3.5*12mm Screw P-11/12 16pcs...
- Page 12 17. Attach the plastic buckles on back. Before securing them, manually adjust the frame to ensure the drawers are properly aligned, even, and parallel. Plastic Buckle M3.5*14mm Screw 12pcs 12pcs 18. Fix the wall bracket to the wall by drilling holes, inserting wall anchors, and securing it with screws.
