DUSK Sienna 140cm TV Unit Manual

Product dimensions: w140xd40xh45 cm
Hide thumbs Also See for Sienna 140cm TV Unit:

Advertisement

Quick Links

Download this manual

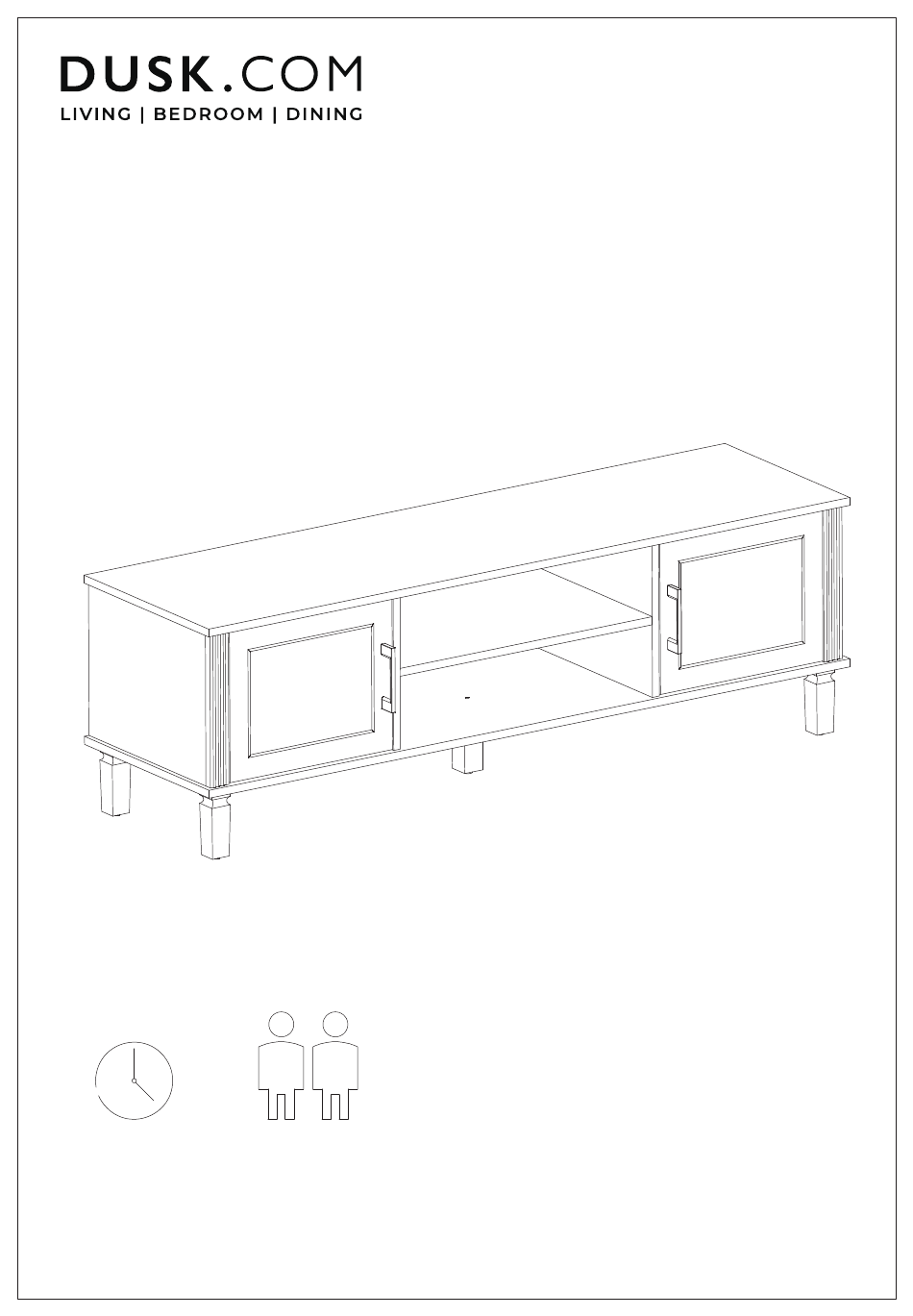

Up to 40 minutes
assembly time
This product is intended for domestic use only, not for commercial purposes.
140cm TV Unit
Two person
assembly
Range Name: Sienna
Box 1 dimensions: L154xW47xH12.5 cm
Product dimensions: W140xD40xH45 cm
P-1-12
V-2.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sienna 140cm TV Unit and is the answer not in the manual?

Questions and answers

Related Manuals for DUSK Sienna 140cm TV Unit

Summary of Contents for DUSK Sienna 140cm TV Unit

  • Page 1 Range Name: Sienna Box 1 dimensions: L154xW47xH12.5 cm Product dimensions: W140xD40xH45 cm 140cm TV Unit Up to 40 minutes Two person assembly time assembly This product is intended for domestic use only, not for commercial purposes. P-1-12 V-2.0...

  • Page 2: Care And Maintenance

    IMPORTANT ASSEMBLY TIP Before you begin, it's best to identify all of the parts and fittings to build your TV unit frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building.

  • Page 3: Parts List

    Parts list P-3-12...
  • Page 4 Parts list Before you begin building your TV unit, please take a moment to read through the instructions and make sure that you have all the relevant parts listed on the parts check list. Part Description Quantity Box No Part Number 1 pc Box 1 Left Middle Panel...
  • Page 5 Pre-assembled Fittings Adjustable Foot Pre-assembled x 1pc Bolt Length Ruler： P-5-12...
  • Page 6 1. Attach Left Middle Panel (1) and Right Middle Panel (2) to the Centre Panel (3). M6*35mm Ø6*30mm Dowel Ø15*9mm Cam Lock Cam Lock Screw 4pcs 4pcs 4pcs 2. Insert the Back Middle Panel (5) to the Frame. P-6-12...
  • Page 7 3. Attach the Door Catch and Cam Lock Screws to the Top Panel (4). M6*35mm Door Catch M3.5*14mm Screw Cam Lock Screw 4pcs 10pcs 2pcs 4. Attach Top Panel (4) to the Frame. Ø6*30mm Dowel Ø15*9mm Cam Lock P-7-12 4pcs 4pcs...
  • Page 8 5. Attach Cam Lock Screws to Right Side Bar (15) ,then attach Right Side Bar (15) and Right Side Panel (7) . M6*35mm Ø6*30mm Dowel Ø15*9mm Cam Lock Cam Lock Screw 2pcs 2pcs 2pcs 6. Attach Cam Lock Screws to Left Side Bar (14) ,then attach Left Side Bar (14) and Left Side Panel (6) .
  • Page 9 7. Attach Left Side Panel (6) and Right Side Panel (7) to the Frame. Ø6*30mm Dowel Ø15*9mm Cam Lock 6pcs 4pcs 8. Insert Back Middle Panel (5) and Back Side Panels (8) to the Frame. P-9-12...
  • Page 10 9. Attach Bottom Panel (9) to the Frame. M6*35mm Ø6*30mm Dowel M4*45mm Screw Ø15*9mm Cam Lock Cam Lock Screw 2pcs 2pcs 8pcs 8pcs 10. Attach the Legs (12) and Centre Leg (13). P-10-12...
  • Page 11 11. Attach the Hinges, Door Strike Plates and Handles to the Door Panels (10,11). Handle M4*20mm Bolt Door Strike Plate M3.5*12mm Screw Hinge 2pcs 2pcs 10pcs 4pcs 4pcs 12. Attach the Door Panels (10, 11) to the Frame. Cover M3.5*12mm Screw P-11-12 8pcs 16pcs...
  • Page 12 13. Attach the plastic buckles on back. Before securing them, manually adjust the frame to ensure the drawers are properly aligned, even, and parallel. The Centre Leg is adjustable if necessary. Plastic Buckle M3.5*14mm Screw 22pcs 22pcs P-12-12...
