THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
60 minutes approx
assembly time
assembly required
This product is intended for domestic use only, not for commercial purposes.

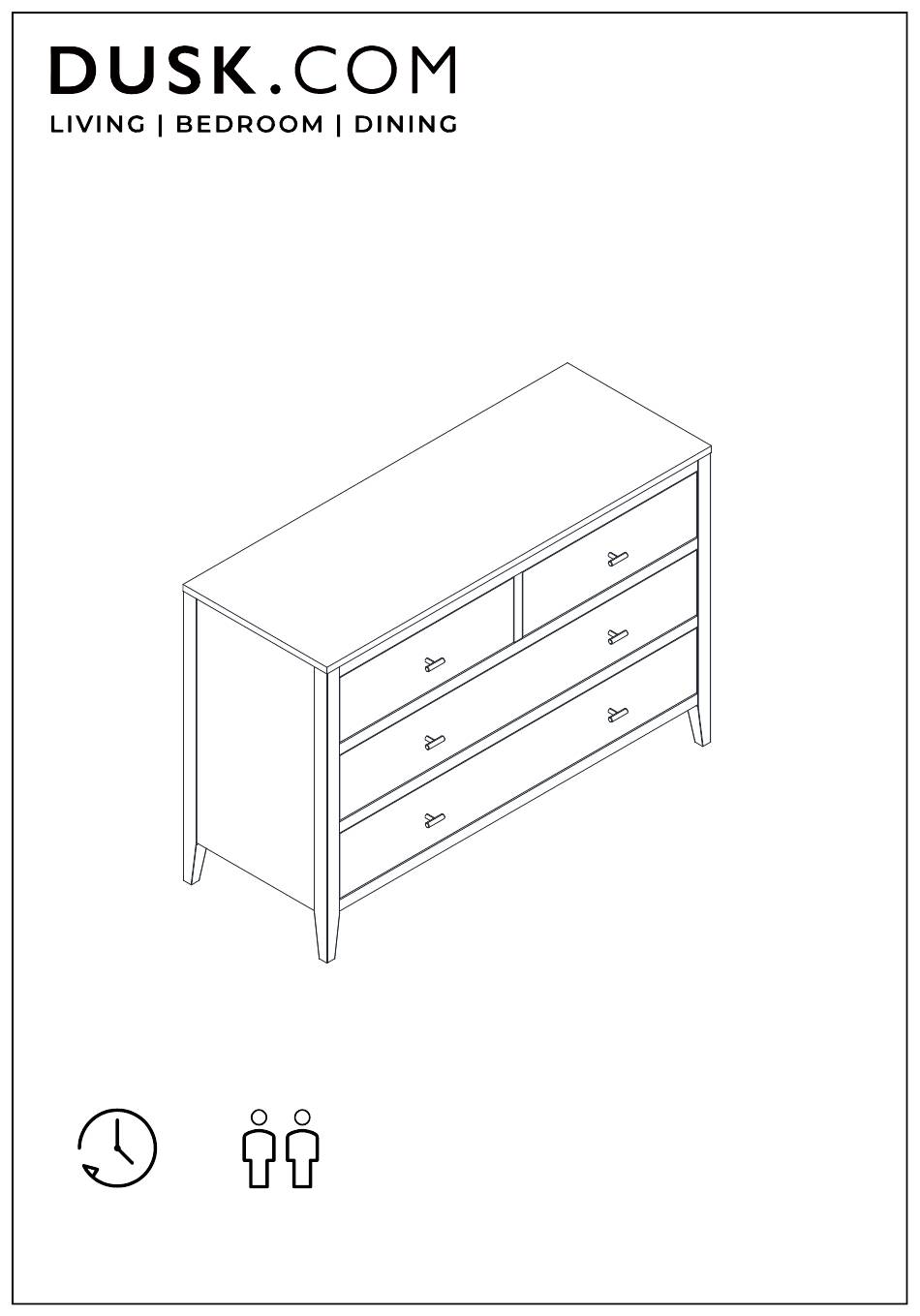

Large Chest
Two adults
Range Name: Poppy/Nell
Box 1 Dimensions (Body): W128.8xD54.3xH21cm
Poppy Top Box Dimensions: W131xD51.5xH5cm
Nell Top Box Dimensions: W133.5xD53xH5cm
Poppy Product Dimensions: W120xD45xH80cm
Nell Product Dimensions: W123xD46.5xH80cm
P-1-15
V-2.0
Advertisement
Related Manuals for DUSK Poppy Large Chest
Summary of Contents for DUSK Poppy Large Chest
- Page 1 Range Name: Poppy/Nell Box 1 Dimensions (Body): W128.8xD54.3xH21cm Poppy Top Box Dimensions: W131xD51.5xH5cm Nell Top Box Dimensions: W133.5xD53xH5cm Poppy Product Dimensions: W120xD45xH80cm Nell Product Dimensions: W123xD46.5xH80cm Large Chest THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. 60 minutes approx Two adults assembly time...
-
Page 2: Care And Maintenance
Important Assembly Tip Before you begin, we advise laying everything out on a clean and soft level surface to avoid damaging the unit or your floor. It's best to identify all of the parts and fittings to build your large chest, and to familiarise yourself with all of the parts and fittings before building. Top Tip We recommend that you build your new large chest in the room you'd like it to be located. -
Page 3: Parts Checklist
Parts checklist Please check you have all the parts listed below with your product: Do not discard any of the packaging until you have checked that you have all the parts and the pack of fixings. Note: There are 2 styles of Part 1, both assemble identically so please follow the same instructions for whichever style you have chosen. -
Page 4: Tool Required
Fittings checklist Please check you have all the fittings listed below with your product (in box 1): 36mm Cam bolt x27pcs M4x35mm Screw x26pcs(+2 extra) M7.8x30mm Wood dowel x27pcs(+2 extra) M15x9.5mm Cam x27pcs M4x35mm Screw x2pcs M5x50mm Screw x6pcs(+1 extra) Screw M4x20mm or M4x16mm 20x20mm Felt pad x4pcs M3x14mm Screw x30pcs(+2 extra) - Page 5 Step 1: 2pcs Step 2: 2pcs 2pcs 160°~185° P-5-15 V-2.0...
- Page 6 Step 3: 2pcs Step 4: 10pcs P-6-15 V-2.0...
- Page 7 Step 5: 3pcs 2pcs Step 6: 4pcs 3pcs 2pcs 2pcs P-7-15 V-2.0...
- Page 8 Step 7: 7pcs 5pcs 2pcs 2pcs 100% 100% P-8-15 V-2.0...
- Page 9 Step 8: 9pcs Step 9: 10pcs 9pcs 2pcs P-9-15 V-2.0...
- Page 10 Step 10: 30pcs 4pcs Step 11: 10pcs P-10-15 V-2.0...
- Page 11 Step 12: 12pcs Step 13: 8pcs 16pcs P-11-15 V-2.0...
- Page 12 Step 14: 6pcs 6pcs 6pcs Step 15: 6pcs 16pcs Adjust drawer sides' position by turning Screw (P) clockwise or counterclockwise P-12-15 as necessary. V-2.0...
- Page 13 Step 16: 8pcs 8pcs ° Step 17: 12pcs 12pcs ° P-13-15 V-2.0...
- Page 14 Step 18: Step 19: 4pcs 2pcs P-14-15 V-2.0...
- Page 15 Step 20: 4pcs 4pcs 2pcs 2pcs WALL Before applying the bracket to the wall, check pipes and cables that may be hidden behind. WARNING: Manufacturer assumes no liability for improper installation or excessive loads placed on screws or bracket. This wall anchor is not a substitute for proper adult supervision.
