Isabella Textured 6 Drawer Chest
Up to 50 minutes
assembly time
This product is intended for domestic use only,not for commercial purposes.
Two person
assembly
Range Name : Isabella
Box 1 Dimensions : W131.5×D52×H22cm
Product Dimensions: W111.8×D40×H76cm
P-1-10
V-2.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DUSK Isabella Textured 6 Drawer Chest
Summary of Contents for DUSK Isabella Textured 6 Drawer Chest

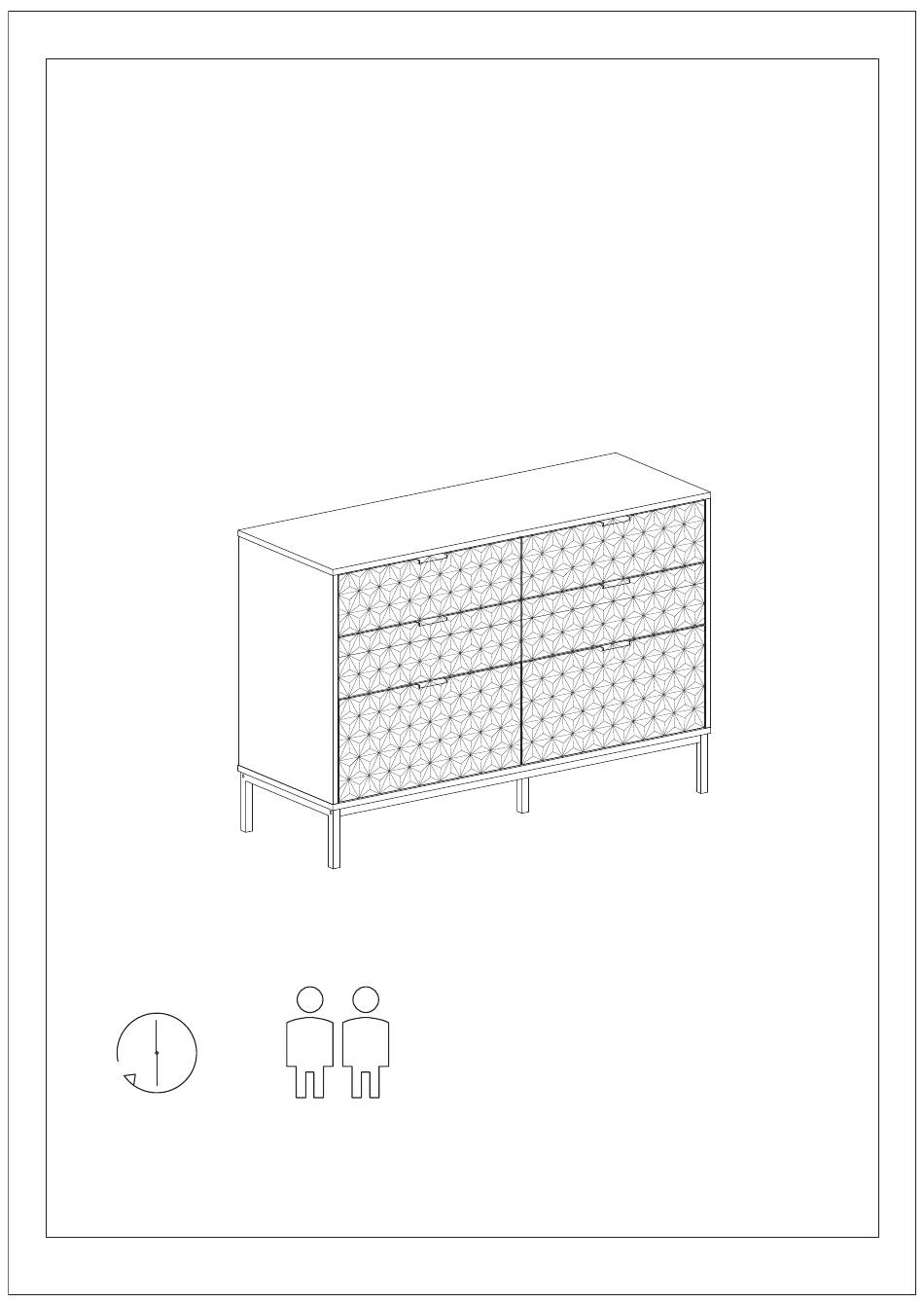

- Page 1 DUSK.COM Range Name : Isabella Box 1 Dimensions : W131.5×D52×H22cm LIVING I BEDROOM I DINING Product Dimensions: W111.8×D40×H76cm Isabella Textured 6 Drawer Chest Up to 50 minutes Two person assembly time assembly This product is intended for domestic use only,not for commercial purposes.
- Page 2 TOP TIP We recommend that you assemble the Isabella Textured 6 Drawer Chest in the room you'd like it to be located. This will help prevent any risk of damage to the frame whilst moving it.
- Page 3 Parts list P-3-10 V-2.0...
- Page 4 Parts list Before you begin building your Isabella Textured 6 Drawer Chest,please take a moment to read through the instructions and make surethat you have all the relevant parts listed on the parts check list. Part Description Part Description Part Number...
- Page 5 1. Attach parts to left and right side panel. M6*45mm Bolt 4pcs 2. Attach Bolt and Wall Bracket to the top. M6*45mm Bolt M4*14mm Screw Wall Bracket 6pcs 2pcs 2pcs 3. Attach left and right side panel to the back slat and fix with cam lock. P-5-10 Ø15x12mm Cam Lock V-2.0...
- Page 6 4. Attach upper and lower back panel to the frame. 5. Attach top to the frame. Ø15x12mm Cam Lock Ø8x30mm Wood Dowel 4pcs 2pcs 6. Attach middle panel to the top, fix with cam lock and cover with covers. P-6-10 Ø15x12mm Cam Lock Cover Ø8x30mm Wood Dowel...
- Page 7 7. Attach bottom panel to the frame. Allen Key M7*40mm Screw Ø8x30mm Wood Dowel 3pcs 6pcs 8. Attach connection tubes to side legs and tighten screws to only 70%. Allen Key M6*35mm Screw 4pcs 9. Attach legs to the bottom panel and tighten screws to 100%. Fix the centre tube to bottom panel and assemble with centre leg.
- Page 8 10. Attach drawer front to drawer side panels. M6*45mm Bolt Ø15x12mm Cam Lock 16pcs 16pcs 11. Attach drawer bottom panel to frame. 12. Attach drawer back panel to the frame and cover with covers. M4x38mm Screw Cover 16pcs 16pcs 13. Assemble the handle. M3.5*14mm Screw Handle 8pcs...
- Page 9 15. Attach drawer bottom panel to the frame. 16. Attach drawer back panel to the frame and cover with covers. M4x38mm Screw Cover 8pcs 8pcs 17. Assemble the handle. M3.5*14mm Screw Handle 4pcs 2pcs 18. Attach plastic buckles. P-9-10 M3*12mm Plastic Buckle Screw V-2.0...
- Page 10 19. Fix the wall bracket to the wall. M4x38mm Screw Wall Plug 2pcs 2pcs 20. The sliding module in the cabinet must be at the front end before assembly. Then attach drawers to the cabinet. P-10-10 V-2.0...
