DUSK.COM
Range Name : DORA
Box 1 dimensions : W94xD49xH23cm
LIVING I BEDROOM I DINING
Product Dimension : W80xD40xH75cm

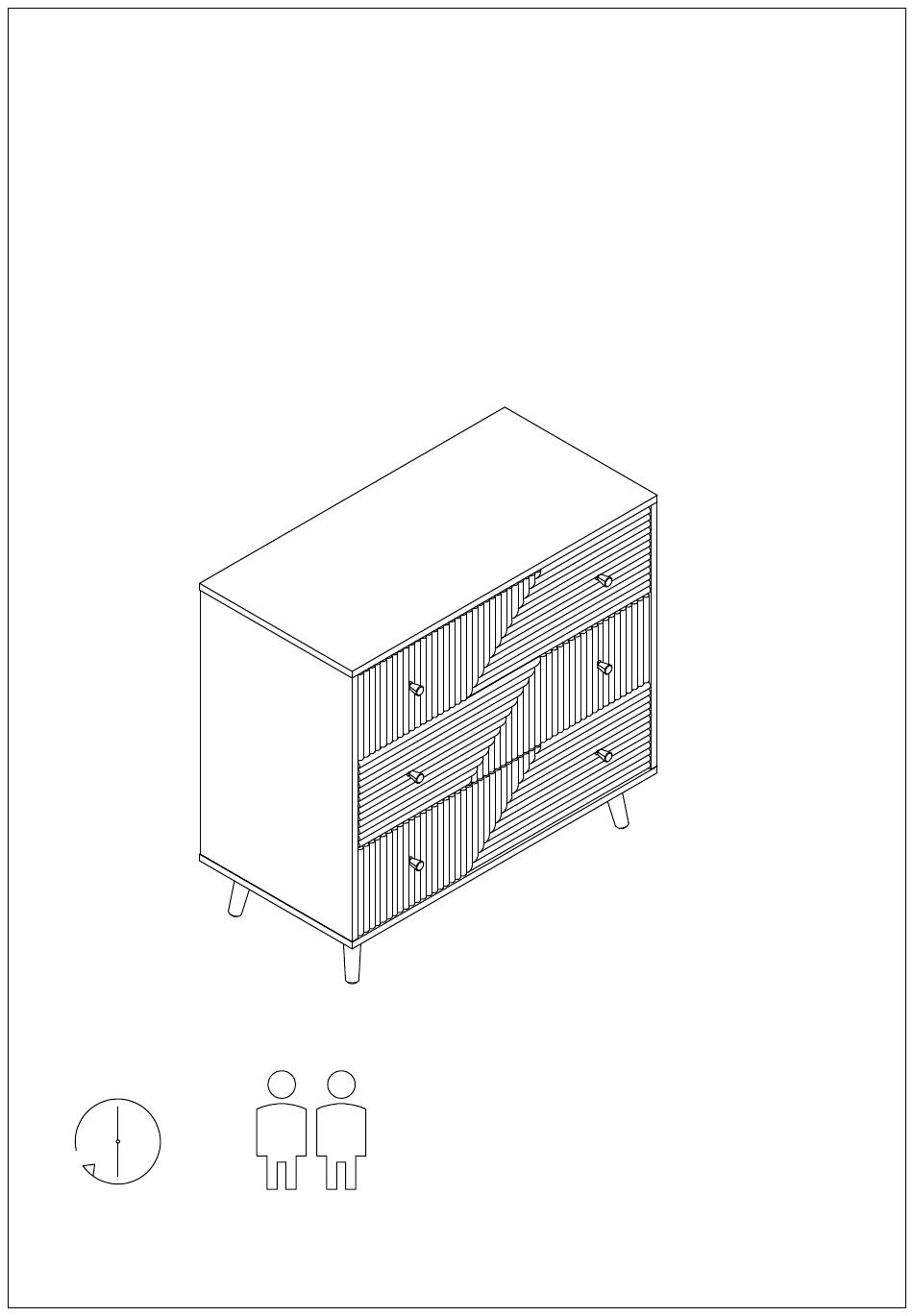

Dora 3 Drawer Chest
Up to 30 minutes
Two person
assembly time
assembly
P-1-12
This product is intended for domestic use only,not for commercial purposes.
V-2.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DUSK Dora 3 Drawer Chest
Summary of Contents for DUSK Dora 3 Drawer Chest
- Page 1 DUSK.COM Range Name : DORA Box 1 dimensions : W94xD49xH23cm LIVING I BEDROOM I DINING Product Dimension : W80xD40xH75cm Dora 3 Drawer Chest Up to 30 minutes Two person assembly time assembly P-1-12 This product is intended for domestic use only,not for commercial purposes.
- Page 2 IMPORTANT ASSEMBLY TIP Before you begin, it's best to identify all of the parts and fittings to build your Dora 3 Drawer Chest frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building.
- Page 3 Parts list P-3-12 V-2.0...
- Page 4 Parts list Before you begin building your Dora 3 Drawer Chest,please take a moment to read through the instructions and make surethat you have all the relevant parts listed on the parts check list. Part Number Part Description Quantity Box No...
- Page 5 1.Attach parts to top panel, side panel and drawer front . 11 ×2 M6*35mm Bolt Wall Bracket Ø4x14mm Screw 27pcs 2pcs 2.Attach centre support to right side panels. P-5-12 Ø8x30mm Dowel Ø4x14mm Screw Ø15x9.5mm Cam Lock V-2.0 4pcs 2pcs 2pcs...
- Page 6 3.Attach the left side panel to the frame. Ø8x30mm Dowel Ø4x14mm Screw Ø15x9.5mm Cam Lock 4pcs 2pcs 2pcs 4.Assemble the back panel. P-6-12 V-2.0...
- Page 7 5.Attach the top panel to the frame. Ø8x30mm Dowel Cover Ø15x9.5mm Cam Lock Ø4x30mm Screw 4pcs 4pcs 4pcs 2pcs 6.Assemble the back panel. P-7-12 V-2.0...
- Page 8 7.Attach bottom panel to the frame. 4mm Allen Key Ø8x30mm Dowel Ø7x40mm Screw 4pcs 4pcs 8.Attach the metal plate to the bottom panel. Kx20 Ix20 Jx20 P-8-12 Spring Washer Metal Plate M6*14mm Bolt Lock Washer V-2.0 4pcs 20pcs 20pcs 20pcs...
- Page 9 9.Assemble the drawer. P-9-12 Ø4x35mm Screw Handle M4*18mm Bolt Cover Ø6x30mm Dowel Ø15x9.5mm Cam Lock V-2.0 15pcs 18pcs 6pcs 6pcs 12pcs 3pcs...
- Page 10 10.Attach legs to the frame. 11.Assemble the drawer to the chest P-10-12 V-2.0...
- Page 11 12.Attach the plastic buckle. Manually adjust the frame slightly to ensure the drawers are in the correct position, even and parallel before attaching the plastic buckles. Plastic Buckle Ø3x16mm Screw 8pcs 8pcs 13.Fix the wall bracket to the wall. WALL P-11-12 Ø4x35mm Screw Wall Plug...
- Page 12 14.Assemble the drawer to the chest. P-12-12 V-2.0...
