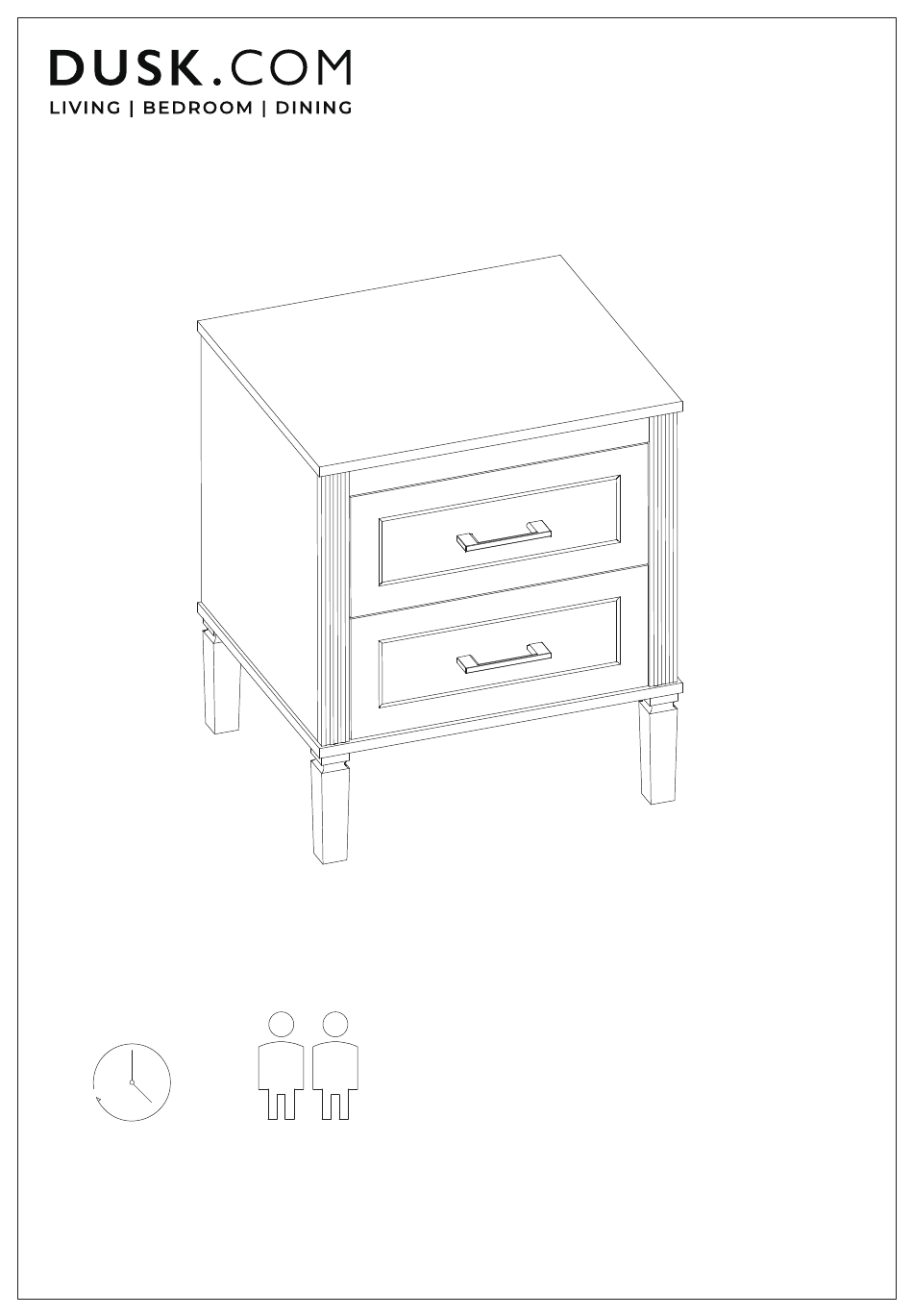

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Up to 40 minutes
assembly time
This product is intended for domestic use only, not for commercial purposes.
Bedside
Two person
assembly
Range Name: Sienna
Box 1 dimensions: W63xD51.5xH16.7 cm
Product dimensions: W52xD45xH60.5 cm
P-1-12
V-2.0
Advertisement
Related Manuals for DUSK Sienna Bedside
Summary of Contents for DUSK Sienna Bedside
- Page 1 Range Name: Sienna Box 1 dimensions: W63xD51.5xH16.7 cm Product dimensions: W52xD45xH60.5 cm Bedside THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Up to 40 minutes Two person assembly time assembly This product is intended for domestic use only, not for commercial purposes. P-1-12 V-2.0...
-
Page 2: Care And Maintenance
IMPORTANT ASSEMBLY TIP Before you begin, it's best to identify all of the parts and fittings to build your bedside frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building. -
Page 3: Parts List
Parts list P-3-12... - Page 4 Parts list Before you begin building your bedside, please take a moment to read through the instructions and make sure that you have all the relevant parts listed on the parts check list. Part Description Quantity Part Number Box No 1 pc Left Side Panel Box 1...
- Page 5 Fittings Please check you have all the fittings listed below with your product in box 1. M6*35mm Ø6*30mm Dowel M4*35mm Screw Wall Bracket Plastic Buckle Ø15*9mm Cam Lock Cam Lock Screw 18pcs+2pcs extra 18pcs+2pcs extra 20pcs+2pcs extra 9pcs+1pc extra 8pcs+1pc extra M3.5*14mm Screw Handle M4*20mm Bolt...
- Page 6 1. Attach Cam Lock Screws to Right Side Bar (14) ,then attach Right Side Bar (14) to the Right Side Panel (2) , attach fitting and Slide Rail to the Right Side Panel(2). M6*35mm Ø6*30mm Dowel Slide Rail M3*12mm Screw Ø15*9mm Cam Lock Cam Lock Screw 3pcs...
- Page 7 3. Attach Left Side Panel (1) and Right Side Panel (2) to Front Support Bar (3). Ø6*30mm Dowel Ø15*9mm Cam Lock 2pcs 2pcs 4. Attach the Wall Bracket and Cam Lock Screws to Top Panel (4). M6*35mm Wall Bracket M4*14mm Screw Cam Lock Screw P-7-12 2pcs...
- Page 8 5. Attach Top Panel (4) to the Frame. Ø6*30mm Dowel M4*45mm Screw Ø15*9mm Cam Lock 4pcs 8pcs 2pcs 6. Insert the Back Panel (5) to the Frame. P-8-12...
- Page 9 7. Attach Bottom Panel (6) to the Frame. Ø6*30mm Dowel M4*45mm Screw 6pcs 4pcs 8. Attach the Legs (7) to the Frame. P-9-12...
- Page 10 9. Assemble the drawer by following the steps shown in the illustration below. M4*35mm Screw Slide Rail M3*12mm Screw 4pcs 12pcs 8pcs 10. Align and attach the handle to the Drawer Front (8), then secure the Drawer Front (8) to the frame. M6*35mm Handle Cover...
- Page 11 11. Slide the lower Drawer into the Frame. 12. Attach the plastic buckles on back. Before securing them, manually adjust the frame to ensure the drawers are properly aligned, even, and parallel. M3.5*14mm Screw Plastic Buckle P-11-12 8pcs 8pcs...
- Page 12 13. Fix the wall bracket to the wall by drilling holes, inserting wall anchors, and securing it with screws. Slide the upper Drawer into the Frame. M4*35mm Screw Wall Anchor P-12-12...
