DUSK.COM
LIVING I BEDROOM I DINING
Up to 30 minutes
assembly time
This product is intended for domestic use only,not for commercial purposes.

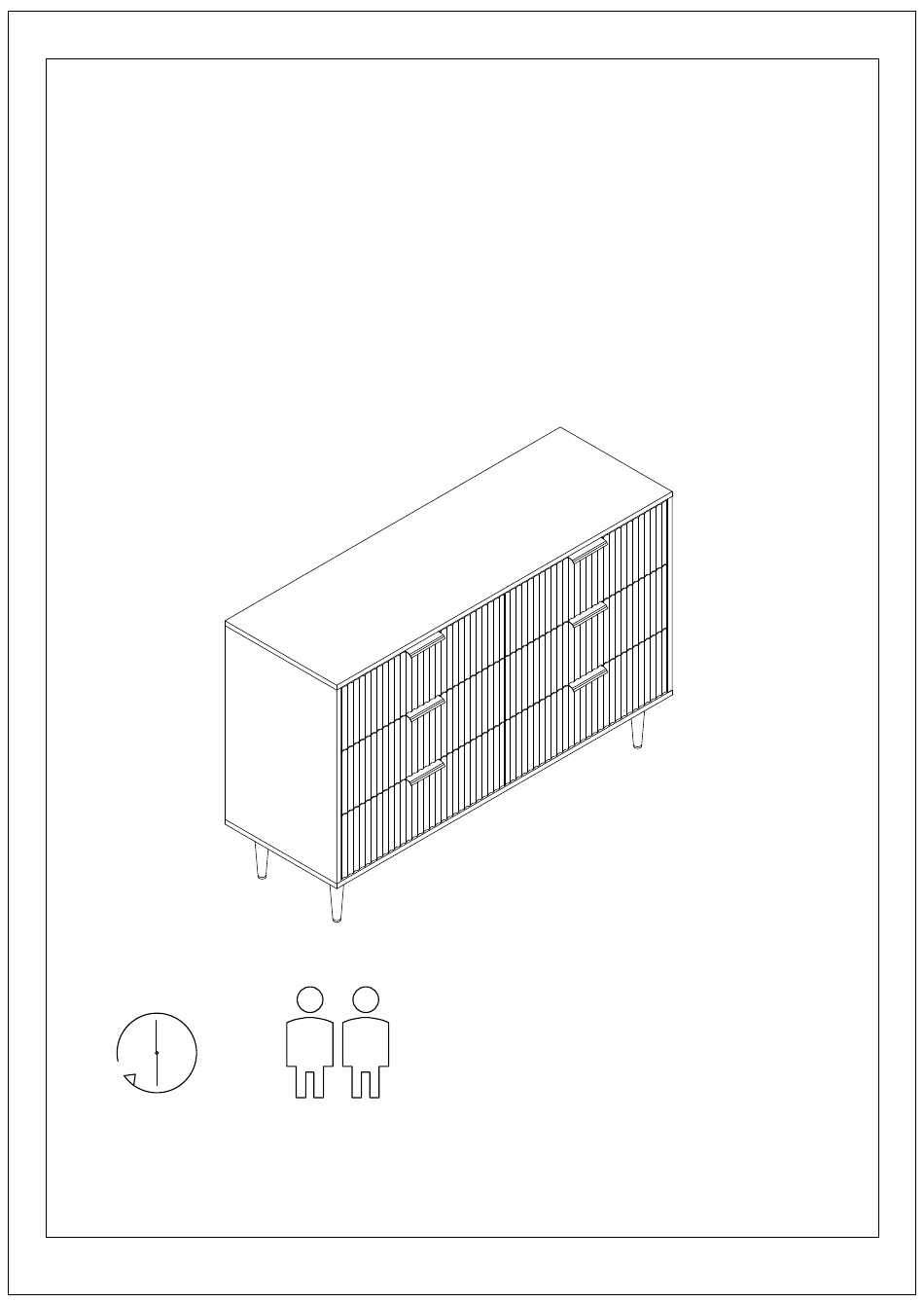

Evie Large Chest
Two person
assembly
Range Name : EVIE
Box 1 Dimensions : W135xD48.5xH26.5cm
Product Dimension : W120xD40xH78cm
P-1-18
V-2.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DUSK Evie Large Chest
Summary of Contents for DUSK Evie Large Chest
- Page 1 DUSK.COM Range Name : EVIE Box 1 Dimensions : W135xD48.5xH26.5cm LIVING I BEDROOM I DINING Product Dimension : W120xD40xH78cm Evie Large Chest Up to 30 minutes Two person assembly time assembly This product is intended for domestic use only,not for commercial purposes.
- Page 2 IMPORTANT ASSEMBLY TIP Before you begin, it's best to identify all of the parts and fittings to build your Evie Large Chest frame. We advise laying these out on the floor to check you have everything, and to familiarise yourself with all of the parts and fittings before building.
- Page 3 Parts list P-3-18 V-2.0...
- Page 4 Parts list Before you begin building your Evie Chest,please take a moment to read through the instructions and make surethat you have all the relevant parts listed on the parts check list. Part Description Part Number Quantity Box No Left Side Panel Box 1 With Slide Side Panel With Slide...
- Page 5 Fittings Please check you have all the fittings listed below with your product in box 1. M6*35mm Bolt Ø15x9.5mm Cam Lock Ø8x30mm Dowel M3.5*12mm Screw M3*14mm Screw 48pcs+2pcs extra 48pcs+2pcs extra 18pcs+1pc extra 12pcs+1pc extra 12pcs+1pc extra 3mm Allen Key M4*35mm Screw M5*40mm Screw 15x9mm Plastic Buckle...
- Page 6 1.Attach parts to the Top. A x 12 K x 2 L x 2 M6*35mm Bolt M4*14mm Screw Wall Bracket 12pcs 2pcs 2pcs 2.Attach centre support to panels. B x 2 Ø8x30mm Dowel Ø8x50mm Dowel Ø15x9.5mm Cam Lock 2pcs P-6-18 V-2.0...
- Page 7 3.Attach centre support to panels. B x 2 Ø8x30mm Dowel Ø15x9.5mm Cam Lock 2pcs P-7-18 V-2.0...
- Page 8 4.Attach the frame to the Top. Ø8x30mm Dowel Ø15x9.5mm Cam Lock 8pcs 10pcs P-8-18 V-2.0...
- Page 9 5.Assemble back panels. P-9-18 V-2.0...
- Page 10 6.Attach the bottom panel to the frame. G x 9 C x 6 3mm Allen Key Ø8x30mm Dowel M5*40mm Screw 6pcs 9pcs P-10-18 V-2.0...
- Page 11 7.Attach legs to the frame. K x 20 M4*14mm Screw 20pcs 8.Attach handle to the drawer front. A x 36 D x 12 J x 6 M6*35mm Bolt M3.5*12mm Screw Handle 36pcs 12pcs 6pcs P-11-18 V-2.0...
- Page 12 9.Assemble drawers. F x 4 Ø6x30mm Dowel Ø15x9.5mm Cam Lock M4*35mm Screw 6pcs 6pcs 24pcs 10.Assemble drawer bottom panel. P-12-18 V-2.0...
- Page 13 11.Assemble drawer front. B x 10 P x 8 M x 2 Ø6x30mm Dowel Ø15x9.5mm Cam Lock Cover 30pcs 6pcs 24pcs P-13-18 V-2.0...
- Page 14 12.Assemble drawers in the chest. P-14-18 V-2.0...
- Page 15 13.Make sure the drawers are in correct position, even and parallel, then attach the plastic buckles. E x 12 I x 12 M3*14mm Screw 15x9mm Plastic Buckle 12pcs 12pcs P-15-18 V-2.0...
- Page 16 14.Take out the drawer. P-16-18 V-2.0...
- Page 17 15.Fix the L-shaped Bracket to the wall. N x 2 F x 2 Ø6x30mm Wall Plug M4*35mm Screw 2pcs 2pcs P-17-18 V-2.0...
- Page 18 16.Assemble drawers in the chest. P-18-18 V-2.0...
