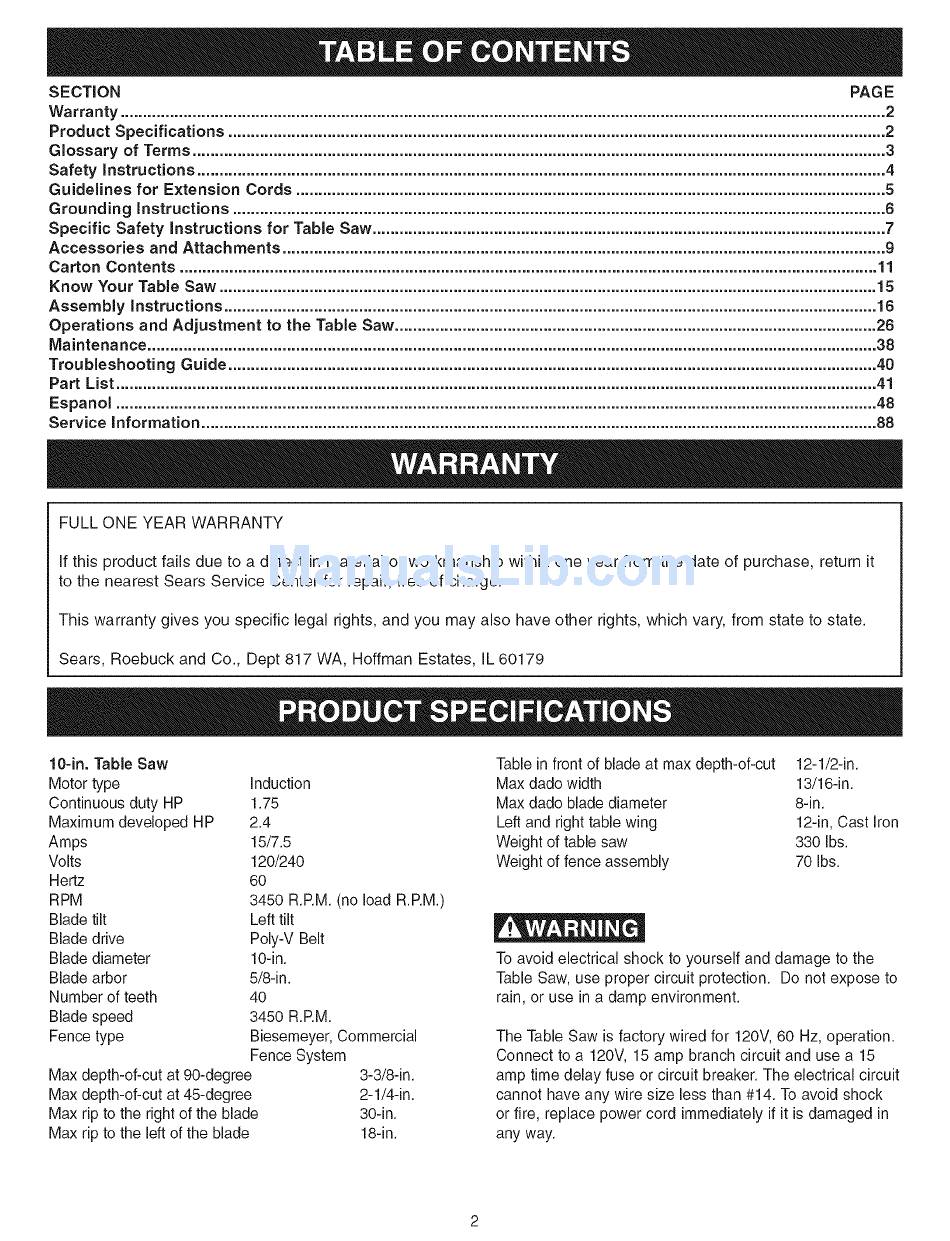

Product Specifications; Table Of Contents - Craftsman 22124 - Professional 10 in. Table Saw Owner's Manual

10" table saw
Hide thumbs

Advertisement

Table of Contents
SECTION
PAGE
Warranty ..........................................................................................................................................................................
2
Product
Specifications
..................................................................................................................................................
2
Glossary
of Terms ..........................................................................................................................................................
3
Safety Instructions
.........................................................................................................................................................
4
Guidelines
for Extension
Cords ...................................................................................................................................
5
Grounding
Instructions
.................................................................................................................................................
6
Specific
Safety Instructions
for Table Saw ..................................................................................................................
7
Accessories
and Attachments
......................................................................................................................................
9
Carton Contents
...........................................................................................................................................................
11
Know Your Table Saw ..................................................................................................................................................
15
Assembly
Instructions
.................................................................................................................................................
16
Operations
and Adjustment
to the Table Saw ...........................................................................................................
26
Maintenance
..................................................................................................................................................................
38
Troubleshooting
Guide ................................................................................................................................................
40
Part List .........................................................................................................................................................................
41
Espanol .........................................................................................................................................................................
48
Service Information
......................................................................................................................................................
88
FULLONEYEAR
WARRANTY
If this product fails due to a defect in material or workmanship within one year from the date of purchase, return it
to the nearest Sears Service Center for repair, free of charge.
This warranty gives you specific legal rights, and you may also have other rights, which vary, from state to state.
Sears, Roebuck and Co., Dept 817 WA, Hoffman Estates, IL 60179
lO-in. Table Saw
Motor type
induction
Continuous duty HP
1.75
Maximum developed HP
2.4
Amps
15/7.5
Volts
120/240
Hertz
60
RPM
3450 R.RM. (no load R.RM.)
Blade tilt
Left tilt
Blade drive
Poly-V Belt
Blade diameter
10-in.
Blade arbor
5/8-in.
Number of teeth
40
Blade speed
3450 R.RM.
Fence type
Biesemeyer, Commercial
Fence System
Max depth-of-cut at 90-degree
3-3/8-in.
Max depth-of-cut at 45-degree
2-1/4-in.
Max rip to the right of the blade
30-in.
Max rip to the left of the blade
18-in.
Table in front of blade at max depth-of-cut
12-1/2-in.
Max dado width
13/16-in.
Max dado blade diameter
8-in.
Left and right table wing
12-in, Cast Iron
Weight of table saw
330 Ibs.
Weight of fence assembly
70 Ibs.
To avoid electrical shock to yourself and damage to the
Table Saw, use proper circuit protection. Do not expose to
rain, or use in a damp environment.
The Table Saw is factory wired for 120V, 60 Hz, operation.
Connect to a 120V, 15 amp branch circuit and use a 15
amp time delay fuse or circuit breaker. The electrical circuit
cannot have any wire size less than #14. To avoid shock
or fire, replace power cord immediately if it is damaged in
any way.
