Wen 454BV Instruction Manual

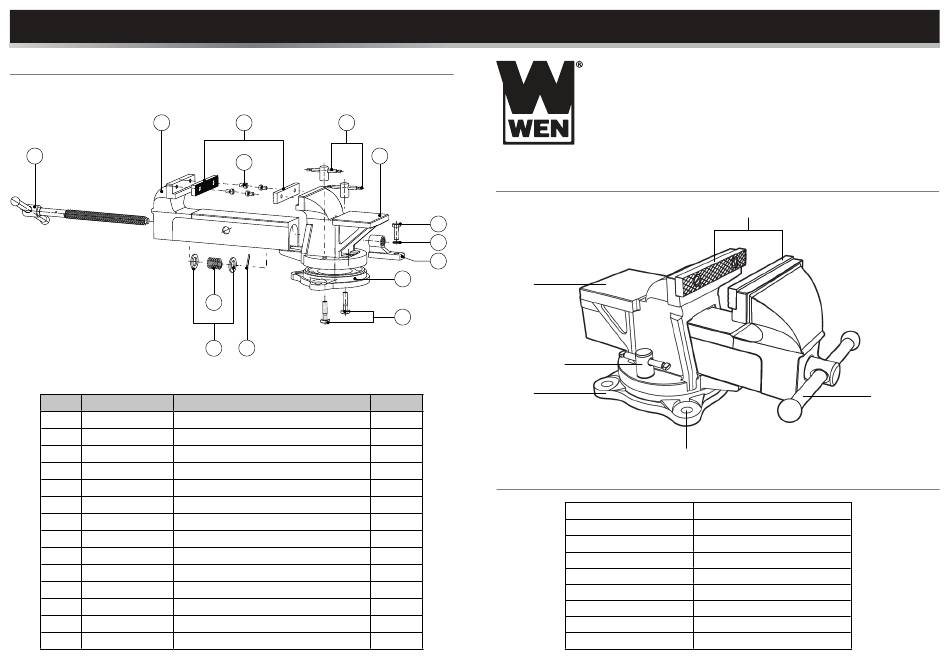

EXPLODED VIEW & PARTS LIST
2
6
No. Part No.
1 454BV-001
2 454BV-002
3 454BV-003
4 453BV-004
5 454BV-005
6 454BV-006
7 453BV-007
8 454BV-008
9 454BV-009
10 453BV-010
11 453BV-011
12 453BV-012
13 454BV-013
14 453BV-014
5 4
3
9
14
11 10
Description
Base
Movable Jaw
Body
Locking Nut
Jaw Plate
Leadscrew With Handle
Nut
Square Head Bolt, M8x35
Set Screw, M6x10
Split Pin, Ø2.5x25
Locking Washer, M16
Split Washer, M8
Hex Bolt, M8x25
Spring
INSTRUCTION MANUAL
KNOW YOUR BENCH VISE
13
12
7
1
Anvil
8
Locking Nut
Base
Qty.
1
1
1
2
SPECIFICATIONS
2
1
1
2
4
1
2
1
1
1
BENCH VISE
Jaw
Mounting Hole
Jaw Width 4 in.
Jaw Capacity 5-1/8 in.
Anvil Dimensions 85 x 80 mm
Mounting Hole Diameter 12 mm
Mounting Hole Spacing 107 mm
2443 lbf (11 kN)
Clamping Force
Pivoting Angle Range 130.0°
Dimensions 12-1/4 in. x 5-1/2 in. x 6-1/8 in.
17.2 lb
Weight
MODEL 454BV
4-INCH
ÉTAU DE BANC
Leadscrew
with Handle
