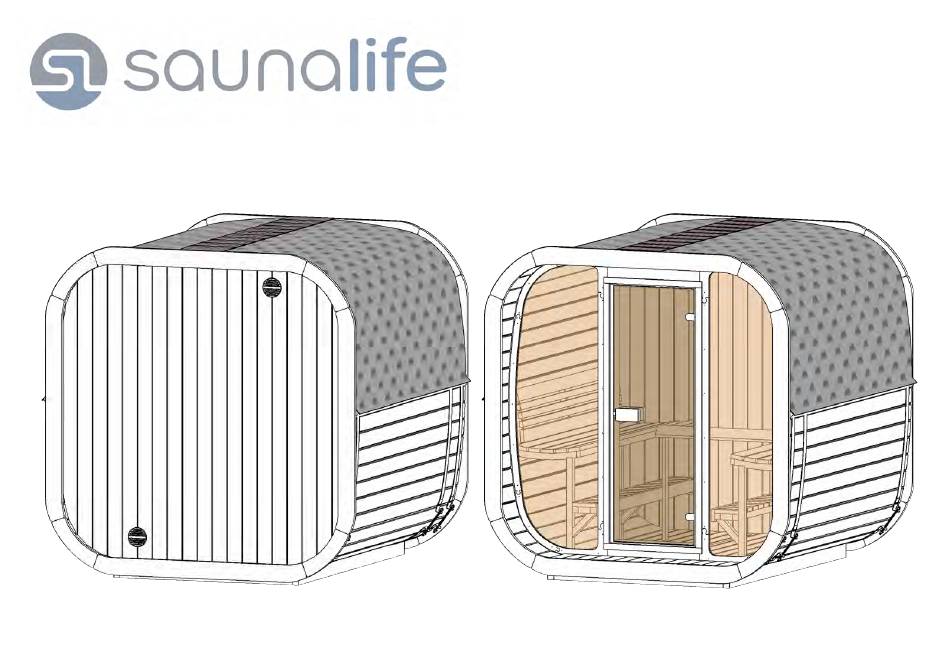

- Page 1 Cube Luxury Series CL7G Outdoor Sauna 87D" x 91W" x 93H" Note: Please read manual before construction Rev: 2.1_02/2025...
- Page 2 Cube Luxury Series CL7G Outdoor Sauna 87D" x 91W" x 93H" 27.17" ~91" ~87.5" ~45.28 " 17" ~33.47 " 8.27" 1875 lbs. Rev: 2.1_02/2025...
-
Page 3: Tools Needed
Tools needed Measuring tape Marker pen Circular saw Water level Hammer Screwdriver Extra hands Drill Cresent wrench Utility knife Rubber mallet Ratchet strap... - Page 4 CL7G Outdoor Sauna 87D" x 91W" x 93H" Details list 1/5 DET 1 Article. K-SM100/2100XX DET 2 Article. K-SM100/1300 DET 3 Article. T-STL117/1927XLM01 DET A1 ~74" Article. MU-VIT1880-KLZN DET W kmpl Article. MU-TRAPP DET 3b Article. T-STL117/1927-01V DET 3a Article. T-STL117/1927-01P DET 3b/H Article.
- Page 5 CL7G Outdoor Sauna 87D" x 91W" x 93H" Details list 2/5 DET Sa Article. IC26-TE-PR-12/15V DET Ta Article. T-SL117/710UK1 DET Tb Article. T-TL94/710J DET V Article. KI-VIN-25/40/40-ZN DET U1 Article. K-TL94/2200 DET Y1 Article. T-IC26-PTS/28-V DET Y2 Article. T-IC26-PTS/28-P DET U2 Article.
- Page 6 Details list 3/5 CL7G Outdoor Sauna 87D" x 91W" x 93H" DET 6a Article. T-STL117/2200XL-01P DET 6b Article. T-STL117/2200XL-01V DET 6c/d/e/f 1" ³/₈" ³/₄" Article. 1 ³/₁₆" T-STL117/2200KO-01 DET 4 Article. T-TEMOD-1350/270 DET A2 ~221" Article. MU-VIT5600-KLZN DET G Article. MU-VENT-100-PU DET F Article.
- Page 7 Details list 4/5 CL7G Outdoor Sauna 87D" x 91W" x 93H" DET 10c Article. K-HP44/170 DET 11 Article. TL-STMOD-1770-KA01 DET 12 Article. TL-LAMOD-1791/210 DET 12a Article. K-HP44/250XP-XP DET 15a Article. TL-LAV90/670XP DET 15b Article. TL-LAV42/90 DET 15c Article. TL-LAV42/770 DET 15d Article.
- Page 8 CL7G Outdoor Sauna 87D" x 91W" x 93H" Details list 5/5 DET 21d Article. K-HP44/780 DET 21a Article. K-HL44/1860 DET 21b Article. K-HL44/750 DET 22 Article. T-STL-2200-XX Underlay felt 39´5" Article. KAT-AL DET N Article. KAT-HAR-MUST DET O Article. KAT-SIN-MUST DET 25a Article.
- Page 9 CL7G Outdoor Sauna 87D" x 91W" x 93H" Exterior...
- Page 10 CL7G Outdoor Sauna 87D" x 91W" x 93H" Diagonal measurements should be equal! 12x M 6x DET 2 Back 2x DET 1 Top view. 12x M inch=inch 4" Front 2x DET W Top view. 4x M 3.94" Side view. DET 3 Attention! Install DET A1 inch=inch...
- Page 11 CL7G Outdoor Sauna 87D" x 91W" x 93H" 28x M 3.94" Use rubber mallet! Side view. 3.94" Use rubber mallet! Side view. DET 3b/H have slot at the end. Top view. Fix screws over the one board, diagonally in every board. Fix DET 3b/H with Top view.
- Page 12 CL7G Outdoor Sauna 87D" x 91W" x 93H" Front glass-wall assembly Inside Attention! Place Outside backside up! Marking to bottom 4x DET V Outside will have an extra notch around the edge. Top view min.1" 16x J Top view min.1" min.0.79"...
- Page 13 CL7G Outdoor Sauna 87D" x 91W" x 93H" Wooden back wall assembly 4x H Pre-drill holes 5/32" Pre-drill holes 5/32" before screws. DET U2 before screws. 4x I 2x H...
- Page 14 CL7G Outdoor Sauna 87D" x 91W" x 93H" DET U1 inside Use waterlevel inch=inch Sauna midpoint Pre-drill holes Ø⁵/₃₂" Make sure the marking on the wall is centered in the notch. 3x H...
- Page 15 CL7G Outdoor Sauna 87D" x 91W" x 93H" 4x H DET 3c DET 3d Fix temporarily to DET U2 inside support walls. Make sure the marking on the wall is centered in the notch. 2x H...
- Page 16 CL7G Outdoor Sauna 87D" x 91W" x 93H" Remove DET 3c/d from their temporary positions and use during the next step. ~1/4" Use rubber mallet! Important! Leave space. DET 3c IMPORTANT! Be sure to leave a 1/4” DET 3d gap when tightening screws to leave room for adjustment when the outer bands (A2) are installed.
- Page 17 CL7G Outdoor Sauna 87D" x 91W" x 93H" DET 6a/6b/6c DET 3d If needed, trim the flat edge of the DET 3c board to create the desired width. Join boards together (as shown in diagram III) that will bridge the width of the "A" gap. It is recommended that the combined boards are approximately 1/4"...
- Page 18 CL7G Outdoor Sauna 87D" x 91W" x 93H" 1xDET 4 8x H Pre-drill holes Ø⁵/₃₂" DET A2 Don´t fix nuts Don´t fix nuts DET A2 very tightly yet! very tightly yet! DET A1 DET A1...
- Page 19 CL7G Outdoor Sauna 87D" x 91W" x 93H" Remove all screws Place ratchet strap near the ends of the boards. Pay attention to measurement. min.2,36" Side view. Now fix all nuts tightly! DET A2 DET A2 Remove ratchet strap! Now fix all nuts tightly! 2xDET A2 Tighten Tighten...
- Page 20 CL7G Outdoor Sauna 87D" x 91W" x 93H" Remove all temporary braces Upper vent 1xDET G 6x K Lower vent 3xDET F 6x K Interior...
- Page 21 CL7G Outdoor Sauna 87D" x 91W" x 93H" Attention! ~0.2" Leave gap from back of 4x DET 10b benching coming into contact with barrel staves! End view. 2x DET 10 12x J Pre-drill holes Ø ³/₁₆" 10x I Fasten the opposite 4x H sides in the same way! 2x I...
- Page 22 CL7G Outdoor Sauna 87D" x 91W" x 93H" Pre-drill holes Ø⁵/₃₂" Pre-drill holes Ø⁵/₃₂" 2x DET 11 Fasten the opposite Under the benches sides in the same way! 6x H 8x H 4x DET 10c Pre-drill holes Ø⁵/₃₂" Pre-drill holes Ø⁵/₃₂" 2x DET 10c 4.6"...
- Page 23 CL7G Outdoor Sauna 87D" x 91W" x 93H" Pre-drill holes Ø⁵/₃₂" Pre-drill holes Ø⁵/₃₂" 1x DET 12 1x DET 12 2x H 2x H 2x M 2x M Use waterlevel. Use waterlevel. Pre-drill holes Ø⁵/₃₂" Pre-drill holes Ø⁵/₃₂" Use waterlevel. Use waterlevel.
- Page 24 CL7G Outdoor Sauna 87D" x 91W" x 93H" ATTENTION! HEATER GUARD MAY NOT MEET THE SAFETY DISTANCES OF ALL HEATERS AND SHOULD NOT BE USED IF THE HEATER DOES NOT FIT! 2x DET 15a 2x J Pre-drill holes ⁵/₃₂" Pre-drill holes ¹/₈" 2x H 2x DET 15b If Your sauna heater is smaller, You...
- Page 25 CL7G Outdoor Sauna 87D" x 91W" x 93H" Attention! Place door 2x M from inside out. 1x DET 21 Attention! The door must open outwards. If you need the door handle to be on the opposite side, 2x DET 21c rotate door 180 2x DET 21d degrees.
- Page 26 CL7G Outdoor Sauna 87D" x 91W" x 93H" ~43.31" 2x DET 22 5x H 5x H...
- Page 27 CL7G Outdoor Sauna 87D" x 91W" x 93H" Underlay felt installation manual. Attention! Refer to underlay installation manual provided in package. Cut off Remove Proceed same way bottom film first. ~2" as shown in diagram I Cut and ~2" over the edge. remove top film over the edge.
- Page 28 CL7G Outdoor Sauna 87D" x 91W" x 93H" DET N Attention! Refer to shingle installation manual provided in package. End view. End view. End view. Cut and use it ~0.35" ~0.35" on the ohter side Attention! Refer to shingle installation Shingles overlap manual provided in package.
- Page 29 CL7G Outdoor Sauna 87D" x 91W" x 93H" 4xDET 25a 4xDET 25b 4xDET 25a 4xDET 25b 28x H 28x H...
- Page 30 CL7G Outdoor Sauna 87D" x 91W" x 93H" Door and Window Maintenance Regular checks: Regularly inspect window and door hinges and locks. Tighten loose • components and lubricate as needed. DOOR ADJUSTMENT INSTRUCTIONS • You will need 3-mm (6) and 5-mm (3) hexagon keys for adjusting the hinges. Remove the plastic •...
-
Page 31: Installation Instructions
CL7G Outdoor Sauna 87D" x 91W" x 93H" Installation Instructions When building a wooden product, it is important to follow all installation instructions to ensure the quality and durability is guaranteed. Important! 123456789 Identification number of the Product / Serial Number: Must be accompanied by the serial number to identify the product. - Page 32 CL7G Outdoor Sauna 87D" x 91W" x 93H" Wood Protection and Maintenance Protective coating: Apply a wood preservative at least once a year (or more often) to • improve resistance to dirt and moisture, make cleaning easier, and extend the lifespan of the product.
- Page 33 CL7G Outdoor Sauna 87D" x 91W" x 93H" Avoid unsuitable products: Avoid paints, varnishes, harsh disinfectants, or pressure • washers, as these can damage the wood. Hardware checks: Inspect bench and support mountings. Tighten loose screws if • necessary, as wood can loosen due to heat and moisture fluctuations. What to Avoid in Your Sauna Drying textiles: Avoid drying textiles in the sauna due to fire hazards and potential wood •...
