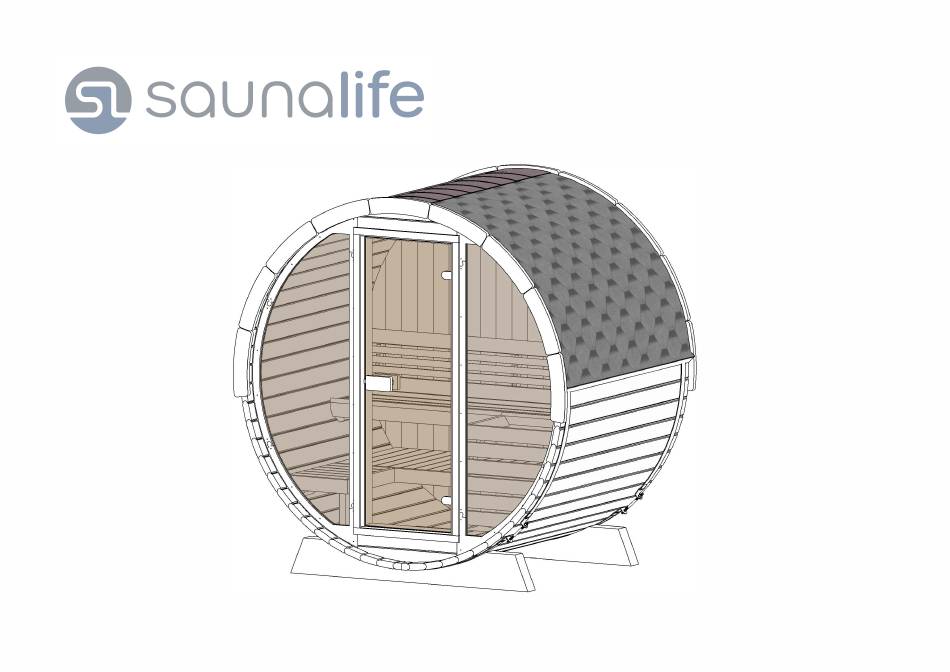

- Page 1 Ergo-Series EE6G Barrel Sauna Full Glass Front 63D" x 90H" Note: Please read manual before construction REV: 3.0_9/2024...
- Page 2 Tools needed Measuring tape Marker pen Circular saw Water level Hammer Screwdriver Extra hands Drill Cresent wrench Utility knife Rubber mallet Ratchet strap...
- Page 3 Ergo-Series EE6G Barrel Sauna 63D" x 90H" 55.12" 27.17" 90.94 " 87.40" 82.68" 69.68" 17.32" 26" 1500 lbs.
- Page 4 Details list 1/5 DET 1 Article. K-PT-JAL-226D DET A Article. K-STL117/1400 DET 2 Article. T-STL117/1600XLM02 DET 3 Article. T-STL117/1600-01 DET 6 Article. T-STL117/1600XL-02 DET 6c/d/e/f 1" 1 ³/₁₆" ³/₄" Article. ³/₈" T-STL117/1600KO-01 DET S Article. 26-TE-PR-12/15 DET T Article. T-SL117/710UK2 DET Y1 Article.
- Page 5 Details list 2/5 DET Y2 Article. T-26-PTS/28-P DET U1 Article. K-TL94/2200 DET U2 Article. K-TL94/2000 DET 10 Article. TL-LAMOD-2100-KA01 DET 11 Article. TL-LAMOD-1770-01 DET 12 Article. TL-LAMOD-600-02 DET 14 Article. TL-STMOD-2100-KA01...
- Page 6 Details list 3/5 DET 13 Article. TL-PÕMOD-700/720 DET 10a Article. K-HP44/510XP DET 11a Article. K-HP44/755XP DET 10c Article. K-HP44/170 DET 12b Article. K-HP44/300XP DET 10b Article. K-HP44/265 DET 21 Article. U-TH7/19-PR DET 21c Article. K-HP44/1890 DET 21d Article. K-HP44/780 DET 21a Article.
- Page 7 Details list 4/5 DET 21b Article. K-HL44/750 DET 16 27.28" 22.4" 14° 33° 26.14" 19.6" Article. 20° 40° 24.53" 15.98" TL-PIMOD-693-01 26° 47° DET 15a Article. TL-LAV90/685X DET 15b Article. TL-LAV90/500XP-XL DET 15d Article. TL-LAV42/330XP-XP DET 15c Article. KI-LEK15 DET 22 Article.
- Page 8 Details list 5/5 DET B Article. MU-VIT7040-KLZN DET W kmpl Article. MU-TRAPP DET V Article. KI-VIN-25/40/40-ZN DET G Article. MU-VENT-100-PU DET F Article. MU-VENT-100-ZN Article. Article. KI-KERL-12-RV2 KI-USA-150-220 L=~9⅞" Bit PH2 Torx bits T10 T15 T20 T25 ~330 x190...
- Page 9 EE6G Barrel Sauna 63D" x 90H" Exterior Back Top view Diagonal measurements should be equal Front DET 1 4x M 2xDET A 4x M DET 1...
- Page 10 EE6G Barrel Sauna 63D" x 90H" 2x M DET 2 Markings on the DET 1 Make sure the marking on the End view DET 1 is centered in the notch. Top view DET 3...
- Page 11 EE6G Barrel Sauna 63D" x 90H" Use rubber mallet! 16x M...
- Page 12 EE6G Barrel Sauna 63D" x 90H" Front glass-wall assembly Inside Attention! Place inside upwards! Outside Outside will have an 4x V extra notch around the edge. Top view min.1" 16x J min.0.79" Top view min.1" Attention! Be extra careful to not hit the glass!!! 4x I min.0.79"...
- Page 13 EE6G Barrel Sauna 63D" x 90H" Wooden back wall assembly Use rubber mallet! 4x H Pre-drill holes 5/32" Pre-drill holes 5/32" before screws. before screws. 4x I 2x H...
- Page 14 EE6G Barrel Sauna 63D" x 90H" DET U1 inside Use waterlevel 2x H Make sure the marking on the wall is centered in the notch. ~1/4" IMPORTANT! Be sure to leave a ~1/4”gap when tightening screws to leave room for adjustment when the outer bands (B) are installed.
- Page 15 EE6G Barrel Sauna 63D" x 90H" 4x H Use waterlevel 3xDET 3 Fix temporarily to support walls. DET U2 inside Make sure the marking on the wall is centered in the notch. ~1/4" 2x H IMPORTANT! Be sure to leave a ~1/4”gap when tightening screws to leave room for adjustment when the outer bands (B) are installed.
- Page 16 EE6G Barrel Sauna 63D" x 90H" Remove DET 3 from their temporary positions Use rubber mallet! ~1/4 Important! Leave space IMPORTANT! Be sure to leave a 1/4” gap when tightening screws to leave room for adjustment when the outer bands (B) are installed. DET 3 After reaching the center of the sauna, the boards do not require screws.
- Page 17 EE6G Barrel Sauna 63D" x 90H" DET 6/6c If needed, trim the flat edge of the board to create the desired width. Join boards together (as shown in diagram III) that will bridge the width of the "A" gap. It is recommended that the combined boards are approximately 1/4"...
- Page 18 EE6G Barrel Sauna 63D" x 90H" Attention! Tighten all Remove strap nuts securely! 2x DET B Place the bands around the barrel on the outer side of the cradle. Remove all temporary braces 1x DET G 6x K Upper vent 3x DET F 6x K Lower vent...
- Page 19 EE6G Barrel Sauna 63D" x 90H" Interior Pre-drill holes ⁵/₃₂" 2x DET 10a 2x DET 11a 1x DET 10c 12x H Use waterlevel for installation!
- Page 20 EE6G Barrel Sauna 63D" x 90H" 6x H 1x DET 12 1x DET 11 2x H Use predrilled hole Use predrilled hole 2x M 1x DET 10 1x M Pre-drill holes " Pre-drill holes " 4x H 2x H 1x DET 12b Cut on right size 2x M...
- Page 21 EE6G Barrel Sauna 63D" x 90H" 1x DET 10b 1x DET 14 3x H Pre-drill holes " 6x H Pre-drill holes " 1x DET 13...
- Page 22 EE6G Barrel Sauna 63D" x 90H" Attention! Place door 2x M from inside out. 1x DET 21 Attention! The door must open outwards. If you need the door handle to be on the opposite side, 2x DET 21c rotate door 180 2x DET 21d degrees.
- Page 23 EE6G Barrel Sauna 63D" x 90H" Please be careful!!! Do not hit the glass with the screw. ATTENTION! Leave ~0.2". gap from board 1x DET 16 Fasten the screws HEATER GUARD MAY NOT MEET THE SAFETY end coming into contact with at a slight angle.
- Page 24 EE6G Barrel Sauna 63D" x 90H" End view. 4x H 4x H 2x DET 22 Attention! Refer to shingle DET N installation manual provided in package. End view. End view. 0.35" 0.35"...
- Page 25 EE6G Barrel Sauna 63D" x 90H" Attention! Refer to shingle installation Shingles overlap manual provided in package. on top Attention! Refer to shingle installation Refract DET N manual provided in package. into 3 pieces. Side view. End view. DET N DET O 9xDET 25 9xDET 25...
- Page 26 Ergo-Series EE6G Barrel Sauna 63D" x 90H" Installation Instructions When building a wooden product, it is important to follow all installation instructions to ensure the quality and durability is guaranteed. Important! 123456789 Identification number of the Product / Serial Number: Must be accompanied by the serial number to identify the product.
- Page 27 Ergo-Series EE6G Barrel Sauna 63D" x 90H" Door and Window Maintenance • Regular checks: Regularly inspect window and door hinges and locks. Tighten loose components and lubricate as needed. DOOR ADJUSTMENT INSTRUCTIONS • • You will need 3-mm (6) and 5-mm (3) hexagon keys for adjusting the hinges. Remove the plastic covers from the hinges (1).
- Page 28 Harvia Heater / Stone Chart Sauna Care Guide Surface Preparations: The soil underneath the sauna should be removed and replaced with a well-drained and load bearing material. It is important to ensure that the surface is load bearing. In addition, it is important to limit the growth of flora underneath and around the sauna to minimize any defects from moisture. Bring the power cable to the sauna in accordance with the heater manufacturers’ manual. During sauna use: When using the heater and the control unit refer to the user manual provided by the heaters’...
- Page 29 SAUNA LIFE SAUNA LIMITED LIFETIME WARRANTY Harvia Heater / Stone Chart Sauna Life extends this Limited Warranty solely to the original retail consumer purchaser of any Sauna Life sauna purchased from one of its authorized resellers. LIMITED LIFETIME SAUNA WARRANTY Sauna Life warrants that the Sauna Life sauna shall be free from defects in workmanship under normal conditions of use and service for the lifetime of the sauna for residential applications after delivery to the original retail purchaser.
