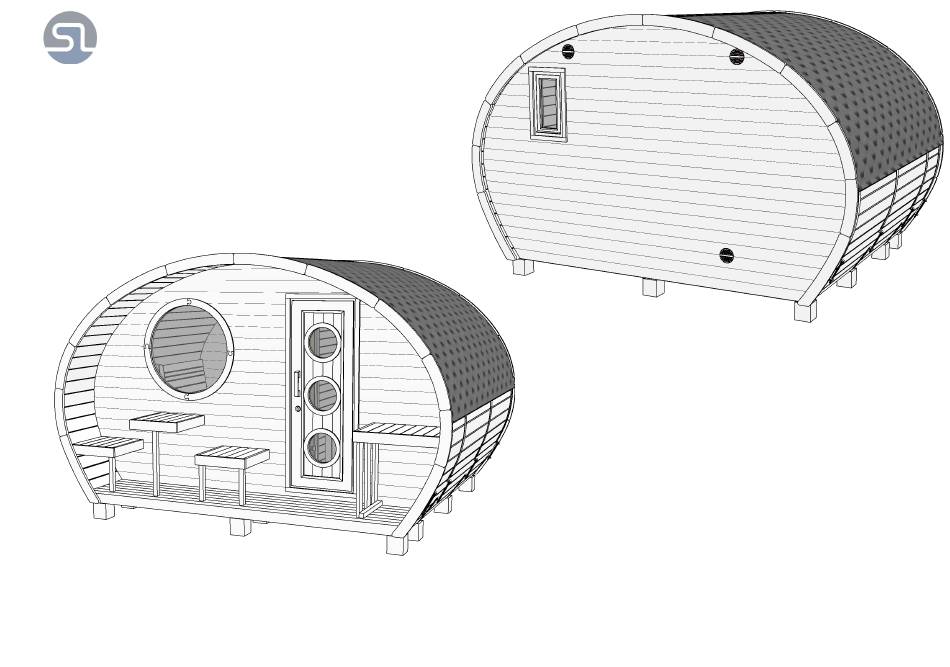

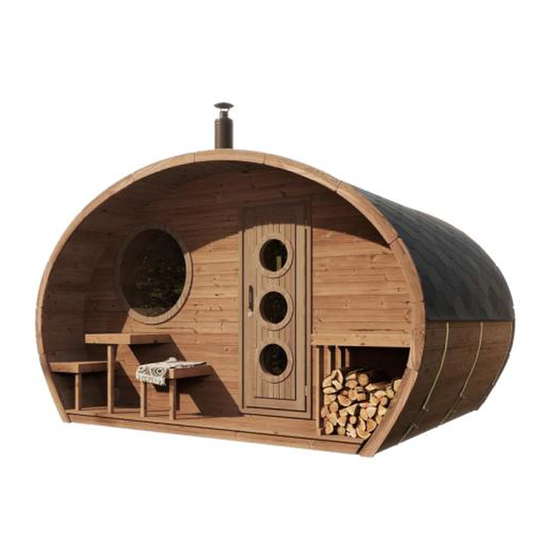

- Page 1 Model G11 Sauna Room Installation Manual saunalife.com 800.957.2862 (FRO 01)
- Page 2 Our regular business hours are 8am-5pm CST, Monday through Friday, excluding US holidays. These instructions are for the constructor, electrician, and ultimately the owner of the SaunaLife G11 unit. Please read the whole manual before assembly and keep it accessible after. Table of Contents: SaunaLife G11 Kit Contents..................p.2...
- Page 3 G11 Sauna Model Details list 1 of 3 pages.
- Page 4 G11 Sauna Model Details list 2 of 3 pages. x125 ~660 x500 x170...
- Page 5 G11 Sauna Model Details list 3 of 3 pages. 55.77' saunalife.com 800.957.2862...
- Page 6 Step 1. Room Layout Lay out the foundational pieces and begin setting up your new space. Back side 123" 5.91" Top and bottom on same level. 61.41" 61.41" Same line Front side in=in Match lengths on each side. DET A1 4xDET A1 DET 4 6x H...
- Page 7 Step 2. Setting the Foundation Align levels and corners to assemble your foundational flooring. 8x M DET A1 DET 1 ⚠ Fix side boards into the DET 1. 8x M DET 3a DET 3b Place DET 1 in the middle 10x M of two side beams.
- Page 8 Step 3. Wall Assembly Fix DET 3e and 3f, or use pallet wood to temporarily support the walls. Pre-drill holes before installing 4x M screws. 2xDET 4b Not longer than 2xDET 4c bottom board. Cut boards from pallet. 18x I Use a rubber mallet to fix columns in...
- Page 9 Step 4. Raise and Set the Walls On both sides: Drill according to the pattern in Regular wood X= 0.28" - 0.31" diagram I & II for ultimate results. Thermo wood X= 0.12" - 0.16" Remove DET 3e DET 3f See next page for joining instructions.
- Page 10 Step 5. Size and Cut the Top Measure and size your A board pieces and cut them to size. Use wood glue to join them, and a rubber mallet to combine the pieces. DET 3f DET 3e DET 3f DET 3e Lift nose slightly up before installing combined detail.
- Page 11 Step 6. Tighten Bands and Bolts Use gloves and practice caution when handling steel bands. Bind using DET bolts and a strong wrench. DET A2 DET B ~9.45 in. 2xDET A2 DET A1 4x DET E1 8x DET D DET A2 4x DET C 4x DET E2...
- Page 12 ⚠ If Your sauna is from thermowood, leave the Step 7. Remove screws and measure door screws where they are. Other wood such as spruce will require screw removal to tighten the bands. Remove screws if wood is not thermowood 2x DET A2 Proceed the same way as described on previous page.
- Page 13 Step 8. Remove brackets; add screws Remove all brackets 75x H 5x H DET 7 Fix screws over the one board, diagonally in every board. 28xDET 7 1xDET 7a...
- Page 14 Step 9. Door Installation Place doors from inside the G11 sauna unit. Vertically fix screws in each board and outer frame to match the diagrams below. Mark window opening 1xDET 10 2xDET 10a 2xDET 10b r=19.65" 29.13" 18x J 38x J Drill holes 0.12 in.
- Page 15 Step 10. Window and Bench placement Mark window opening Cut window opening, Measure the window and add 1xDET 13 extra 0.39" to each side. follow the guidelines Use waterlevel. 10x J .39" + X + .39" 8.66" 2xDET 13a 16x J 2xDET 13b 1xDET 13 Place benches but...
- Page 16 Step 11. Vent & Foundational placements Match the correct vents to their height placement in the sauna room. Add the foundational setting in to separate rooms. 2xDET F Upper vent ~17.72" ~17.72" Make 3 holes Ø4.33" Sauna midpoint for ventilation. 1xDET 20 12x K Lower vent...
- Page 17 Step 12. Stack doorway boards and level set benches DET W12 DET W12 Start with this board DET W11 DET W10 DET W11 DET W10 Saunaroom 1xDET 18a 2xDET 15b 14x J 2xDET 20 11x H 1xDET 19a...
- Page 18 Step 13. Installing Benches Pre-drilling for 0.16" holes guarantees proper screw placement. Match the screws with the diagrams for bench completion. Saunaroom Saunaroom 1xDET 18 2x H 3x M 3x H 3x M 1xDET 19 Drill holes 0.16 in. 10x J before screws.
- Page 19 Step 14. Placing heater panels, heater, and final doors Cut out, follow window shape. Place the heater. 6x I 2x J 2x J 6x I Cut on right size 2xDET L 2xDET L 1xDET 21b 1xDET 21b Saunaroom 2xDET 11b Push door up! 1xDET 11 1xDET 26...
- Page 20 Step 15. Inner room finishing touches Dressing room 4x H 1xDET 22b 1xDET 22a 26.57" 6x H 1xDET 23a 1xDET 23b 8x H 6x H 1xDET 24b Sauna room 1xDET 24a 2xDET 24c 3x H 1xDET 27a 1xDET 27b...
- Page 21 Step 16. Front porch assembly 1xDET 30c 1xDET 30b 7x H 1xDET 28a 1xDET 29b 6xDET 28b 3xDET 31a 1xDET 30a 3xDET 29a 60x H 7x H ~0.2" 1xDET 31b Leave the gap ~0.2 in. between boards. Cut last board, if necessary. 1xDET 30d 1x M 1x M...
- Page 22 Step 16.5 Underlay felt installation manual and application Check also underlay installation Bitumen strip is against manual inside the package! the previous layer. Turn end to Clamp end the edge. to the edge. Cut off the parts that extend over the edge. Cut off...
- Page 23 Step 17. Roof and Shingles application Install underlay felt. Use a hammer to install flatbed nails and use a drill on the sides. 14x H 2xDET 32 DET N NB! Before roof shingles, install underlay felt. Check underlay felt installation manual on extra pages.
- Page 24 Step 18. Finishing touches Cut shingles so as to use them on opposite sides. Start from the top, and expect your shingles to overlap for coverage. Refract DET N Shingles overlap on top into 3 pieces. DET N Cut and use DET O it other end.
