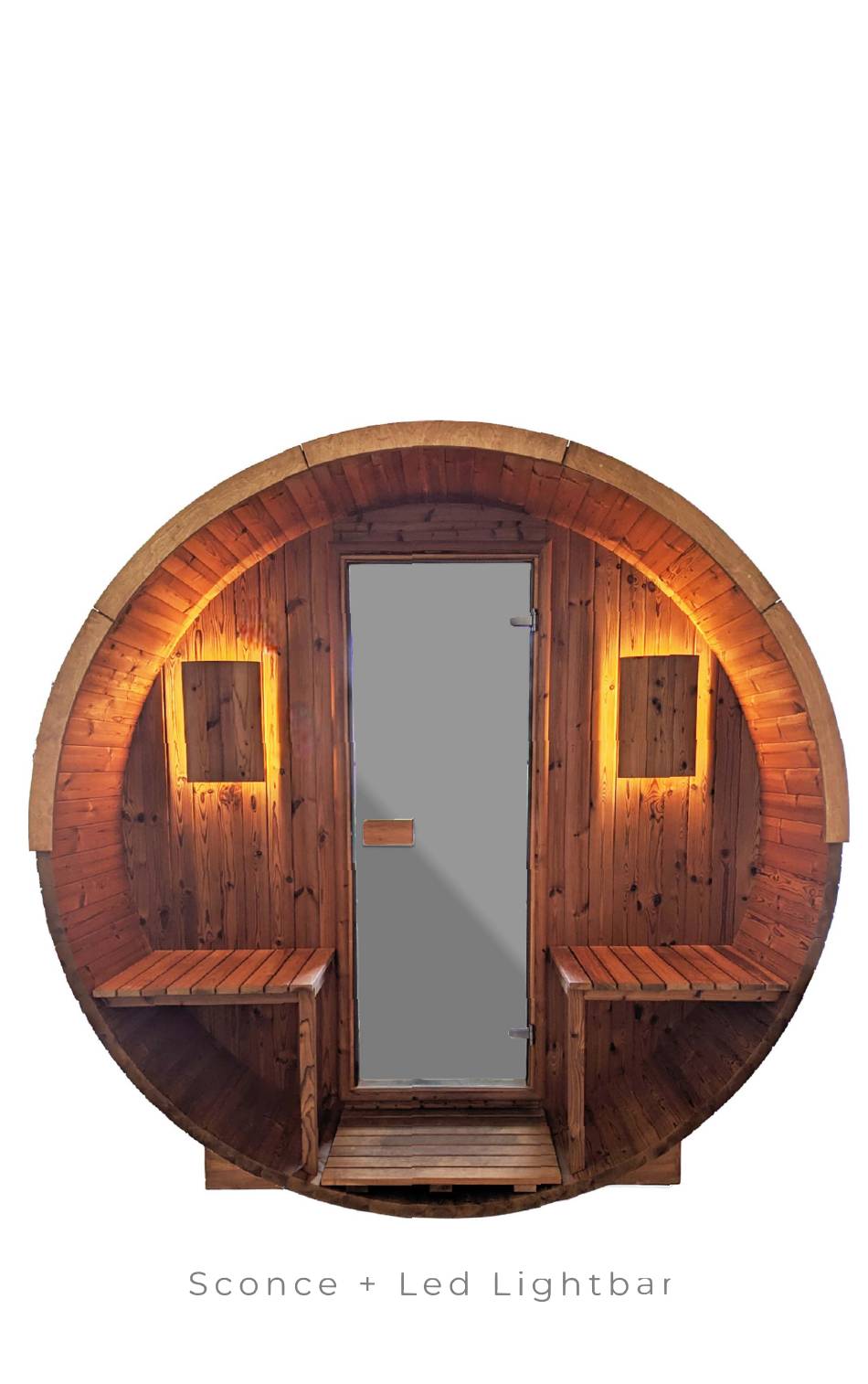

- Page 1 @saunalife Sconce Plus Installation Manual...
- Page 2 LED Lightbar Package Contents: Mounting Template Sconce Light (qty. 2) (qty. 2) Adjustable Mounting Clips (qty. 3) 2-Pin 30’ Cable (qty. 3) Stationary Mounting Clips (qty. 3) White Led Light Bar (qty. 1)
-
Page 3: Installation Recommendations
Installation Recommendations Please read this manual in its entirety prior to installation and keep it in a safe place after for future reference. The RF Driver and Power Supply may be installed outdoors but must be IMPORTANT protected from rain and snow. RF Driver and Power Supply should be installed in a waterproof electrical enclosure. -
Page 4: Required Tools
Required Tools: Cordless 3/4 Wood Level Drill Drill Bit (Installation Dependent) Specifications: Sconce Light Specifications Operating Temp: Certification: Kelvin: 3500k IP Rating: IP67 -13°F to 195°F CE / FCC Operating PART Voltage Max Wattage Lumens Dimensions NUMBER (VDC) BP031071 24V DC 6.4W 15-3/4"... - Page 5 STEP 1. Installation of Sconce Lights Locate provided mounting template and mount at light location to locate mount ing screw locations and light cable access. Recommended light installation height 5ft from base and 16in from side wall. Repeat this step for second light. STEP 2.
- Page 6 STEP 3. Install Mounting Brackets & LED Light Bar Determine the location where LED light bar will be installed. Screw Mount- ing Clips to surface ensuring even coverage of light fixture. Carefully snap LED light bar into each clip. STEP 4. Connect 2-Pin 30’...
- Page 7 STEP 5. Install Power Supply Connect AC power cord cable to power supply block. Place power supply near RF driver. Connect DC cable end from power supply and connect into RF driver DC IN port.
- Page 8 Wi-Fi Setup To set up Wi-Fi operation follow the steps On IOS or Android down- below Note: Wi-Fi Driver supports 802.11 b / g / n load the Tuya Smart App 2.4 GHz Wi-Fi standard. The Wi-Fi Driver Step 1 Step 2 Step 3 Step 4...
-
Page 9: Troubleshooting
Troubleshooting No Power • Verify that the electrical outlet has voltage. • Check that connections on the Power Supply are secure. • Check that the DC barrel plug on the Power Supply is securely connected. Power but light's not turning on •... - Page 10 Notes:...
