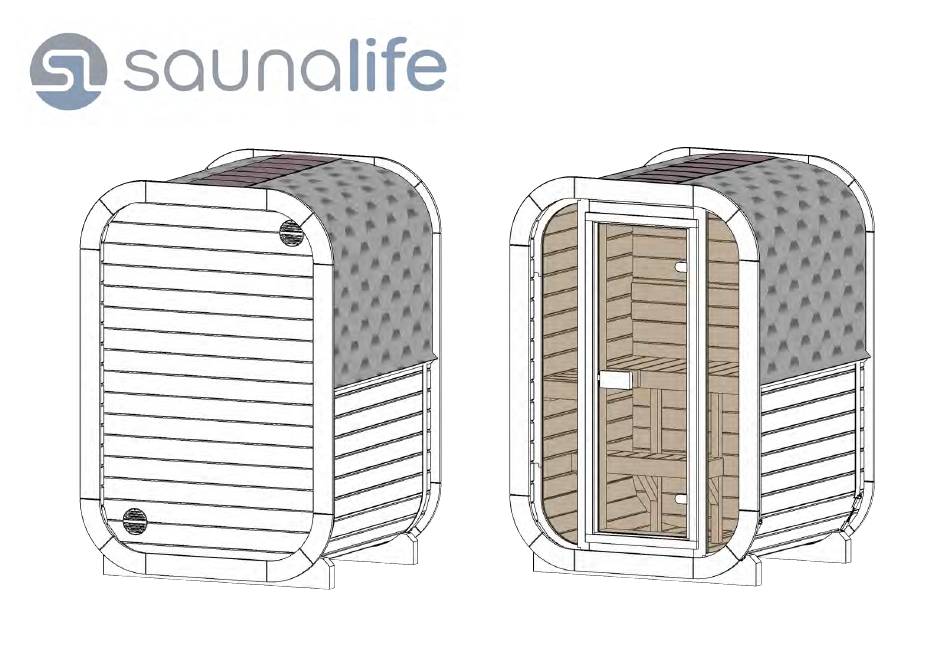

- Page 1 Cube Luxury Series CL3G Outdoor Sauna 52D" x 54W" x 82H" Note: Please read manual before construction Rev: 1.0_04/2025...
- Page 2 Cube-Series CL3G Outdoor Sauna 52D" x 54W" x 82H" 42.68" 23.23" 53.15" 49.6" 49.21" 20.47" 30.71" 18.89" 16" 8" 11.8" Rev: 2.0_04/2025...
- Page 3 Tools needed Measuring tape Marker pen Circular saw Water level Hammer Extra hands Drill Cresent wrench Utility knife Rubber mallet Screwdriver...
- Page 4 CL3G Outdoor Sauna 52D" x 54W" x 82H" Details list 1/4 DET 1 Article. DET 2 Article. DET 3 Article. DET 6 Article. DET 6c/d/e/f 1" ³/₈" Article. ³/₄" 1 ³/₁₆" DET Sa Article. DET Sb Article. DET Ta Article. DET Tb Article.
- Page 5 CL3G Outdoor Sauna 52D" x 54W" x 82H" Details list 2/4 DET Y Article. DET U1 Article. DET U2 Article. DET 10a Article. DET 10c Article. DET 11a Article. DET 11b Article. 10° DET 11c Article. DET 10 Article. DET 12 Article.
- Page 6 CL3G Outdoor Sauna 52D" x 54W" x 82H" Details list 3/4 DET 11 Article. DET 14 Article. DET 21 Article. D590/1690PR8 DET 21c Article. DET 21d Article. DET 21a Article. DET 21b Article. DET 22 Article. DET 25a 11.22" Article. DET 25b Article.
- Page 7 CL3G Outdoor Sauna 52D" x 54W" x 82H" Details list 4/4 DET 25c Article. Underlay felt 122" Article. DET N Article. KAT-HAR-MUST DET O Article. KAT-SIN-MUST DET V Article. KI-VIN-25/40/40-ZN DET W kmpl Article. TRAPP DET A2 ~243.9" Article. DET G Article.
- Page 8 CL3G Outdoor Sauna 52D" x 54W" x 82H" Diagonal measurements should be equal! Place DET 1 on flat, level surface! Use level. 4x M 2x DET 1 inch=inch 4x M 2x DET 3 51.18" Back 1x DET W inch=inch 2x M DET 2 Top view.
- Page 9 CL3G Outdoor Sauna 52D" x 54W" x 82H" Use rubber mallet! Top view. Align grooves on same line. 10x DET 3 20x M Remove and use them for further assembly.
- Page 10 CL3G Outdoor Sauna 52D" x 54W" x 82H" Front glass-wall assembly Inside Attention! Place Outside inside up! Marking to bottom 4x DET V min.1" Top view 16x J Top view min.1" min.0.85" Attention! Be extra 4x I careful to not hit the glass!!! min.0.85"...
- Page 11 CL3G Outdoor Sauna 52D" x 54W" x 82H" Wooden back wall assembly 2x DET U2 Use rubber mallet! 12x I...
- Page 12 CL3G Outdoor Sauna 52D" x 54W" x 82H" Use waterlevel DET U1 inside inch=inch Make sure the marking on the wall is centered in the middle. Sauna midpoint 2x I...
- Page 13 CL3G Outdoor Sauna 52D" x 54W" x 82H" Use waterlevel 4x I DET 3 Fix temporarily to support walls. DET U2 inside Make sure the marking on the wall is centered in the middle. 2x I...
- Page 14 CL3G Outdoor Sauna 52D" x 54W" x 82H" Remove DET 3 from their temporary positions and use during the next step. Use rubber mallet! Fasten the screws at a slight angle. DET 3 See the next page. DET 3 Use rubber mallet!
- Page 15 CL3G Outdoor Sauna 52D" x 54W" x 82H" DET 6/6c DET 3 DET 3 If needed, trim the flat edge of the board to create the desired width. Join boards together (as shown in diagram III) that will bridge the width of the "A" gap. It is recommended that the combined boards are approximately 1/4"...
- Page 16 CL3G Outdoor Sauna 52D" x 54W" x 82H" 2xDET A Attention! Tighten all nuts securely! Remove all Upper vent brackets. 1xDET G 3x K (Black) 3x K Lower vent 3xDET F 6x K (Black)
- Page 17 CL3G Outdoor Sauna 52D" x 54W" x 82H" Use waterlevel for installation! 3x DET 10a 2x H 11x M 2x DET 10c Pre-drill holes 5/32" Pre-drill holes 5/32" 1.57" 0.87" Front wall Back wall 17.91" Front view. Side view.
- Page 18 CL3G Outdoor Sauna 52D" x 54W" x 82H" 1x DET 12 1x DET 10 1x M 2x M 1x H Pre-drill holes 5/32" 2x M 2x M 1x H Pre-drill holes 5/32" Pre-drill holes 5/32" 2x DET 11a 2x M 22.52"...
- Page 19 CL3G Outdoor Sauna 52D" x 54W" x 82H" 1x DET 11 2x M 2x DET 11c Pre-drill holes 5/32" 4x M 2x M 8x Q Attention! 1x DET 21 4x Q The door must open 1x DET 14 outwards. If you need the door handle to be on the opposite side, rotate door 180...
- Page 20 CL3G Outdoor Sauna 52D" x 54W" x 82H" Attention! Place door from inside out. 2x DET 21a Pre-drill holes ⁵/₃₂" 2x DET 21b Use level. 16x J (Black) 18x H 3x H 3x H 2x DET 22...
- Page 21 CL3G Outdoor Sauna 52D" x 54W" x 82H" Underlay felt installation manual. Cut off ~2" ~2" over the edge. over the edge. Turn end to Clamp end the edge. to the edge. Cut off the parts that extend over the edge.
- Page 22 CL3G Outdoor Sauna 52D" x 54W" x 82H" DET N Attention! Refer to shingle installation manual provided in package. End view. End view. End view. Cut and use rest of it on the opposite side. ~0.35" ~0.35" Attention! Refer to shingle installation Shingles overlap manual provided in package.
- Page 23 CL3G Outdoor Sauna 52D" x 54W" x 82H" 2x DET 25c Attention! Start from the bottom. 2x DET 25c 2x DET 25b 2x DET 25b Pre-drill holes ⁵/₃₂" Pre-drill holes ⁵/₃₂" 26x Q 8x DET 25a 8x DET 25a 26x Q Front view Front view Side view...
-
Page 24: Installation Instructions
CL3G Outdoor Sauna 52D" x 54W" x 82H" Installation Instructions When building a wooden product, it is important to follow all installation instructions to ensure the quality and durability is guaranteed. Important! 123456789 Identification number of the Product / Serial Number: Must be accompanied by the serial number to identify the product. - Page 25 CL3G Outdoor Sauna 52D" x 54W" x 82H" Door and Window Maintenance Regular checks: Regularly inspect window and door hinges and locks. Tighten loose components and lubricate as needed. DOOR ADJUSTMENT INSTRUCTIONS You will need 3-mm (6) and 5-mm (3) hexagon keys for adjusting the hinges. Remove the plastic ...
- Page 26 CL3G Outdoor Sauna 52D" x 54W" x 82H" Wood Protection and Maintenance Protective coating: Apply a wood preservative at least once a year (or more often) to improve resistance to dirt and moisture, make cleaning easier, and extend the lifespan of the product.
- Page 27 CL3G Outdoor Sauna 52D" x 54W" x 82H" Avoid unsuitable products: Avoid paints, varnishes, harsh disinfectants, or pressure washers, as these can damage the wood. Hardware checks: Inspect bench and support mountings. Tighten loose screws if necessary, as wood can loosen due to heat and moisture fluctuations. What to Avoid in Your Sauna Drying textiles: Avoid drying textiles in the sauna due to fire hazards and potential wood ...
