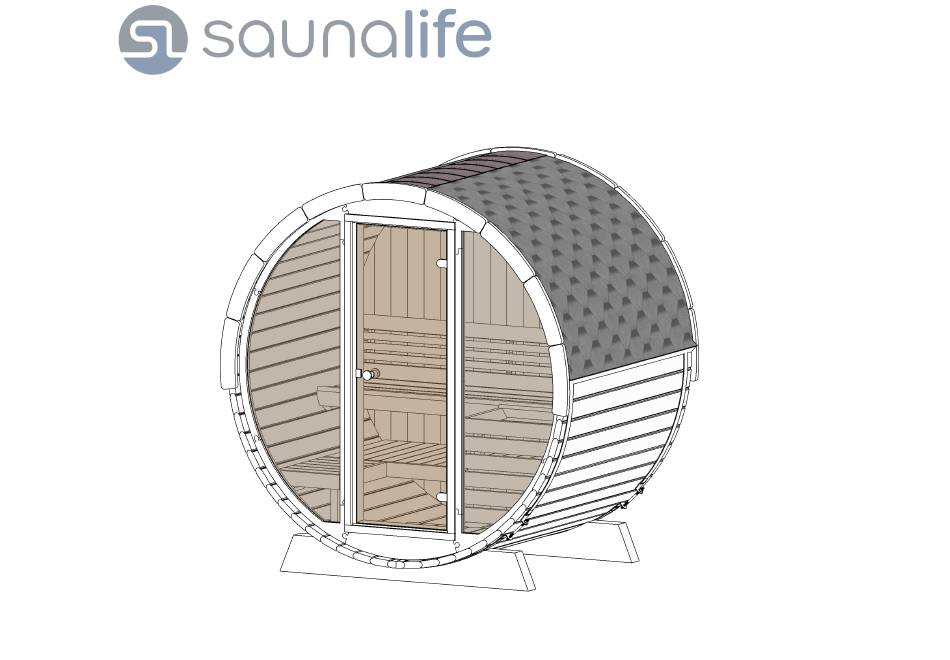

- Page 1 Ergo-Series EE6G Barrel Sauna Full Glass Front 63D" x 90H" Note: Please read manual before construction Rev: 1.0_9/2023...
- Page 2 Front & Back Walls...
- Page 3 EE6G Barrel Sauna 63D" x 90H" Details list 1. x2 kmpl.
- Page 4 EE6G Barrel Sauna 63D" x 90H" Details list 2. (x4) Bit PH2 (x4) Torx bits T10 T15 (x2) ~320 (x15) (x80) (x20) (x180) (x45) T20 T25...
-
Page 5: Tools Needed
Tools needed Measuring tape Marker pen Circular saw Water level Hammer Extra hands Silicone gun Ratchet strap (Only glass-wall models) Drill Cresent wrench Utility knife Rubber mallet... - Page 6 Front glass wall installation Thickness .62" Thickness 1.06" Apply waterproof Baseframe 1.06" DET 1 silicone to the groove Use piece of wood to protect plywood DET 4a DET 3b DET 3a DET 4b DET 2...
- Page 7 Front glass wall installation Mount carefully glasses. ~.07" Coverframe .62" Apply waterproof silicone Use piece of wood to protect plywood DET 3 DET 1 DET 4 DET 2...
- Page 8 Front glass wall installation DET U Fix it diagonally to make wall more rigid during the installation. Please be careful!!! Do not hit the glass with the screw. 40X J min. .78" 2X I Please be careful!!! Do not hit the glass with the screw.
- Page 9 Wooden back wall assembly Details Brackets DET U inside. 4x H Pre-drill holes .15" Pre-drill holes .15" before screws. before screws. 4x I 2x H...
- Page 10 EE6G Barrel Sauna 63D" x 90H" Back Diagonal measurements should be equal DET 1 Front 4x M 2xDET A DET 1 4x M...
- Page 11 EE6G Barrel Sauna 63D" x 90H" 2x M Center stave 2 on DET 2 cradle 1 DET 3 Position cradles inside grooves of stave 2 mm=mm...
- Page 12 EE6G Barrel Sauna 63D" x 90H" 16x M...
- Page 13 EE6G Barrel Sauna 63D" x 90H" Drill 4 holes .50" through DET 2 outside 90° 4x H Check walls installation manual on extra pages! Sauna wall configuration depends on Your model! Brackets inside 3xDET 3 4x H Fix temporarily to support walls.
- Page 14 EE6G Barrel Sauna 63D" x 90H" Remove temporary bracing ~1/4 Important! Leave space IMPORTANT! Be sure to leave a .25" gap when tightening screws to leave room for adjustment when the outer bands (B) are installed. DET 3 See the next page. Strap Use strap to support DET 3...
- Page 15 EE6G Barrel Sauna 63D" x 90H" DET 6 Join two boards together (as shown in If needed, trim the flat edge of the diagram II) that will bridge the width of board to create the desired width. the "A" gap. It is recommended that the combined boards are approximately .25"...
- Page 16 EE6G Barrel Sauna 63D" x 90H" DET B1 DET B1 ~9.43" DET B DET B Remove strap 2x DET B Place the bands around the barrel on the outer side of the cradle.
- Page 17 EE6G Barrel Sauna 63D" x 90H" Remove all 1x DET G temporary braces 6x K Upper vent 3x DET F Lower vent 6x K 2x DET 10a 2x DET 11a 1x DET 12a 12x H Use waterlevel for installation!
- Page 18 EE6G Barrel Sauna 63D" x 90H" 6x H 1x DET 12 1x DET 11 2x H 2x M 1x DET 10 1x M Pre-drill holes .12" 4x H 2x H 1x DET 12b Cut on right size 2x M...
- Page 19 EE6G Barrel Sauna 63D" x 90H" 1x DET 10b 1x DET 14 Cut on right size 3x H 6x H 1x DET 13 X= Front wall thickness Wooden front wall 1.12" Glass front wall 1.62" 2x M 1x DET 20 2x DET 20c 2x DET 20d 18x H...
- Page 20 EE6G Barrel Sauna 63D" x 90H" Ensure door frame is pressed Please be careful!!! Do not tightly against the wall and hit the glass with the screw. 1x DET 15a fasten from inside Fasten the screws 1x DET 16 1x DET 15b at a slight angle.
- Page 21 EE6G Barrel Sauna 63D" x 90H" DET N NB! Check also shingles installation manual inside shingles package. Shingles overlap on top ~.39" Check also roof shingles installation manual inside package. Refract DET N into 3 pieces. DET N DET O Cut and use it other end.
- Page 22 EE6G Barrel Sauna 63D" x 90H" 9xDET 25 9xDET 25 18x H 18x H Remove DET A...
